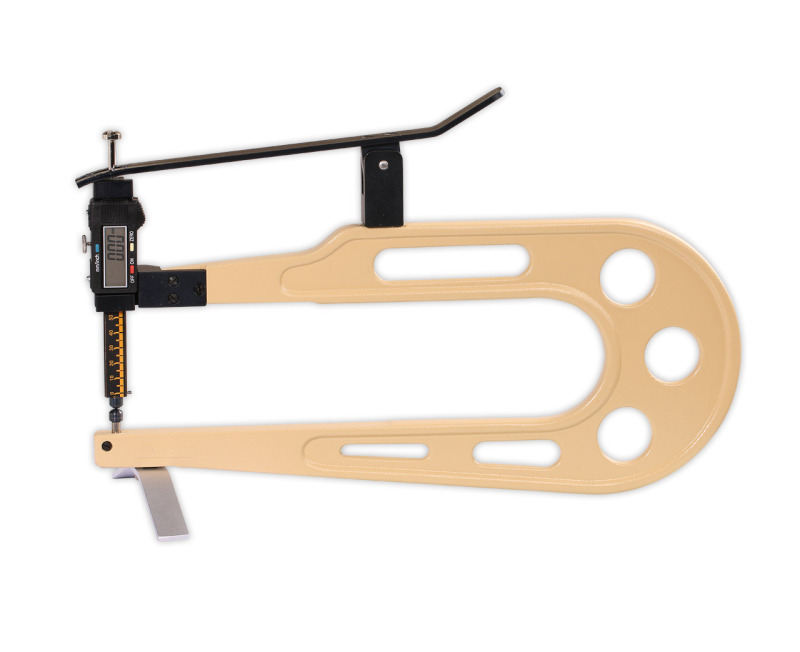

    BDTG-300-50 Digital Thickness Gauge

    The BDTG-300-50 digital thickness gauge is intended for thickness measurement of oversized, wide or recessed material samples where standard jaw depths are insufficient. Typical applications include technical textiles, rubber sheets, plastic panels, cardboard, plywood and composite materials.

    With a 300 mm jaw depth, this instrument allows stable and controlled measurements across the full 0–50 mm range, delivering a resolution of 0.01 mm even on large or difficult-to-handle samples.

    Key Features:

    • Extended Measuring Reach: 300 mm jaw depth enables access to wide samples and internal measurement points.
    • RS-232 Data Output: Supports digital data transfer to PCs, printers or statistical process control systems.
    • Controlled Lever Mechanism: Assists safe and repeatable positioning of large-format materials.
    • Constant Measuring Force: Spring-loaded system applies uniform pressure regardless of material type.
    • Digital Display: Clear LCD readout with selectable units in millimetres or inches.
    Key Benefits:

    • Ideal for Large Samples: Designed specifically for applications where extended jaw depth is essential.
    • Consistent Results on Soft Materials: Constant-force system reduces compression-related measurement errors.
    • Improved Operator Control: Lever-assisted operation simplifies handling of bulky or flexible samples.
    • Process Integration Ready: Digital output enables traceable measurement workflows.


    Contact us for technical guidance or to confirm suitability for your specific measurement task.
    Price from € 441,00
    Order now
    • 0.01 mm Resolution: Accurate digital measurement across the full 0–50 mm range.
    • Calibration Certificate Included: Supplied calibrated and ready for immediate use.
    Available Models

    Available Models

    ModelRangeResolutionJaw Depth
    BDTG-200-500 - 50 mm0.01 mm200 mm
    BDTG-300-500 - 50 mm0.01 mm300 mm
    BDTG-350-750 - 75 mm0.01 mm350 mm
    BDTG-400-1000 - 100 mm0.01 mm400 mm
    Feeler Types

    To place the order, please specify the desired feeler, for example: BDTG-300-50-B for a gauge with feeler B. This means that NOT all feelers are included in the package!

    Feeler RMU A

    Feeler: A

    For hard leather, glass, metal sheets.
    Feeler RMU B

    Feeler: B

    For wood, rubber, soft leather, foil, etc.
    Feeler RMU C

    Feeler: C

    For soft rubber, felt, fleece.
    Feeler RMU D

    Feeler: D

    For rubber rings, round materials.
    Feeler RMU E

    Feeler: E

    For paper, cardboard, chipboard and fiberboard, and plywood.
    Feeler RMU F

    Feeler: F

    For metal sheets, glass, round materials.
    Feeler RMU G

    Feeler: G

    For very rigid materials.
    Feeler RMU H

    Feeler: H

    For foams and insulating materials.
    Feeler RMU I

    Feeler: I

    For very soft foams and insulating materials.
    Feeler RMU M

    Feeler: M

    For rubber sheets, felt, soft materials.
    Resolution:0.01 mm
    Measuring range:50 mm
    Jaw depth:300 mm
    Measuring pressure:2 N
    Measuring principle:Self closing
    Feeler shape:A/B/C/D/E/F/G/H/I/M
    Display:LCD 7 mm high
    Measuring system:Sylvac
    Weight, net (gross):1000 g (1050 g)

    Order Now

    Products
    Item Product Price  Quantity Action
    135747BDTG-300-50-B - Thickness Gauge, Feeler B € 441,00
    135765BDTG-300-50-C - Thickness Gauge, Feeler C € 441,00
    138721BDTG-300-50-D - Thickness Gauge, Feeler D € 441,00
    136211BDTG-300-50-E - Thickness Gauge, Feeler E € 441,00
    135967BDTG-300-50-G - Thickness Gauge, Feeler G € 441,00
    136551BDTG-300-50-H Thickness Gauge, Feeler H € 450,00
    134261BDTG-300-50-M Thickness Gauge with feeler M € 441,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
