Digital Thickness Gauges

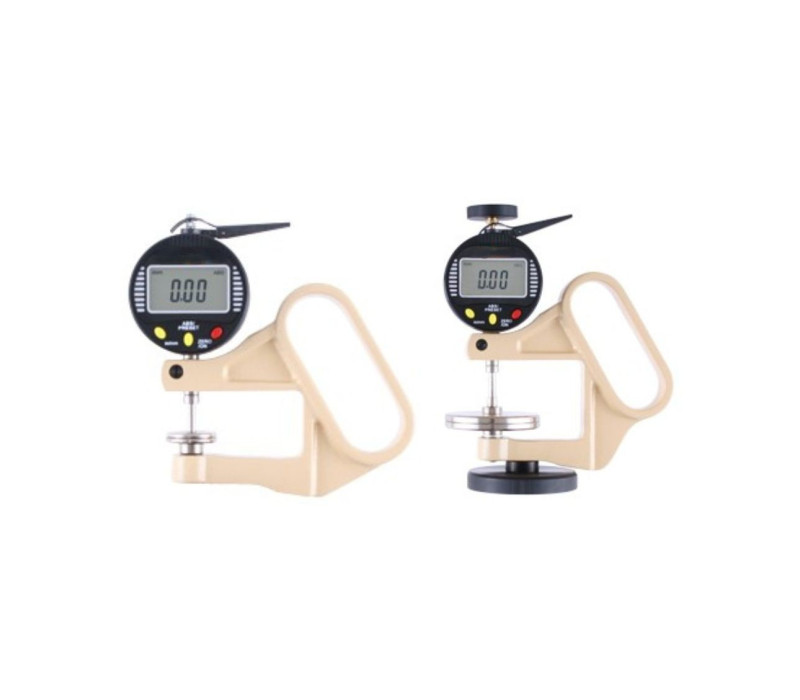

Explore the DTG-50 digital thickness gauges, designed to accurately determine the thickness of a variety of materials such as leather, textiles, cardboard, felt, rubber, sheet metal, plywood, and plastic. These models are distinguished by their self-closing mechanism that ensures maximum accuracy and a resolution of 0.01 mm across the measurement range. Two models available:

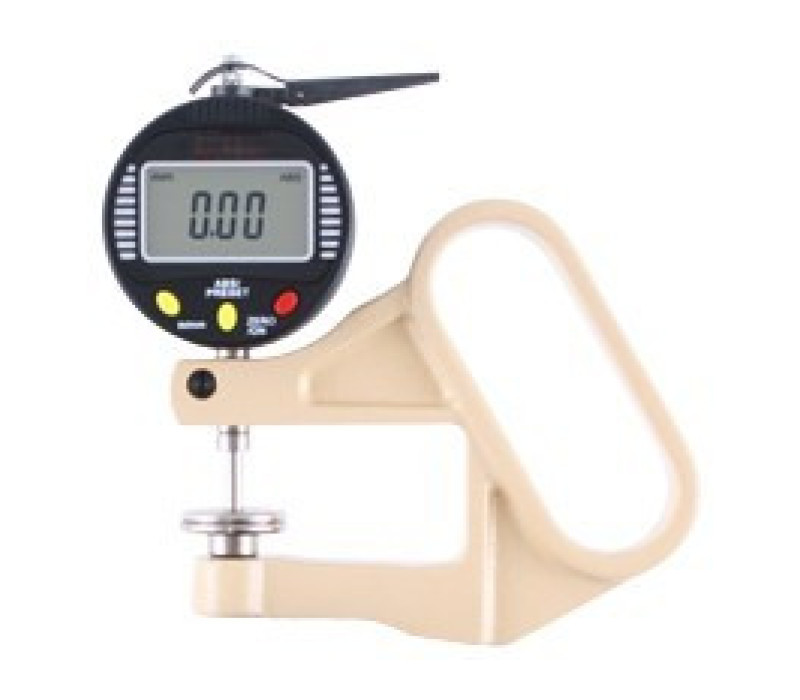

- DTG-50-10: Measuring range from 0 to 10 mm, suitable for standard measurements.

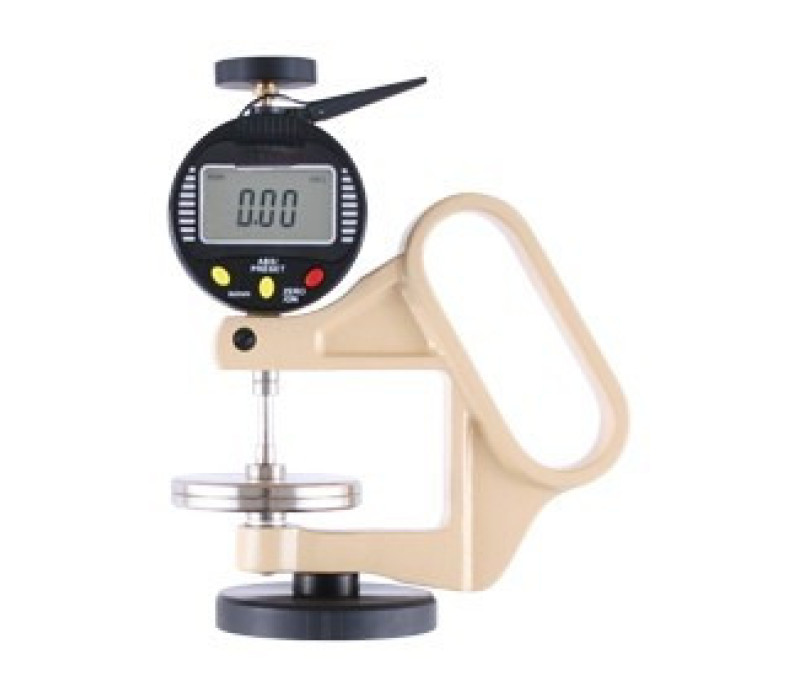

- DTG-50-25: Measuring range from 0 to 25 mm, ideal for thicker materials.

Key Features:

Self-Closing Mechanism: Ensures precise and repeatable measurements, ideal for high-precision applications.
RS-232 Output: Allows for efficient digital data collection, facilitating integration with other digital systems.
LCD Display: Shows user-selectable measuring units, in millimetres or inches, providing flexibility and convenience.
Zero Button: Enables quick calibration of the device before each measurement, ensuring the accuracy of the results.

Key Benefits:

Application Versatility: Suitable for measuring a wide range of materials, making it an essential tool in numerous industrial sectors.
Reliability and Durability: Constructed with high-quality materials that ensure durability and reliability in demanding industrial environments.
Ease of Use: Its intuitive design and ease of operation allow any user to perform quick and accurate measurements.

Contact us for more information on how the DTG-50 thickness gauges can enhance the precision in your measuring processes.

Price from € 331,00

Order now

Thickness Gauge with Calibration Certificate: Each device comes with a calibration certificate, ensuring that measurements meet precision standards from the first use.
Compatible Accessories: Availability of various feelers to adapt to different types of materials and applications, further enhancing the functionality of the gauge.

Available models

Model	Range	Resolution	Depth of Jaw
DTG-50-10	0 - 10 mm	0.01 mm	50 mm
DTG-50-25	0 - 25 mm	0.01 mm	50 mm
DTG-200-10	0 - 10 mm	0.01 mm	200 mm
DTG-200-25	0 - 25 mm	0.01 mm	200 mm
DTG-300-10	0 - 10 mm	0.01 mm	300 mm
DTG-300-25	0 - 25 mm	0.01 mm	300 mm
DTG-500-10	0 - 10 mm	0.01 mm	500 mm
DTG-500-25	0 - 25 mm	0.01 mm	500 mm

Feeler Types

To place the order, please specify the desired feeler, for example: DTG-50-10-B for a gauge with feeler B. This means that NOT all feelers are included in the package!

	Feeler: A For hard leather, glass, metal sheets.
	Feeler: B For wood, rubber, soft leather, foil, etc.
	Feeler: C For soft rubber, felt, fleece.
	Feeler: D For rubber rings, round materials.
	Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood.
	Feeler: F For metal sheets, glass, round materials.
	Feeler: G For very rigid materials.
	Feeler: H For foams and insulating materials.
	Feeler: I For very soft foams and insulating materials.
	Feeler: M For rubber sheets, felt, soft materials.

Resolution:	0.01 mm
Measuring range:	DTG-50-10: 0-10 mm DTG-50-25: 0-25 mm
Depth of jaw:	50 mm
Measuring pressure:	2 N
Measuring principle:	Self closing
Feeler shape:	A/B/C/D/E/F/G/H/I/M
Display:	LCD 4 digit, 8 mm high
Measuring system:	Sylvac
Weight, net (gross):	300 g (350 g)

Products

Item	Product	Price
137774	DTG-50-10-A Thickness gauge with feeler A (⌀ 6 mm)	€ 340,00
137782	DTG-50-10-B Thickness gauge with feeler B (⌀ 10 mm)	€ 331,00
137214	DTG-50-10-C Thickness gauge with feeler C (⌀ 25 mm)	€ 331,00
137291	DTG-50-10-D Thickness gauge with feeler D (⌀ 5 mm)	€ 331,00
134653	DTG-50-10-E Thickness gauge with feeler E (⌀ 16 mm)	€ 331,00
137775	DTG-50-10-F Thickness gauge with feeler F (⌀ 3.5 mm)	€ 331,00
134829	DTG-50-10-G Thickness gauge with feeler G (⌀ 1.5 mm)	€ 331,00
136500	DTG-50-10-H Thickness gauge with feeler H (⌀ 30 mm)	€ 340,00
136115	DTG-50-10-I Thickness gauge with feeler I (⌀ 50 mm)	€ 355,00
136619	DTG-50-10-M Thickness gauge with feeler M (⌀ 20 mm)	€ 331,00
136506	DTG-50-25-B Thickness gauge with feeler B (⌀ 25 mm)	€ 345,00
136140	DTG-50-25-C Thickness gauge with feeler C (⌀ 25 mm)	€ 345,00
137566	DTG-50-25-D Thickness gauge with feeler D (⌀ 5 mm)	€ 345,00
135593	DTG-50-25-E Thickness gauge with feeler E (⌀ 16 mm)	€ 345,00
134869	DTG-50-25-F Thickness gauge with feeler F (⌀ 3.5 mm)	€ 345,00
138257	DTG-50-25-G Thickness gauge with feeler G (⌀ 1.5 mm)	€ 345,00
135791	DTG-50-25-H Thickness gauge with feeler H (⌀ 30 mm)	€ 355,00
136116	DTG-50-25-I Thickness gauge with feeler I (⌀ 50 mm)	€ 370,00
137190	DTG-50-25-M Thickness gauge with feeler M (⌀ 20 mm)	€ 345,00

Accessories

Item	Product	Price	Quantity	Action
137722	CIC-THICKNESS-NEW GAUGE - Calibration Thickness Gauge (ordered with new gauge)	€ 58,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
