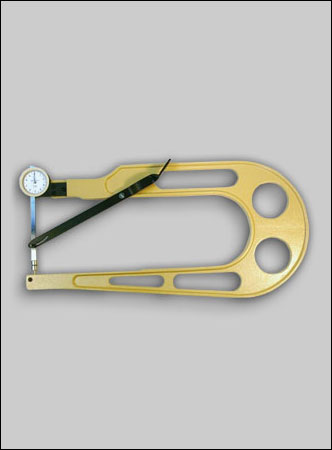

The ATG-350 analogue thickness gauge is designed to accurately measure the thickness of a wide variety of materials, including leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood, plastics and more. With its robust design and self-closing mechanism, it is ideal for industrial environments requiring fast and repeatable measurements.
Key Features:
Key Benefits:
Contact us for more information on how the ATG-350 can support your quality control and thickness measurement processes.
Model | Range | Resolution | Jaw Depth |
---|---|---|---|
ATG-200 | 0 - 25 mm | 0.01 mm | 200 mm |
ATG-200-50 | 0 - 50 mm | 0.01 mm | 200 mm |
ATG-300 | 0 - 25 mm | 0.01 mm | 300 mm |
ATG-300-50 | 0 - 50 mm | 0.01 mm | 300 mm |
ATG-350 | 0 - 75 mm | 0.01 mm | 350 mm |
ATG-400 | 0 - 100 mm | 0.01 mm | 400 mm |
ATG-500 | 0 - 25 mm | 0.01 mm | 500 mm |
ATG-500-50 | 0 - 50 mm | 0.01 mm | 500 mm |
ATG-650 | 0 - 50 mm | 0.01 mm | 650 mm |
To place the order, please specify the desired feeler, for example: ATG-350-B for a gauge with feeler B. This means that NOT all feelers are included in the package!
![]() |
Feeler: A For hard leather, glass, metal sheets. |
![]() |
Feeler: B For wood, rubber, soft leather, foil, etc. |
![]() |
Feeler: C For soft rubber, felt, fleece. |
![]() |
Feeler: D For rubber rings, round materials. |
![]() |
Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood. |
![]() |
Feeler: F For metal sheets, glass, round materials. |
![]() |
Feeler: G For very rigid materials. |
![]() |
Feeler: H For foams and insulating materials. |
![]() |
Feeler: I For very soft foams and insulating materials. |
![]() |
Feeler: M For rubber sheets, felt, soft materials. |
Resolution: | 0.1 mm |
Measuring range: | 0 - 75 mm |
Jaw depth: | 350 mm |
Measuring pressure: | 2 N |
Measuring principle: | Self-closing |
Feeler shape: | A/B/C/D/E/F/G/H/I/M |
Net weight (gross): | 1250 g (1300 g) |
