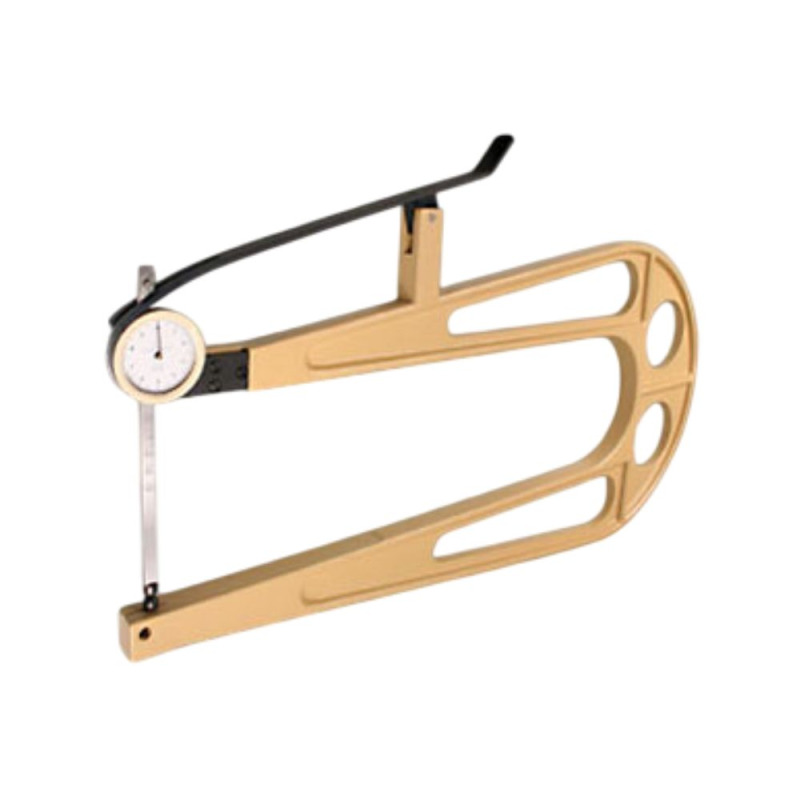

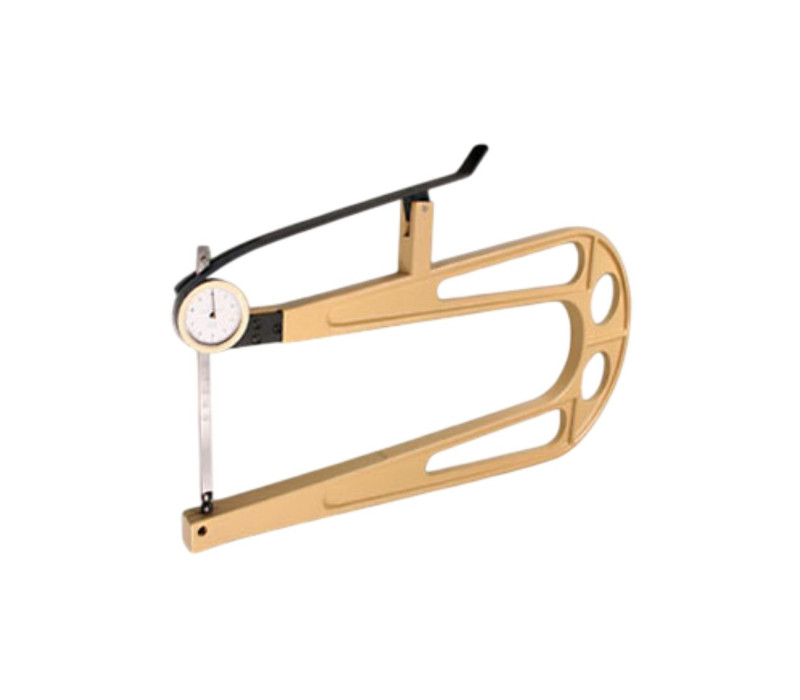

ATG-400 Analogue Thickness Gauge


The ATG-400 analogue thickness gauge is designed to precisely determine the thickness of a wide range of materials, including leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood and plastics. Its solid construction and self-closing mechanism make it ideal for demanding industrial applications that require consistent reliability and repeatability.

Key Features:

  • Lever-operated opening: Lifting mechanism enables fast and convenient operation.
  • Self-closing design: Resting position remains closed, ensuring consistent and accurate measurements.
  • Spring force measurement: Provides constant pressure for uniform readings.
  • Robust construction: Made of high-strength cast aluminium for demanding work environments.



Key Benefits:

  • Accurate measurements up to 100 mm: Ideal for thick materials or multilayered samples.
  • Versatile application: Suitable across various industries, including automotive, textiles, and packaging.
  • Easy integration: Can be mounted on a desktop stand for greater operator comfort.



Contact us for more information on how the ATG-400 can support your quality control requirements.


Features

  • Jaw depth: 400 mm, perfect for measuring large or hard-to-reach materials.
  • Measuring range: Up to 100 mm, with 0.1 mm resolution.

Available Models
ModelRangeResolutionJaw Depth
ATG-2000 - 25 mm0.1 mm200 mm
ATG-200-500 - 50 mm0.1 mm200 mm
ATG-3000 - 25 mm0.1 mm300 mm
ATG-300-500 - 50 mm0.1 mm300 mm
ATG-3500 - 75 mm0.1 mm350 mm
ATG-4000 - 100 mm0.1 mm400 mm
ATG-5000 - 25 mm0.1 mm500 mm
ATG-500-500 - 50 mm0.1 mm500 mm
ATG-6500 - 50 mm0.1 mm650 mm

Feeler Types

To place the order, please specify the desired feeler, for example: ATG-400-B for a gauge with feeler B. This means that NOT all feelers are included in the package!

Feeler RMU A

Feeler: A

For hard leather, glass, metal sheets.

Feeler RMU B

Feeler: B

For wood, rubber, soft leather, foil, etc.

Feeler RMU C

Feeler: C

For soft rubber, felt, fleece.

Feeler RMU D

Feeler: D

For rubber rings, round materials.

Feeler RMU E

Feeler: E

For paper, cardboard, chipboard and fiberboard, and plywood.

Feeler RMU F

Feeler: F

For metal sheets, glass, round materials.

Feeler RMU G

Feeler: G

For very rigid materials.

Feeler RMU H

Feeler: H

For foams and insulating materials.

Feeler RMU I

Feeler: I

For very soft foams and insulating materials.

Feeler RMU M

Feeler: M

For rubber sheets, felt, soft materials.


Specifications

Resolution:0.1 mm
Measuring range:0 - 100 mm
Jaw depth:400 mm
Measuring pressure:2 N
Measuring principle:Self-closing
Feeler shape:A/B/C/D/E/F/G/H/I/M
Net weight (gross):1400 g (1450 g)

Buy Now

Products

Product
Price
Quantity
132914
ATG-400-A - Thickness Gauge, measuring range 100 mm (diameter feeler 6mm)
€ 378,00
138037
ATG-400-B - Thickness Gauge, measuring range 100 mm (diameter feeler 10mm)
€ 399,00
134532
ATG-400-C - Thickness Gauge, measuring range 100 mm (diameter feeler 25mm)
€ 369,00
135847
ATG-400-E - Thickness Gauge, measuring range 100 mm (diameter feeler 16mm)
€ 369,00
135483
ATG-400-H - Thickness Gauge, measuring range 100 mm (diameter feeler 30mm)
€ 409,00
134801
ATG-400-I - Thickness Gauge, measuring range 100 mm (diameter feeler 50mm)
€ 422,00
134640
ATG-400-M - Thickness Gauge, measuring range 100 mm (diameter feeler 20mm)
€ 369,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
