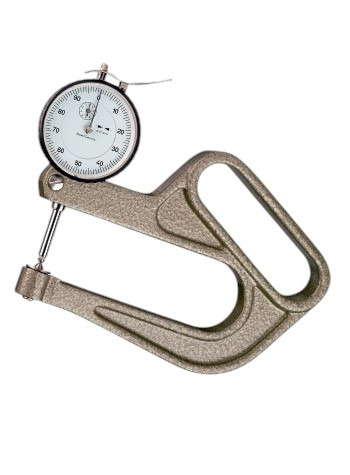

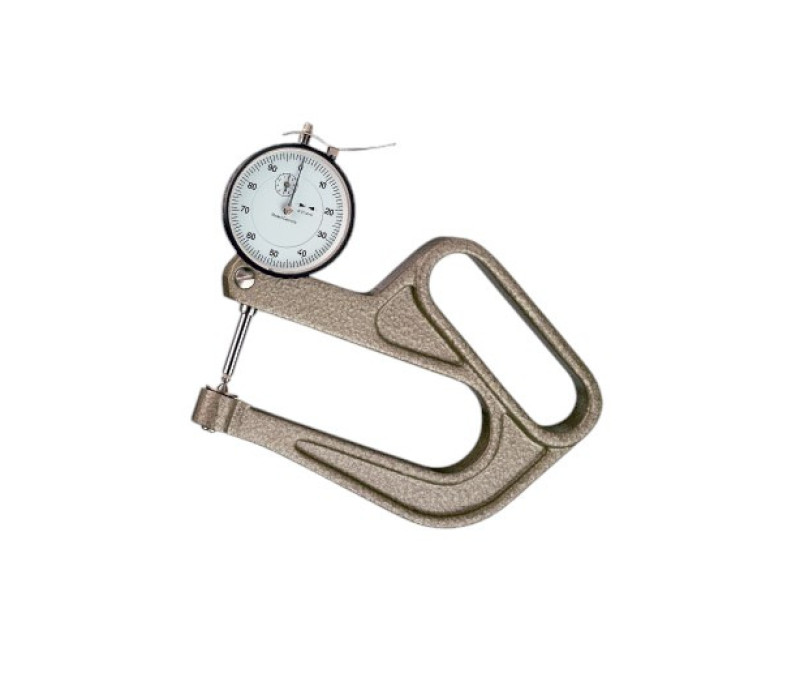

J-100 J-100 Thickness Gauge

Thickness Gauge

The J-100 thickness gauge is a reliable and precise solution for determining the thickness of a wide range of materials, including leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood, plastics, and other industrial components. Its robust design ensures consistent performance and long-term durability, even in demanding environments.

Key Features:

Jaw Depth: 100 mm, ideal for larger sample sizes.
High Precision: 0.01 mm resolution for detailed and accurate readings.
Plunger-Type Measurement: Manual pressure application enables quick and direct evaluations.
Ergonomic Operation: Lever-actuated opening with self-closing mechanism for continuous and comfortable use.

Main Benefits:

Versatile Use: Suitable for flexible, semi-rigid and rigid materials across a wide range of industries.
Lightweight Yet Durable: Aluminium housing combines robust strength with easy handling.
Easy Zeroing: Adjustable zero setting via external knurled ring.

Contact us to discover how the J-100 can be integrated into your quality control processes with efficiency and reliability.

€ 197,00

Order now

Measuring Range: 0 – 10 mm.
Net Weight: Approximately 450 g.
Bench Stand Compatible: Can be converted to a benchtop model with an optional accessory.

Feeler Shape

To place your order, please indicate the desired feeler, for example: J-100-B for a gauge with feeler B. This means that NOT all feelers are included in the package!

	Feeler: A For rubber, felt, soft materials, non-wovens, etc. Does not meet any DIN EN ISO standards. Custom type A feelers with diameters from 30 to 56 mm available on request at additional cost.
	Feeler: B For rubber, felt, soft materials, non-wovens, etc. Does not meet any DIN EN ISO standards.
	Feeler: C For soft leather, cardboard, paper, films, etc.
	Feeler: D For hard leather, plywood, fibre boards, etc.
	Feeler: E For sheet metal, etc.

Available Accessory: Table Stand for Thickness Gauges

	This table stand allows handheld thickness gauges to be converted into benchtop units, improving stability and ease of use.
	Dimensions in mm

Resolution:	0.01 mm
Measuring range:	10 mm
Depth of jaw:	100 mm
Scale diameter:	58 mm
Measuring pressure:	1.0 N
Feeler shape:	a,b,c,d or e
Measurement by spring load:	Operating by lifting device - self closing
Weight, net:	450 g

Products

Item	Product	Price
126002	J-100-A Thickness Gauge	€ 197,00
135846	J-100-B Thickness Gauge	€ 197,00
132293	J-100-C Thickness Gauge	€ 197,00
139680	J-100-D Thickness Gauge	€ 197,00
139681	J-100-E Thickness Gauge	€ 197,00

Accessories

Item	Product	Price	Quantity	Action
126836	Table Stand for Thickness Gauge	€ 85,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
