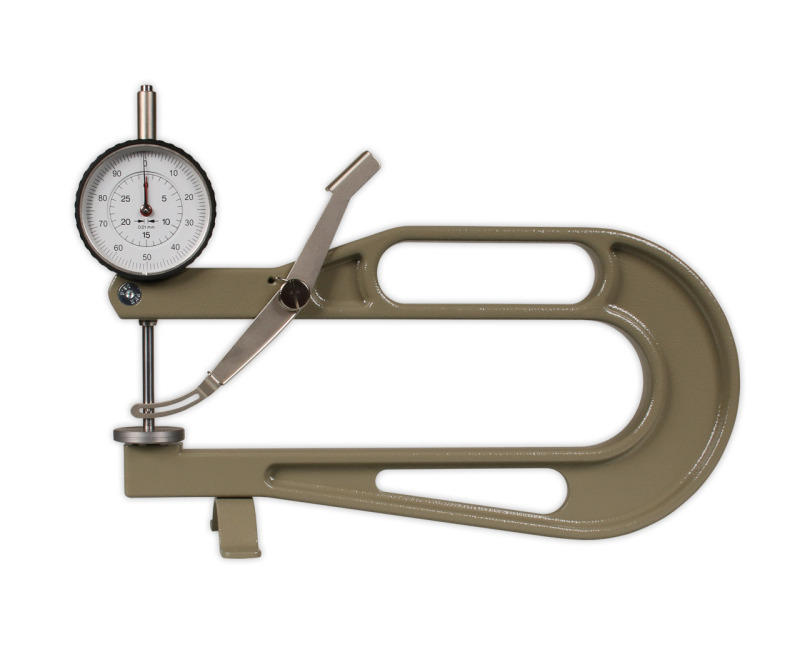

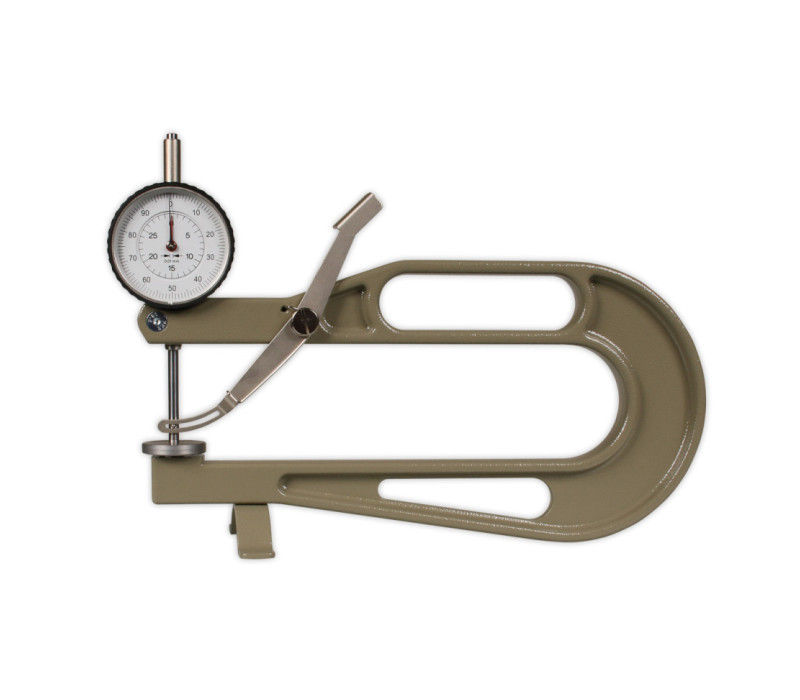

J-200-30 Thickness Gauge
Thickness gauges are used for measuring the thickness of leather, textile, cardboard, felt, rubber, sheet metal, foils, plywood, plastic parts of all kind, etc.
Depending on the application, the following points are important for selecting the best model:
- Max. resolution required
- Measuring range
- Depth of jaw
- Shape of feelers
- Measuring principle
The aluminum housing is lightweight and rugged. It can be easily zeroed by turning the outer knurled ring of the scale.
The J-200-30 model is available with 5 different feelers, which can be found below. Measurement by manual pressure by plunger
Features
- Operating by lifting device - self closing
- Resolution 0.01 mm
Specify the required sensor when ordering, e.g. K-50-2-B for the sensor blade unit. This means that NOT all sensors are included in the package.
Sensor: A
For rubber, cardboard*, soft materials*, fleece*, etc.
**Does not meet DIN EN ISO standard. Customised sensor type.
Diameters from 30 to 56 mm available on request and at extra cost
.Sensor: B
For rubber, felt*, soft materials*, fleece*, etc.
*Not DIN EN ISO compliant
Sensor: C
For leather, cardboard, paper, foil, etc.
Sensor: D
For hard leather, plywood, hard fibre board, etc.
.
Sensor: E.
For sheet metal etc.
.
Specifications
| Resolution: | 0.01 mm |
| Measuring range: | 30 mm |
| Depth of jaw: | 200 mm |
| Scale diameter: | 58 mm |
| Measuring pressure: | 2.0 N (On request: 1 N or 4 N) |
| Feeler shape: | a,b,c,d or e |
| Measurement by spring load: | Operating by lifting device - self closing |
| Weight, net: | 1100 g |
