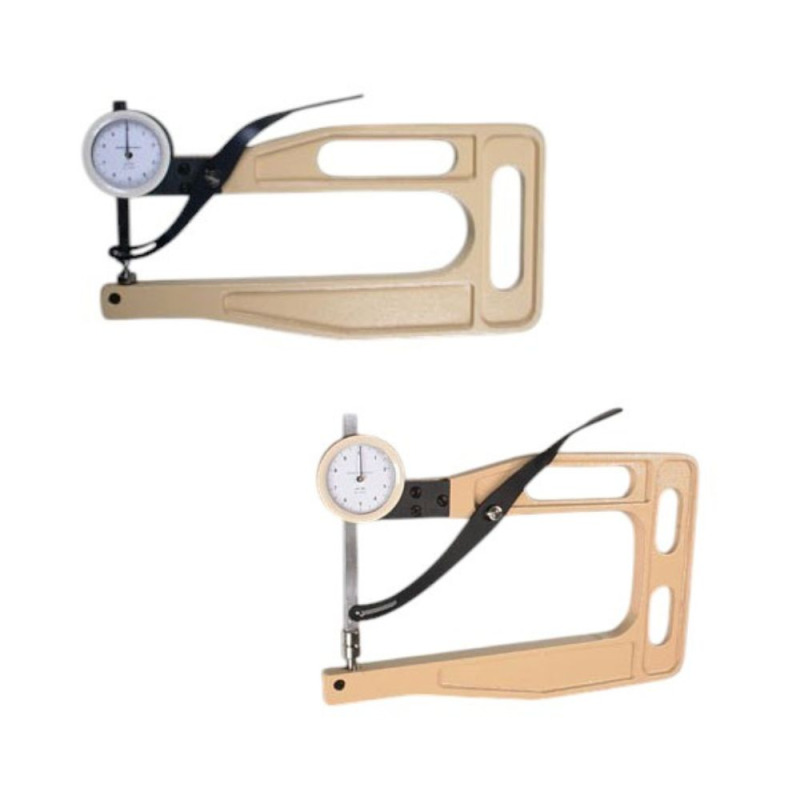

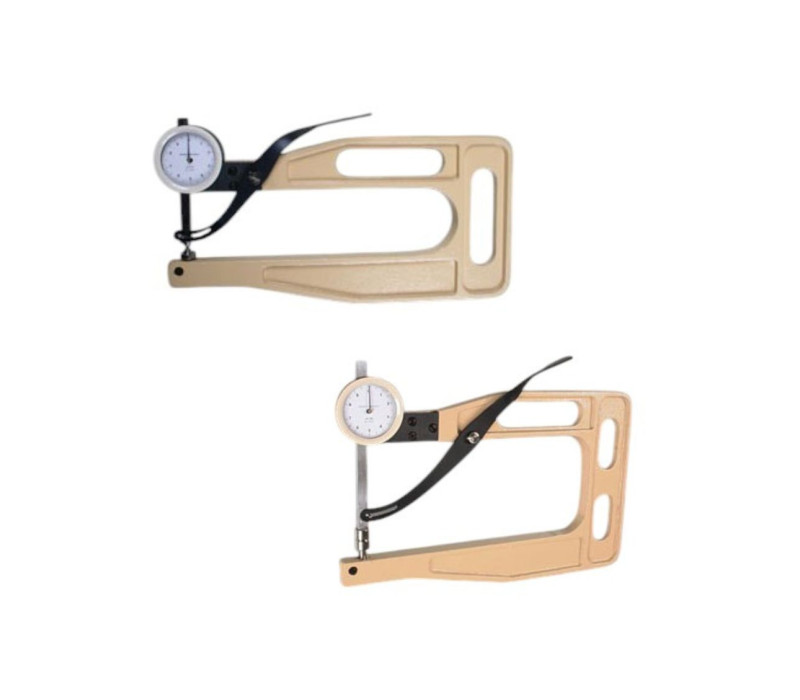

ATG-200 Analogue Thickness Gauges
The ATG-200 analogue thickness gauge is designed for accurate measurement of a wide range of materials, including leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood, plastics and more. Its robust construction and self-closing mechanism ensure consistent and repeatable results, even in demanding industrial environments. Available in two versions depending on the measuring range:

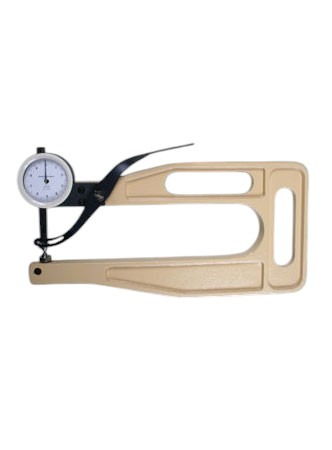

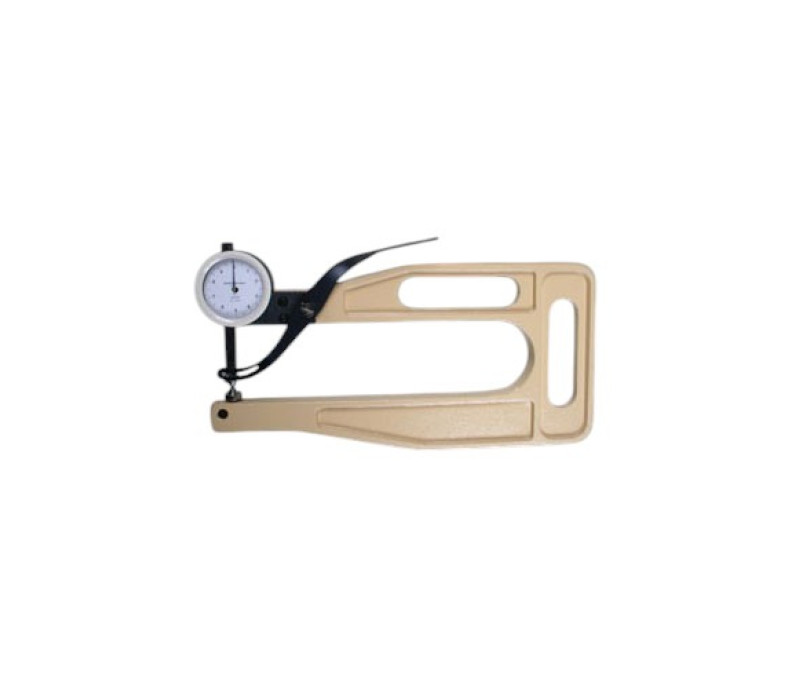

- ATG-200: Measuring range 0 to 25 mm

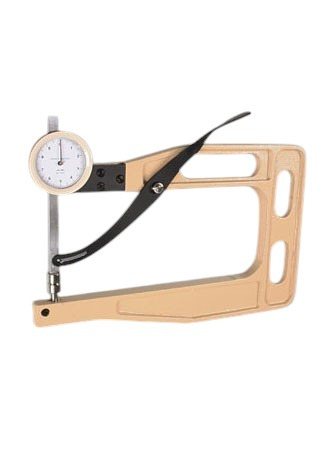

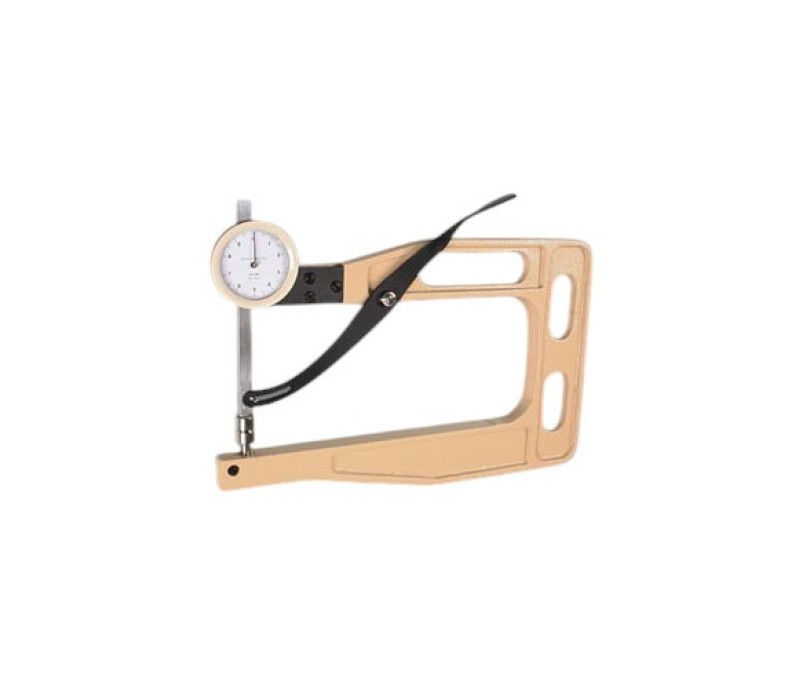

- ATG-200-50: Measuring range 0 to 50 mm
Key Features:
- Lever-operated opening: Ensures easy and ergonomic handling.
- Spring force measurement: Guarantees constant pressure on the material.
- Robust construction: Made from die-cast aluminium for maximum stability.
- Reliable accuracy: 0.1 mm resolution for clear and effective readings.
Main Benefits:
- Versatility: Suitable for a wide range of industries and material thicknesses.
- High repeatability: Minimises operator-induced measurement errors.
- Built for daily use: Durable and resilient for intensive working environments.
Contact us for more information on how the ATG-200 can enhance your quality control processes.
Features
- Jaw depth: 200 mm, ideal for large samples.
- Self-closing mechanism: The head automatically returns to its default position after each measurement.
| Model | Range | Resolution | Jaw Depth |
|---|---|---|---|
| ATG-200 | 0 - 25 mm | 0.01 mm | 200 mm |
| ATG-200-50 | 0 - 50 mm | 0.01 mm | 200 mm |
| ATG-300 | 0 - 25 mm | 0.01 mm | 300 mm |
| ATG-300-50 | 0 - 50 mm | 0.01 mm | 300 mm |
| ATG-350 | 0 - 75 mm | 0.01 mm | 350 mm |
| ATG-400 | 0 - 100 mm | 0.01 mm | 400 mm |
| ATG-500 | 0 - 25 mm | 0.01 mm | 500 mm |
| ATG-500-50 | 0 - 50 mm | 0.01 mm | 500 mm |
| ATG-650 | 0 - 50 mm | 0.01 mm | 650 mm |
To place the order, please specify the desired feeler, for example: ATG-200-B for a gauge with feeler B. This means that NOT all feelers are included in the package!
 |
Feeler: A For hard leather, glass, metal sheets. |
 |
Feeler: B For wood, rubber, soft leather, foil, etc. |
 |
Feeler: C For soft rubber, felt, fleece. |
 |
Feeler: D For rubber rings, round materials. |
 |
Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood. |
 |
Feeler: F For metal sheets, glass, round materials. |
 |
Feeler: G For very rigid materials. |
 |
Feeler: H For foams and insulating materials. |
 |
Feeler: I For very soft foams and insulating materials. |
 |
Feeler: M For rubber sheets, felt, soft materials. |
Specifications
| Resolution: | 0.1 mm |
| Measuring range: | ATG-200: 0–25 mm ATG-200-50: 0–50 mm |
| Jaw depth: | 200 mm |
| Measuring pressure: | 2 N |
| Measuring principle: | Self-closing |
| Feeler shape: | A/B/C/D/E/F/G/H/I/M |
| Net weight (gross): | 700 g (750 g) |
Buy Now
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
