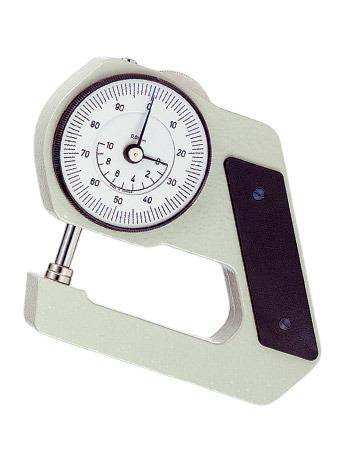

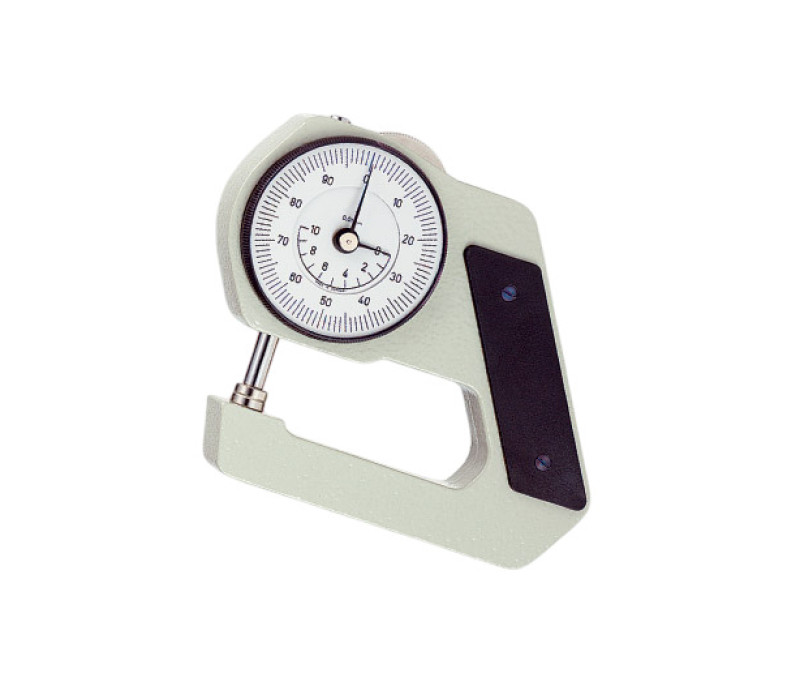

The J-45 model is a high-precision thickness gauge designed for measuring materials such as leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood, and plastics. With its compact structure and spring force measurement mechanism, this device provides consistently reliable results. Its robust construction and ergonomic design make it an essential tool for industrial environments and quality control processes.
Key Features:
Main Benefits:
Contact us for more information on how the J-45 can optimise your measurement processes.
Feeler: F
For soft leather, cardboard, paper, foils, knitting needles etc.
Resolution: | 0.01 mm |
Measuring range: | 10 mm |
Depth of jaw: | 45 mm |
Scale diameter: | 40 mm |
Measuring pressure: | 0.8 N |
Feeler shape: | f |
Measurement by spring load: | Opening by lifting wheel, self closing |
Weight, net: | 110 g |
