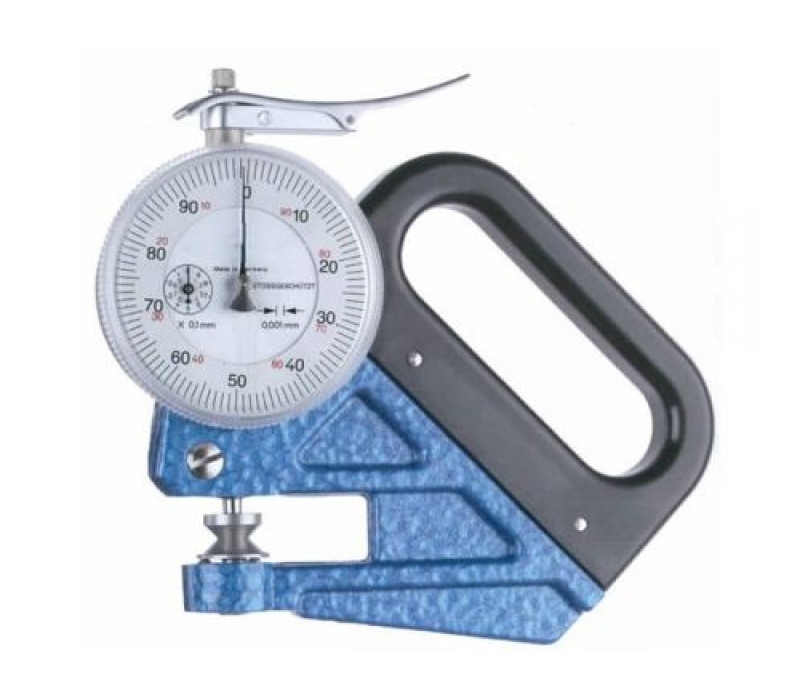

F-1101-30 F-1101-30 Precision Thickness Gauge for Foils

Precision Thickness Gauge for Foils

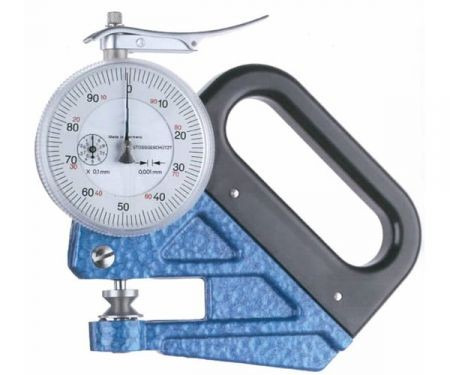

The F-1101-30 thickness gauge is specifically designed for the accurate measurement of foil thickness. Its robust structure and insulated handle ensure reliable readings by preventing heat transfer from the operator’s hand to the sensitive mechanical components of the dial indicator. Each complete revolution of the needle represents 0.1 mm, allowing for quick and detailed readings thanks to its 100 divisions per revolution.

Key Features:

High resolution: Measurement accuracy of 0.001 mm (1 µm) for extremely fine measurements.
Operation by lifting device – self-closing: Applies a consistent measuring force of approximately 2 N.
Insulated handle: Minimises thermal effects on the instrument, ensuring highly stable measurements.
Optimised reading: Thanks to 100 divisions per revolution, readings are faster and more accurate compared to the earlier model F-1000-30.

Main Benefits:

Precise measurement of foils: Specially designed to ensure high accuracy on very thin materials.
Durability and reliability: Robust construction for intensive use.
Quality control optimisation: Enables faster, more efficient, and highly accurate measurements.

Contact us for more information about how the F-1101-30 can help you guarantee maximum precision in your measurement processes.

€ 315,00

Order now

Jaw depth: 30 mm, suitable for small and hard-to-reach samples.
Measuring range: 1 mm, ideal for thin foils and reduced thickness materials.

Feeler Shape

Feeler: F

For soft leather, cardboard, paper, foils, knitting needles etc.

Available Accessory: Table Stand for Thickness Gauges

	This desktop stand allows handheld thickness gauges to be converted into benchtop units, improving stability and ease of use.
	Dimensions in mm

Resolution:	0.001 mm (1 µm)
Measuring range:	1 mm / 1000 µm
Accuracy:	± 3 µm
Depth of jaw:	30 mm
Scale diameter:	58 mm
Measuring pressure:	2.0 N (On request: 0.7 N)
Scale:	1 revolution = 0,1 mm
Measurment by spring load:	Operating by lifting device - self closing
Feeler Shape:	F - 6,35 mm Ø flat
Warranty:	1 year

Products

Item	Product	Price	Quantity	Action
130552	F-1101-30 Thickness Gauge (range 1 mm)	€ 315,00

Accessories

Item	Product	Price
126836	Table Stand for Thickness Gauge	€ 85,00
133009	MANUFACTURER-CERT-Calibration Certificate for New Thickness Gauge	€ 41,00
137722	CIC-THICKNESS-NEW GAUGE - Calibration Thickness Gauge (ordered with new gauge)	€ 58,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
