ATG-500 Analogue Thickness Gauges

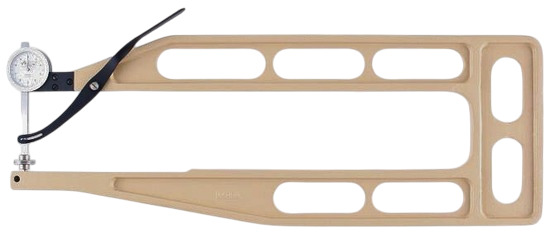

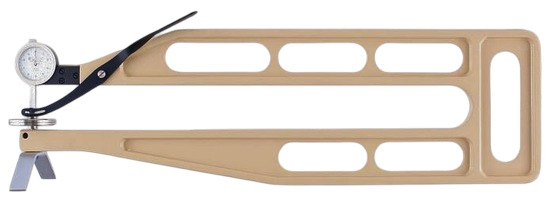

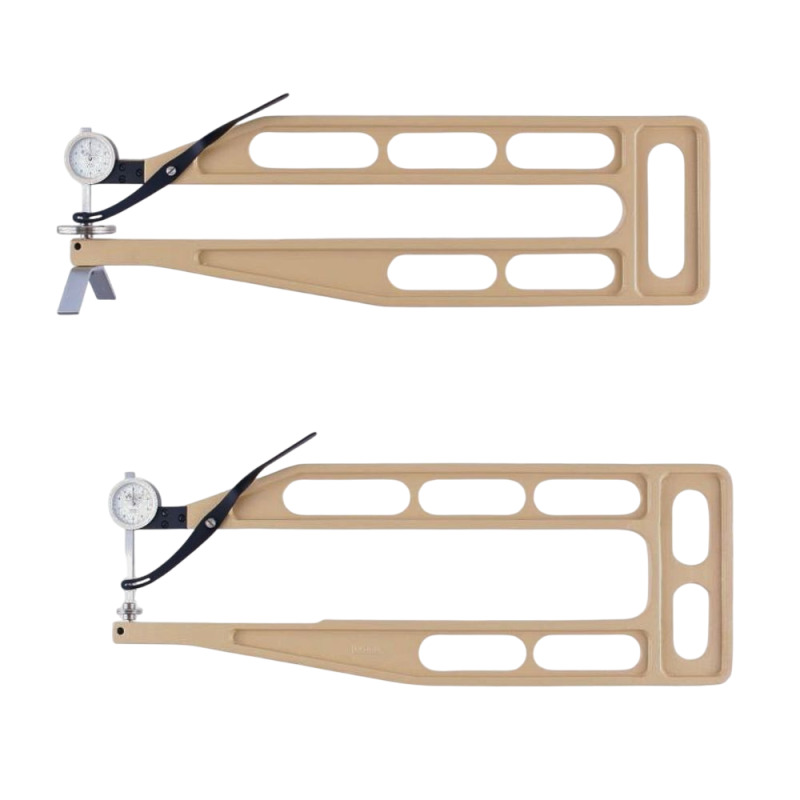

The ATG-500 analogue thickness gauge is designed to accurately determine the thickness of a wide variety of materials, such as leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood and plastics. With its self-closing mechanism and robust construction, it ensures reliable measurements even in demanding industrial environments. Available in two versions depending on the measuring range:
- ATG-500: Measuring range from 0 to 25 mm
- ATG-500-50: Measuring range from 0 to 50 mm
Key Features:
- Lever-operated opening: Easy-to-use lifting mechanism for precise handling.
- Automatic closing mechanism: Ensures the gauge remains closed when not in use, maintaining consistent measurement conditions.
- Spring force measurement: Ensures constant pressure is applied during each measurement.
- Robust design: Made with a cast aluminium frame for long service life and high durability.
Key Benefits:
- High precision: Reliable readings with 0.1 mm resolution for consistent quality control.
- Extended jaw depth: 500 mm, ideal for large samples or hard-to-reach areas.
- Versatile use: Suitable for various industries such as automotive, packaging, construction and more.
Contact us for further information or personalised advice on the ATG-500 and its configurations.
Features
- Available ranges: 0–25 mm (ATG-500) and 0–50 mm (ATG-500-50).
- Resolution: 0.1 mm for fast and accurate measurements.
| Model | Range | Resolution | Jaw Depth |
|---|---|---|---|
| ATG-200 | 0 - 25 mm | 0.01 mm | 200 mm |
| ATG-200-50 | 0 - 50 mm | 0.01 mm | 200 mm |
| ATG-300 | 0 - 25 mm | 0.01 mm | 300 mm |
| ATG-300-50 | 0 - 50 mm | 0.01 mm | 300 mm |
| ATG-350 | 0 - 75 mm | 0.01 mm | 350 mm |
| ATG-400 | 0 - 100 mm | 0.01 mm | 400 mm |
| ATG-500 | 0 - 25 mm | 0.01 mm | 500 mm |
| ATG-500-50 | 0 - 50 mm | 0.01 mm | 500 mm |
| ATG-650 | 0 - 50 mm | 0.01 mm | 650 mm |
To place the order, please specify the desired feeler, for example: ATG-500-B for a gauge with feeler B. This means that NOT all feelers are included in the package!
 |
Feeler: A For hard leather, glass, metal sheets. |
 |
Feeler: B For wood, rubber, soft leather, foil, etc. |
 |
Feeler: C For soft rubber, felt, fleece. |
 |
Feeler: D For rubber rings, round materials. |
 |
Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood. |
 |
Feeler: F For metal sheets, glass, round materials. |
 |
Feeler: G For very rigid materials. |
 |
Feeler: H For foams and insulating materials. |
 |
Feeler: I For very soft foams and insulating materials. |
 |
Feeler: M For rubber sheets, felt, soft materials. |
Specifications
| Resolution: | 0.1 mm |
| Measuring range: | ATG-500: 0–25 mm ATG-500-50: 0–50 mm |
| Jaw depth: | 500 mm |
| Measuring pressure: | 2 N |
| Measuring principle: | Self-closing |
| Feeler shape: | A/B/C/D/E/F/G/H/I/M |
| Net weight (gross): | 1600 g (1650 g) |
