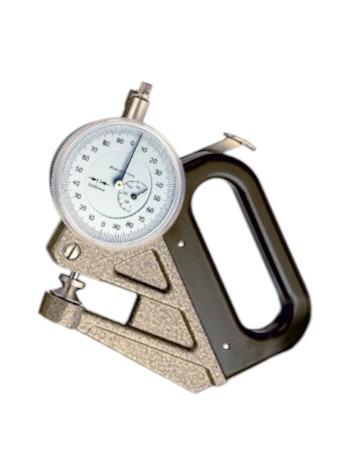

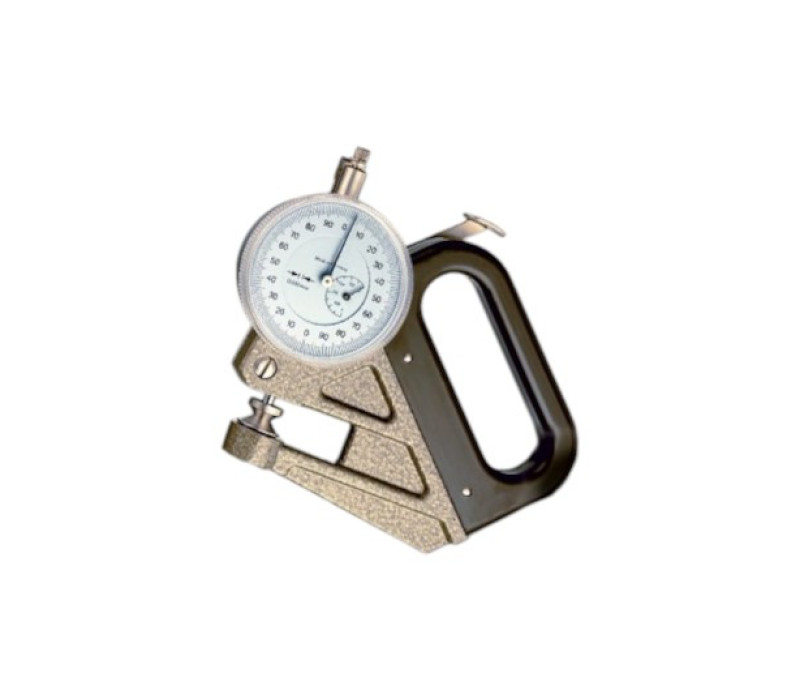

    Precision Thickness Gauge

    Made in Germany The F-1000-30 thickness gauge is specially designed for the precise measurement of foils and thin materials that require maximum accuracy. With a resolution of 0.001 mm (1 µm), it is ideal for applications where even the smallest thickness variations can be critical. Its insulated handle design prevents heat transfer from the operator’s hand, ensuring optimal thermal stability during measurement.

    Key Features:
    • Ultra-fine resolution: Reading accuracy of 0.001 mm for highly sensitive measurements.
    • Operation by lifting device – self-closing: Enables quick and controlled use with repeatable results.
    • Insulated handle: Minimises the influence of body heat on the mechanism, ensuring more stable and accurate readings.
    • Robust and lightweight construction: German-made, offering long-lasting durability without sacrificing precision.


    Main Benefits:
    • High precision for delicate materials: Ideal for films, thin metal sheets and other products with tight tolerances.
    • Reliable in demanding conditions: Thermal insulation improves consistency, even in variable environments.
    • Intuitive operation: Ergonomic design allows for safe and comfortable use, even during repetitive tasks.


    Contact us to learn more about how the F-1000-30 can enhance the precision and efficiency of your quality control processes.
    € 289,00
    Order now
    • Jaw depth: 30 mm, suitable for small or difficult-to-handle samples.
    • Measurement by spring force: Ensures constant pressure throughout the operation.
    Feeler Shape

    Feeler: F

    For soft leather, cardboard, paper, foils, knitting needles etc.





    Y1 no header
    Table stand

    This desktop stand allows handheld thickness gauges to be converted into benchtop units, improving stability and ease of use.
    table stand dimensions

    Dimensions in mm
    Resolution:0.001 mm
    Measuring range:1 mm
    Accuracy:± 5 µm
    Depth of jaw:30 mm
    Scale diameter:58 mm
    Measuring pressure:1,5-1,8 N (+/-20%) (On request: 2 N or 4.5 N)
    Scale:1 revolution = 0.02 mm (2 x 0 - 100)
    Feeler shape:F - 6.35 mm Ø flat
    Measurment by spring load:Operating by lifting device - self closing
    Weight, net:340 g
    Warranty:1 year

    Order Now

    Products
    Item Product Price  Quantity Action
    126017F-1000-30 Thickness Gauge € 289,00
    Accessories
    Item Product Price  Quantity Action
    133009MANUFACTURER-CERT-Calibration Certificate for New Thickness Gauge € 41,00
    126836Table Stand for Thickness Gauge € 85,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
