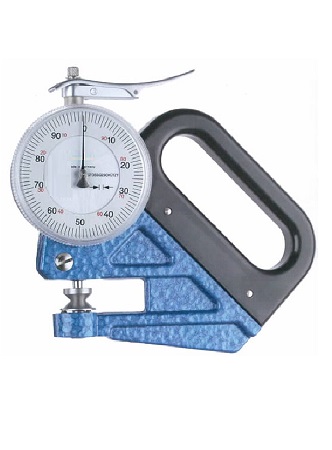

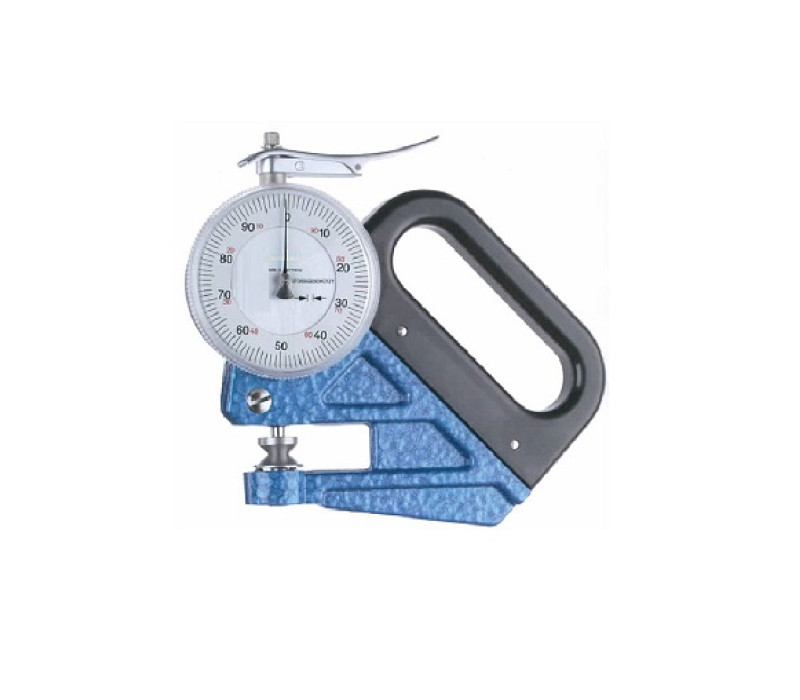

F-1101-30-01 F-1101-30-01 Precision Thickness Gauge for Thin Foils

Precision Thickness Gauge for Thin Foils

The F-1101-30-01 thickness gauge is specifically designed for the accurate measurement of thin foil thicknesses. Its robust construction and insulated handle prevent heat transfer from the user's hand to the sensitive mechanical components of the dial indicator, ensuring maximum reliability for every measurement. With a high resolution of 0.001 mm and an impressive accuracy of ±1.5 µm, it is the ideal tool for quality control processes involving ultra-thin materials.

Key Features:

High resolution: Measurement precision of 0.001 mm (1 µm) for ultra-thin foils.
High accuracy: Accuracy of ±1.5 µm ensures consistent and reliable results.
Operation by lifting device – self-closing: Applies a constant measuring force of approximately 2 N.
Insulated handle: Minimises thermal influence and maximises measurement stability.

Main Benefits:

Specialised for thin foils: Ideal for quality control of ultra-thin materials.
Measurement reliability: Robust design with high structural strength and thermal insulation.
Ease of reading: Dial indicator with a clear, precise scale for quick readings.

Contact us for more information about how the F-1101-30-01 can enhance your quality control processes for thin foils.

€ 343,00

Order now

Measuring range: 0 – 0.1 mm, specifically designed for extremely thin materials.
Jaw depth: 30 mm, ideal for small or hard-to-reach samples.

Feeler Shape

Feeler Shape
Feeler: F

For soft leather, cardboard, paper, foils, knitting needles etc.

Available Accessory: Table Stand for Thickness Gauges

	This desktop stand allows handheld thickness gauges to be converted into benchtop units, improving stability and ease of use.
	Dimensions in mm

Resolution:	0,001 mm (1 µm)
Measuring range:	0,1 mm / 100 µm
Accuracy:	± 1.5 µm
Depth of jaw:	30 mm
Scale diameter:	58 mm
Measuring pressure:	2,0 N
Scale:	1 revolution = 0,1 mm
Measurment by spring load:	Operating by lifting device - self closing
Feeler Shape:	F - 6,35 mm Ø flat
Warranty:	1 year

Products

Item	Product	Price	Quantity	Action
130379	F-1101-30-01 Thickness Gauge (range 0.1 mm)	€ 343,00

Accessories

Item	Product	Price	Quantity	Action
126836	Table Stand for Thickness Gauge	€ 85,00
133009	MANUFACTURER-CERT-Calibration Certificate for New Thickness Gauge	€ 41,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
