Coating Thickness Gauges / Paint Thickness Gauges


Coating thickness measurement can be based on different measuring principles.

Coating thickness gauges for ferrous and non-ferrous substrates

Coating thickness gauges for measuring non-ferrous coatings on ferrous substrates, for example plastic, lacquer or a zinc coating on iron. Often, these gauges are also referred to as a paint thickness gauges, as they are often used in the automotive industry to locate repainting works and repairs on car paint.

Paint thickness gauges for determining the coating thickness of insulating coatings on non-ferrous metallic substrates, like paint on aluminium.

Ultrasonic coating thickness gauges for coatings on concrete, plastic, wood and more

Ultrasonic coating thickness gauges for measuring the coating thickness on non-metallic substrates such as paint on wood, plastic or concrete.



Choose your model


Type

Probe Type

Application

Measuring Range

Data storage

Features

MiniTest 2500 - 4500 Coating Thickness Gauge

MiniTest 2500 - 4500
  • Standard & advanced model
  • Large selection of interchangeable sensors
  • MiniTest 4500 comes with USB & Bluetooth interface
Price € 845,00 - € 1.140,00
More information

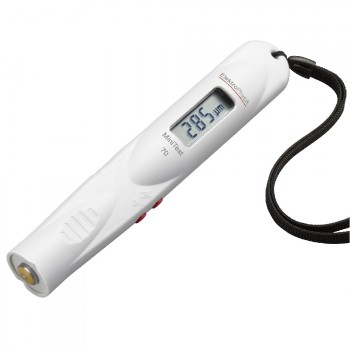

MiniTest 70 Coating Thickness Gauge

MiniTest 70
  • Pocket sized, compact coating thickness gauge
  • Range:
    Ferro substrates: 0 to 3.000 µm
    Non-Ferrous substrates: 0 to 2500 µm
  • Accuracy:
    1-point cal.: ±1.5 µm + 3% of reading
    2-point cal.: ±1.5 µm + 2% of reading
  • Probe: Integrated
  • Warranty: 1 year
Price € 560,00 - € 695,00
More information

MiniTest 70B - Basic Coating Thickness Gauge

MiniTest 70B
  • Pocket sized, compact coating thickness gauge
  • Range:
    Ferro substrates: 0 to 3.000 µm
    Non-Ferrous substrates: 0 to 2500 µm
  • Accuracy:
    1-point cal.: ±2 µm + 3% of reading
  • Probe: Integrated
  • Warranty: 1 year
Price € 580,00
More information

MiniTest 70E - Economic Coating Thickness Gauge

MiniTest 70E
  • Paint Thickness Gauge For Car Dealerships & Auto Body Shops
  • Substrates:
    Ferrous & non-ferrous metals
  • Range:
    Ferro substrates: 0 to 3.000 µm
    Non-Ferrous substrates: 0 to 2500 µm
  • Accuracy:
    ±3 µm plus 5% of reading
  • Probe: Integrated
  • Factory calibration, no calibration required
  • Warranty: 1 year
Price € 465,00
More information

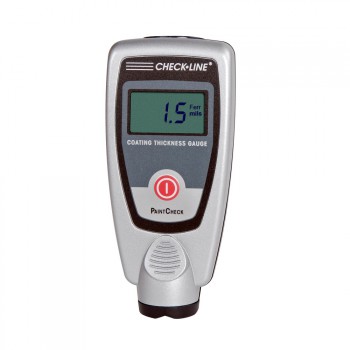

PaintCheck Paint Thickness Gauge

PaintCheck
  • Paint Thickness Gauge For Car Dealerships & Auto Body Shops
  • Substrates:
    Ferrous & non-ferrous metals
  • Range:
    0 - 2000 µm
  • Accuracy:
    ±5 µm plus 5% of reading
  • Resolution:
    5 µm (0.5 mils) or < 1% of reading
  • Probe: Integrated
  • No calibration required
  • Warranty: 1 year
Price € 395,00
More information

MiniTest 650E - Economic Coating Thickness Gauge

MiniTest 650E
  • Paint Thickness Gauge For Car Dealerships & Auto Body Shops
  • Range:
    650E-F: 0-3 mm
    650E-FN: 0-2 mm
  • Accuracy:
    ±3 µm plus 5% of reading
  • Probe: External
  • Warranty: 1 year
Price € 519,50
More information

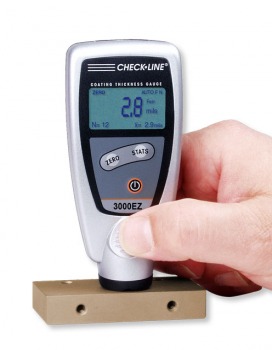

3000EZ Series Coating Thickness Gauge - Easy Operation

3000EZ Series
  • Small economical gauges for basic coating thickness measurement applications
  • Substrates:
    Ferrous & non-ferrous metals
  • Range:
    0-3500 µm (0-140 mils)
  • Accuracy:
    ±3 µm or 3% of reading, whichever is greater
  • Resolution:
    1 µm (0.1 mils) or
  • Probe: Integrated
  • Warranty: 1 year
Price € 575,00 - € 735,00
More information

PosiTest - DFT PosiTest - DFT Coating Thickness Gauge

PosiTest - DFT
  • Rugged coating thickness gauge with integrated probe, suitable for outdoor use
  • Measuring Range:
    0-1000 µm (0-40 mils)
  • Accuracy:
    ±2 µm + 3% of reading
  • Reversible display for inverted use
  • Probe: Integrated
  • Warranty: 2 years
Price € 483,00 - € 677,00
More information

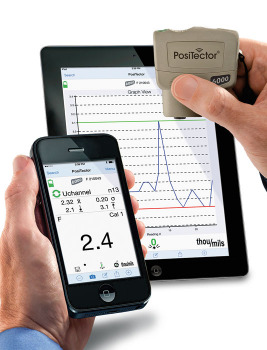

PosiTector 6000IP Intergral Probe Models

PosiTector 6000IP
  • Integral Probe Coating Thickness Gauge
  • Range:
    0 - 1500 µm
    0 - 60 mils
  • Accuracy:
    0-50 µm: ±1 µm + 1%
    > 50 µm: ±2 µm + 1%
  • Resolution:
    1 micron / 2 microns
    0.05 mil / 0.1 mil
  • Probe: Integrated
  • Warranty: 2 years
Price € 634,00 - € 1.506,00
More information

MiniTest 650B - Basic Coating Thickness Gauge

MiniTest 650B
  • Rugged and easy-to-handle coating tickness gauge
  • Range:
    650B-F: 0-3 mm
    650B-FN: 0-2 mm
  • Measuring Uncertainty:
    ±2 µm + 3%
  • Probe: External
  • Warranty: 1 year
Price € 629,50 - € 829,50
More information

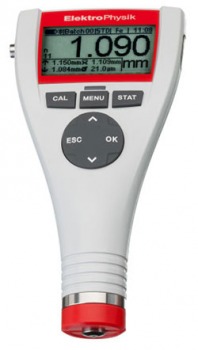

MiniTest 650 Coating Thickness Gauge

MiniTest 650
  • Rugged and easy-to-handle coating tickness gauge
  • Range:
    650F: 0-3 mm
    650N: 0-2 mm
    650FN: 0-2 mm
  • Measuring Uncertainty:
    ±2 µm + 2%
  • Interface: USB
    Data transfer program Msoft7000 basic edition
  • Probe: External
  • Warranty: 1 year
Price € 845,00 - € 1.095,00
More information

MiniTest 725 Coating Thickness Gauge with integrated sensor

MiniTest 725
  • Advanced coating thickness gauge with SIDSP® sensor
  • High accuracy
  • Probe: Integrated
Price € 815,00 - € 1.197,00
More information

Minitest 735 Coating Thickness Gauge with external probes connected via cable

Minitest 735
  • Advanced coating thickness gauge with SIDSP® sensor
  • High accuracy
  • Probe: External
Price € 959,50 - € 1.530,00
More information

MiniTest 745 Coating Thickness Gauge with Interchangeable Probes

MiniTest 745
  • Advanced coating thickness gauge with SIDSP® sensor
  • High accuracy
  • Probe: Internal & External, changeable
Price € 935,00
More information

DCF-900 Low Cost Coating Thickness Gauge - Measures Coatings On Steel

DCF-900
  • Economical gauge for basic coating thickness measurement on ferrous metals
  • Substrates:
    Ferrous metals
  • Range:
    0-999 µm
  • Resolution:
    1 µm
  • Accuracy:
    0-254 µm: ±2.54 µm
    254-999 µm: ±1% of reading
  • Probe: External
  • Warranty: 1 year
Price € 575,00
More information

3000FX Series Coating Thickness Gauge

3000FX Series
  • Hand-held coating thickness gauges with basic statistics and memory
  • Substrates:
    Ferrous & non-ferrous metals
  • Range:
    0-1500 µm (0-60.0 mils)
  • Resolution:
    0.1 µm (0.004 mils) or 0.2% of reading
  • Accuracy:
    ± 1µm (0.04 mils) + 1% of reading
  • Probe: External
  • Warranty: 1 year
Price € 825,00 - € 1.175,00
More information

3000EZ-E Series Coating Thickness Gauge with External Probe

3000EZ-E Series
  • Small, easy to use, economical gauges with external probe
  • Substrates:
    Ferrous & non-ferrous metals
  • Range:
    0-3500 µm (0-140 mils)
  • Resolution:
    1 µm (0.1 mils) or
  • Accuracy:
    ±3 µm or 3% of reading, whichever is greater
  • Probe: External
  • Warranty: 1 year
Price € 649,00 - € 795,00
More information

PosiPen Magnetic Pull-Off Thickness Gauge

PosiPen
  • The PosiPen magnetic pull-off thickness gage measures non-magnetic coatings such as paint, enamel, plating, & hot-dip galvanizing on steel.
  • Substrates:
    Ferrous metals
  • Measuring Range:
    5 to 500 µm (0.25 to 20 mils)
  • Probe: Integrated
  • Measures in both microns and mils
  • Warranty: 2 years
Price € 221,00
More information

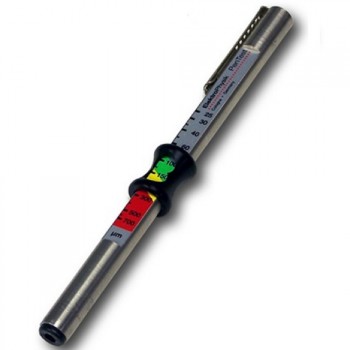

PenTest Magnetic pull-off Coating Thickness Gauge

PenTest
  • Magnetic pull-off coating thickness gauge
  • Measuring without power supply
  • Measurement value hold for exact readings

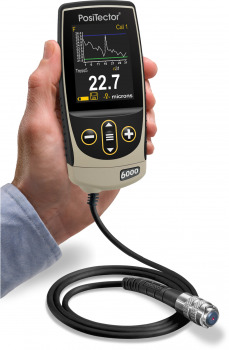

PosiTector 6000GP Coating Thickness Gauge

PosiTector 6000GP
  • General Purpose Coating Thickness Gauge
  • Range:
    0 - 1500 µm (0 - 60 mils)
  • Resolution:
    1 micron / 2 microns
    0.05 mil / 0.1 mil
  • Accuracy:
    0-50 µm: ±1 µm + 1%
    > 50 µm: ±2 µm + 1%
  • Warranty: 2 years
Price € 735,00 - € 1.545,00
More information

3000PRO Series Professional Coating Thickness Gauge

3000PRO Series
  • Professional coating thickness gauges with advanced statistics and memory
  • Substrates:
    Ferrous & non-ferrous metals
  • Range:
    0-1500 µm (0-60.0 mils)
    (Range of 0-10 mm available)
  • Resolution:
    0.1 µm (0.004 mils) or
  • Accuracy:
    ± 1µm (0.04 mils) + 1% of reading (typical)
  • Probe: External, interchangeable
    (Special probe for tube measurement available)
  • Warranty: 1 year
Price € 1.095,00 - € 1.950,00
More information

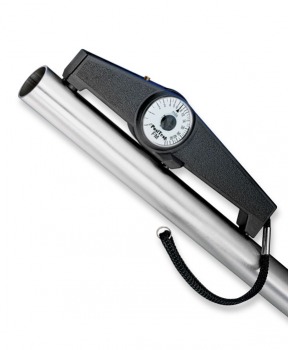

PosiTest PosiTest Magnetic Coating Thickness Gauge

PosiTest
  • Simple, rugged mechanical analoge coating thickness gauge for measuring coating thickness on magnetic substrates (steel/iron)
  • Substrates:
    Ferrous metals
  • 2 Ranges:
    0 - 200 µm
    0 - 2000 µm
  • Probe: Integrated
  • Explosion Proof - Refinery safe
  • Warranty: 2 years
Price € 321,00
More information

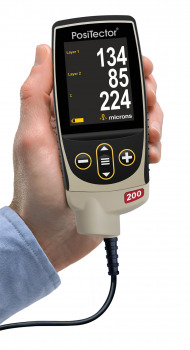

PosiTector 200 Coating Thickness Gauge for wood, concrete, plastic and more..

PosiTector 200
  • Coating thickness gauge for non-destructive measurement on wood, concrete and more
  • Substrates:
    Wood, concrete and many more non-metalic substrates
  • 2 Ranges available:
    13 - 1000 µm
    50 - 3800 µm
  • Probe: External, interchangeable
  • Warranty: 2 years
Price € 1.768,00 - € 2.514,00
More information

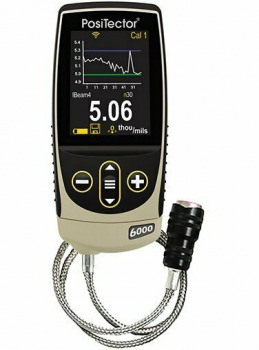

PosiTector 6000MP Micro Probe Models

PosiTector 6000MP
  • Micro Probe Coating Thickness Gauge
  • Range:
    0 - 625 microns
    0 - 25 mils
  • Resolution:
    1 micron / 2 microns
    0.05 mil / 0.1 mil
Price € 989,00 - € 1.394,00
More information

PosiTest-PC uncured powder tester

positest-pc
  • Powder Checker Non-Contact Coating Thickness Gauge
  • Range:
    20 to 100 microns (0.8 to 4.0 mils)
  • Resolution:
    1 µm (0.1 mil)
  • Accuracy: ± 5 µm (0,2 mil)
Price € 2.494,00
More information

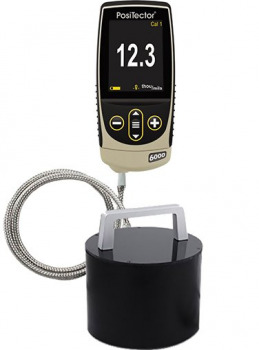

PosiTector 6000TC Thick Coating Model

PosiTector 6000TC
  • Thick Coating Thickness Gauge
  • Range:
    6 mm
    0 - 250 mils
  • Resolution:
    0.01 mm / 0.01 mm
    0.55 mil / 0.5 mil
Price € 735,00 - € 1.596,00
More information

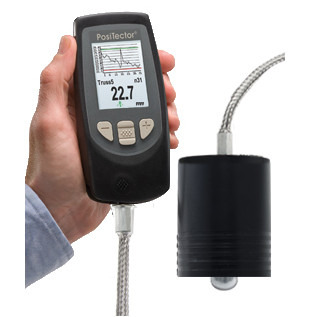

PosiTector 6000TCX Extra Thick Coating Models

PosiTector 6000TCX
  • Extra Thick Coating Thickness Gauge
  • Range:
    13mm
    0 - 500 mils
  • Resolution:
    0.02 mm / 1 mil
Price € 887,00 - € 1.313,00
More information

PosiTector 6000AN Anodizing Thickness Gauge

PosiTector 6000AN
  • High Precision Gauge for measuring Anodizing thickness on aluminum
  • Range: 0-25 mils
Price € 989,00 - € 1.394,00
More information

PosiTector 6000FHXS Coating Thickness Gauge

PosiTector 6000FHXS
  • For measuring on hot and rough surfaces
  • Temperature: up to 250° C (500° F)
  • Measuring Range:
    0 - 100 mm
    0 - 400 mils
  • Resolution:
    0.02 mm / 1 mil
Price € 1.292,00 - € 1.697,00
More information

PosiTector 6000GS Coating Thickness Gauge

PosiTector 6000GS
  • For non-destructive measurement of very thick coatings on ALL metals
  • Range:
    0 - 63,5 mm
  • Resolution:
    0.2 mm + 3%
Price € 1.647,00 - € 2.052,00
More information

PosiTector 6000FNDS - Coating Thickness Gauge for Duplex Coating Systems

PosiTector 6000FNDS
  • Coating Thickness Gauge for Duplex Coating Systems
  • Range:
    0 - 1500 µm
  • Paint Layer Accuracy: +(1 µm + 1%) 0 - 50 µm / +(2 µm + 1%) > 50 µm
    Zinc Layer Accuracy: +(2 µm + 1%) 0 - 50 µm / +(4 µm + 1%) > 50 µm
Price € 1.211,00 - € 1.616,00
More information

QuintSonic Ultrasonic Coating Thickness Gauge

QuintSonic
  • Ultrasonic coating thickness gauge
  • Non-destructive measurement of all types of coatings on various materials
  • Total thickness and single layer measurement of multi-layer systems
  • Probe: External

MiniTest 7400 High-precision Coating Thickness Gauge

MiniTest 7400
  • MiniTest 7400 professional coating thickness gauge for non-destructive measurements
  • Coating Thickness Measurement of non-magnetic coatings and insulating coatings
  • Coating Thickness measurements up to 15 mm
  • Wide range of external coating thickness probes available
Price € 1.745,00
More information

GalvanoTest GalvanoTest Coating Thickness Gauge

GalvanoTest
  • Versatile, sophisticated coating thickness gauge
  • Measurement of electroplated coatings on virtually all substrates
  • Measurement of single and multi-layer coatings
  • Coating thickness measurement on flat and curved surfaces
Price € 4.800,00 - € 5.494,00
More information

MikroTest MikroTest Magnetic Coating Thickness Gauge

MikroTest
  • Magnetic coating thickness gauge
  • 11 different analog models available for every application
  • Suitable for measurement on curved surfaces
Price € 470,00 - € 1.410,00
More information

SurfaTest wet film coating thickness gauge

SurfaTest
  • Wet Film Thickness Gauge
  • 16 measurement points
  • DIN EN ISO 2808, method 1A
Price € 33,00
More information

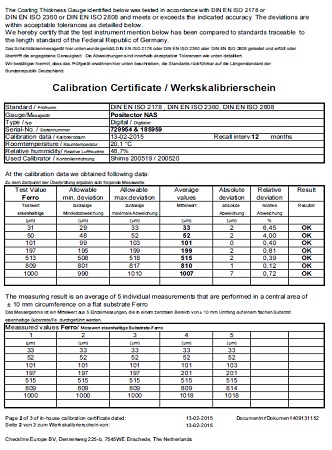

Cic-Coating Calibration Coating Thickness Gauge

Cic-Coating
  • Calibration of your coating thickness gauge
Price € 99,00 - € 125,00
More information

Coating Thickness Accessories

Coating Thickness Accessories
  • Accessories for coating thickness gauges
  • Test stands and accessories for coating thickness gauges

PosiTector-PC Powder Checker Non-Contact Coating Thickness Gauge

PosiTector-PC
  • Powder Checker Non-Contact Coating Thickness Gauge
  • Range:
    20 to 110 microns (0.8 to 4.3 mils)
  • Resolution:
    1 µm (0.05 mils)

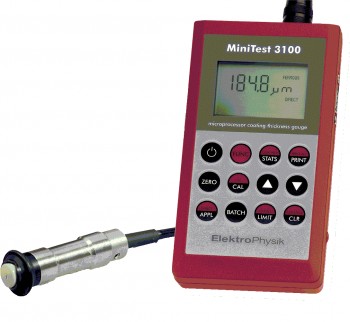

MiniTest 3100 Coating Thickness Gauge

MiniTest 3100
  • Small, universal coating thickness gauge
  • Variety of probes available for multiple applications
  • Measurement on steel and non-ferrous metals
  • Probe: External, changeable
