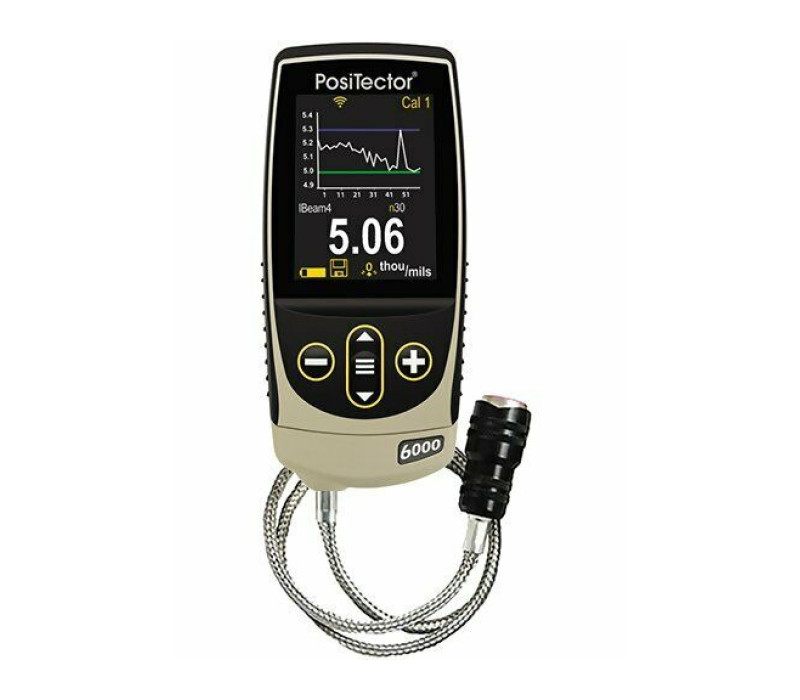

PosiTector 6000FHXS PosiTector 6000 FHXS Coating Thickness Gauge
PosiTector 6000 FHXS Coating Thickness Gauge

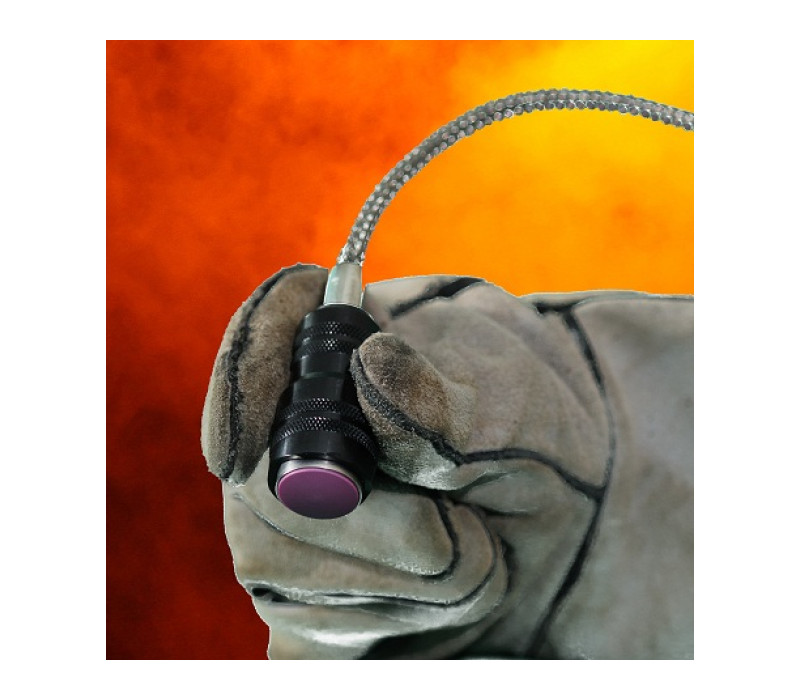

For Extreme EnvironmentsThe PosiTector 6000 FHXS Xtreme™ is a coating thickness gauge designed to operate under the toughest conditions, measuring coatings up to 10 mm on hot or rough surfaces. This device uses magnetic principles to accurately and quickly determine the thickness of non-magnetic coatings on ferrous substrates. Equipped with an alumina wear face and a braided steel cable, it is particularly suited for use on surfaces that reach temperatures up to 250°C.
Highlighted Features:
- Stainless Steel Cable and Alumina Wear Face: Maximizes durability and performance on rough and high-temperature surfaces.
- Extreme Accuracy: Capable of precisely measuring coatings up to 10,000 microns, thanks to its advanced magnetic technology.
- Enhanced User Interface: Simple one-handed navigation through an intuitive menu, with a display that stands out even in noisy environments.
- Integrated Temperature Compensation: Ensures accurate measurements in extreme temperature environments.
- Superior Ruggedness: Resistant to solvents, acids, oils, water, and dust, making it ideal for outdoor use and severe industrial environments.
- Easy to Use: Requires no calibration adjustments for most applications, allowing for quick and reliable measurements without complications.
- Adaptable Measurement: HiLo alarm functions and FAST mode for efficient and precise inspections, complying with international standards including ISO and ASTM.
Contact us to discover how the PosiTector 6000 FHXS can meet your coating measurement needs in extreme conditions and help you maintain the strictest quality standards.
Price from € 1.393,00
All Gauges are supplied as a complete kit including:
- precision plastic shims
- protective rubber holster with belt clip
- wrist strap
- 3 AAA alkaline batteries
- instructions
- nylon carrying case with shoulder strap
- protective lens shield
- Long Form Certificate of Calibration traceable to NIST
- USB cable
- two (2) year warranty
| Feature Comparison Chart | Standard (1) |
Advanced (3) |
| Hi Contrast LCD Display |
Color
|
Color
|
| General Features | Standard (1) |
Advanced (3) |
| FAST mode - faster measurement speed for quick inspection | ✔ | ✔ |
| SCAN Mode - take continuous readings without lifting the probe | - | ✔ |
| Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits | ✔ | ✔ |
| Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring | ✔ | ✔ |
| Onscreen help, real-time graphing, picture prompting and batch notes | - | ✔ |
| Memory Features & Capacity | Standard (1) |
Advanced (3) |
| Reading Storage Capacity | 1,000 in one group | 250,000 in up to 1,000 groups |
| Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. | - | ✔ |
| SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels | - | ✔ |
| PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings | - | ✔ |
| Multiple stored calibration adjustments for measuring on a variety of substrate conditions | - | ✔ |
| Connection Options | Standard (1) |
Advanced (3) |
| USB port for fast, simple connection to a PC and to supply continuous power. USB cable included | ✔ | ✔ |
| WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality | - | ✔ |
| Bluetooth Wireless Technology for data transfer to a PC or optional portable printer | - | ✔ |
| PosiSoft Solutions | Standard (1) |
Advanced (3) |
| PosiSoft Desktop Software for PC or Mac computer | ✔ | ✔ |
| PosiSoft USB Drive allows you to access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers. | ✔ | ✔ |
| PosiSoft.net, formerly PosiTector.net, is a cloud-based application offering centralized management of PosiTector readings. | ✔ | ✔ |
| PosiSoft Mobile gage-based software application featured in all PosiTector Advanced instruments | - | ✔ |
