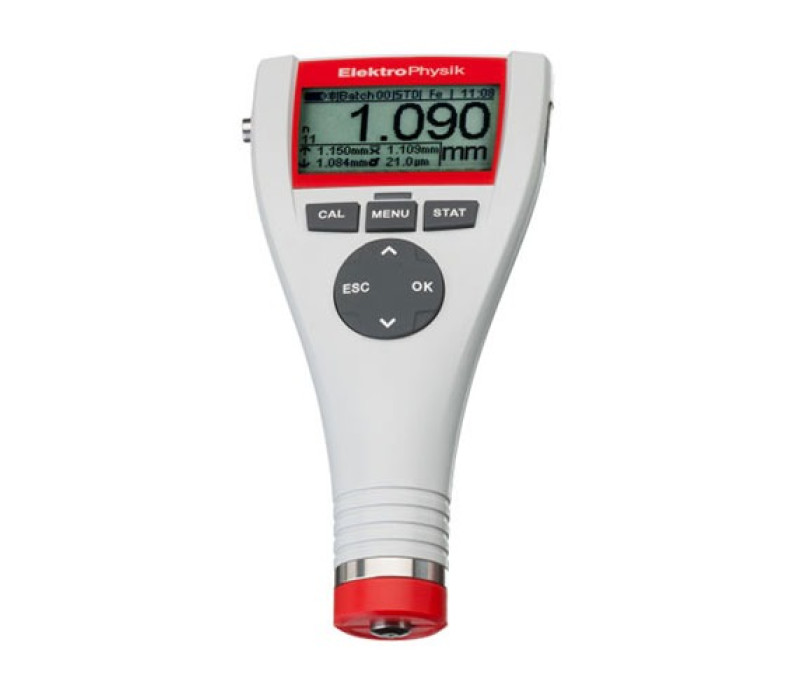

MiniTest 725 MiniTest 725 Coating Thickness Gauge

MiniTest 725 Coating Thickness Gauge

With Integrated Sensor

The MiniTest 725 is the ideal solution for all your coating thickness measurement needs, essential in industries where a flawless finish is key, such as automotive, shipbuilding, bridge engineering, and electroplating. Thanks to its integrated sensor and ergonomic design, this compact gauge is easily operated with one hand, fitting perfectly in the palm to provide comfortable and efficient operation.

Key Features of the MiniTest 725:

Easy Handling: Ergonomic design with a rounded shape that facilitates one-handed operation.
Measurement Versatility: Capable of measuring non-magnetic coatings (paint, enamels, chrome, etc.) on ferromagnetic substrates, as well as insulating coatings on non-ferrous metals (aluminium, copper, austenitic stainless steel, etc.).
Irregular Surface Compensation: Its sensors are calibrated using predefined methods to adapt to various surface conditions, ensuring precise measurements.
SIDSP® Technology: Incorporates Sensor-Integrated Digital Signal Processing, which digitally processes return signals with 32-bit precision, setting a new standard in coating thickness measurement.
Included Software: Comes with MSoft 7 basic software, facilitating data transfer and real-time analysis.

Key Benefits:

Non-Destructive Measurements: Obtain accurate readings without damaging the coating surface.
High Precision and Reliability: SIDSP® technology and calibration methods guarantee consistent and exact results.
Productivity Optimisation: With the option to adjust the measurement speed, you can choose to take multiple readings quickly or focus on individual readings with increased accuracy.
Adaptability: Ideal for a wide range of industrial applications where coating thickness accuracy is essential.

Contact us for more information or to place an order. Our team of experts is ready to assist you in selecting the coating thickness gauge that best meets your technical and operational requirements, ensuring effective and precise measurements for your most demanding projects.

Price from € 1.047,00

Order now

Correct readings with interference free measurement with precise evaluation through SIDSP®
Automatic substrate identification with FN sensors
Efficient temperature compensation
High precision characteristic curves achieved during the manufacturing process by calibrating up to 50 calibration points
Large memory capacity for storing up to 10,000 readings
Readings and statistical values can be called-up individually
Easy menu-guided operation, 20 menu languages available
Future-proof through downloadable sensor and gauge software updates
Audible and visual (red and green LED) alarms
Large, easy-to-read backlit graphics display
Display orientation can rotate 180° so readings will never be upside down
Factory set, zero, 2-point, 3-point and roughness calibration
SSPC-PA2, ISO, Swedish (SS 18 41 60), Australian (AS 3894.3), ISO 19840 and ASTM D 7091 (formerly D 1186 and D 1400)
Integrated sensor
Bluetooth® 4.0, Bluetooth Smart®, Mini-USB data transmission to printer or PC

Sensor Type	Built-in sensor
Substrate Identification	Yes, with FN sensors
SIDSP® sensor	Yes, for increased accuracy and reproducibility
Sensor characteristics	High-accuracy sensor characteristics through up to 50 calibration points during the sensor manufacture
Individual temperature compensation	Yes
Number of memories	10, user-definable memory arrangement according to batches
Total memory capacity	max. 10,000
Memory batches	Include readings, a defined calibration mode, parameters and statistics calculated from batch readings
Statistical evaluation	Number of readings, minimum, maximum, mean value, standard deviation, coefficient of variation
Single reading statistics	Block value statistics (norm-conforming/ user-configurable), stored readings and statistical values can be called seperately, print-out readings and statistics on MiniPrint 7000 data printer, transfer of readings and statistics to a PC
Calibration modes	Factory calibration, zero-point, 2-points, 3-point calibration, calbiration method "rough", user-adjustable off-set value, user-adjustable correction value for substrate roughness
International calibration procedures	ISO, SSPC, "Swedish", "Australian"
Measuring units	metric (μm, mm, cm) / imperial (mils, inch, thou) switchable
Display	Large graphical display, backlit, 180° rotatable
Menu	User-friendly, 20 languages
Software	Sensor and gauge software updates available via download
Measuring rate/ accuracy	User adjustable to standard, quick, high precision
Thickness identification	Continuous mode for quick identification of changes in thickness
Automatic switch-off	Battery saving mode with adjustable switch-off mode
Protection	IP40
Operating temperature	–10°C - 60°C
Storage temperature	– 20°C - 70°C
Data interfaces	Bluetooth® 4.0, Bluetooth Smart®, Mini-USB
Power supply	2 x AA (Mignon cells), rechargeable NiMH accu batteries type AA/HR6 (as an option)
Norms and standards	DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, 19840, ASTM B 244, B 499, D7091, E 376, AS 3894.3, SS 1841 60, SSPC-PA 2
Dimensions	157 mm x 75,5 mm x 49 mm
Weight	approx. 175 g
Warranty	1 year

Sensor Models & Measuring principle

Sensor Model F:
For measuring coating thickness on ferrous metals
Measuring principle: Magnetic induction principle (Ferrous)

Sensor Model N:
For measuring coating thickness on non-ferrous metals
Measuring principle: Eddy-current principle (Non-Ferrous)

Sensor Model FN:
For measuring coating thickness on ferrous & non-ferrous metals
Measuring principle: Magnetic induction principle & Eddy-current principle

Y1 no header

Measuring procedure	Sensor model	Type	Measuring range	Uncertainty (of reading) referring to multi point calibration	Minimum measuring spot
Magnetic-induction sensors	F 0.5M-0° F 0.5M-45° F 0.5M-90°	A	0 ... 0.5 mm	± (0.5 μm + 0.75 %)	ø 3 mm
	F1.5	B / E	0 ... 1.5 mm	± (1.0 μm + 0.75 %)	ø 5 mm
	F 1.5-90°	C	0 ... 1.5 mm	± (1.0 μm + 0.75 %)	ø 5 mm
	F2	B / E	0 ... 2.0 mm	± (1.5 μm + 0.75 %)	ø 10 mm
	F2.6	B / E	0 ... 2.6 mm	± (1.0 μm + 0.75 %)	ø 5 mm
	F 5	B / E	0 ... 5.0 mm	± (1.5 μm + 0.75 %)	ø 10 mm
	F 15	D	0 ... 15 mm	± (5.0 μm + 0.75 %)	ø 25 mm
Eddy current sensors	N 0.3M-0° N 0.3M-45° N 0.3M-90°	A	0 ... 0.3 mm	± (0.5 μm + 0.75 %)	ø 3 mm
	N 0.7	B / E	0 ... 0.7 mm	± (1.0 μm + 0.75 %)	ø 5 mm
	N 0.7-90°	C	0 ... 0.7 mm	± (1.0 μm + 0.75 %)	ø 5 mm
	N 2.5	B / E	0 ... 2.5 mm	± (1.5 μm + 0.75 %)	ø 10 mm
	N 7	D	0 ... 7.0 mm	± (5.0 μm + 0.75 %)	ø 20 mm
Dual sensors	FN 1.5	B / E	F: 0 ... 1.5 mm N: 0 ... 0.7 mm	± (1.0 μm + 0.75 %)	ø 5 mm
	FN 1.5-90°	C	F: 0 ... 1.5 mm N: 0 ... 0.7 mm	± (1.0 μm + 0.75 %)	ø 5 mm
	FN 2.6	B / E	F: 0 ... 2.6 mm N: 0 ... 1.0 mm	± (1.0 μm + 0.75 %)	ø 5 mm
	FN 5	B / E	F: 0 ... 5.0 mm N: 0 ... 2.5 mm	± (1.0 μm + 0.75 %)	ø 10 mm

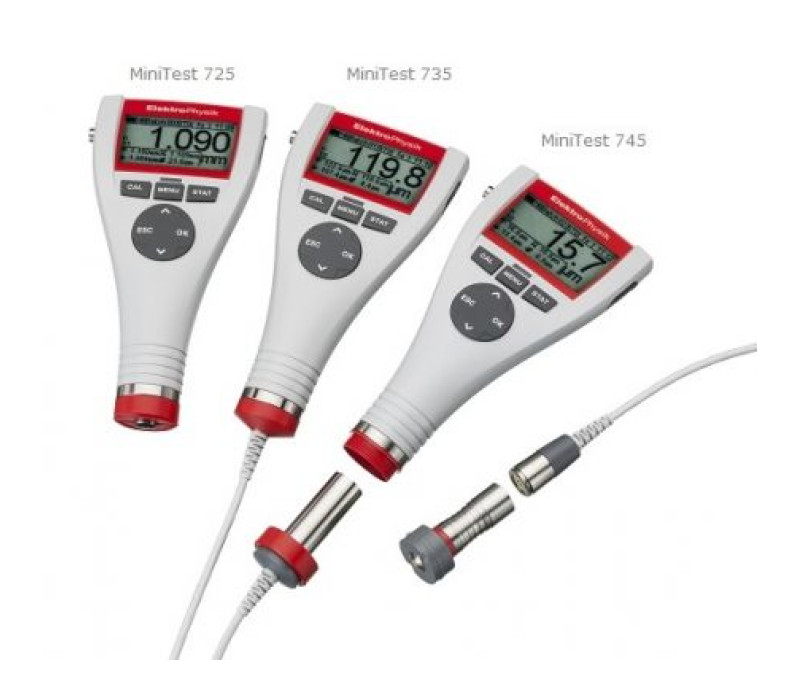

Calibration of a MiniTest 725-735-745

The MiniTest 725 is supplied as a complete kit with:

MiniTest 725 gauge
SIDSP® sensor (according to choice)
Calibration set with calibration standards and zero reference plate(s)
Instruction manual in German, English, French and Spanish on CD
2 Mignon/ AA batteries
Manufacturer’s Certificate
MSoft 7 basic data transfer software

Products

Item	Product	Price
134113	MiniTest 725 - with SIDSP sensor F1.5 / 0...1500 µm	€ 1.070,00
135513	MiniTest 725 - with SIDSP sensor F2 / 0…2000 µm	€ 1.047,00
135090	MiniTest 725 - with SIDSP sensor F2.6 / 0…2600 µm	€ 1.070,00
135512	MiniTest 725 - with SIDSP sensor F5 / 0…5000 µm	€ 1.047,00
134128	MiniTest 725 - with SIDSP sensor F15 / 0… 15000 µm	€ 1.539,00
134114	MiniTest 725 - with SIDSP sensor N0.7 / 0…700 µm	€ 1.164,00
134127	MiniTest 725 - with SIDSP sensor N2.5 / 0…2500 µm	€ 1.128,00
135091	MiniTest 725 - with SIDSP sensor N7 / 0…7000 µm	€ 1.325,00
134125	MiniTest 725 - with SIDSP sensor FN1.5 / 0…1500 µm (F)/0...700 µm (N)	€ 1.266,00
135092	MiniTest 725 - with SIDSP sensor FN2.6 / 0…2600 µm (F)/0...1300 µm (N)	€ 1.362,00
134119	MiniTest 725 - with SIDSP sensor FN5 / 0…5000 µm (F)/0…2500 µm (N)	€ 1.209,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
