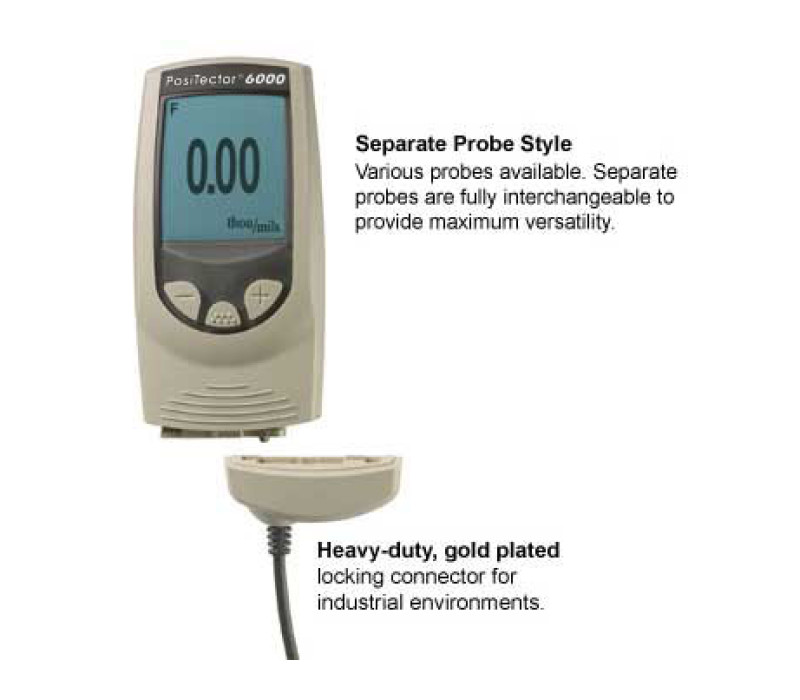

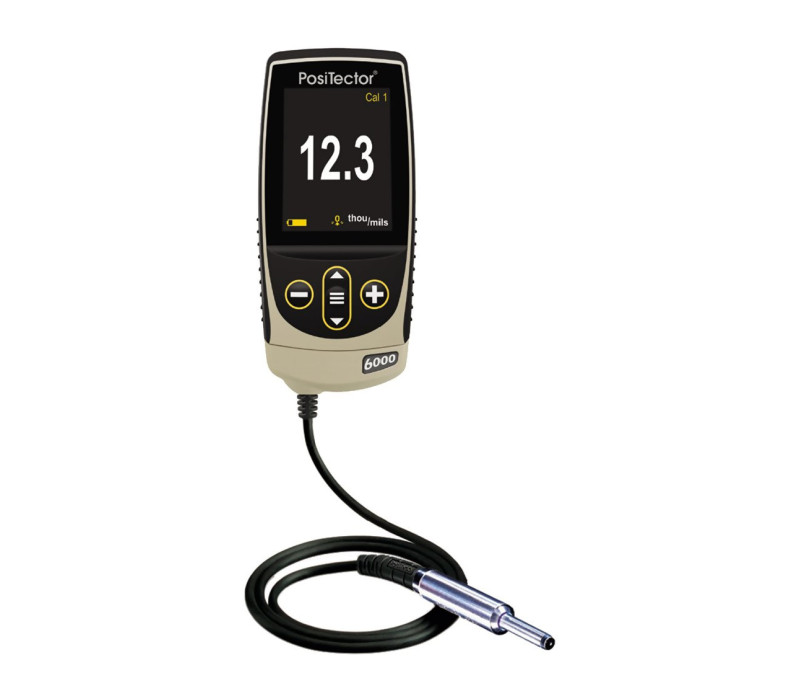

PosiTector 6000MP Positector 6000MP Coating Thickness Gauge

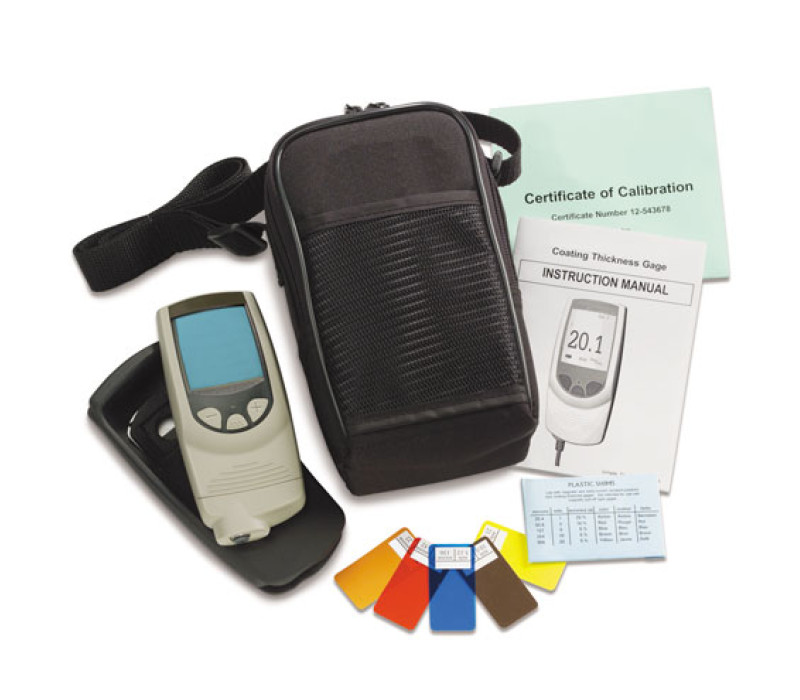

ALL Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.
| Feature Comparison Chart | Standard (1) |
Advanced (3) |
| Hi Contrast LCD Display |
Color
|
Color
|
| General Features | Standard (1) |
Advanced (3) |
| FAST mode - faster measurement speed for quick inspection | ✔ | ✔ |
| SCAN Mode - take continuous readings without lifting the probe | - | ✔ |
| Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits | ✔ | ✔ |

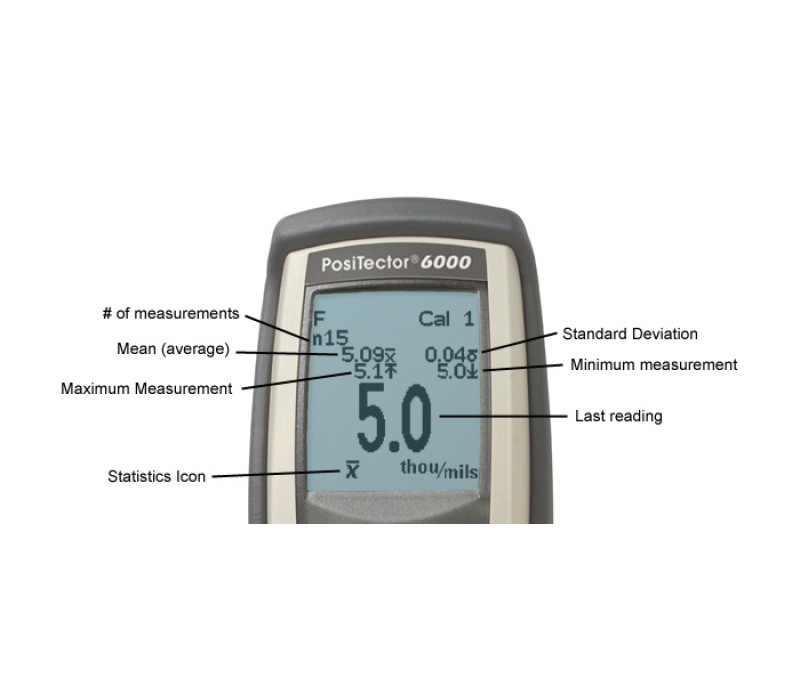

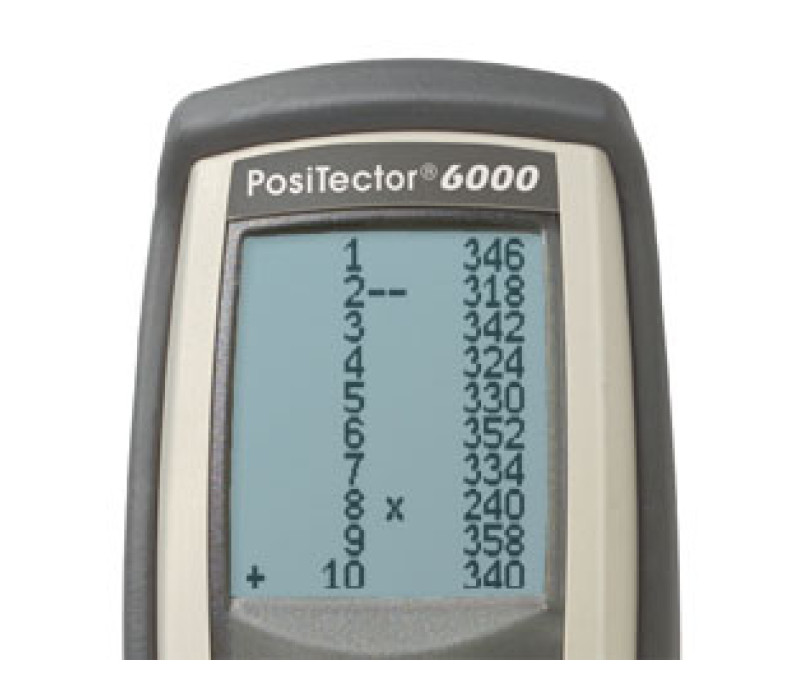

| Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring | ✔ | ✔ |
| Onscreen help, real-time graphing, picture prompting and batch notes | - | ✔ |
| Memory Features & Capacity | Standard (1) |
Advanced (3) |
| Reading Storage Capacity | 1,000 in one group | 250,000 in up to 1,000 groups |
| Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. | - | ✔ |

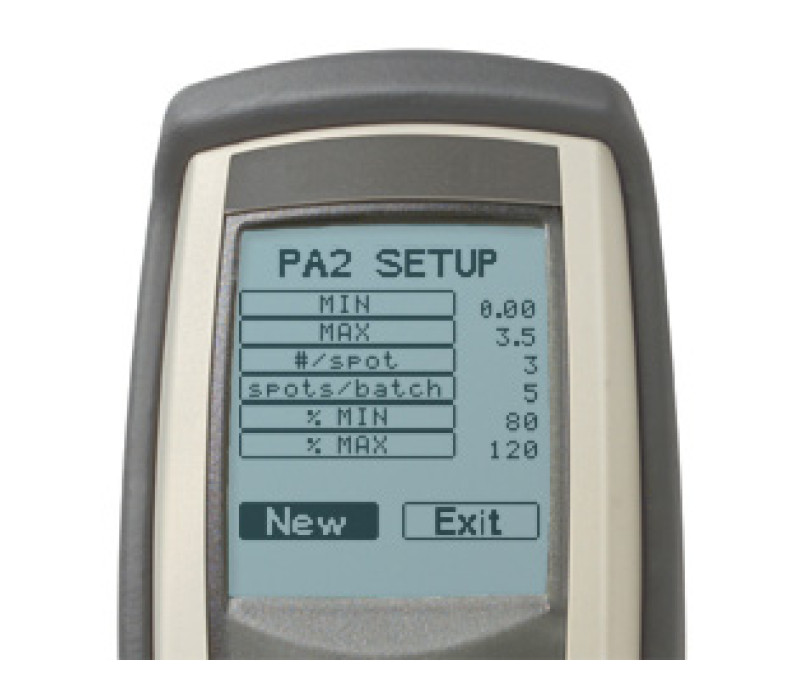

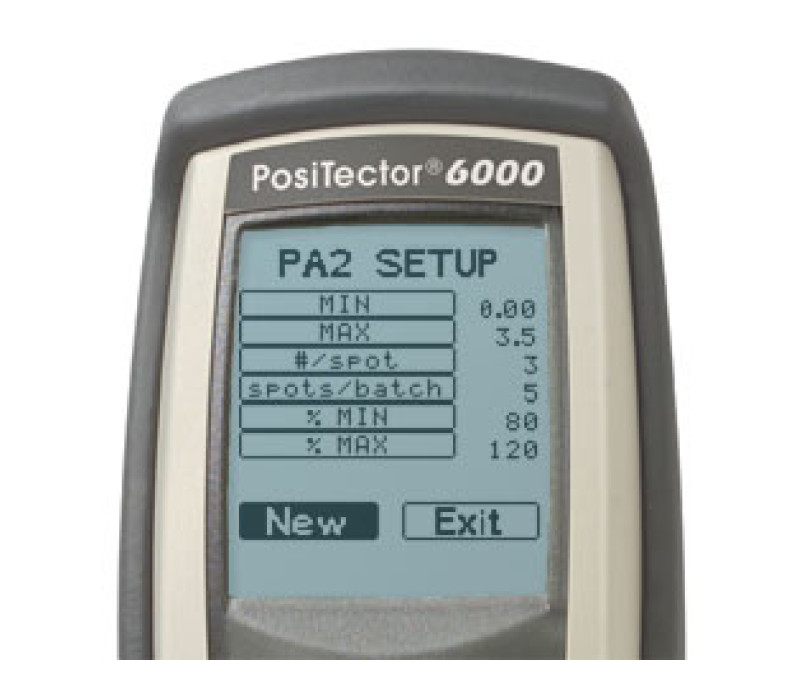

| SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels | - | ✔ |

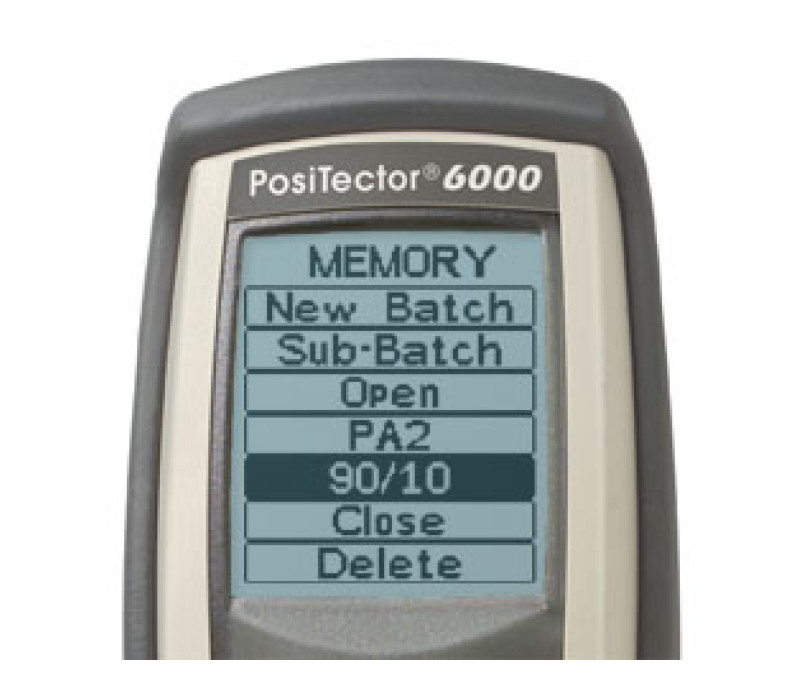

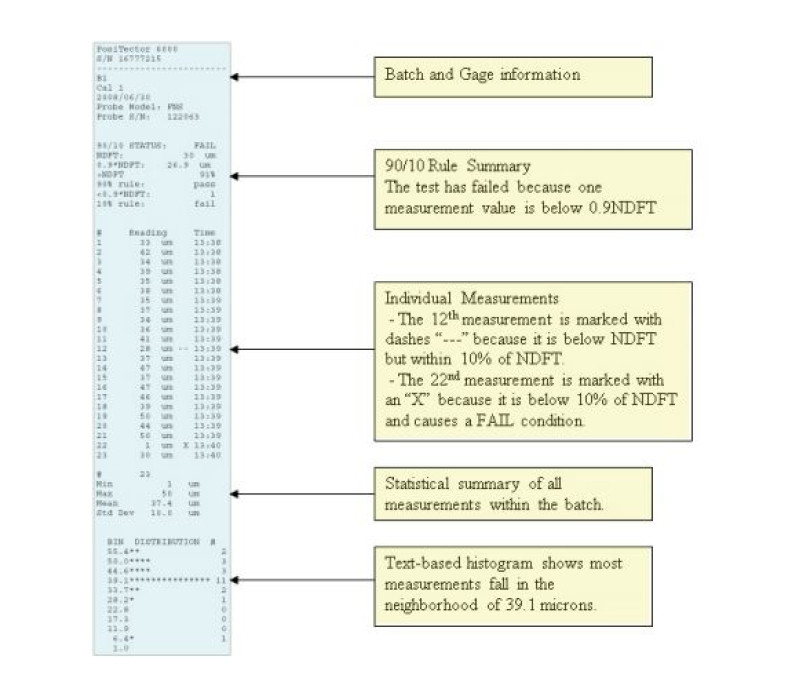

| PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings | - | ✔ |
| Multiple stored calibration adjustments for measuring on a variety of substrate conditions | - | ✔ |
| Connection Options | Standard (1) |
Advanced (3) |
| USB port for fast, simple connection to a PC and to supply continuous power. USB cable included | ✔ | ✔ |
| WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality | - | ✔ |
| Bluetooth Wireless Technology for data transfer to a PC or optional portable printer | - | ✔ |
| PosiSoft Solutions | Standard (1) |
Advanced (3) |

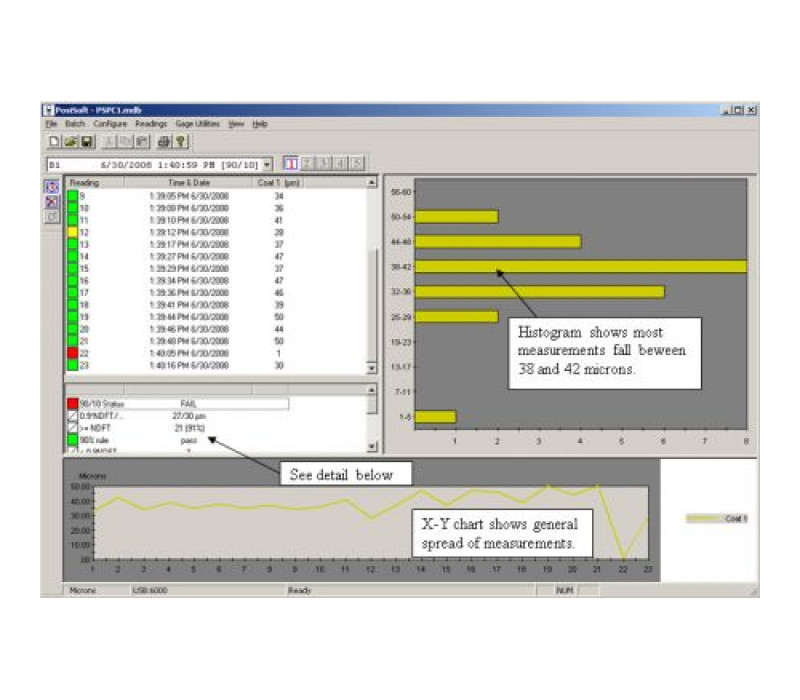

| PosiSoft Desktop Software for PC or Mac computer | ✔ | ✔ |
| PosiSoft USB Drive allows you to access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers. | ✔ | ✔ |
| PosiSoft.net, formerly PosiTector.net, is a cloud-based application offering centralized management of PosiTector readings. | ✔ | ✔ |
| PosiSoft Mobile gage-based software application featured in all PosiTector Advanced instruments | - | ✔ |

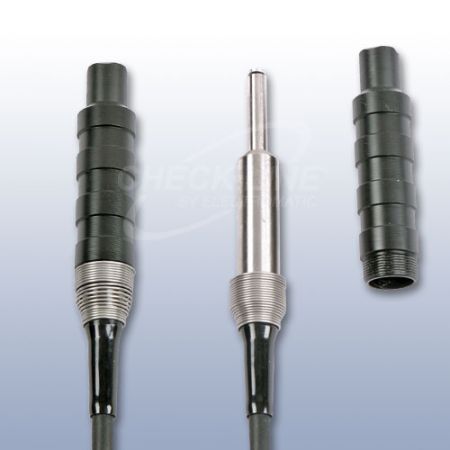

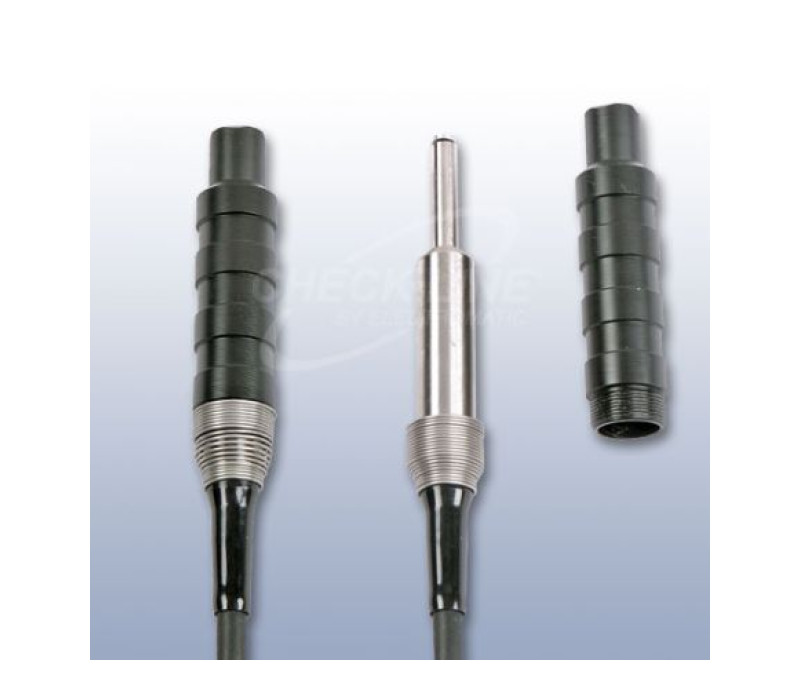

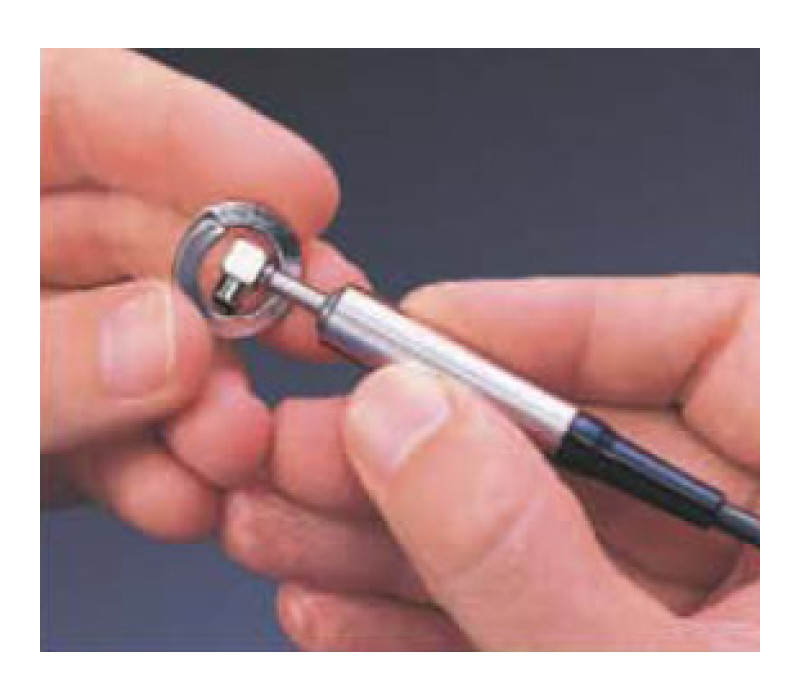

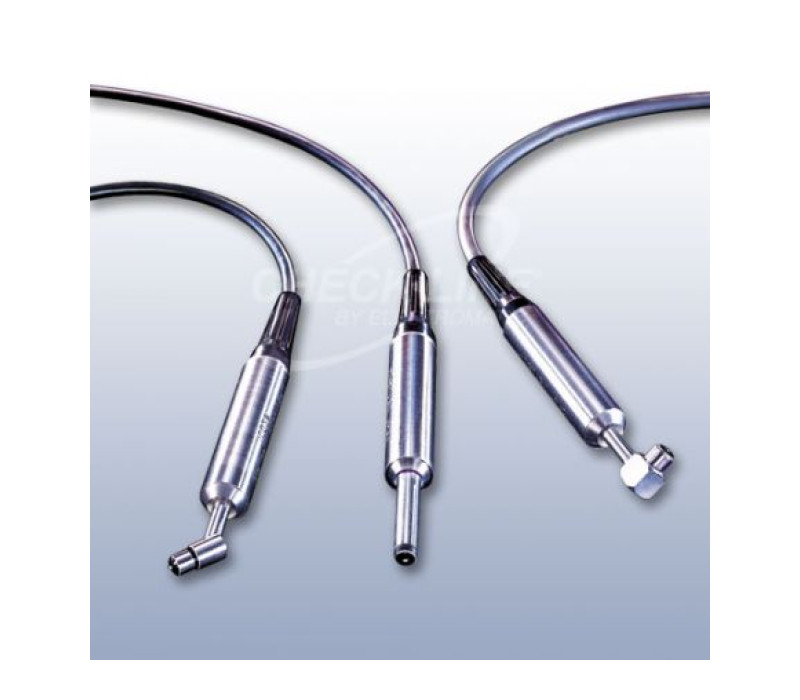

Probe Specifications
|
0 Microprobe
|
|||
|---|---|---|---|
  |
Probe Models:
|
F0S | N0S |
| Range: | 0 - 45 mils | 0 - 25 mils | |
| 0 - 1143 µm | 0 - 625 µm | ||
| Accuracy*: | + (0.02 mils + 1%) 0 - 4 mils + (0.1 mils + 3%) > 4 mils |
||
| + (.5 µm + 1%) 0 - 100 µm + (2 µm + 3%) > 100 µm |
|||
| * Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading. | |||
|
45 Microprobe
|
|||
|---|---|---|---|
 |
Probe Models:
|
F45S | N45S |
| Range: | 0 - 45 mils | 0 - 25 mils | |
| 0 - 1143 µm | 0 - 625 µm | ||
| Accuracy*: | + (0.02 mils + 1%) 0 - 4 mils + (0.1 mils + 3%) > 4 mils |
||
| + (.5 µm + 1%) 0 - 100 µm + (2 µm + 3%) > 100 µm |
|||
| * Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading. | |||
| 90 Microprobe | |||
|---|---|---|---|
 |
Probe Models: | F90S | N90S |
| Range: | 0 - 45 mils | 0 - 25 mils | |
| 0 - 1143 µm | 0 - 625 µm | ||
| Accuracy*: | + (0.02 mils + 1%) 0 - 4 mils + (0.1 mils + 3%) > 4 mils |
||
| + (.5 µm + 1%) 0 - 100 µm + (2 µm + 3%) > 100 µm |
|||
| * Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading. | |||
