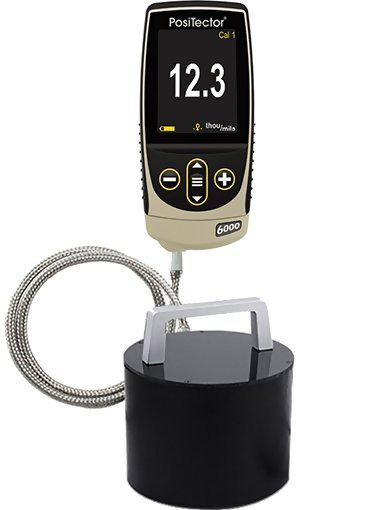

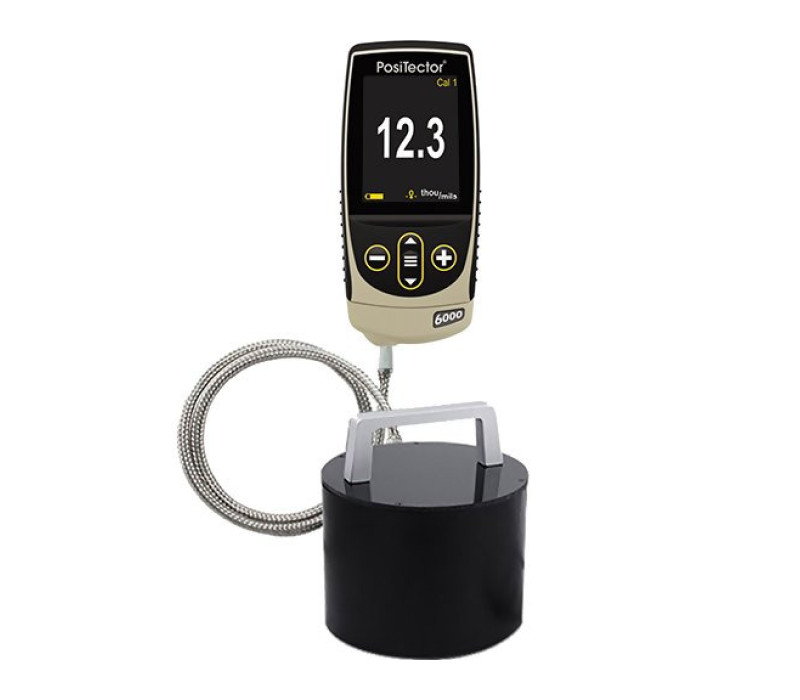

PosiTector 6000GS Coating Thickness Gauge

For Excessively Thick Coatings

The PosiTector 6000GS is an advanced coating thickness gauge designed to provide accurate and non-destructive measurements on a wide range of metals. This device is ideal for applications such as ship hull coatings and thick intumescent paints, offering a measurement range up to 63.5 mm and an accuracy of +/- (0.2 mm + 3%).

Highlighted Features:

Exceptional Measurement Capability: Measures very thick coatings on all metals using magnetic and eddy current principles.
Colour Touch Screen: Easy navigation through a redesigned keypad and a 2.8-inch impact-resistant touch screen, suitable for harsh conditions.
Rugged Cover: Rated IP65 for resistance to weather, dust, and water, ensuring durability in industrial environments.
Advanced Connectivity: USB, WiFi, and Bluetooth connection options for seamless integration with PosiSoft software on PCs, Macs, and smart devices.

Key Benefits:

High Precision: Built-in temperature compensation and compliance with international standards such as ISO and ASTM to ensure accurate measurements.
Unmatched Versatility: Accepts a wide variety of PosiTector probes, allowing the device to be transformed into a multi-functional tool for different types of measurements.
Extended and Efficient Operation: Over 20 hours of continuous operation with AAA batteries and an integrated charging system.

Contact us for more information on how the PosiTector 6000GS can facilitate your measurements of thick coatings with precision and efficiency, adapting to your specific needs.

Price from € 1.779,00

Order now

FAST Mode: Increases measurement speed for quick and efficient inspections, ideal for large-scale projects.
Extensive Storage: Capacity to store up to 250,000 readings in multiple batches, with instant graphing and real-time data management.
Customizable Interface: Automatic rotating display and selectable language options to suit any user and work environment.

Comes complete with:

gauge body
FNGS probe

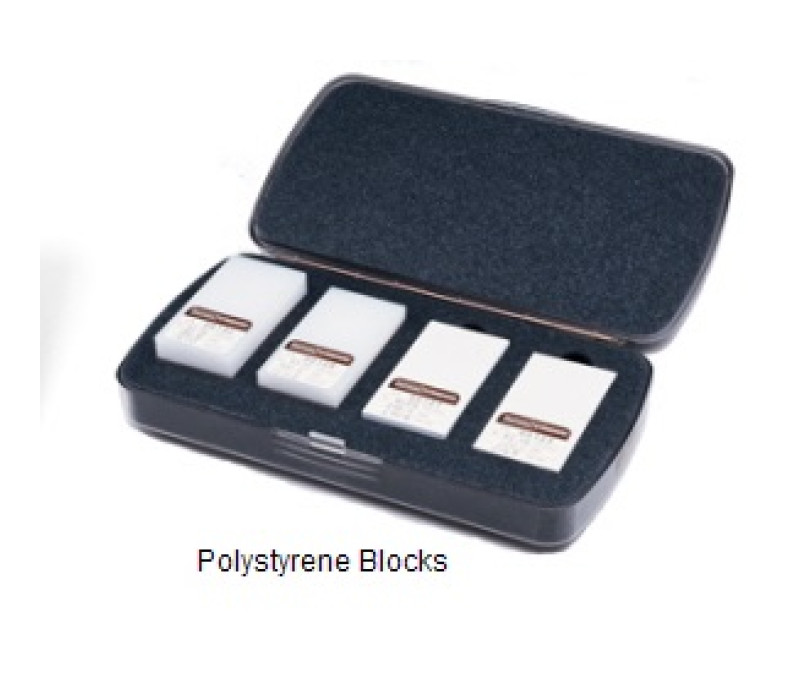

Certified Polystyrene Blocks (P8)
protective rubber holster with belt clip
wrist strap
3 AAA alkaline batteries
instructions
nylon carrying case with shoulder strap
protective lens shield
Long Form Certificate of Calibration traceable to NIST
USB cable
two (2) year warranty.

Feature Comparison Chart	Standard (1)	Advanced (3)
Hi Contrast LCD Display	Color	Color
General Features	Standard (1)	Advanced (3)
FAST mode - faster measurement speed for quick inspection	✔	✔
SCAN Mode - take continuous readings without lifting the probe	-	✔
Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits	✔	✔
Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring	✔	✔
Onscreen help, real-time graphing, picture prompting and batch notes	-	✔
Memory Features & Capacity	Standard (1)	Advanced (3)
Reading Storage Capacity	1,000 in one group	250,000 in up to 1,000 groups
Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard.	-	✔
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels	-	✔
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings	-	✔
Multiple stored calibration adjustments for measuring on a variety of substrate conditions	-	✔
Connection Options	Standard (1)	Advanced (3)
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included	✔	✔
WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality	-	✔
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer	-	✔
PosiSoft Solutions	Standard (1)	Advanced (3)
PosiSoft Desktop Software for PC or Mac computer	✔	✔
PosiSoft USB Drive allows you to access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers.	✔	✔
PosiSoft.net, formerly PosiTector.net, is a cloud-based application offering centralized management of PosiTector readings.	✔	✔
PosiSoft Mobile gage-based software application featured in all PosiTector Advanced instruments	-	✔

Probe Specifications


	Range:	0 - 63,5 mm
	Range:	0 - 63500 µm
	Accuracy:	+ (0.2 mm + 3%)
	Minimum Surface Area:	254 x 254 mm
	Minimum Substrate Thickness:	5 mm
*Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading.

Y2 no header

PosiSoft Desktop Software for PosiTector with Serial Numbers: 600.000 - 699.00 & 700.000 and greater

Measuring principle	Magnetic induction principle (Ferrous) Eddy-current principle (Non-Ferrous)
Display	Backlit & Reversible LCD
Data Output	USB - "1" & "3" Models Bluetooth - "3" Models
Power	3 AAA batteries, Included
Dimensions body	146 x 64 x 31 mm
Weight body	140 g without batteries

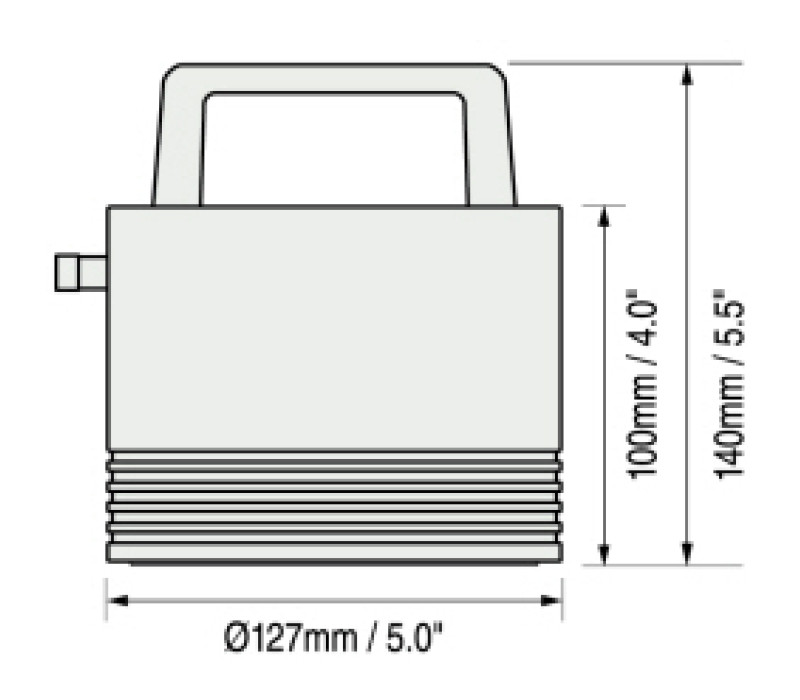

Dimensions probe	Ø 127 mm x 140 mm
Weight probe	800 g
Range	0 - 63,5 mm
Accuracy:	+ (0.2 mm + 3%)
Minimum Surface Area:	254 x 254 mm
Minimum Substrate Thickness:	5 mm
Warranty	2 Years
Calibration Certificate	Certificate of Calibration showing traceability to NIST included
Display languages	English, French, German, Spanish, Chinese, Japanese, Portuguese, Italian, Norwegian, Russian, Czech, Polish and Korean

Products

Item	Product	Price	Quantity	Action
139748	PosiTector 6000GS-1-FNGS-KIT, Basic Ferrous/Non Ferrous Very Thick Coating Thickness Gauge	€ 1.779,00
139749	PosiTector 6000GS-3-FNGS-KIT, Advanced Ferrous/Non Ferrous Very Thick Coating Thickness Gauge	€ 2.220,00

Accessories

Item	Product	Price
134063	PosiTector 6000-FNGS-Probe, Cabled Ferrous/Non Ferrous Very Thick Coating Probe for PosiTector	€ 1.503,00
133045	PRINTERBT Bluetooth Printer for PosiTector Advanced	€ 370,00
131193	PAPERBT Printer Paper - 10 Rolls for the Bluetooth Printer	€ 22,00
137143	USBAC USB/AC Adapter Power Kit for PosiTector	€ 49,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
