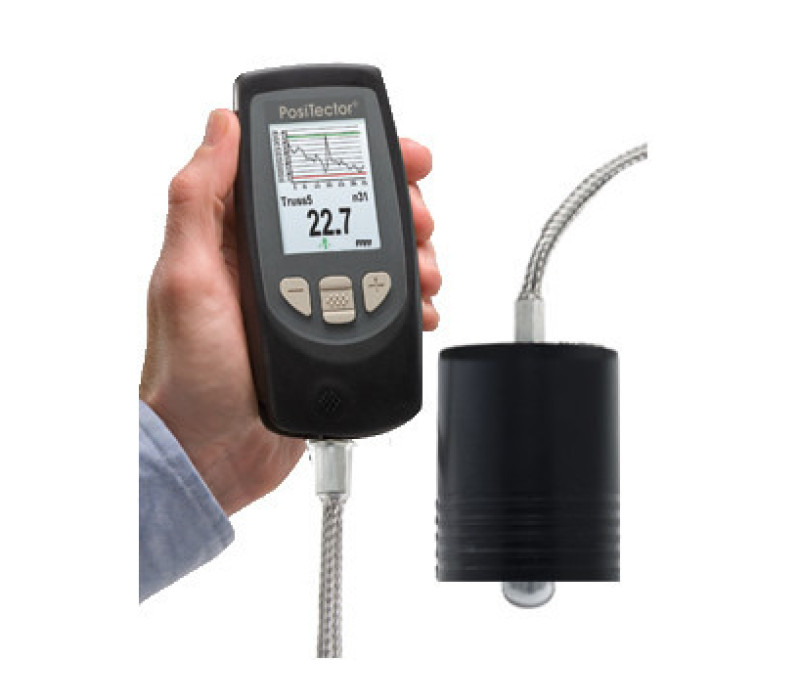

PosiTector 6000 FLS Coating Thickness Gauge


The PosiTector 6000-FLS Ferrous Coating Thickness Gauge is designed for precise and efficient measurement of thick coatings on ferrous metal substrates, with a measurement range of up to 38 mm. Ideal for applications in intumescent coatings, pipe insulation, rubber, roofing and more, this robust device incorporates a hard chrome probe, optimized for scanning large surfaces without degradation.

Highlighted Features:

  • High Measurement Capacity: Capable of measuring up to 38 mm thickness on ferrous substrates.
  • Advanced Connectivity: Includes Bluetooth and wireless technology for efficient data transfer to PC or portable printers, available in both standard and advanced versions.
  • Integrated Functions: SSPC PA2 and PSPC 90/10 modes for analysis according to international standards, with real-time graphing and on-screen help.

Key Benefits:

  • Ensured Accuracy: The hardened probe and built-in temperature compensation guarantee precise measurements under any environmental condition.
  • Measurement Flexibility: Suitable for a wide range of industrial applications, from pipelines to protective coatings on metal structures.
  • Durable Support: Two years warranty, with direct and accessible support thanks to the robust construction of the device.



Contact us for more information on how the PosiTector 6000 FLS can optimize thickness measurement in your operations and ensure compliance with industrial standards.


Features

  • Extensive Memory: Storage capacity of up to 1,000 readings in the standard version and up to 250,000 readings across 1,000 groups in the advanced version.
  • Display and HiLo Alarm: Continuous monitoring of average, standard deviation, and minimum/maximum values, with visual and auditory alerts if established limits are exceeded.

Complete Kit

The  PosiTector 6000 FLS is delivered in in a complete kit including:

  • precision plastic shims,
  • protective rubber holster with belt clip,
  • wrist strap,
  • 3 AAA alkaline batteries,
  • instructions,
  • nylon carrying case with shoulder strap,
  • protective lens shield,
  • Long Form NIST traceable Certificate of Calibration showing traceability to NIST or
  • PTB and USB cable.


Probe - Feature Comparison Chart

Feature Comparison Chart Standard
(1)
Advanced
(3)
Hi Contrast LCD Display Color screen
Color
color screen
Color
General Features Standard
(1)
Advanced
(3)
FAST mode - faster measurement speed for quick inspection
SCAN Mode - take continuous readings without lifting the probe -

Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits

Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring

Onscreen help, real time graphing, picture prompting and batch notes -
Memory Features & Capacity Standard
(1)
Advanced
(3)
Reading Storage Capacity 1000 in one group 250,000 in up to 1000 groups
Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. -
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels -
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings -
Multiple stored calibration adjustments for measuring on a variety of substrate conditions -
Connection Options Standard
(1)
Advanced
(3)
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality -
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer -
PosiSoft Solutions Standard
(1)
Advanced
(3)
PosiSoft Desktop Software Desktop software for PC or Mac computer
PosiSoft USB Drive Access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers
PosiSoft.net (formerly PosiTector.net) Cloud-based application offering centralized management of PosiTector readings
PosiSoft Mobile Gage-based software application featured in all PosiTector Advanced instruments -

Related Products

6000-PROBES Probes For Use With 6000 Series



More details

6000-PROBES  Probes For Use With 6000 Series

PosiTector 6000GS Coating Thickness Gauge


  • FAST Mode: Increases measurement speed for quick and efficient inspections, ideal for large-scale projects.
  • Extensive Storage: Capacity to store up to 250,000 readings in multiple batches, with instant graphing and real-time data management.
  • Customizable Interface: Automatic rotating display and selectable language options to suit any user and work environment.

More details

PosiTector 6000GS Coating Thickness Gauge

Positector 6000TC Coating Thickness Gauge


  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
  • Thick impact resistant Lexan® display is backlit for easy viewing in dim or dark environments

More details

Positector 6000TC Coating Thickness Gauge

Thick Probe Overview

Specifications

Measurement range:up to 38 mm
Measuring principle:Magnetic induction principle (Ferrous)
Display:Backlit & Reversible LCD
Surface temperature :Max. 49 °C
Power:3 AAA batteries, Included
Portable cable length:1 meter
Calibration Certificate:NIST traceable
Dimensions:146 x 64 x 31 mm
Weight:165 g (without batteries)
Warranty:2 Years

Buy Now

Products

Product
Price
Quantity
137212
PosiTector 6000-1-FLS-KIT Basic Coating Thickness Gauge for Thick protective coatings on steel
€ 1.563,00
137213
PosiTector 6000-3-FLS-KIT Advanced Coating Thickness Gauge for Thick protective coatings on steel
€ 2.014,00

Accessories

Product
Price
Quantity
135476
PosiTector 6000-FLS-Probe, Cabled Heavy Duty Ferrous Probe for PosiTector
€ 1.237,00
130761
PosiSoft - Analysis Software for Windows- free download

133045
PRINTERBT Bluetooth Printer for PosiTector Advanced
€ 389,00
131193
PAPERBT Printer Paper - 10 Rolls for the Bluetooth Printer
€ 23,00
137143
USBAC USB/AC Adapter Power Kit for PosiTector
€ 52,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
