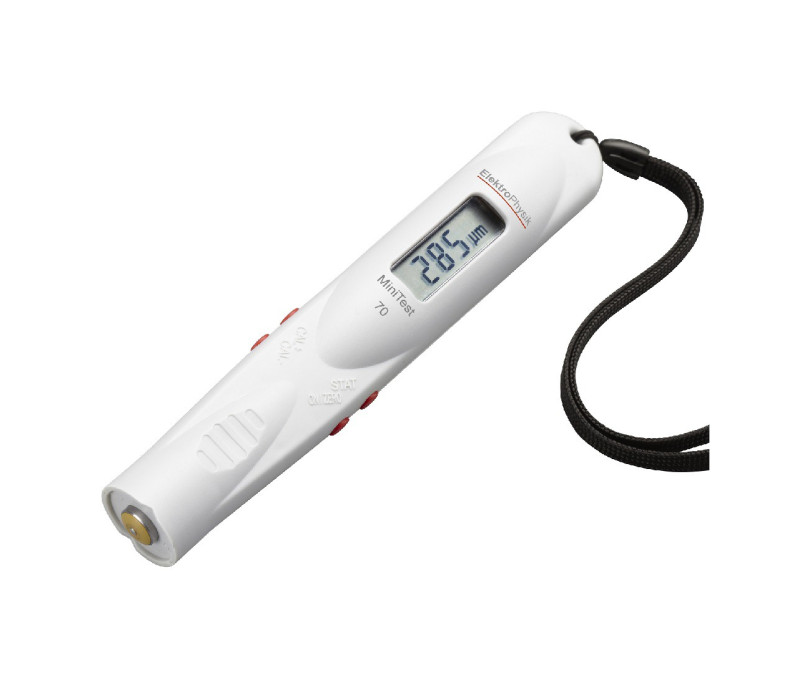

MiniTest 70 MiniTest 70: Coating Thickness Gauge

MiniTest 70: Coating Thickness Gauge

High Precision and Portability with MiniTest 70F and 70FN

The MiniTest 70F and 70FN are compact and efficient coating thickness gauges, designed to provide precise, non-destructive measurements on a variety of metal surfaces. These devices are ideal for professionals assessing coatings on steel and non-ferrous metals such as aluminium, copper, and brass, whether in laboratory settings or field applications.

Key Features of the MiniTest 70F and 70FN:

Versatility: Capable of measuring a wide range of coatings using advanced magnetic induction and eddy current technology. The 70FN model adds measurement capability on non-ferrous metals.

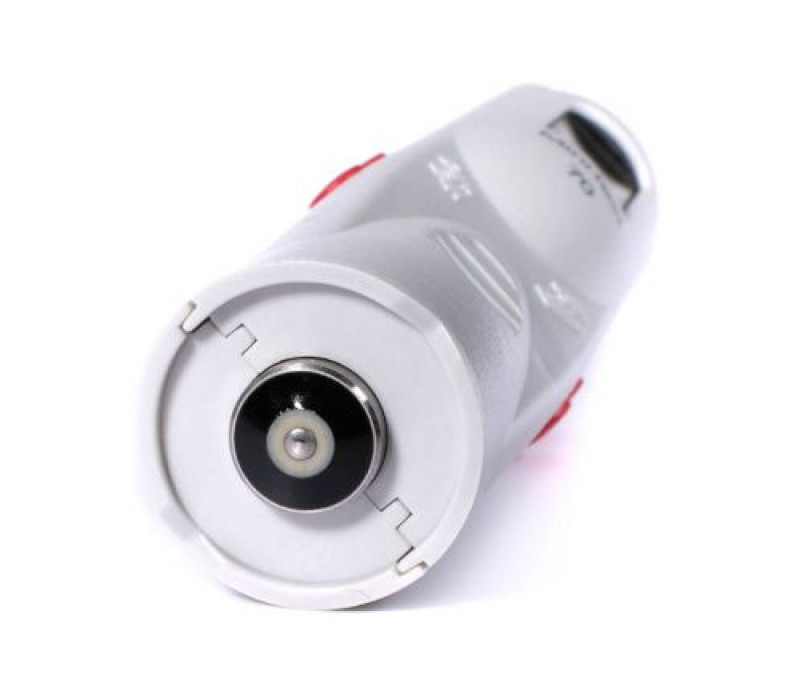

Robust Construction: Equipped with spring-mounted sensors and wear-resistant sensor poles, ensuring durability and accuracy even on rough or abrasive substrates.
Automatic Substrate Detection: The 70FN model includes a dual sensor that automatically identifies the metal type, adjusting the measuring principle accordingly for optimal results.

Benefits of the MiniTest 70F and 70FN:

Reliable Accuracy: Provides an accuracy of ± (1.5 μm + 3% of the reading) with single-point calibration and ± (1.5 μm + 2% of reading) with double-point calibration, making it ideal for critical applications requiring precise measurements.
Portability: Its compact, pocket-sized design makes it extremely convenient for quick and efficient measurements in any location, from paint workshops to construction sites.
Statistical Functions: Both models feature a quick statistics mode to calculate the number of readings, mean, standard deviation, and min/max values, facilitating on-site analysis.

Contact us for more information or to place an order. Our team is ready to assist you in selecting the coating thickness gauge that best suits your technical and operational needs, ensuring effective and precise measurements in your most demanding projects.

Price from € 727,00

Order now

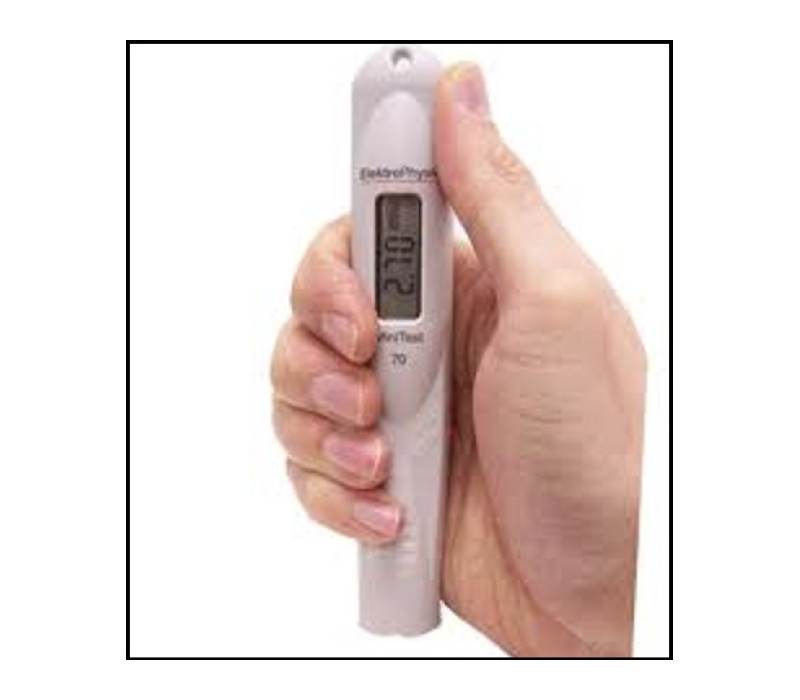

Pocket sized, compact coating thickness gauge
High repeatability

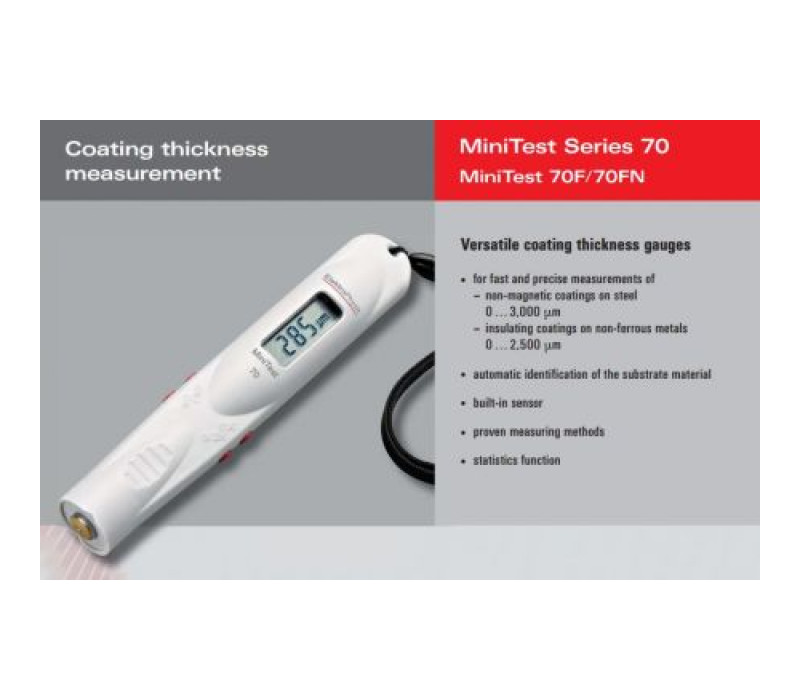

For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals
Automatic identification of the substrate material
Built-in sensor
Proven measuring methods
Statistics function
Enables 1-point and 2-point calibrations
Accuracy:
± (1.5 μm + 3 % of reading) with 1-point calibration / ± (1.5 μm + 2% of reading) with 2-point calibration

Sensor Models & Measuring principle

Sensor Model F:
For measuring coating thickness on ferrous metals
Measuring principle: Magnetic induction principle (Ferrous)

Sensor Model FN:
For measuring coating thickness on ferrous & non-ferrous metals
Measuring principle: Magnetic induction principle & Eddy-current principle

Measuring Range	MiniTest 70F 0 … 3 mm/120 mils MiniTest 70FN F: 0 … 3 mm/120 mils / N: 0 … 2.5 mm/100 mils
Measuring Principle	MiniTest 70F magnetic induction MiniTest 70FN magnetic induction/ eddy currents
Signal Processing	Sensor integrated 32-bit signal processing (SIDSP®)
Accuracy	± (1.5 μm + 3 % of reading) with 1-point calibration / ± (1.5 μm + 2% of reading) with 2-point calibration
Repeatability	± (1 μm + 1 % of reading) / ± (0.04 mils + 1% of reading)
Low range resolution	0.5 μm; 0.02 mils
Minimum curvature radius convex	5 mm; 0.2”
Minimum curvature radius concave	40 mm; 1.60”
Minimum measuring area	Ø 30 mm ; 1.20”
Minimum substrate thickness	F: 0.5 mm; 0.02” / N: 0.04 mm; 0.0016”
Measuring units	Metric/Imperial switchable
Calibration modes	1-point calibration, 2-point calibration
Statistics	n, x—, s, Min, Max
Operating temperature range	-10°C … +60°C, 14°F…140°F
Storage temperature range	-20°C … +70°C, -4°F…158°F
Power supply	1 x AA (Mignon)-battery
International standards	DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376
Dimensions	approx. 157 mm length, Ø 27 mm; 5.2” length, Ø 1.06”
Weight incl. battery	approx. 80 g, 2.8 oz

The MiniTest 70 Coating Thickness Gauge is delivered as a complete kit with:

MiniTest 70 F or FN
Steel test plate (for model 70F)
Steel and aluminum test plates (for model 70FN)
Calibration foils
Operating instructions
Gauge tether
Belt pouch

Products

Item	Product	Price	Quantity	Action
134094	MiniTest 70 F Coating Thickness Gauge	€ 727,00
134095	MiniTest 70 FN Coating Thickness Gauge	€ 898,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
