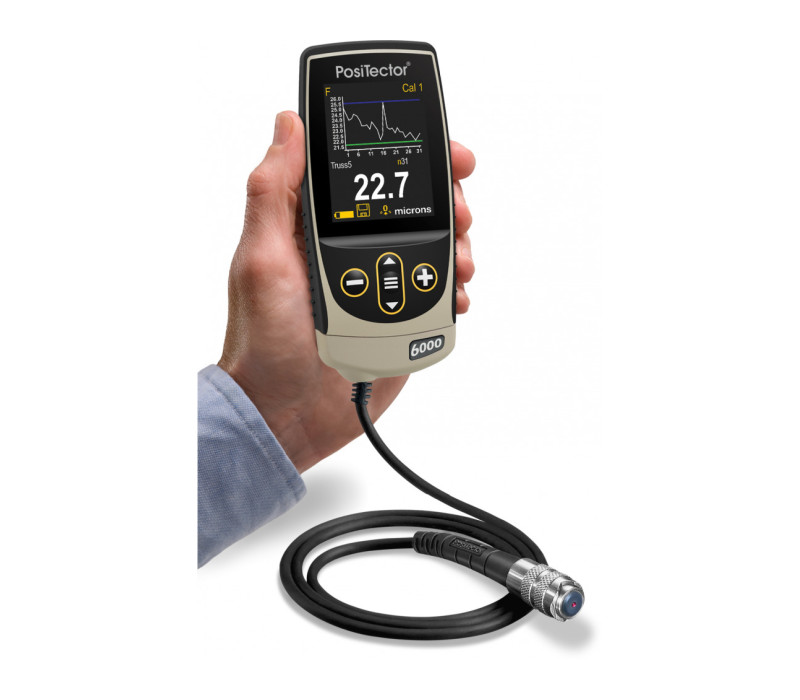

PosiTector 6000TCX Positector 6000TCX Coating Thickness Gauge

Positector 6000TCX Coating Thickness Gauge

For Extra Thick Coatings

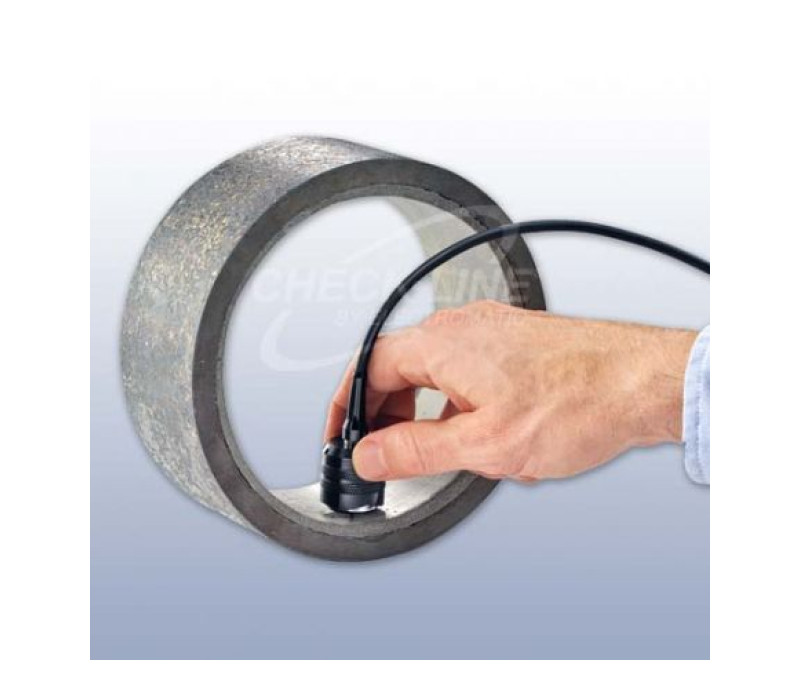

The PosiTector 6000TCX is a versatile and rugged coating thickness gauge designed to measure coatings up to 13 mm on both ferrous (F) and non-ferrous (N) metals. It utilises magnetic induction and eddy current principles to deliver fast and accurate results, making it ideal for applications that require the measurement of very thick coatings. With a resolution of 0.02 mm, it ensures reliable quality control even under demanding industrial conditions.

Key Features:

Wide Measurement Range: Measures up to 13 mm in thickness with a resolution of 0.02 mm for optimal coating control.
Substrate Flexibility: Designed for both ferrous and non-ferrous metals; if measurements on both are required, an optional second probe can be purchased and swapped as needed.

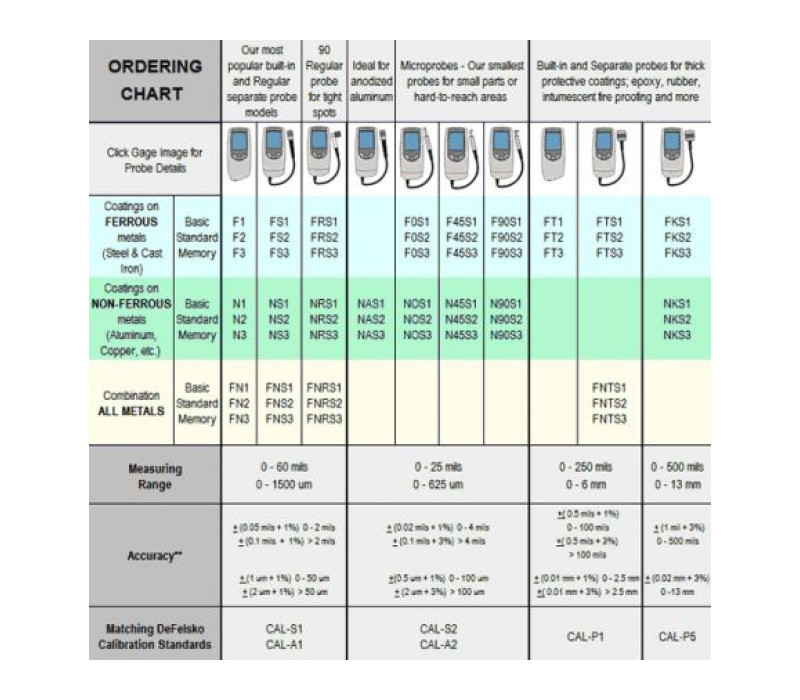

Variety of Models: The series includes 6000-FKS versions (FKS1, FKS2, FKS3) for ferrous metals and 6000-NKS versions (NKS1, NKS2, NKS3) for non-ferrous metals, covering a thickness range of 0 to 500 mils (0 – 13 mm).
Three Configurations Available: BASIC (1), STANDARD (2) and MEMORY (3), each with a set of functions tailored to different operational needs.

Key Benefits:

Fast and Accurate Measurements: Provides precise results across a wide range of thicknesses, essential for inspection and quality control.
Robust Design: Built to withstand harsh industrial environments, ensuring long-term durability and reliability.

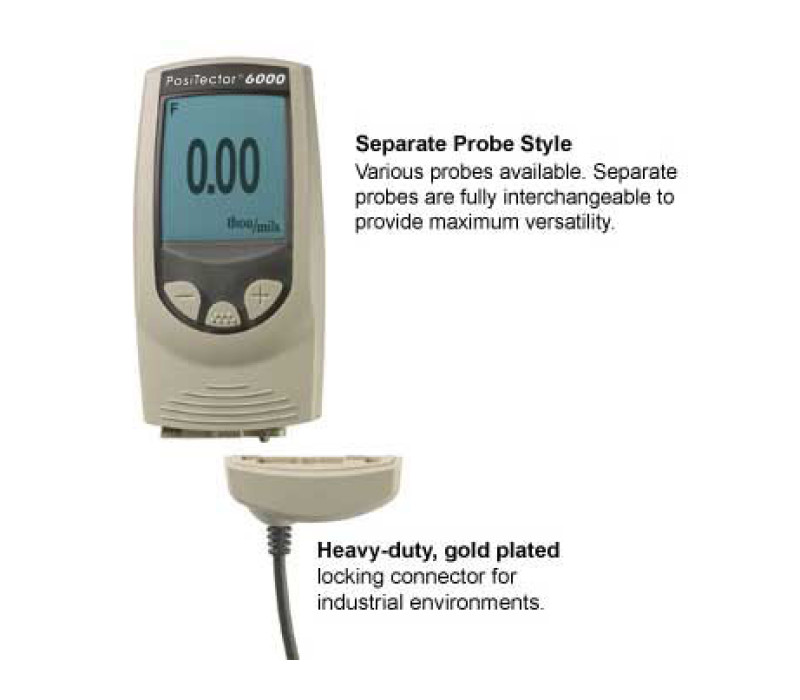

Interchangeable Probes: Allows rapid adaptation to different substrates, reducing costs and downtime.
Easy Integration and Handling: Its menu-driven interface and advanced connectivity options, including USB data output, streamline data management and process optimisation.

Contact us for more information or to place an order. Our team of experts is ready to assist you in selecting the coating thickness gauge that best meets your operational and technical requirements, ensuring precise and reliable results in all your projects.

Price from € 319,00

Order now

Feature Comparison Chart	Standard (1)	Advanced (3)
Hi Contrast LCD Display	Color	Color
General Features	Standard (1)	Advanced (3)
FAST mode - faster measurement speed for quick inspection	✔	✔
SCAN Mode - take continuous readings without lifting the probe	-	✔
Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits	✔	✔
Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring	✔	✔
Onscreen help, real-time graphing, picture prompting and batch notes	-	✔
Memory Features & Capacity	Standard (1)	Advanced (3)
Reading Storage Capacity	1,000 in one group	250,000 in up to 1,000 groups

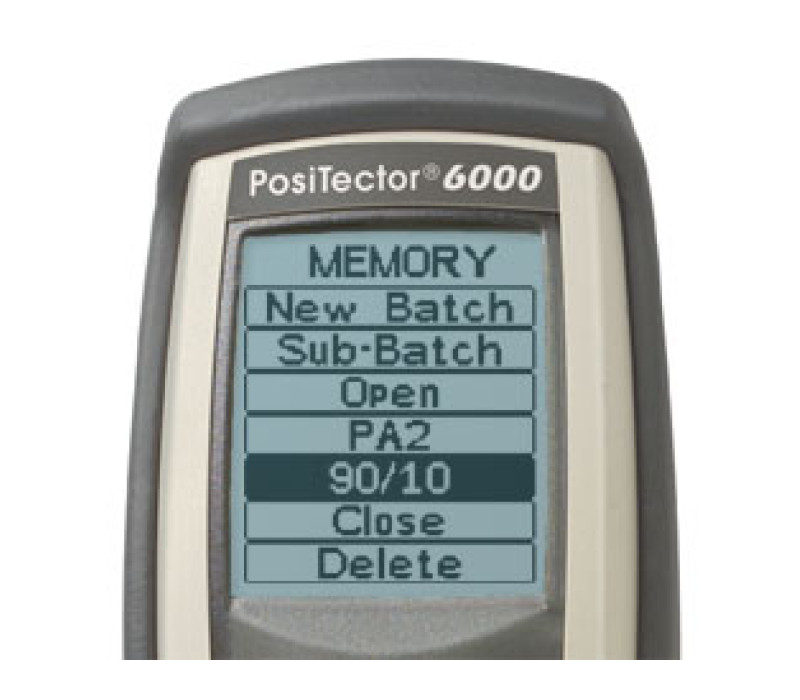

Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard.	-	✔

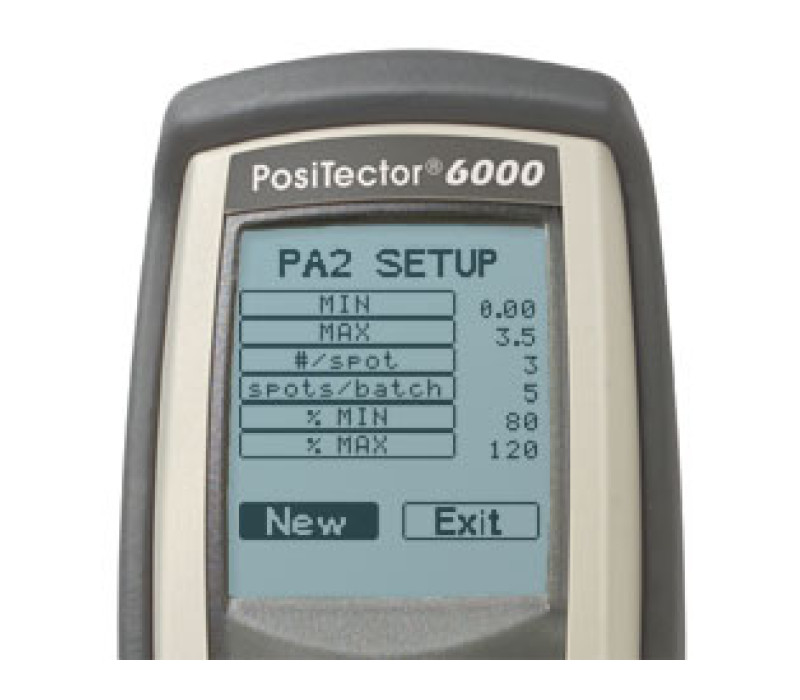

SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels	-	✔
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings	-	✔
Multiple stored calibration adjustments for measuring on a variety of substrate conditions	-	✔
Connection Options	Standard (1)	Advanced (3)
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included	✔	✔
WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality	-	✔
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer	-	✔
PosiSoft Solutions	Standard (1)	Advanced (3)

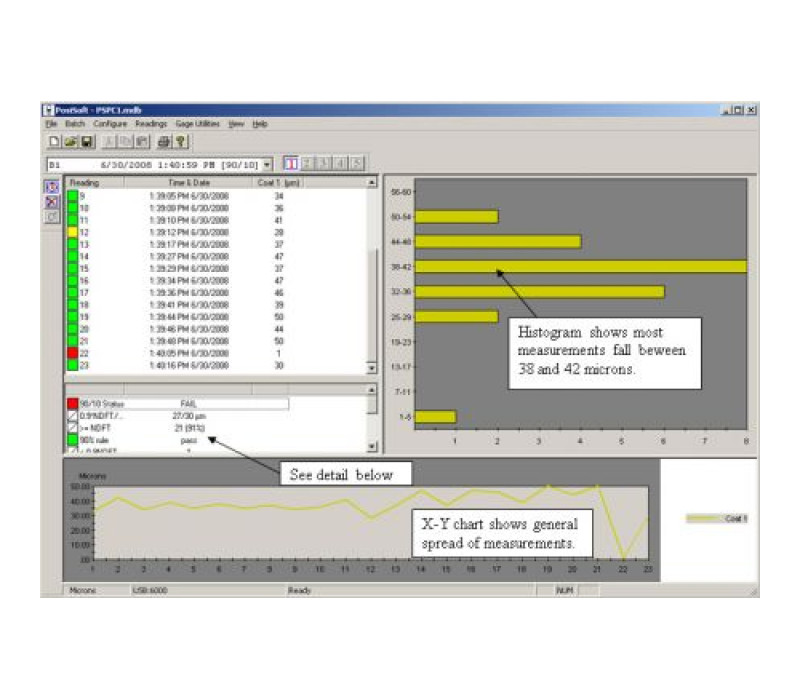

PosiSoft Desktop Software for PC or Mac computer	✔	✔
PosiSoft USB Drive allows you to access your PosiTector as a flash drive. View and print readings and graphs using universal PC/Mac web browsers or file explorers.	✔	✔
PosiSoft.net, formerly PosiTector.net, is a cloud-based application offering centralized management of PosiTector readings.	✔	✔
PosiSoft Mobile gage-based software application featured in all PosiTector Advanced instruments	-	✔

Probe Specifications

High-Range
	Probe Models:	FKS	NKS
	Range:	0 - 500 mils
	Range:	0 - 13 mm
	*Accuracy:**	+ (1 mils + 3%) 0 - 500 mils + (0.02 mm + 3%) 0 - 13 mm
*Accuracies are stated as a fixed value plus a percentage of the gauge's actual reading.

Features

Easy-To-Use

Ready to measure—no calibration adjustment required for most applications

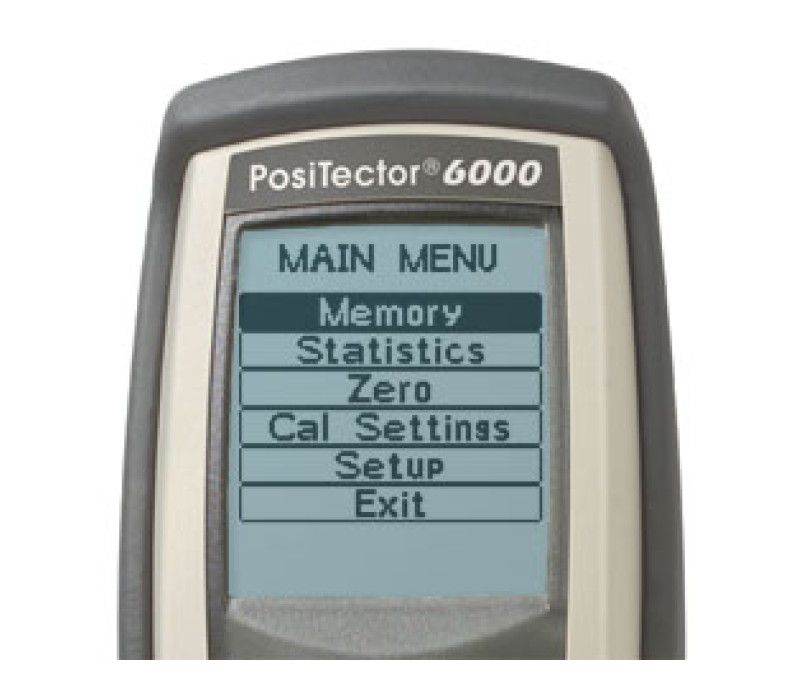

Enhanced one-handed menu navigation
Flashing display—ideal in a noisy environment
RESET feature instantly restores factory settings

Durable

Solvent, acid, oil, water and dust resistant - weatherproof
Wear-resistant probe tip
Shock-absorbing, protective rubber holster with belt clip
Two year warranty on gage body AND probe

Accurate

Certificate of Calibration showing traceability to NIST included (Long Form)
Built-in temperature compensation ensures measurement accuracy
Hi-RES mode increases displayed resolution for use on applications that require greater precision
Conforms to national and international standards including ISO and ASTM

Versatile

Fully interchangeable probes are compatible with ALL gage bodies
Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
Selectable display languages
Hi Contrast backlit display for bright or dark environments
Flip display enables right-side-up viewing
Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
Uses alkaline or rechargeable batteries (built-in charger)

Powerful

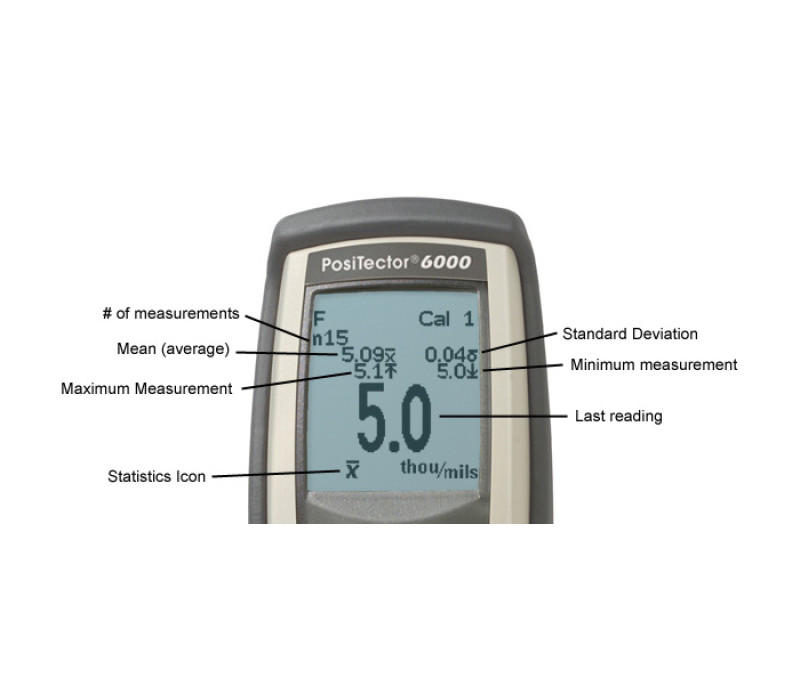

Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
FAST mode - faster measurement speed for quick inspection
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required

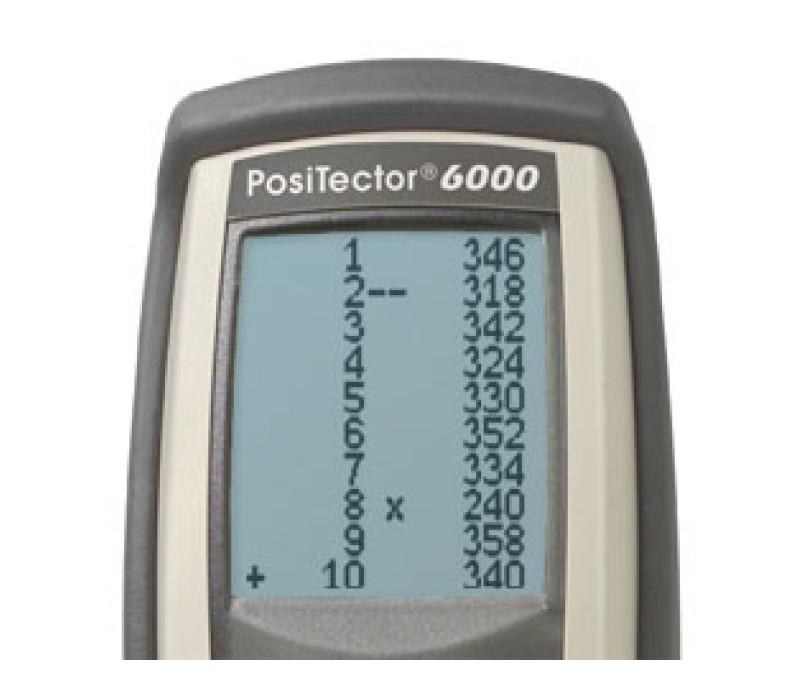

Every stored measurement is date and time stamped
Software updates via web keep your gage current
Connects to PosiTector.net

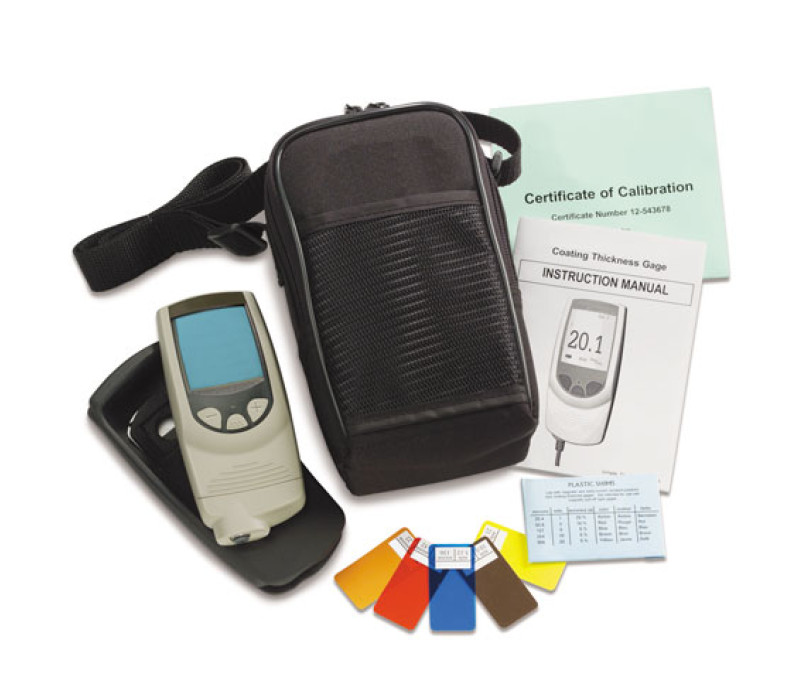

ALL Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.

Measuring principle:	Magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display	Backlit & Reversible LCD
Data Output	IR & USB - "2" & "3" Models Bluetooth - "3" Models
Surface Temp.	Maximum 120 °F / 49 °C
Power	3 AAA batteries, Included
Dimensions	5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight	5.8 oz. (165 g) without batteries
Protection Class	Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty	2 Years
Calibration Certificate	Certificate of Calibration showing traceability to NIST included

Products

Item	Product	Price	Quantity	Action
132526	PosiTector-1- Basic Body, Standard Gauge Body without probe	€ 319,00
132528	PosiTector-3-Advanced Body Only	€ 771,00

Accessories

Item	Product	Price
130785	PosiTector 6000-FKS-Probe Cabled Ferrous Thick protective Coatings Probe for PosiTector	€ 666,00
130786	PosiTector 6000-NKS-Probe Cabled Non Ferrous High Range Probe for PosiTector	€ 690,00
130761	PosiSoft - Analysis Software for Windows- free download	€ 0,00
133045	PRINTERBT Bluetooth Printer for PosiTector Advanced	€ 370,00
131193	PAPERBT Printer Paper - 10 Rolls for the Bluetooth Printer	€ 22,00
137143	USBAC USB/AC Adapter Power Kit for PosiTector	€ 49,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
