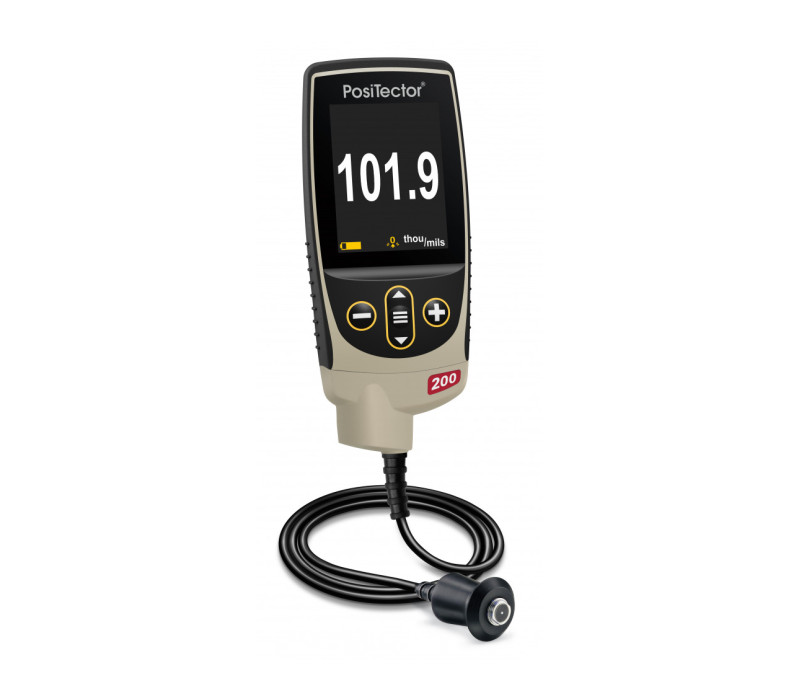

PosiTector 200 Ultrasonic Coating Thickness Gauge

Name: PosiTector 200 Ultrasonic Coating Thickness Gauge
SKU: 125976

Ultrasonic coating thickness gauge for wood, concrete, plastic and other non-metal substrates

The PosiTector 200 measures coating thickness non-destructively using ultrasonic technology. It is designed for coatings on non-metal materials such as wood, plastic, concrete and fibreglass, and, unlike a magnetic or eddy-current gauge, it does not need an uncoated substrate to zero.

Choose a Standard gauge body to measure the total thickness of a coating system, or an Advanced body to measure the total thickness or up to three individual layers in a multilayer system, depending on the materials being tested. Advanced models also provide a graphics mode, expanded data storage and wireless connectivity.

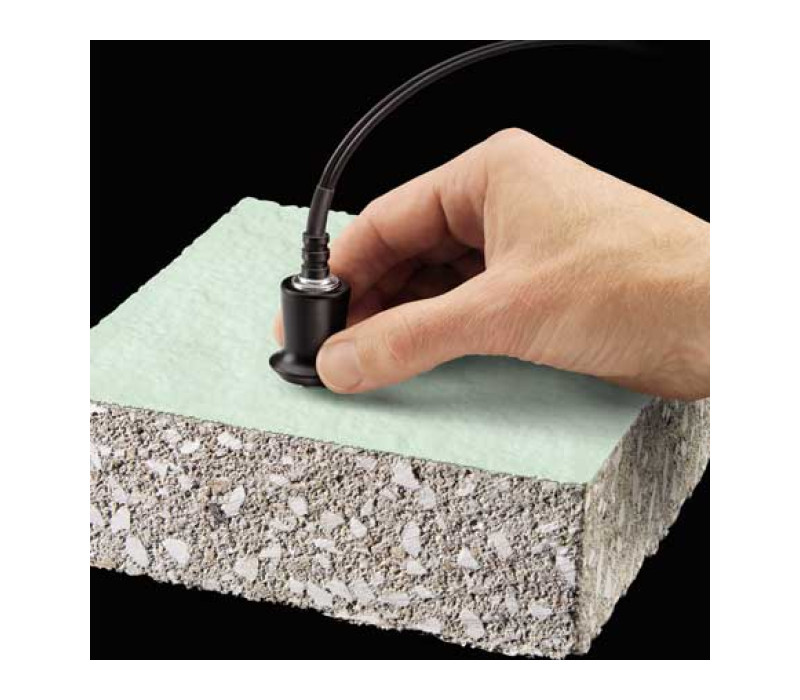

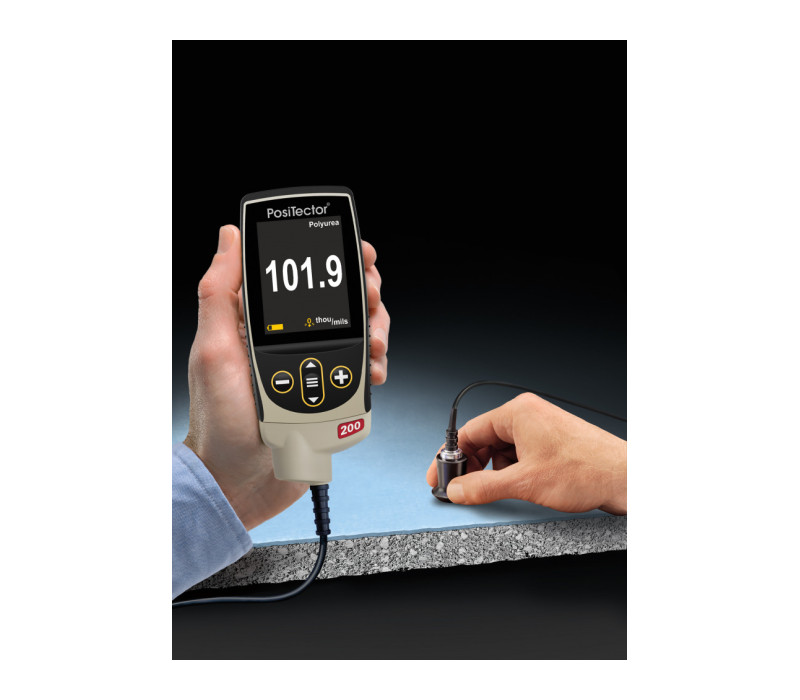

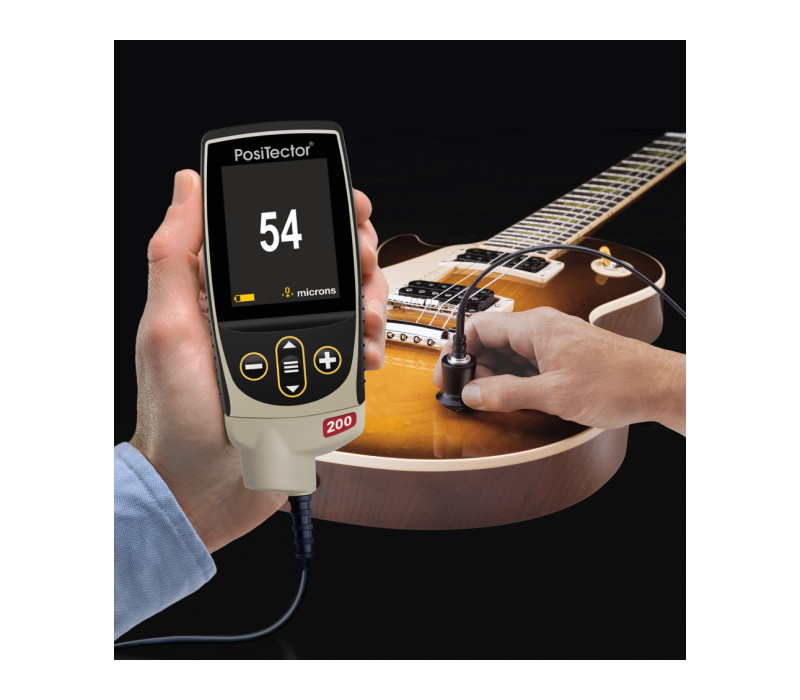

Three interchangeable probes cover different applications: B for polymer coatings on wood and plastic (13–1,000 µm), C for coatings on concrete and fibreglass (50–3,800 µm), and D for very thick or soft coatings such as polyurea (50–7,600 µm; limited to 5,000 µm for polyurea).

Each complete gauge configuration combines one body and one probe. The Ordering Guide below explains the differences between PosiTector 200 B1, B3, C1, C3, D1 and D3 before you select a model.

Price from € 2.020,00

Order now

Non-destructive ultrasonic measurement of coating thickness on wood, concrete, plastic, fibreglass and other non-metal substrates

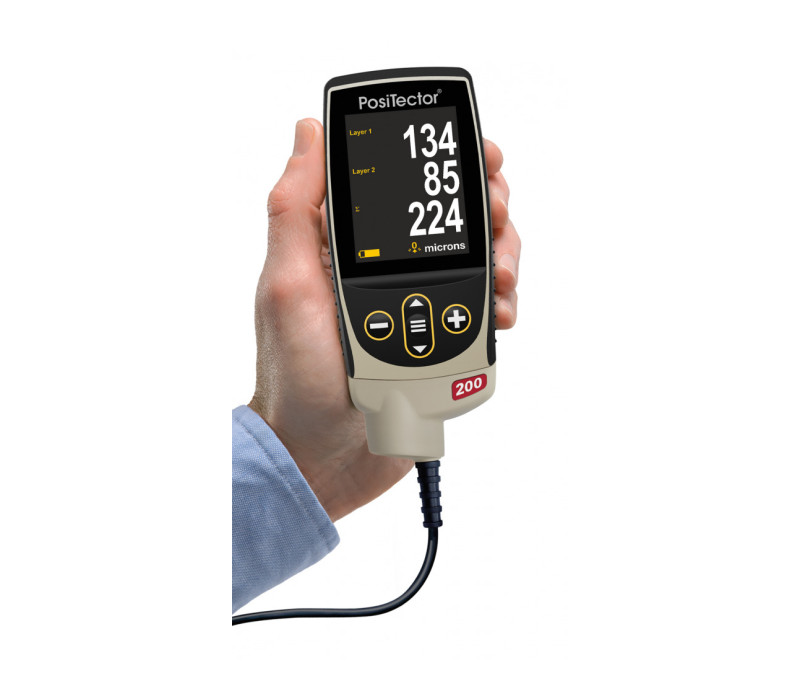

Standard models measure the total thickness of a coating system; Advanced models can also measure up to three individual layers, depending on the materials
Three interchangeable probe ranges: B (13–1,000 µm), C (50–3,800 µm) and D (50–7,600 µm) for polymer-based coatings
Advanced models include a graphics mode with screen capture for detailed analysis of the coating system
Standard models store 1,000 readings per probe; Advanced models store 250,000 readings in up to 1,000 batches
USB connection and continuous USB power on both body types; WiFi and Bluetooth on Advanced models
Large 2.8-inch colour touchscreen with keypad navigation and on-gauge help

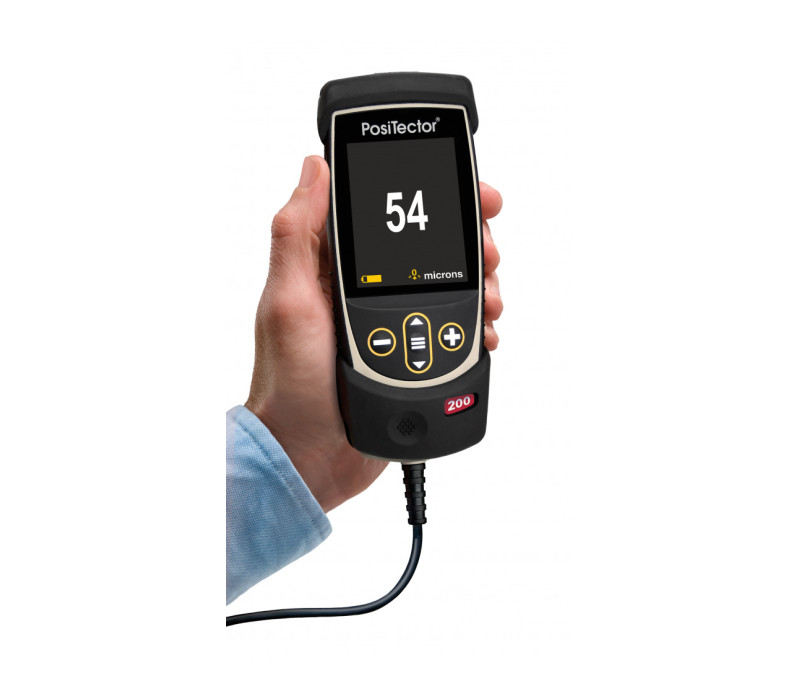

IP65-rated, weatherproof, dustproof and water-resistant enclosure with protective rubber holster
Adjustable measurement range helps exclude unwanted echoes when measuring textured or rough coatings
Interchangeable PosiTector gauge body accepts PosiTector probes for other measurement applications
Ultrasonic coating thickness measurement conforms to ASTM D6132 and ISO 2808

Ordering Guide

The PosiTector 200 is supplied in six configurations. First choose the gauge body for the measurements and data functions you need, then choose the probe for your coating and substrate.

Step 1: Choose Standard or Advanced

Standard (1): Measures total coating thickness and stores 1,000 readings per probe. Includes a USB connection.

Advanced (3): Adds measurement of up to three individual layers in suitable multilayer coating systems, a graphics mode, storage of 250,000 readings in up to 1,000 batches, and WiFi and Bluetooth connectivity.

Both gauge bodies use the same B, C and D probe ranges and accuracies. Choose Advanced when individual layer measurements or its additional data functions are required.

Step 2: Choose the probe

Probe	Typical application	Measurement range
B	Polymer coatings on wood, plastic and composites	13–1,000 µm
C	Coatings on concrete and fibreglass	50–3,800 µm
D	Very thick or soft coatings, including polyurea	50–7,600 µm Polyurea: 50–5,000 µm

Measurement range limits apply to polymer-based coatings. The suitability of a probe for other coating systems depends on the application.

Step 3: Select your model

The letter identifies the probe; the final digit identifies the gauge body: 1 = Standard and 3 = Advanced.

Model	Gauge body	Probe
200B1	Standard	B
200B3	Advanced	B
200C1	Standard	C
200C3	Advanced	C
200D1	Standard	D
200D3	Advanced	D

For individual layer measurements, the minimum stated layer thickness is 13 µm with probe B, 50 µm with probe C and 500 µm with probe D. These limits apply to Advanced configurations and depend on the materials being tested.

Measurement principle	Non-destructive ultrasonic coating thickness measurement
Probe measuring ranges	B: 13–1,000 µm (0.5–40 mils) C: 50–3,800 µm (2–150 mils) D: 50–7,600 µm (2–300 mils) D, polyurea: 50–5,000 µm (2–200 mils) Range limits apply to polymer-based coatings.
Accuracy	B and C: ±(2 µm + 3% of reading) D: ±(20 µm + 3% of reading)
Minimum individual layer thickness	B: 13 µm C: 50 µm D: 500 µm Advanced models only; dependent on the materials in the multilayer coating system.
Standards	ASTM D6132; ISO 2808
Gauge body	2.8-inch colour touchscreen; IP65-rated enclosure

Measuring on Rough Surfaces

Textured and rough coatings can produce unwanted ultrasonic echoes that affect thickness readings. The PosiTector 200 allows the measurement range to be adjusted so that echoes below a selected minimum thickness can be excluded.

Use the Set Range function to adjust the lower measuring limit for the expected coating thickness. Check the settings against a representative sample before testing. The video demonstrates techniques for measuring rough surfaces.

Video

▶

All gauges come complete with probe, precision plastic shims, protective rubber holster with belt clip, couplant, 3 AAA batteries, instructions, nylon carrying case with shoulder strap, Certificate of Calibration traceable to NIST, two (2) year warranty.

Products

Item	Product	Price
139703	PosiTector 200B-1-Kit, Basic UT 13-1000 µm Coating Thickness Gauge	€ 2.020,00
139699	PosiTector 200B-3-Kit, Advanced UT 13-1000μm Coating Thickness Gauge	€ 2.461,00
139702	PosiTector 200C-1-Kit, Basic UT 50-3800 µm Coating Thickness Gauge	€ 2.211,00
137956	PosiTector 200C-3-Kit, Advanced UT 50-3800μm Coating Thickness Gauge	€ 2.652,00
139701	PosiTector 200D-1-Kit, Basic UT 50-7600 µm Coating Thickness Gauge	€ 2.401,00
139700	PosiTector 200D-3-Kit, Advanced UT 50-7600 µm Coating Thickness Gauge	€ 2.842,00

Accessories

Item	Product	Price
131983	PosiTector 200-B-Probe, Cabled UT 13-1000μm Probe for PosiTector	€ 1.793,00
132156	PosiTector 200-C-Probe, Cabled UT 50-3800μm Probe for PosiTector	€ 1.992,00
133794	PosiTector 200-D-Probe, Cabled UT 50-7600 µm Probe for PosiTector	€ 2.192,00
133045	PRINTERBT Bluetooth Printer for PosiTector Advanced	€ 379,00
131193	PAPERBT Printer Paper - 10 Rolls for the Bluetooth Printer	€ 22,00
131814	GEL_P Ultrasonic Couplant PosiTector (case of 12)	€ 223,00
137143	USBAC USB/AC Adapter Power Kit for PosiTector	€ 50,00

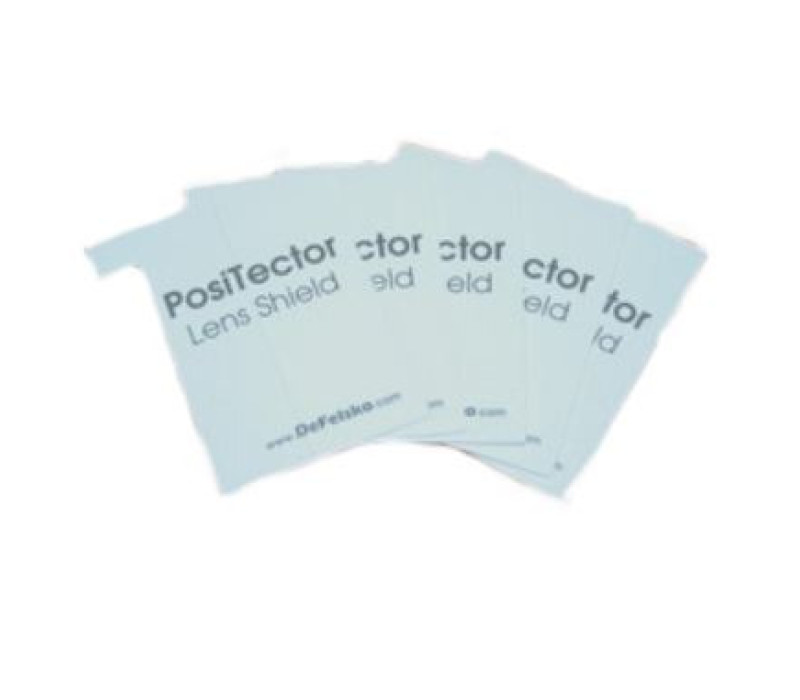

135393	LENSSHIELD Protective Lens Shields (5pk) for PosiTector	€ 11,00

All prices shown exclude VAT and shipping costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
