| Gauge versions: | DCF-3000PRO:
for measurements on iron/steel

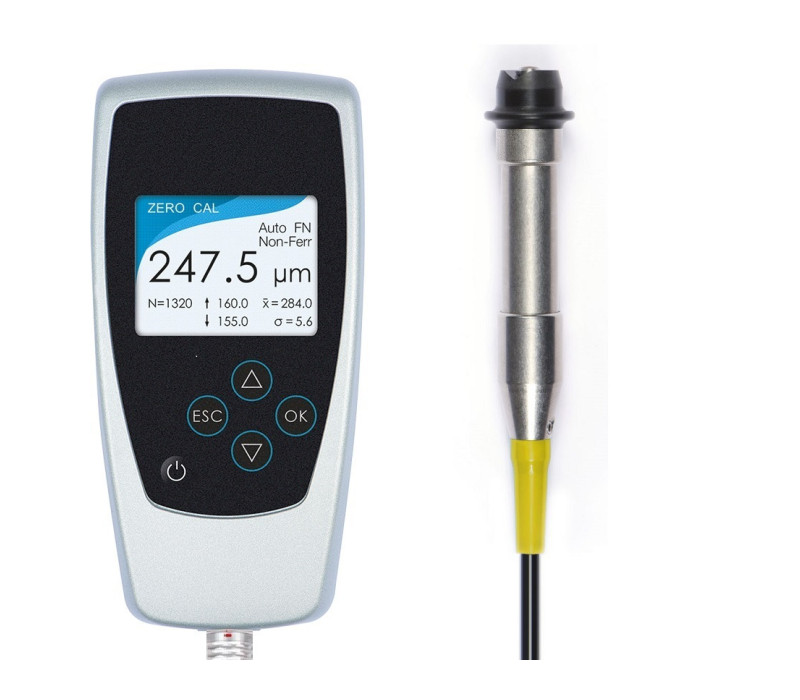

DCN-3000PRO:
for measurements on non-ferrous metals

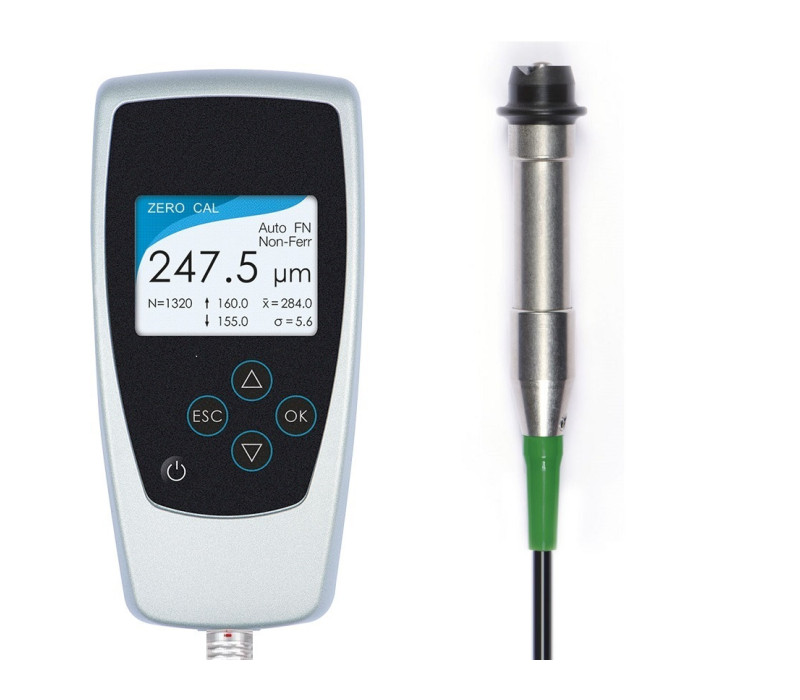

DCFN-3000PRO:
for measurements on iron/steel and non-ferrous metals

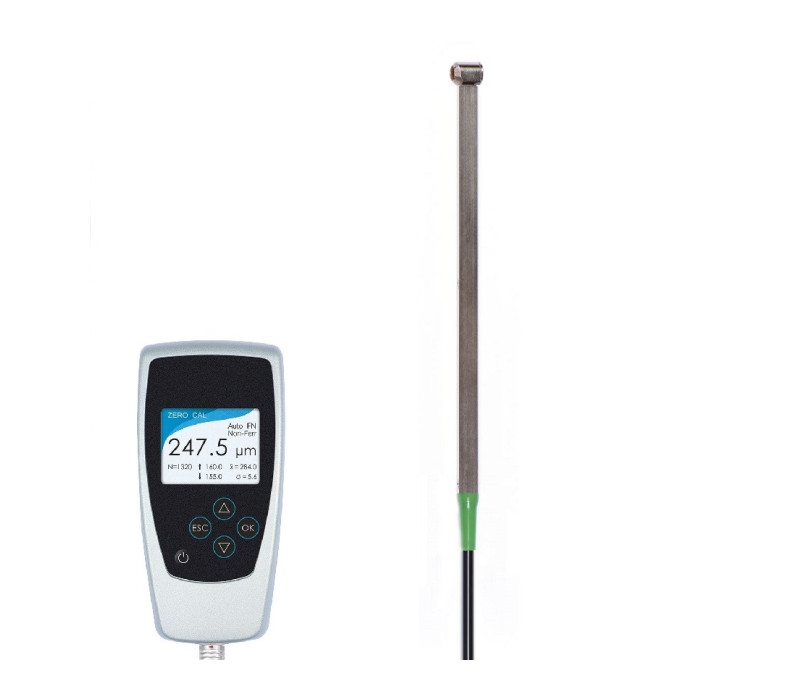

DCFN-3000PRO-90:
for tube ID measurements on iron/steel and non-ferrous metals

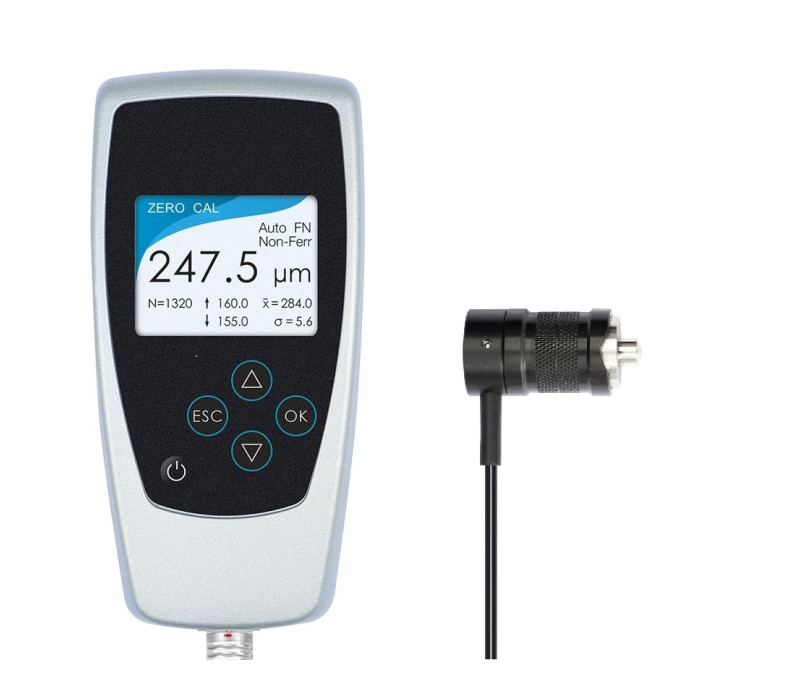

DCF-3000PRO-F10:
for measurements on iron/steel up to 10mm |
| Measuring principle: | Magnetic induction (F version);
Eddy current principle (N version) |
| Measuring range: | 3000PRO & 3000PRO-FN90: 0 - 1500 µm
3000PRO-F10: 0 - 10.000 µm |
| Tolerance: | ± (0.7 µm/0.04 mils + 1% of reading) |
| Resolution: | Refer To Table Above |
| Display: | High-resolution color display backlight |
| Minimum measurement area: | 5 mm x 5mm (0.2” x 0.2”) |
| Minimum curvature radius: | convex 2mm (0.08”)
concave 5mm (0.2”) |
| Minimum substrate thickness: | 0.2mm (8 mils) for F-version
50 µm (2 mils) for N-version |
| Calibration methods: | - Factory calibration: no calibration required for standard applications
- Zeroing (1-point calibration): measurements on small areas
- Zeroing and foil calibration (2-point calibration): increased measurement precision
- Two-foil calibration: especially for rough, sandblasted surfaces
- CTC: calibration on object with a layer, if zeroing is not possible
- Zero compensation: addition or reduction with a constant value on or off the measurement |
| Limit values: | Selectable; optical and acoustic signal if limit value is exceeded |
| Scan mode: | For continuous measurements; for the quick recognition of coating thickness variations;
with permanent display of minimum and maximum reading |
| Statistics: | Single value statistics: n, mean x, s, kvar, min, max, cp, cpk of max. 10,000 measurements
Block value statistics: n, mean x, mean s, mean kvar , min, max, cp, cpk; block size 3 to 100 measurements |
| Data memory: | 100,000 measurements in max. 500 selectable files; alphanumeric file names; saved measurements and statistical values can be viewed individually |
| Interfaces: | Bluetooth 4.0
USB 2.0 |
| Menu: | Multi-language menu-stucture (German, English, French (other languages optional) |
| Protection class: | IP 52 (protection against dust and dripping water) |
| Operating temperature: | 0 °C tot 60 °C (storage temperature -20 °C to +60 °C) |
| Surface temperature: | –15 °C up to + 60 °C (standard)
–15 °C up to + 150 °C or 300 °C (with optional high temperature foot) |
| Power supply: | 2 batteries AA
2 NiMH rechargeable batteries AA (quick-charge-compatible)
USB connection (USB2.0) |
| Housing/keypad: | Protection class IP52 (protection against dust and dripping water) |
| Dimensions: | 137 mm x 66 mm x 23 mm (HxBxD)
Probe: diameter 14 mm x 83mm |
| Weight: | 223 g (incl. FN probe 1.5 and batteries), 148 g (gauge only) |
| Standards: | DIN EN ISO, ASTM, BS |
| Warranty: | 2 years |
