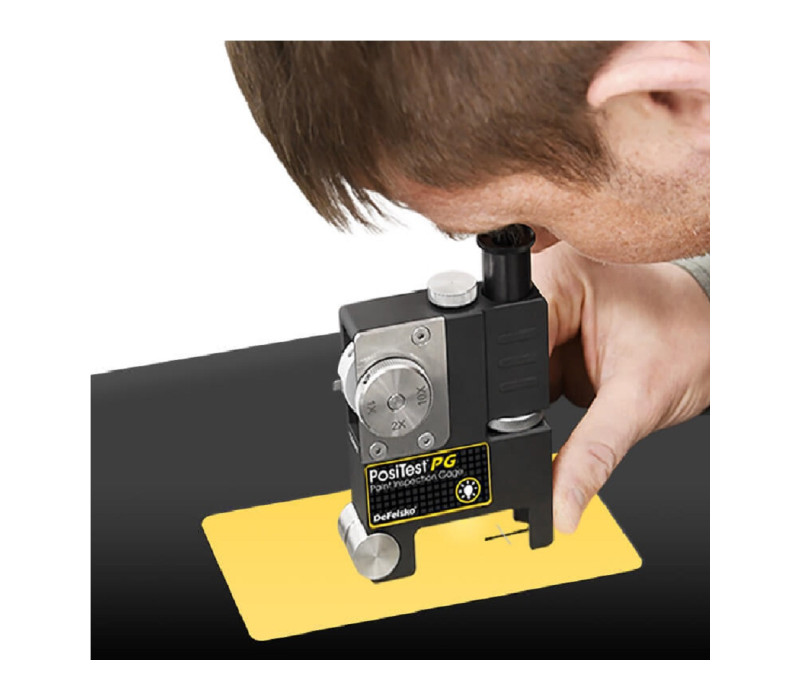

PosiTest PG PosiTest PG Paint Inspection Gauge

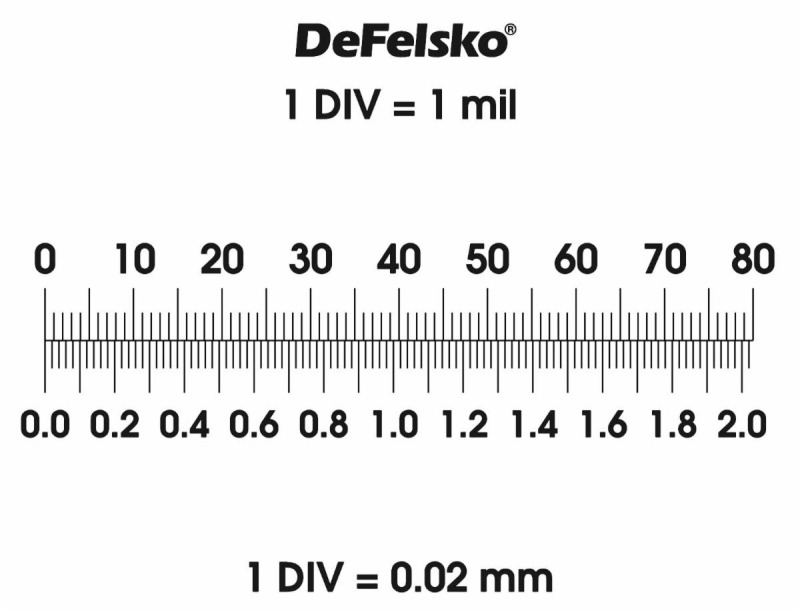

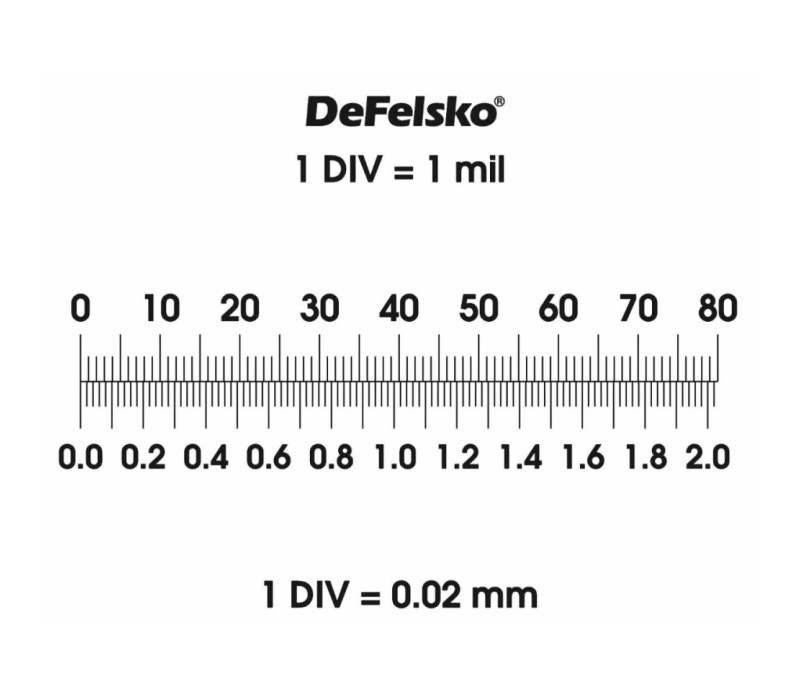

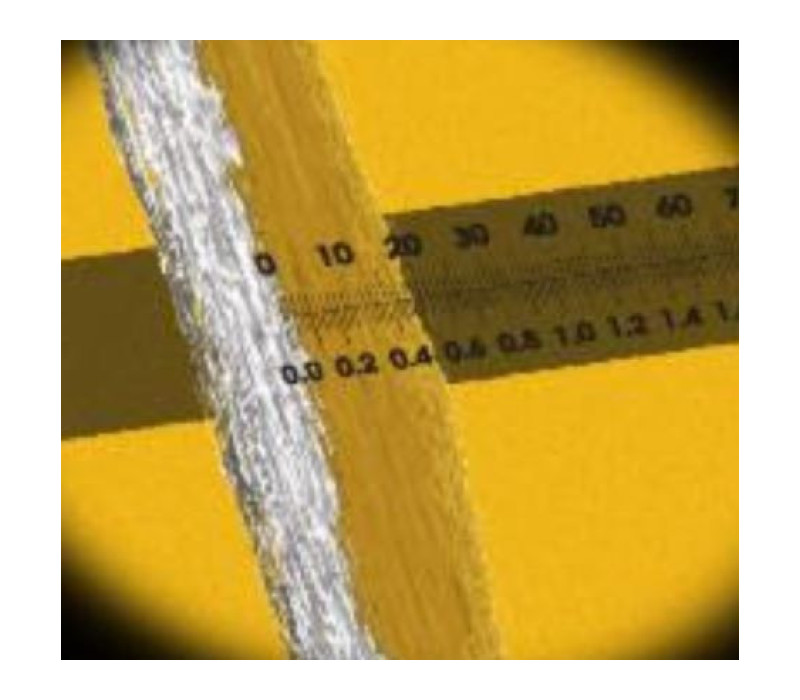

Rotating dual-scale reticle for accurate measurements in both mils and microns

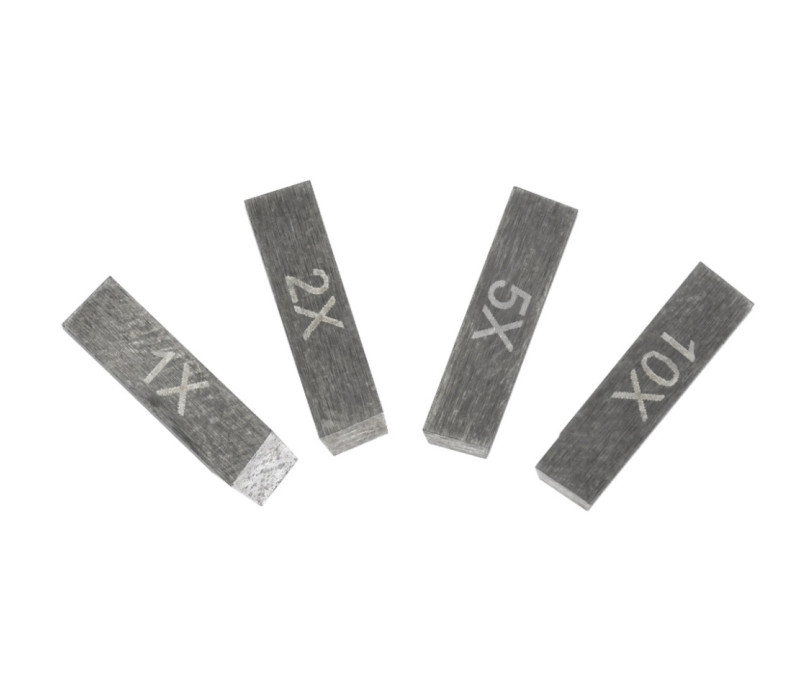

Replacement Tungsten Carbide Cutting Tips

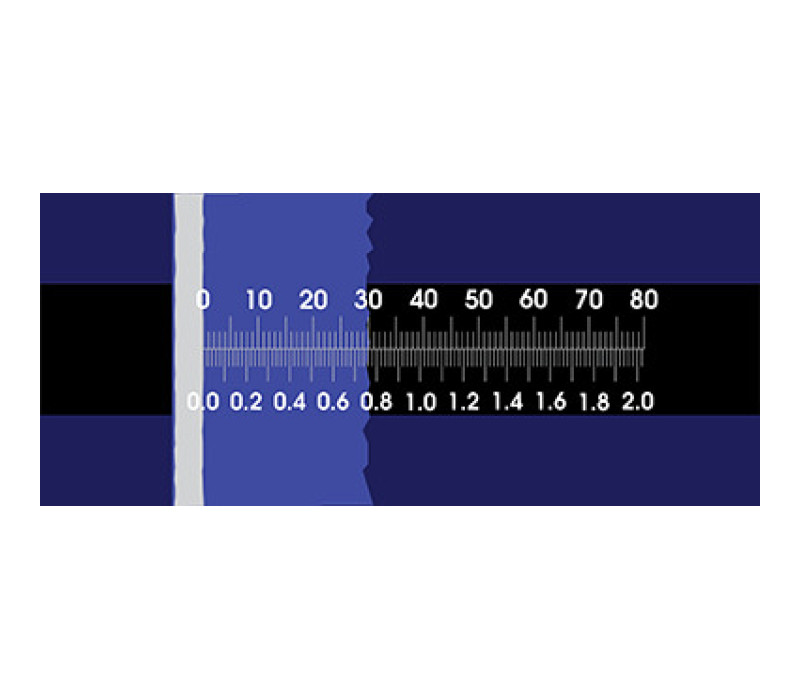

Graduation Measures-PG-Example

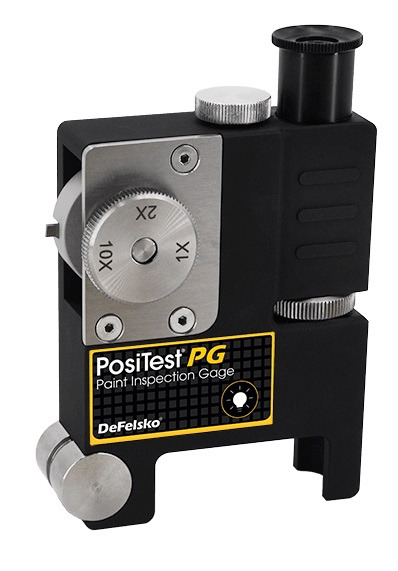

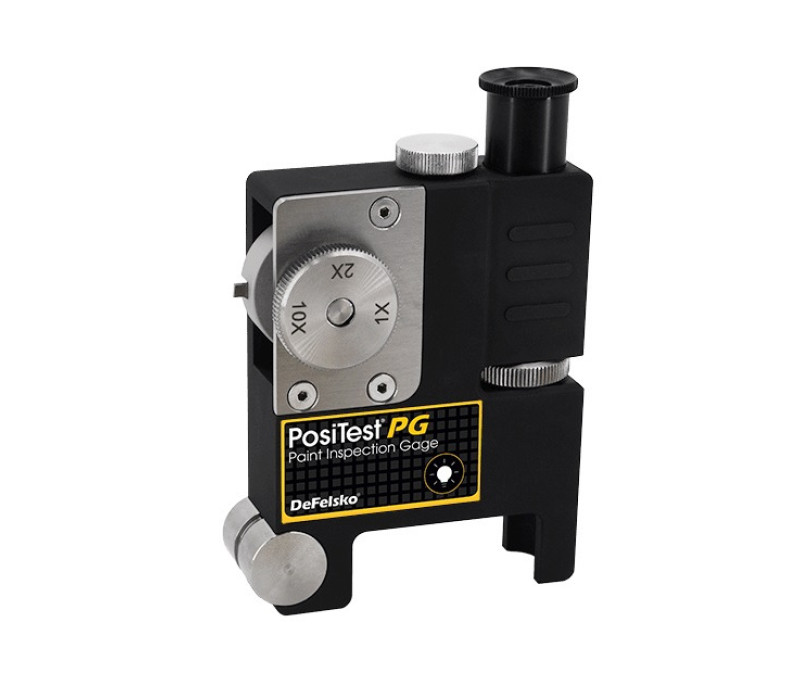

PosiTest PG Paint Inspection Gauge

The PosiTest PG Paint Inspection Gauge is a precision instrument designed to destructively measure either individual layer thickness or total coating thickness over any rigid substrate, such as metal, wood, and plastic. This device is ideal for applications requiring accurate paint layer measurements on surfaces with varying layer colours, meeting ASTM D4138 standards and more.

Highlighted Features:

Precision Destructive Technique: Utilises a carbide cutting tip to make precise incisions in the coating, allowing for accurate measurements under an illuminated microscope.
Extensive Measuring Range: Capable of measuring coatings from 0 to 1,250 µm, suitable for a range of industrial and research applications.
Standards Compliance: Meets ISO 2808/19399, ASTM D4138, and other standards, ensuring compatibility and global recognition in measurement practices.
Versatile Measurement: Suitable for measuring on flat or moderately curved surfaces, capable of measuring pipes with small diameters and more.

Key Benefits:

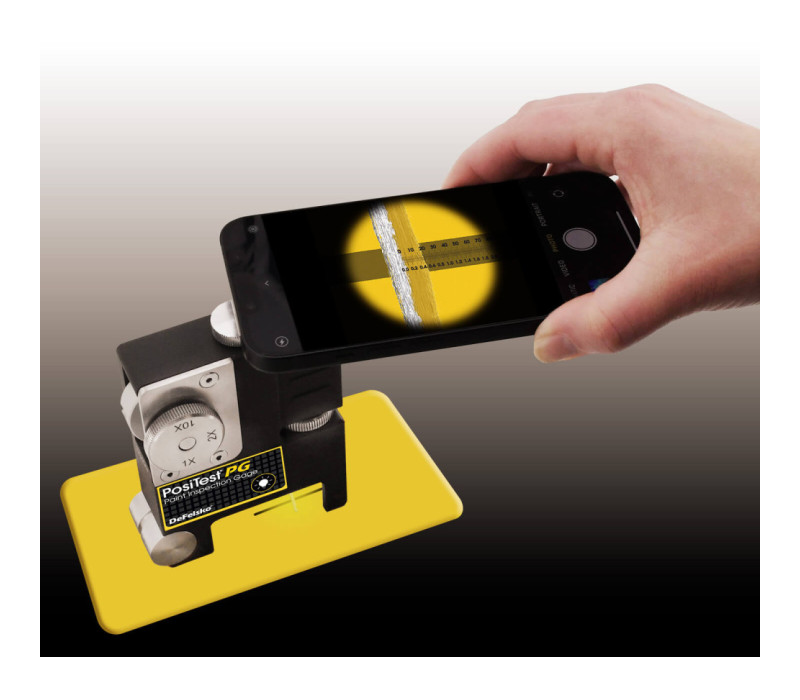

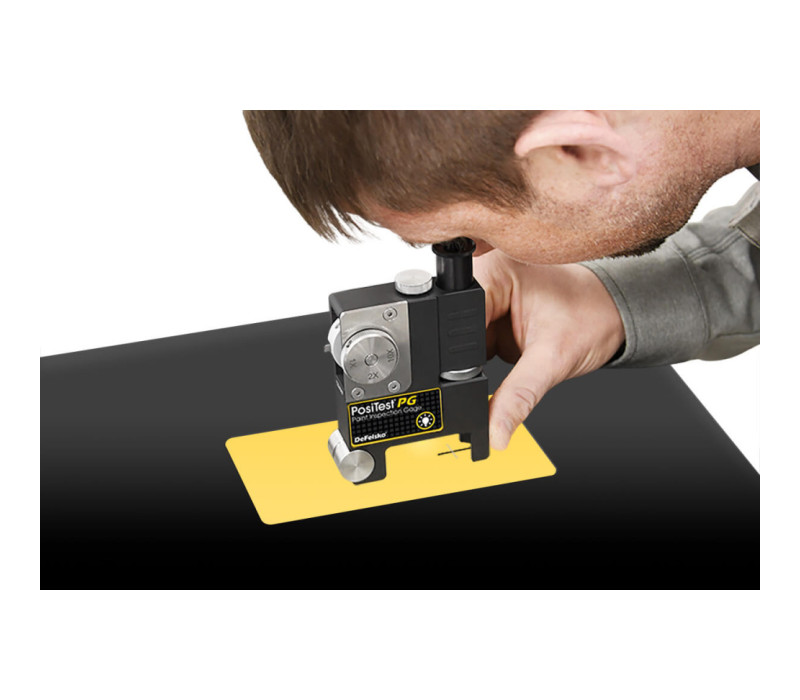

High-Power Microscope: Equipped with a 50x microscope that provides a clear, detailed view of the cut, facilitating precise coating thickness measurements.
Rugged Design: Features a durable anodized aluminium housing and a rotating cutting tip holder, providing a robust tool for industrial environments.

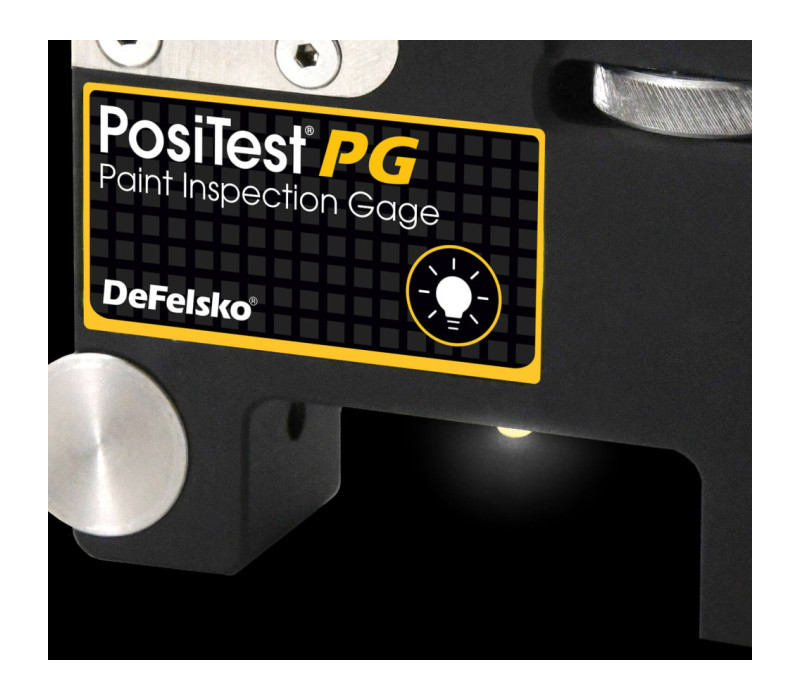

Easy to Use: Includes a selection dial to choose the appropriate cutting tip and a built-in light that illuminates the measurement area, simplifying the inspection process.

Contact us for more information on how the PosiTest PG can be your ideal solution for accurate paint thickness measurement on any substrate.

€ 934,00

Order now

Measurement Flexibility: Ability to store up to four cutting tips, facilitating multiple measurements without frequent changes.
Energy Convenience: Operates with an easily replaceable AAA battery, with an automatic timer to conserve battery life, extending the device's field usability.
Comprehensive Accessories: Includes all tools and accessories needed to meet national and international standards, ensuring standard and consistent measurements.

Includes:

PosiTest PG
3 cutting tips (1x, 2x, and 10x)
1/8” hex key
one AAA battery
Permanent black marker
Long Form Certificate of Calibration traceable to NIST
Instructions
Custom case

Conversion Chart / Accuracy

Cutting Tip	Conversion Factor	Range (µm) / (mils)	Accuracy (mils) / (µm)
1x	1	0 - 1.250 µm / 0 - 50 mils	± 1 mils / ± 25,4 µm
2x	0,5	0 - 625 µm / 0 - 25 mils	± 0,5 mils / ± 12,7 µm
5x	0,2	0 - 250 µm / 0 - 10 mils	± 0,2 mils / ± 5,0 µm
10x	0,1	0 - 125 µm / 0 - 5 mils	± 0,1 mils / ± 2,5 µm

Range	0 - 1,250 µm (depending on cutting tip)
Housing	Anodized aluminum
Cutting Tips	3x Tungsten Carbide / 1x optional: Tip 1x - Angle: 45° Tip 2x - Angle: 26.6° Tip 5x - Angle: 11,3° (optional) Tip 10x - Angle: 5.7°
Warranty	2 Years

Products

Item	Product	Price	Quantity	Action
139595	PosiTest PG Paint Inspection Gage	€ 934,00

Accessories

Item	Product	Price
139597	PGCUTTER1X - 1X /45 Degree - PosiTest PG Replacement Tungsten Carbide Cutting Tip	€ 86,00
139598	PGCUTTER2X - 2X / 26,6 Degree - PosiTest PG Replacement Tungsten Carbide Cutting Tip	€ 86,00
139599	PGCUTTER5X - 5X / 11,3 Degree - PosiTest PG Replacement Tungsten Carbide Cutting Tip	€ 86,00
139600	PGCUTTER10X - 10X / 5,7 Degree - PosiTest PG Replacement Tungsten Carbide Cutting Tip	€ 86,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
