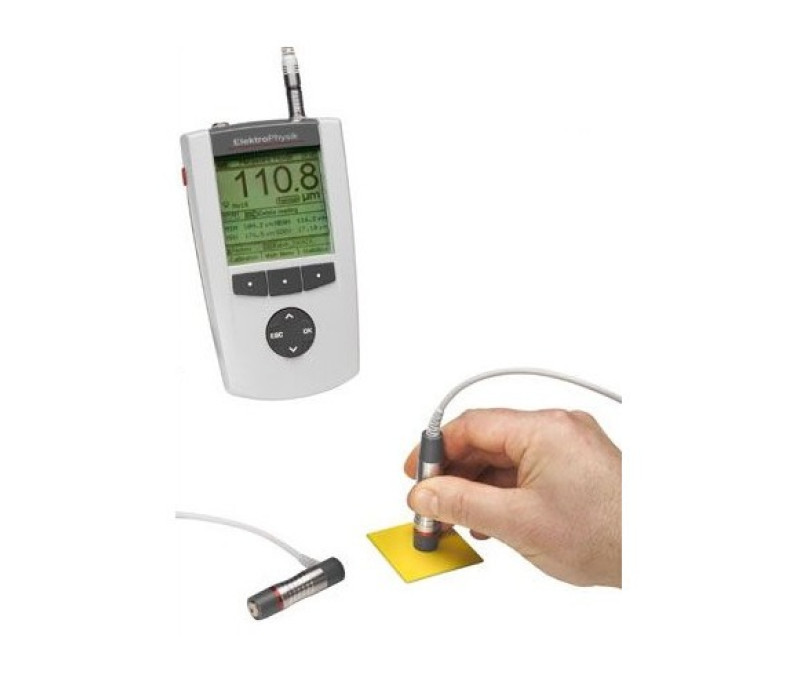

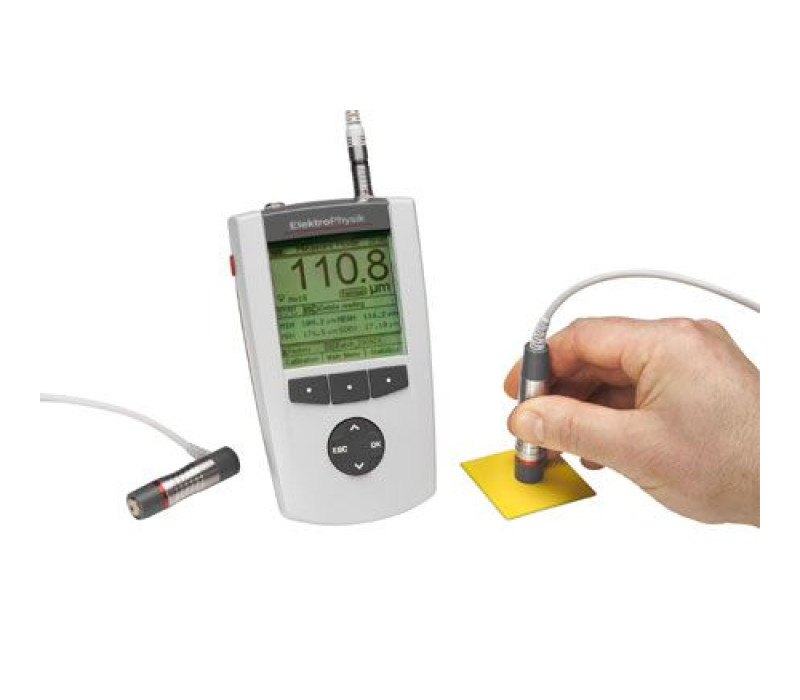

MiniTest 7400 Coating Thickness Gauge


Made in GermanyFor High-Precision

The MiniTest 7400 is a versatile and highly precise coating thickness gauge designed for measuring non-magnetic and insulating coatings on all metal substrates. This device is ideal for a broad range of industrial applications, providing reliable and non-destructive measurements with a five-point calibration that ensures exceptional results.

Highlighted Features:

  • Sensor Diversity: Equipped with a variety of interchangeable external sensors, suitable for any service condition.
  • Intuitive Control: Easy-to-use control menu allows for simple operation and quick setup without advanced technical knowledge.
  • High Memory Capacity: Stores up to 250,000 readings, enabling extensive data management and complex statistical analysis.
  • SIDSP Technology: Provides accurate and reproducible measurements, ensuring the reliability of each reading.

Key Benefits:

  • Superior Accuracy: Advanced sensor calibration ensures precise measurements across a variety of substrates and environmental conditions.

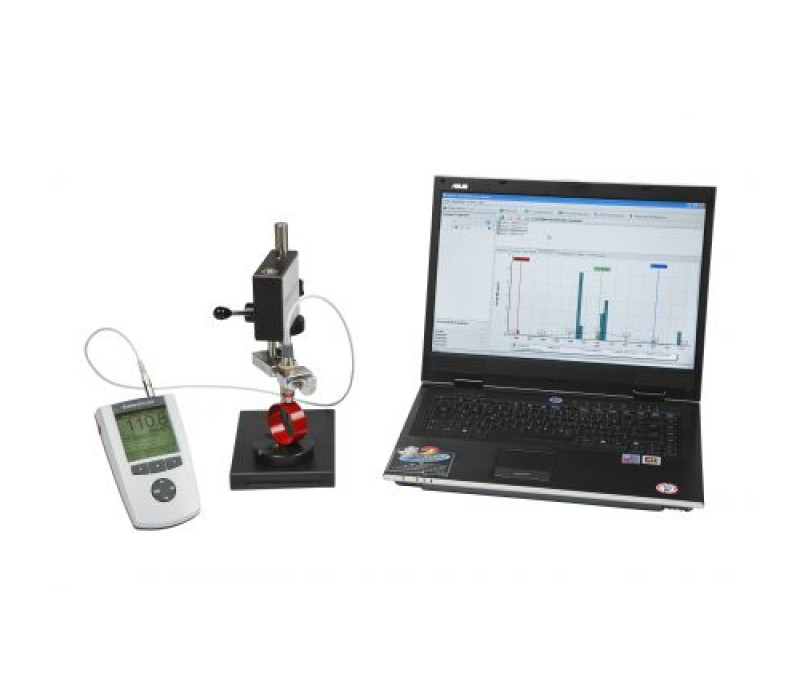

  • Ease of Use: Thanks to the included MSoft 7 Professional software, users can easily evaluate and export data to various formats, enhancing productivity and efficiency.
  • Versatile Connectivity: Multiple interfaces for connecting with other peripheral devices, facilitating integration into existing systems.



Contact us for more information on how the MiniTest 7400 can enhance the precision and efficiency of your coating measurement processes, and to receive personalised advice on the ideal solution for your application.


Features

  • Adaptability for Tough Tasks: SIDSP sensors are especially wear-resistant, suitable for measuring on rough surfaces without compromising accuracy.
  • Automatic Temperature Compensation: Ensures that measurements are accurate regardless of temperature fluctuations in the work environment.
  • Multilingual Operator Guide: On-screen instructions available in multiple languages, facilitating usability for international operators.

Complete Kit

The MiniTest 7400 will be delivered as a complete kit, including:

  • MiniTest 7400
  • MSoft 7 Professional Software
  • Manual, available in English, German and French
  • 4 AA cells, type LR06
  • Plastic carrying case

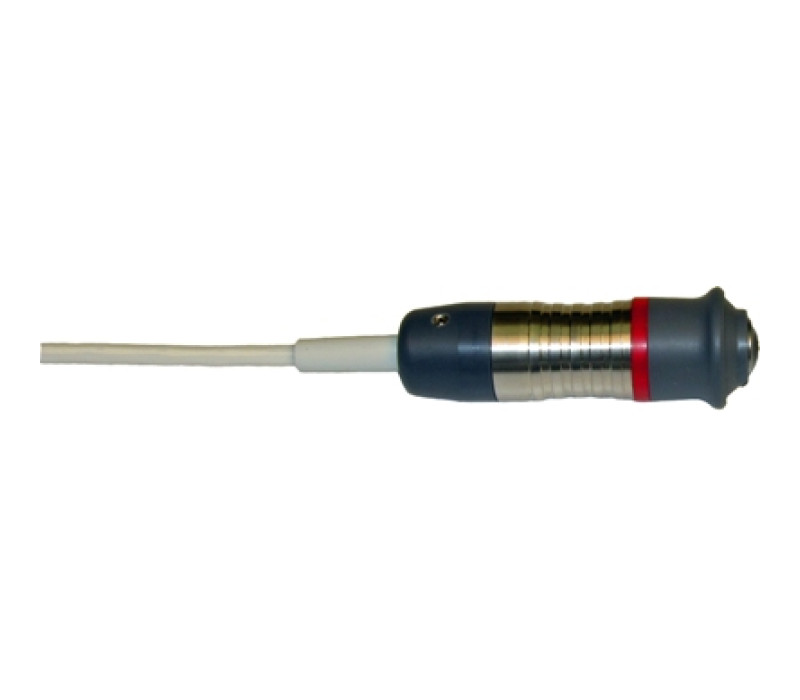

Sensor type description

15 different sensors are available for the MiniTest 7400. Each sensor is available as a HD version for harsh environments. Please refer to the accessories for more details.

F-Probes for non-magnetic coatings on steel:

  • F 0,5: 0 – 0,5 mm
  • F1,5: 0 – 1,5 mm
  • F1,5-90: 0 – 1,5 mm
  • F2HD: 0 – 2 mm
  • F5: 0 – 5 mm
  • F15: 0 – 15 mm
  • F35: 0- 35 mm



N-Probes for insulating coatings on non-ferrous metals:

  • N0,2: 0 – 0,2 mm
  • N0,7: 0 – 0,7 mm
  • N0,7-90: 0 – 0,7mm
  • N2,5: 0 – 2,5 mm
  • N7: 0 – 7 mm



FN-Probes for both non-magnetic coatings on steel and insulating coatings on non-ferrous metals:

  • FN1,5: F: 0 – 1,5 mm / N: 0 – 0,7 mm
  • FN1,5-90: F: 0 – 1,5 mm / N: 0 – 0,7 mm
  • FN5: F: 0 – 5 mm / N: 0 – 2,5 mm

Specifications

Max. number of batches500
Max. number of storable readingsapprox. 250,000 readings in total
Statistics (per batch)number of readings, minimum, maximum, average, standard deviation, coefficient of variation, block statistics (norm-conforming/free configurable), process capability indices Cp and Cpk, histogram, trend
Calibration procedures according to international ISO, SSPC, „Swedish“, „Australian“
Calibrationup to 5 points, user adjustable offset value
Monitoring of limitsVisual and audible alarm for set limits
Measuring unitsμm, mm, cm, mils, inch, thou
Operating temperature–10°C … 60°C; 14°F … 140°F
Storing temperature–20°C … 70°C; -4°F … 158°F
Power supply4 x AA (LR06) batteries, or optional power unit (90 – 240 V~ / 48 – 62 Hz)
Norms and standardsDIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, 19840, AS3894; SS 1841 60, SSPC-PA 2, IMO-PSPC, ASTM B 244, B 499, D 7091, E376
Display160 x 160 pixel LCD with backlight
Dimensions153 mm x 89 mm x 32 mm;
6 inch x 3.5 inch x 1.3 inch
Weight310 g; 11 oz. (gauge incl. batteries)

Buy Now

Product

Product
Price
Quantity
134295
MiniTest 7400 Coating Thickness Gauge (Basic unit without probe)
€ 2.262,00

Accessories

Product
Price
Quantity
134296
Minitest 745 - F0.5 SIDSP type sensor 0..500 µm
€ 872,00
134297
F05 SIDSP/HD type sensor, HD version for rough environments 0..500 µm
€ 983,00
134130
Minitest 745 - F1.5 Interchangeable Probe for MiniTest 745
€ 872,00
134299
F1.5 SIDSP/HP type sensor, HD version for rough environments 0..1500 µm
€ 983,00
134300
F2 SIDSP/HP type sensor, HD version for rough environments 0..2000 µm
€ 791,00
134134
Minitest 745 - F5 Interchangeable Probe for MiniTest 745
€ 689,00
134317
F5 SIDSP/HD type sensor, HD version for rough environments 0..5000 µm
€ 791,00
134137
Minitest 745 - F15 Interchangeable Probe for MiniTest 745
€ 1.266,00
134303
F35 SIDSP type sensor 0..35000 µm
€ 1.393,00
134304
N0.2 SIDSP type sensor 0..200 µm
€ 901,00
134305
N0.2 SIDSP/HD type sensor, HD version for rough environments 0..200 µm
€ 1.014,00
134131
Minitest 745 - N 0.7 Interchangeable Probe for MiniTest 745
€ 901,00
134307
N0.7 SIDSP/HD type sensor, HD version for rough environments 0..700 µm
€ 1.014,00
134135
Minitest 745 - N 2.5 Interchangeable Probe for MiniTest 745
€ 763,00
134309
N2.5 SIDSP/HD type sensor, HD version for rough environments 0..2500 µm
€ 872,00
137056
Minitest 745 - N7 Interchangeable Probe for MiniTest 745
€ 902,00
134311
N20 SIDSP type sensor 0..20.000 µm
€ 1.648,00
135516
Minitest 745 - FN 1.5 Interchangeable Probe for MiniTest 745
€ 1.205,00
134313
FN1.5/0.7 SIDSP/HP type sensor, HD version for rough environments F 0..1500 µm/N 0..700 µm
€ 1.328,00
134136
Minitest 745 - FN5 Interchangeable Probe for MiniTest 745
€ 1.066,00
134315
FN5/2.5 SIDSP/HD type sensor, HD version for rough environments F 0..5000 µm/N 0..2500 µm
€ 1.188,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
