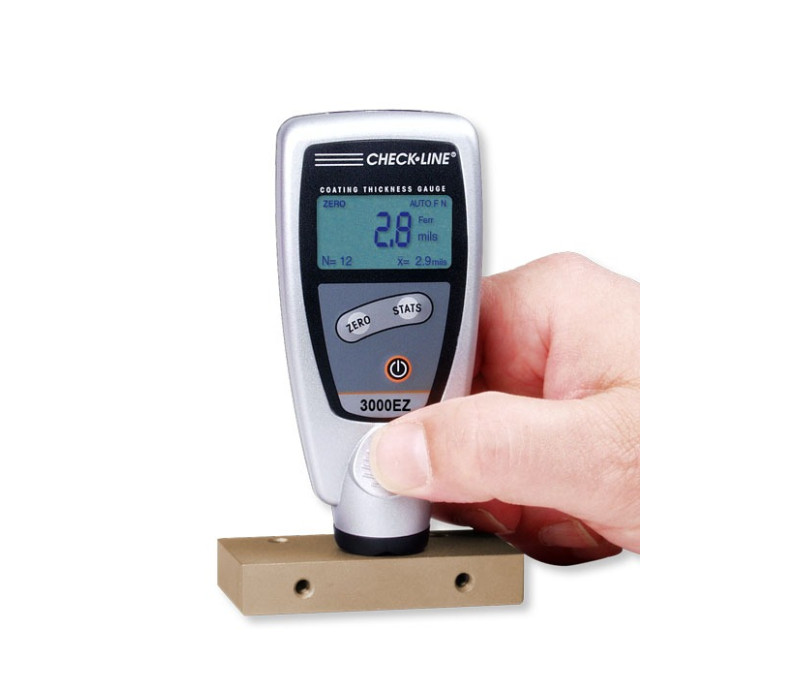

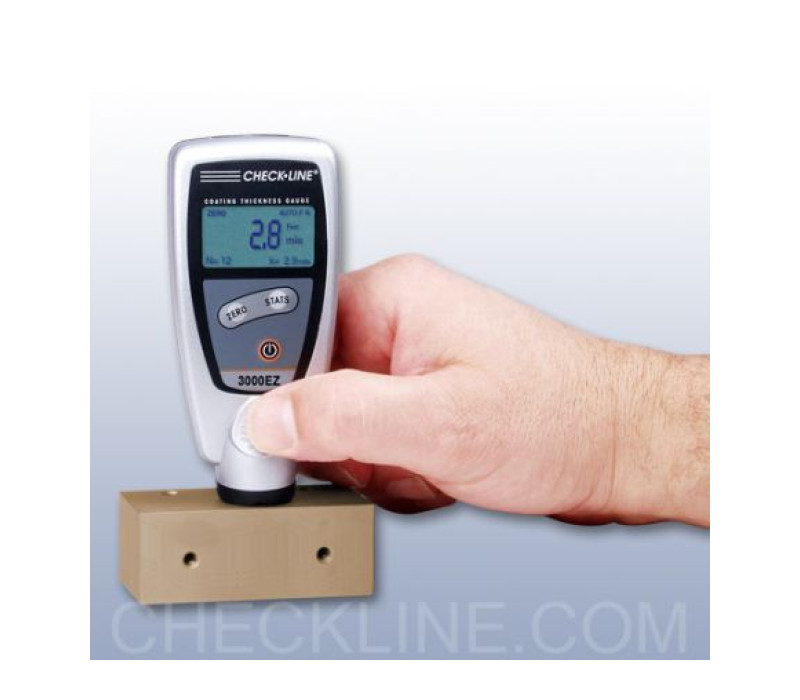

    3000EZ Series Coating Thickness Gauge

    Made in Germany Precision and Versatility at Your Fingertips

    The 3000EZ series of coating thickness gauges provides advanced solutions for precise, non-destructive measurement of coatings on both ferrous and non-ferrous metals. Available in two models, the DCF-3000EZ for ferrous applications and the DCFN-3000EZ for both ferrous and non-ferrous, these devices are designed to accommodate a wide range of industrial and laboratory applications.

    Key Features:
    • Dual Functionality: Both models provide detailed measurements, from 0 to 3500 µm for ferrous and up to 3000 µm for non-ferrous, ensuring coverage for a broad range of materials.
    • Durability and Accuracy: These gauges are built to last and offer reliable results with an accuracy of ±3 µm or 3% of the reading, whichever is greater.
    • Easy and Ergonomic Use: Featuring a large backlit display and an intuitive design, the 3000EZ series ensures comfortable reading and operation under various working conditions.
    Key Benefits:
    • Versatility in Applications: Ideal for sectors such as automotive, construction, and aerospace, where precision in coating thickness measurement is critical.
    • Seamless Integration: With options for measurement in both imperial and metric units and live statistical capabilities, these gauges seamlessly integrate into any workflow environment.
    • Enhanced Portability: Its compact design and the option of a metal probe tip extend its utility in the field, making the 3000EZ an indispensable tool.
    Contact us for more information or to place an order. Our technical team is available to help you select the coating thickness gauge that best suits your needs, ensuring efficient and precise measurements for your project.
    Price from € 550,00
    Order now

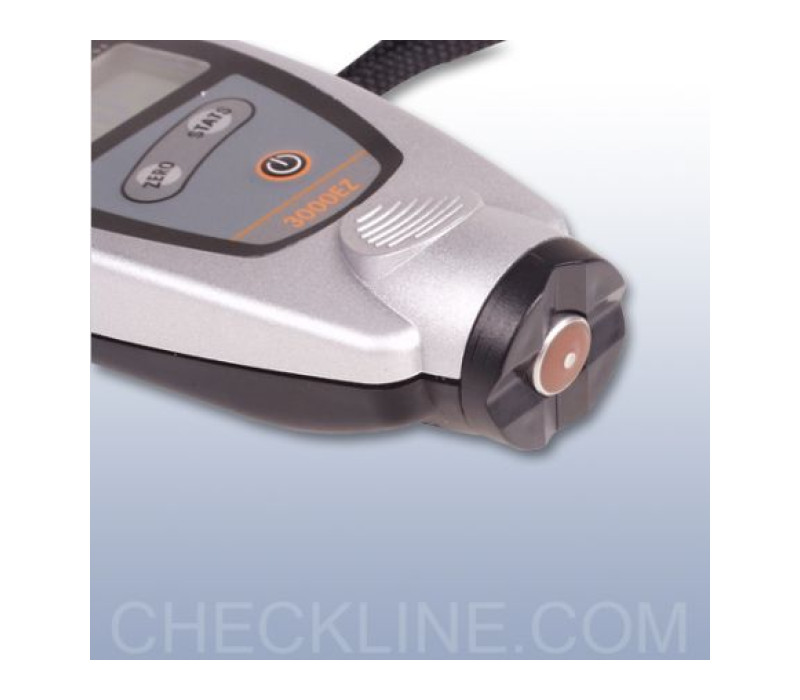

    • Integrated dual sensor with hard metal pole tip
    • Manufacturer's Certificate Included
    • Large back-lit display
    • Live statistics display for up to 99 readings
    • Keypad-selectable English or metric units
    • 1 Year Warranty
    Complete Kit

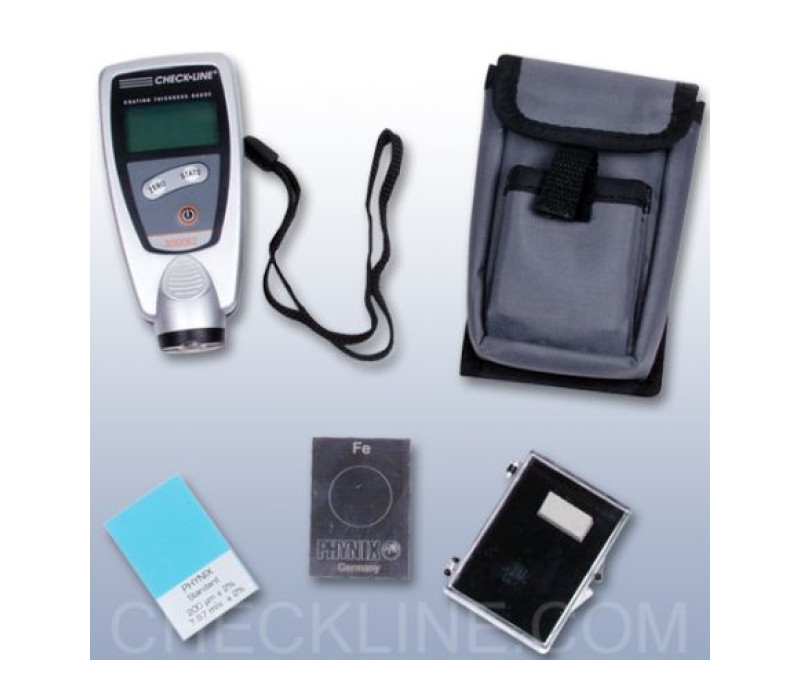

    The 3000EZ Series is supplied as a complete kit with:

    • 3000EZ coating thickness gauge
    • zero-plate
    • plastic test shim
    • 2 AA batteries
    • soft carrying pouch
    • instruction manual
    • manufacturer´s certificate


    The DCF-3000EZ is supplied with a
    ferrous zero-plate
    The DCFN-3000EZ is supplied with a
    ferrous and a non-ferrous zero-plate

    Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces 0.2" (5 mm)
    Minimum Radius for Concave Surfaces 2" (50mm)
    Minimum Headroom Minimum Headroom 4" (100 mm)
    Minimum Sample Diameter Minimum Sample Diameter 0.5" (13 mm)
    Minimum Substrate Thickness - F Minimum Substrate Thickness - F 20 mils (0.5 mm)
    Minimum Substrate Thickness - NFe 2 mils (50 µm)
    Resolution Table
    Microns (µm)
    0 - 999 µm 1 µm
    1.000 - 2.498 mm 0.002 mm
    2.500 - 3.500 mm 0.005 mm

    Mils
    0 - 99.9 mils 0.1 mils
    100.0 - 140.0 mils 0.2 mils
    Gauge versions:DCF-3000EZ
    Coating thickness on ferrous metals
    DCFN-3000EZ
    Coating thickness on ferrous & non-ferrous metals
    Range:Ferrous: 0 - 3500 µm (0 - 140.00 mils)
    Non-Ferrous: 0 - 3000 µm (0 - 120.00 mils)
    Accuracy:3 µm (±0.1 mils) or 3% of reading, whichever is greater
    Resolution:see table
    Display:Back-lit, 4-digit alphanumeric
    Min. Measuring Area:10 mm x 10 mm (0,4" x 0,4")
    Min. Curvature Radius:concave: 50 mm (2")
    convex: 5 mm (0.2")
    Calibration:Factory calibration, zero calibration
    Statistics Program:Number of readings, mean value, standard deviation, maximum and minimum reading of max. 99 readings
    Operating Temp:0 °C to 50 °C (32 °F to 122 °F)
    Surface Temp:-15 °C to 60 °C (5 °F to 140 °F)
    Storage Temp:-20 °C to 60 °C (-4 °F to 140 °F)
    Power:2 AAA, 1.5 V
    Dimensions:110 mm x 50 mm x 25 mm (4.3" x 2" x 1")
    Weight:90 g (3.2 oz)
    Protection Class:IP 52 (proof against dust and dripping water)
    Standards:DIN, ISO, ASTM, BS
    Warranty:1 year
    Calibration Certificate:Included

    Related Products

    Browse Related Products

    Cic-Coating Gauge Calibration

    Cic-Coating Gauge Calibration

    Accessories

    Browse Accessories

    CPS Certified Shim Set
    CPS Certified Shim Set

    Order Now

    Products
    Item Product Price  Quantity Action
    126371DCF-3000EZ Coating Thickness Gauge € 550,00
    126372DCFN-3000EZ Coating Thickness Gauge € 685,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
