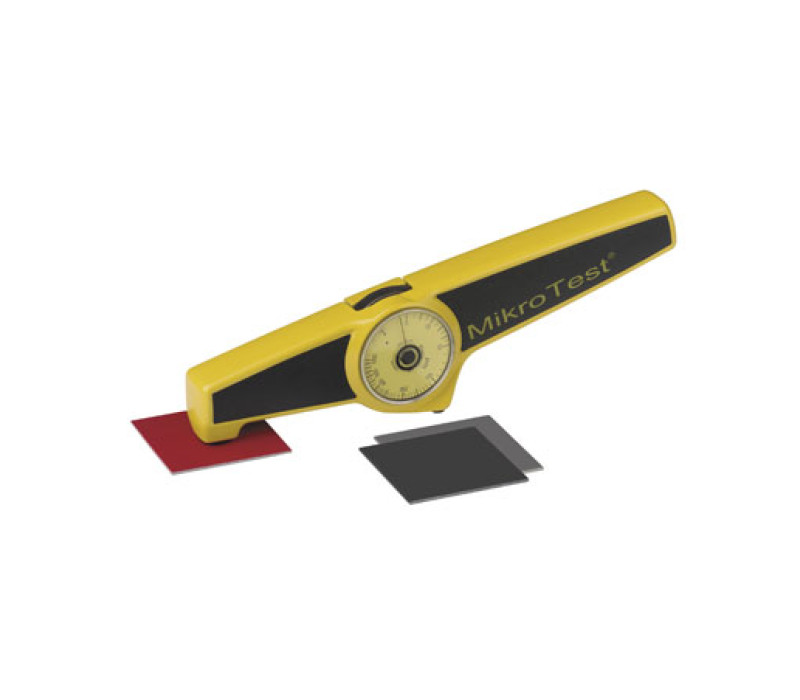

    MikroTest Magnetic Coating Thickness Gauge

    Made in Germany The MikroTest is the world's most widely used coating thickness gauge over the last 40 years, employing the principle of magnetic attraction to measure non-magnetic coatings on steel and galvanic nickel on steel. Renowned for its accuracy and ease of use, the MikroTest allows measurements in any position and on curved surfaces without the need for calibration or electrical power.

    Highlighted Features:
    • Variety of Models: Available in 11 different models, each designed for specific applications, ensuring versatility and adaptability to various measurement needs.
    • Automatic Measurement: Equipped with a system that balances measurements at any angle, allowing for precise readings horizontally, vertically, and overhead.
    • Magnetic Attraction Principle: Uses magnetic force attraction that varies with the coating thickness, providing quick and reliable measurements.
    Key Benefits:
    • Simple Operation: Requires no calibration or power supply, simplifying usage and minimising maintenance.
    • Durable Construction: Its robust casing protects against mechanical shocks and exposure to solvents, extending the device's lifespan.
    • Diverse Applications: Capable of measuring on pipes and round parts, it is ideal for a wide range of industries including automotive, construction, and manufacturing.


    Contact us to discover how the MikroTest can facilitate and enhance the accuracy of your coating thickness measurements.

    Price from € 597,00
    Order now
    • Multiple Coating Measurement: The only low-cost method for measuring individual layers in multi-layer systems without affecting the substrate.
    • Measurement Versatility: Suitable for coatings from 0 to 100 µm in specific models, covering a broad range of industrial applications.
    • Complementary Accessories: Ability to connect to peripheral devices for documenting and analysing measurement data, enhancing quality management.
    Complete Kit
    The MikroTest is supplied with the following items:
    - MikroTest gauge
    - Hand strap
    - Plastic carrying case
    - Operating instructions
    Available models:

    Available models:

    ModelRangeToleranceApplicationMin. surfaceMin. curvature radius of the sampleMin. base thickness
    5/6 G 0-100 μm± 1 μm or 5% of readingElectroplating and paint coatings on steel**Ø 20mm5 mm convex/ 25 mm concave 0.5 mm
    5/6 F 0-1000 μm± 5 μm or 5% of readingPaint on steel**Ø 30mm8 mm convex/ 25 mm concave0.5 mm
    6 S3 0.2-3 mm± 5% of readingEnamel, plastic, rubber on steel**Ø 30mm15 mm convex/ 25 mm concave1.0 mm
    6 S5 0.5-5 mm± 5% of readingEnamel, plastic, rubber on steel**Ø 50mm 15 mm convex/ 25 mm concave1.0 mm
    6 S10 2.5-10 mm± 5% of readingEnamel, plastic, rubber on steel**Ø 50mm 15 mm convex/ 25 mm concave2.0 mm
    6 S20 7.5-20 mm ± 5% of readingEnamel, plastic, rubber on steel**Ø 100mm100 mm convex/150 mm concave 7.0 mm
    Ni 50 6 0-50 μm± (1 μm + 5% of reading) Electroplated nickel on non-ferrous substratesØ 15mm5 mm convex/ 25 mm concave--
    Ni 100 60-100 μm± (1 μm + 5% of reading) Electroplated nickel on non-ferrous substratesØ 15mm5 mm convex/ 25 mm concav--
    NiFe50 60-50 μm± (2 μm + 8% of reading)Electroplated nickel on steel**Ø 20mm10 mm convex/ 25 mm concave0.5 mm

    * Referring to the manufacturer's standards
    ** Steel: ST 33 to ST 60
    Video
    Video Preview for ID: z_YS3e0UMAU
    Ambient Temperature-20 °C - 100 °C
    Conforming StandardsDIN EN ISO 2178, DIN 50 982, ASTM B 499, E 376, D 1186, G 12, B 530, BS 5411, ISO 2361
    DimensionsGauge: 215 mm x 55 mm x 29 mm
    Plastic carrying case: 235 mm x 185 mm x 46 mm
    WeightCase incl. gauge approx. 560 g

    Order Now

    Products
    Item Product Price  Quantity Action
    134359MikroTest G 5 - Manual Magnetic Coating Thickness Gauge 0 - 100 μm € 597,00
    132764MikroTest F 5 - Manual Magnetic Coating Thickness Gauge 0 - 1000 μm € 597,00
    134360MikroTest G 6 - Automatic Magnetic Coating Thickness Gauge 0 - 100 μm € 633,00
    134361MikroTest F 6 - Automatic Magnetic Coating Thickness Gauge 0 - 1000 μm € 633,00
    132765MikroTest S3 6 - Automatic Magnetic Coating Thickness Gauge 0,2 - 3 mm € 837,00
    134362MikroTest S5 6 - Automatic Magnetic Coating Thickness Gauge 0,5 - 5 mm € 837,00
    134363MikroTest S10 6 - Automatic Magnetic Coating Thickness Gauge 2,5 - 10 mm € 837,00
    137285MikroTest S20 6 - Automatic Magnetic Coating Thickness Gauge 7,5 - 20 mm € 1.750,00
    133814MikroTest Ni 50 6 Automatic Coating Thickness gauge 0 - 50 μm € 1.211,00
    137286MikroTest Ni 100 6 Automatic Coating Thickness gauge 0 - 100 μm € 1.211,00
    134847MikroTest NiFe 50 6 Automatic Coating Thickness gauge 0 - 50 μm € 1.750,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
