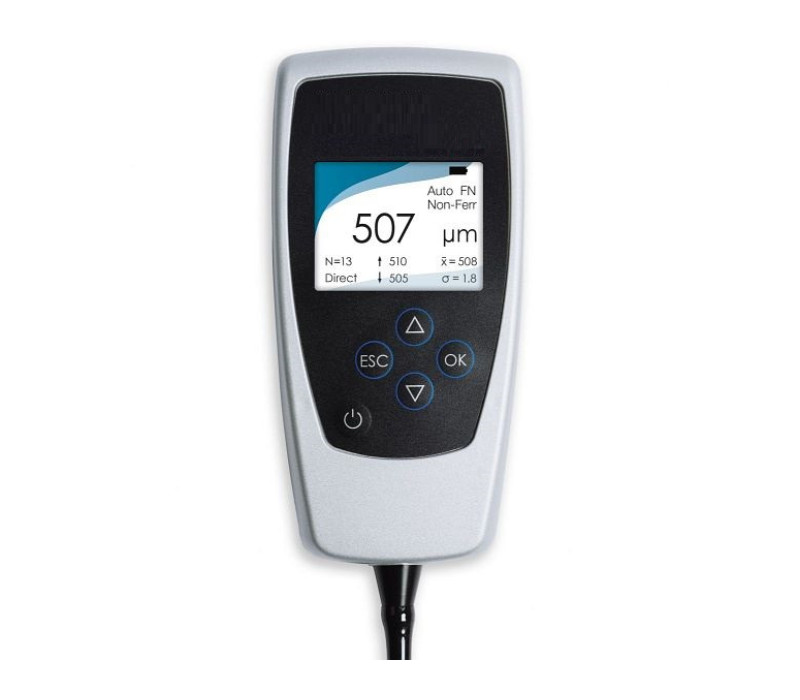

3000FX Series 3000FX SERIES Coating Thickness Gauge

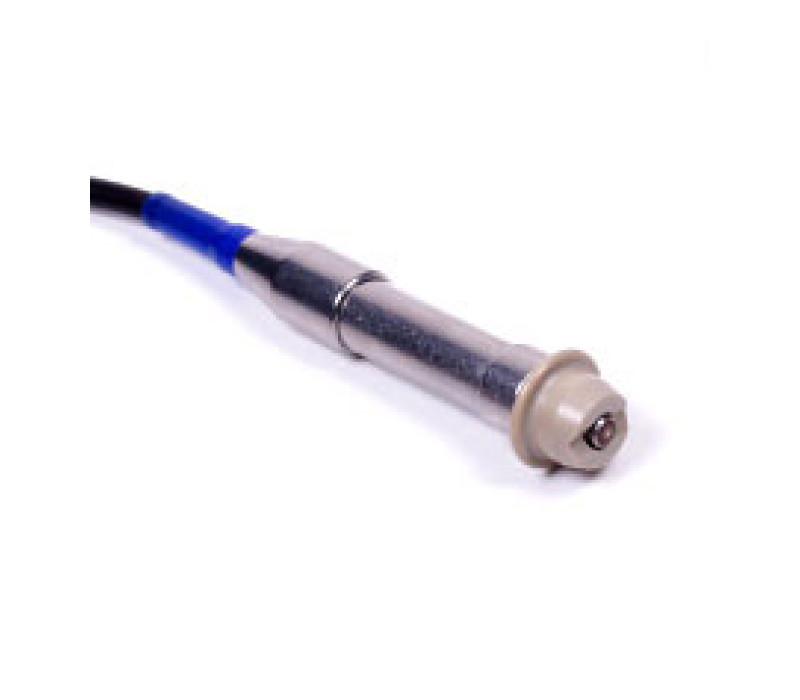

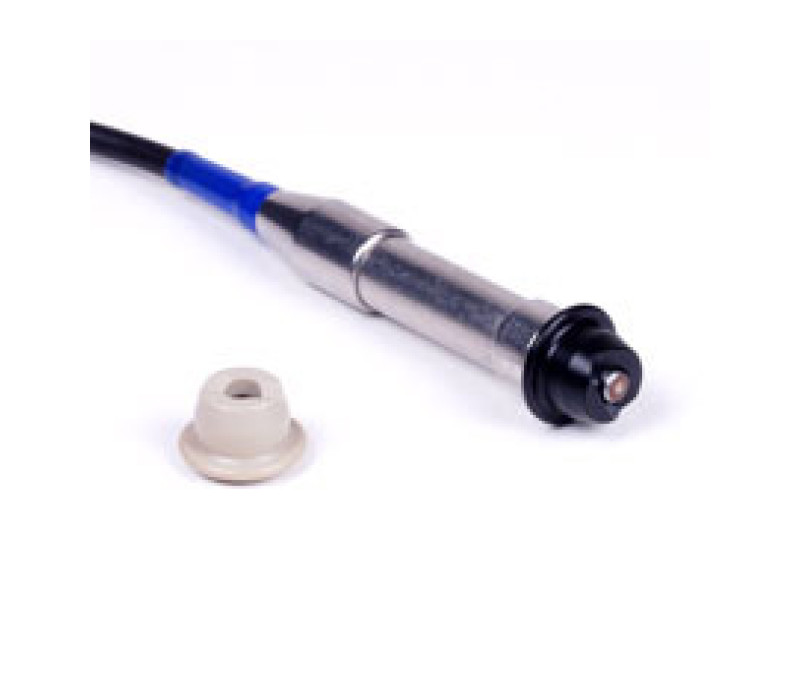

High Temperature Probe Footer The high temperature probe footer is a beige contact ring made of heat-resistant plastic. This ring has a shape that is identical to the original black v-grooved ring and is available for the 3000FX and 3000PRO only. With this probe footer, hot coatings such as freshly-burnt-in powder coatings can be measured with a surface temperature of up to 150°C (302°F).

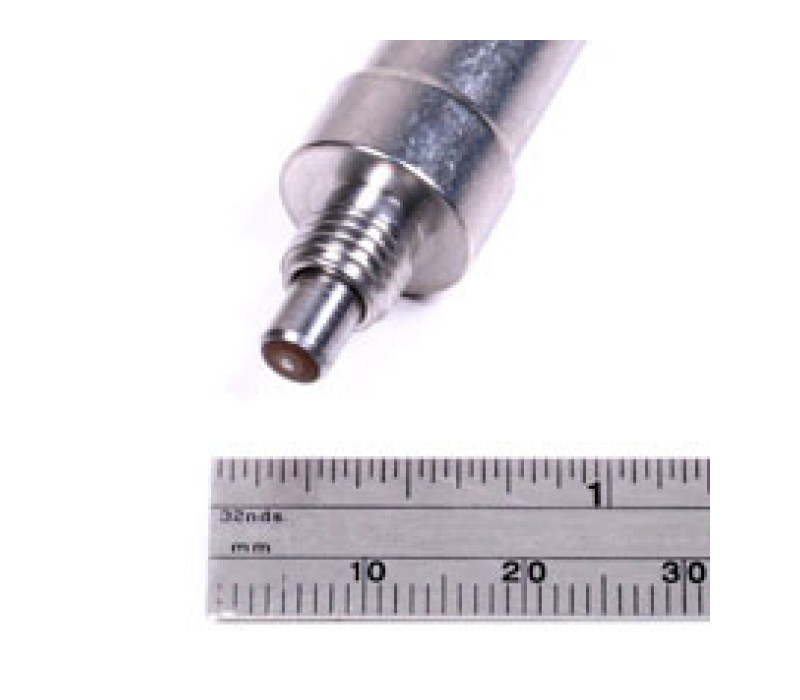

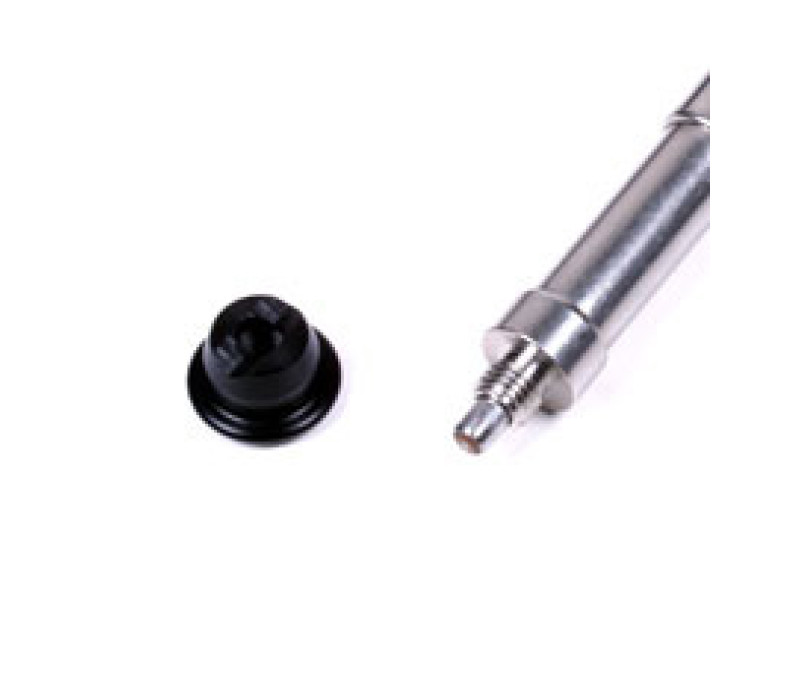

Removable V-Groove Ring The V-Groove ring can be removed to allow pin-point measurement on complex shapes.

3000FX SERIES Coating Thickness Gauge

The Checkline 3000FX series of coating thickness gauges is designed to deliver fast, non-destructive, and exceptionally precise measurements across a wide range of applications. Ideal for evaluating varnish, paint, and galvanic coatings on ferrous metals as well as paint, varnish, and anodised coatings on non-ferrous metals and even austenitic stainless steels, this series is an indispensable tool for ensuring a reliable and aesthetically pleasing finish on any product.

Key Features:

3 Available Models:
- DCF-3000FX: Designed for measurements on ferrous metals.
- DCN-3000FX: Specialised for measurements on non-ferrous metals.
- DCFN-3000FX: Provides a combined solution for measurements on both ferrous and non-ferrous metals.
Wide Measurement Range: Ranging from 0 to 1500 µm (0 to 60 mils), ideal for controlling coating thickness in various industrial applications.
Multifunctional Interface: Fully menu-driven for fast, professional, and precise operation.
High-Quality External Probes: Manufactured to extremely high standards and equipped with a unique hard-metal probe tip that minimises wear.
Special Accessory: A V-notched footer provides a stable base for small cylindrical parts, which can be removed to reveal a "micro-probe" sensor perfect for measuring on small surfaces and components.

Key Benefits:

Non-Destructive Measurement: Ensures that the surfaces evaluated remain undamaged during inspection.
Precision and Reliability: Consistent results that guarantee a high-quality finish, essential for corrosion protection and mechanical performance.
Versatility of Application: Ideal for a wide range of industries, from automotive to construction, where coating thickness is crucial for both aesthetics and functionality.
Ease of Use: Its intuitive digital interface allows for simple control, whether in the laboratory or in the field, optimising time and productivity.

Contact us for more information or to place an order. Our team of experts is ready to assist you in selecting the coating thickness gauge that best meets your operational and technical requirements, ensuring precise and high-quality measurements in all your projects.

Price from € 1.030,00

Shop now

The 3000FX Series is a compact, lightweight coating thickness gauge for operators who require both innovative and user-friendly measuring techniques
The 3000FX Series ensures non-destructive coating thickness measurement on steel and non Ferrous metals
Data transfer to a printer or PC takes place via an infra-red interface
A great number of readings can be statistically evaluated: number of readings, mean value, standard deviation, minimum and maximum reading. 200 readings can be stored in the memory.
The 3000FX Series identifies the substrate and activates the appropriate measuring procedure.
Menu in a choice of three languages ensures ease of operation
The uniform contact pressure of the sensor is kept to a minimum, preventing scratches and indentations to sensitive surfaces.
NIST Certificate Included at no additional cost
Up to 10 000 readings can be statistically evaluated: number of readings, mean value, standard deviation, minimum and maximum reading.
1 Year Warranty

	Minimum Radius for Convex Surfaces	3 mm
	Minimum Radius for Concave Surfaces	5 mm
	Minimum Headroom	100 mm
	Minimum Sample Diameter	5 mm
	Minimum Substrate Thickness - F	0,5 mm
	Minimum Substrate Thickness - NFe	50 µm

Resolution Table

Microns (µm)
0.0 - 99.9 µm	0.1 µm
100.0 - 249.8 µm	0.2 µm
250.0 - 499.5 µm	0.5 µm
500 - 999 µm	1 µm
1.000 - 1.998 mm	0.002 mm

Mils
0.00 - 9.99 mils	0.01 mils
10.00 - 24.98 mils	0.02 mils
25.00 - 49.95 mils	0.05 mils
50.0 - 99.9 mils	0.1 mils

Gauge versions:	*DCF-3000FX* for measurements on iron/steel *DCN-3000FX* for measurements on non-ferrous metals *DCFN-3000FX* for measurements on iron/steel and on non-ferrous metals
Measuring principle:	magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Range:	0 - 1500 µm (0 - 60.00 mils)
Accuracy:	± 1µm (0.04 mils) + 1% of reading
Resolution:	0.1 µm (0.004 mils) or < 2 % of reading
Display:	back-light, 4-digit alphanumeric, digit height: 10mm
Min. Measuring Area:	5 mm x 5 mm (0.2" x 0.2")
Min. Curvature Radius:	convex: 3 mm (0.12") concave: 5 mm (0.2")
Min. Substrate Thickness:	Ferrous: 0.5 mm (20 mils) Non-Ferrous: 50 µm (2 mils)
Calibration:	factory calibration, zero calibration, foil calibration, offset-function: addition or subtraction of a constant value
Memory:	200 readings
Statistics Program:	Number of readings, mean value, standard deviation, maximum and minimum reading of max. 10,000 readings
Data Output:	Infrared IrDA Standard
Operating Temp:	0 °C to 50 °C (32 °F to 122 °F) -15 °C to 150 °C (with optional plastic footer)
Surface Temp:	-15 °C to 60 °C (5 °F to 140 °F)
Storage Temp:	-20 °C to +60 °C (-4 °F to 140 °F)
Power:	2 AA - 1.5V
Dimensions:	137 mm x 66 mm x 23 mm
Weight:	205 g (7 oz) - gauge + probe
Protection Class:	IP 52 (proof against dust and dripping water)
Standards:	DIN, ISO, ASTM, BS
Warranty:	1 year

The 3000FX Series is supplied as a complete kit with:

coating thickness gauge
zero plate
2 calibration standards
2 AA batteries
soft carrying pouch
instruction manual
manufacturer´s certificate

The DCF-3000FX is supplied with a
ferrous zero-plate
The DCN-3000FX is supplied with a
non-ferrous zero-plate
The DCFN-3000FX is supplied with a
ferrous and a non-ferrous zero-plate

Products

Item	Product	Price
126137	DCF-3000FX Coating Thickness Gauge	€ 1.030,00
138675	DCN-3000FX Coating Thickness Gauge	€ 1.030,00
126141	DCFN-3000FX Coating Thickness Gauge	€ 1.245,00

Accessories

Item	Product	Price
126874	3000-HTF- High Temp. Ring for FX & Pro Probe (max 150 °C)	€ 39,00
130356	3000-HTF-EXT High Temp. Ring for FX & Pro Probe (max 300 °C)	€ 340,00
126782	3000-IR-USB IrDA Adapter USB	€ 135,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

3000FX SERIES Coating Thickness Gauge

Features

Dimensions

Specifications

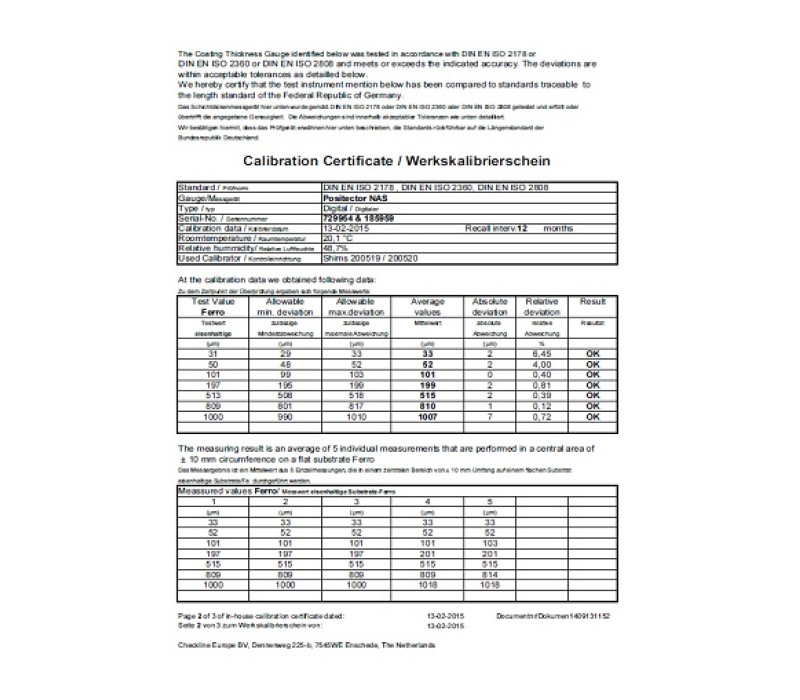

Cic-Coating Gauge Calibration

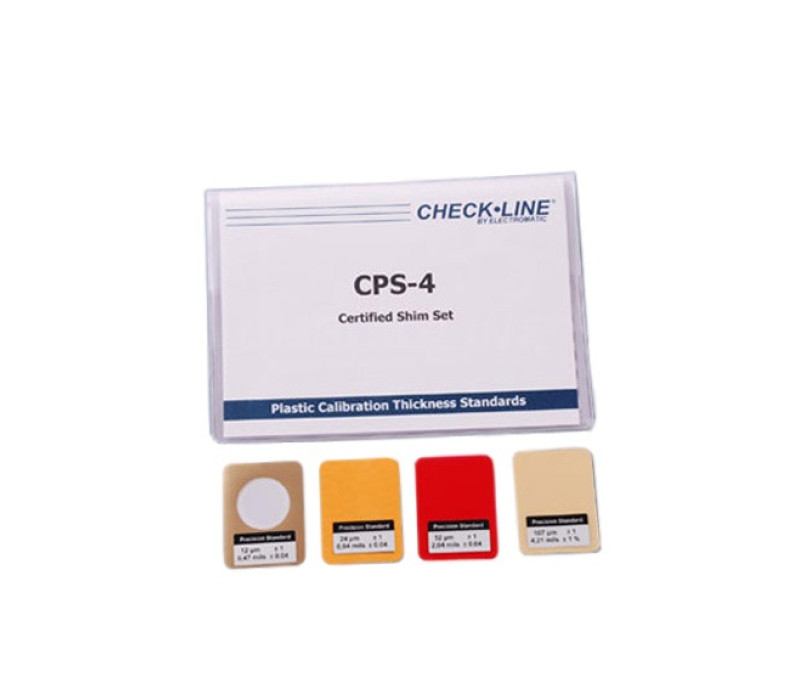

CPS Certified Shim Set

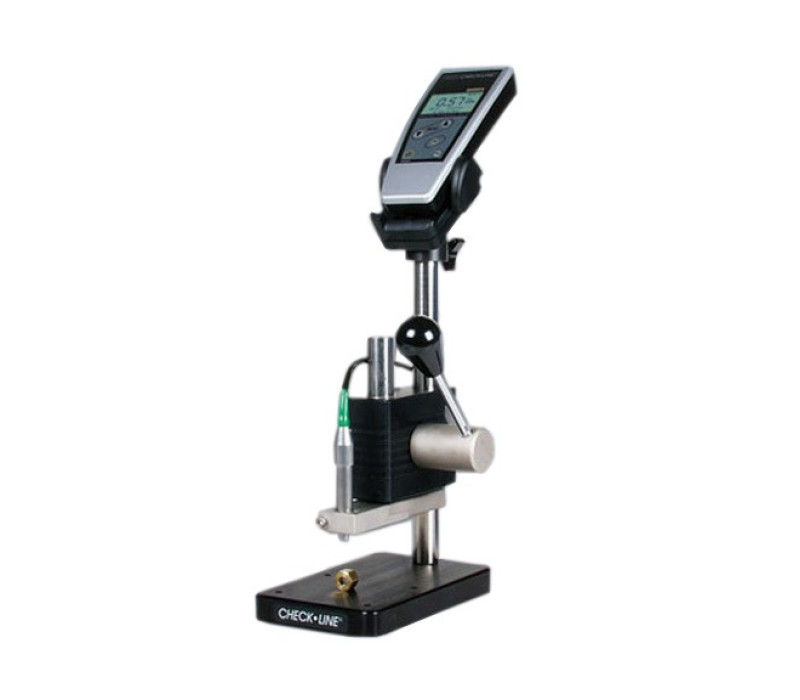

3000-PTS Coating Thickness Gauge Test Stand
