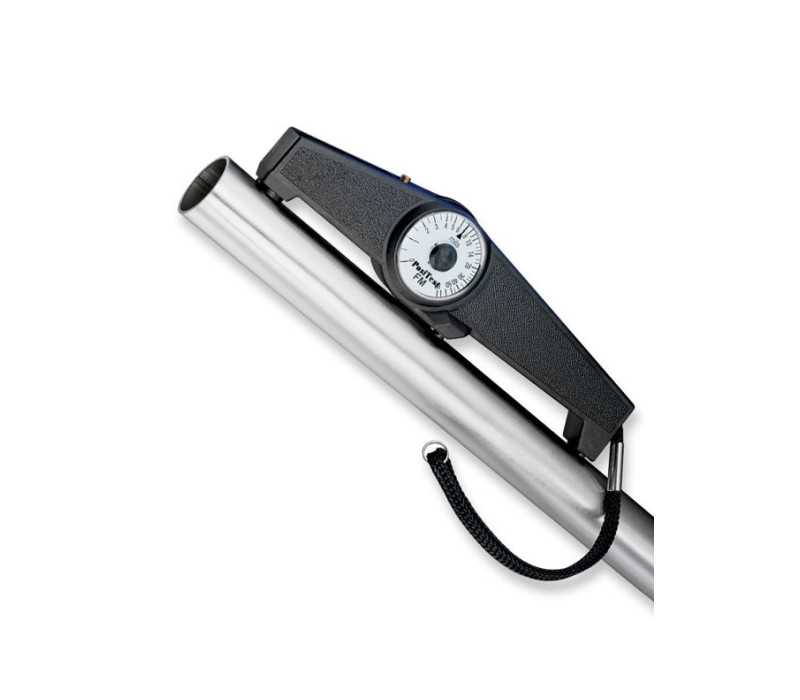

PosiTest Magnetic Coating Thickness Gauge

1. Quick Verification of Minimum Coating Thickness

• Set the Minimum Value:
  • Rotate the analogue display to the required minimum coating thickness.
• Position the Gauge:
  • Place the gauge on the material.
• Initiate the Test:
  • Press the button on top of the gauge.
• Interpreting the Result:
  • If the probe clicks and remains magnetically attached, the material’s coating thickness is below the minimum requirement.
  • If the probe does not stay attached, the thickness exceeds the minimum value.
  • This method allows operators to rapidly verify minimum coating thickness across large surfaces.

2. Quick Verification of Maximum Coating Thickness

• Set the Maximum Value:
  • Adjust the analogue display to the required maximum coating thickness.
• Position the Gauge:
  • Place the gauge on the material to be verified.
• Initiate the Test:
  • Press the button on the gauge.
• Interpreting the Result:
  • If the probe clicks and stays magnetically attached, the coating is below the maximum threshold.
  • If the probe detaches and bounces back, the coating thickness is above the set maximum.
  • This approach ensures that the material does not exceed the maximum coating requirements.

3. Determining the Actual Coating Thickness

• Prepare the Gauge:
  • Rotate the analog display to the maximum available coating thickness value.
• Measure the Coating:
  • Place the gauge on the material and press the button so that the probe clicks and attaches magnetically.
• Adjust for Precision:
  • Slowly rotate the display toward the minimum value until the probe detaches.
• Read the Result:
  • The displayed value is the actual coating thickness.
  • This technique provides a precise measurement for accurate quality control.

Summary:
Our innovative coating thickness gauge offers a fast, user-friendly solution for verifying both minimum and maximum coating requirements as well as accurately measuring the actual coating thickness. This ensures efficient quality control on large surfaces.
