    Analog Thickness Gauges

    Analogue thickness gauges show material thickness on a mechanical dial, with the part held between a fixed anvil and a spring-loaded contact for a fast, battery-free reading. Robust and intuitive, they suit routine checks on paper, card, leather, rubber and sheet metal where a clear visual indication is enough. Throat depth and contact type are matched to the sample.

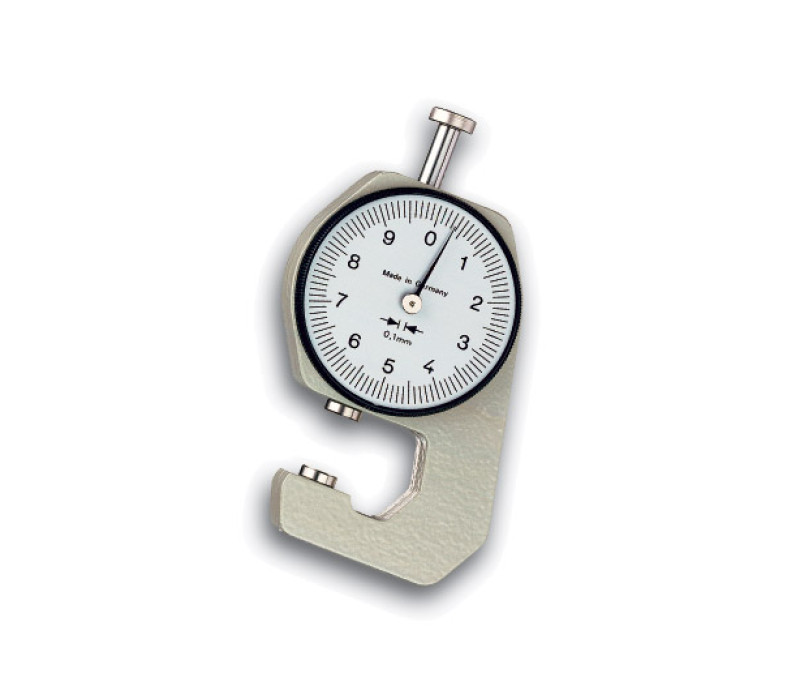

    Product: K-15 Product: K-15

    K-15 Versatile Thickness Gauge

    • Depth of jaw: 15 mm
    • Resolution: 0.1 mm
    • Measuring range: 0 ... 10 mm
    • Weight, net: 60 g
    • Feeler shape: f

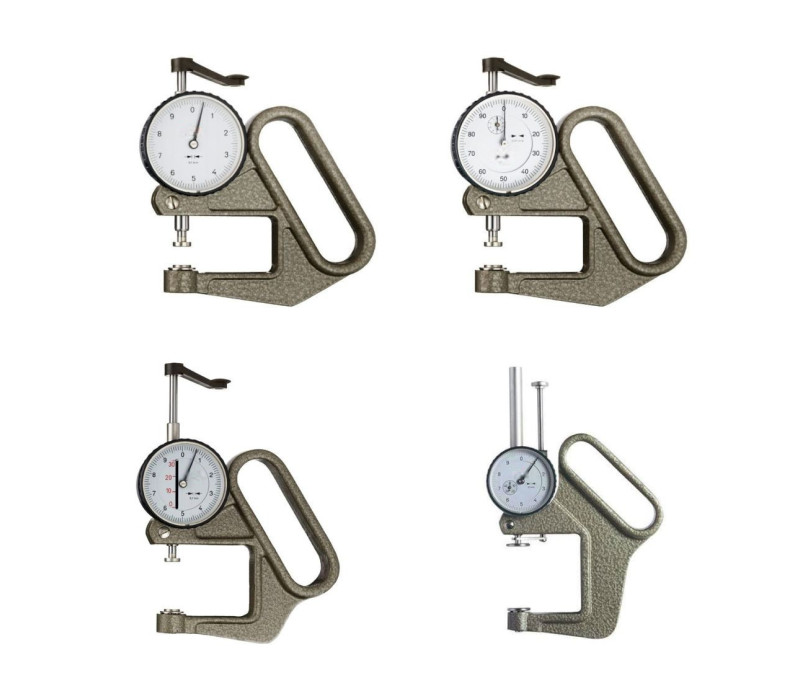

    Product: K-50 Series Product: K-50 Series

    K-50 Series – Mechanical Thickness Gauges

    • Jaw depth: 50 mm
    • Measuring range: up to 50 mm
    • Resolution: 0.1 mm
    • Feeler options: types a, b, c, d, e

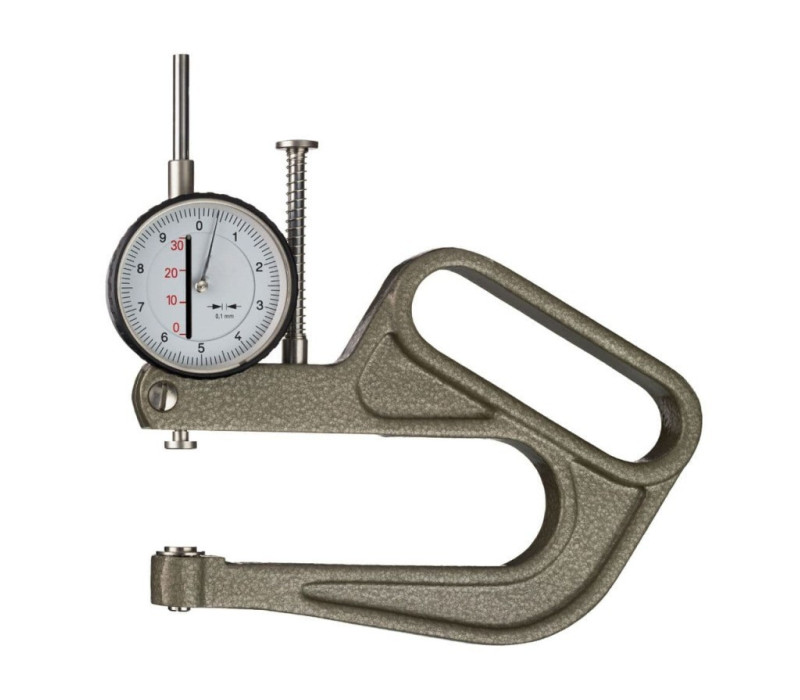

    Product: K-100 Product: K-100

    K-100 Thickness Gauge

    • Depth of jaw: 100 mm
    • Resolution: 0.1 mm
    • Measuring range: 0 ... 30 mm
    • Weight, net: 450 g
    • Feeler shape: a/b/c/d/e

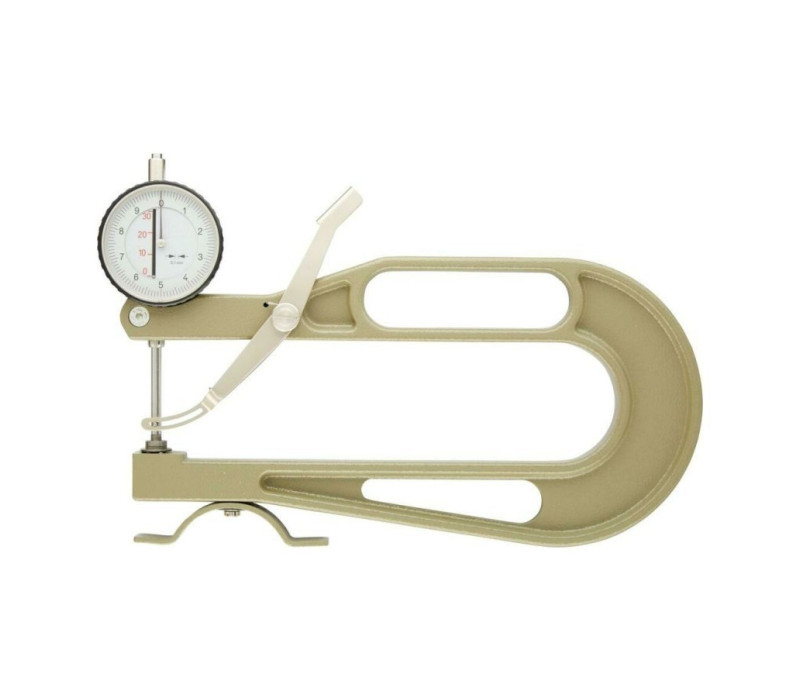

    Product: K-200 Product: K-200

    K-200 Thickness Gauge

    • Depth of jaw: 200 mm
    • Resolution: 0.1 mm
    • Measuring range: 0 - 30 mm
    • Weight, net: 700 g
    • Feeler shape: a/b/c/d/e

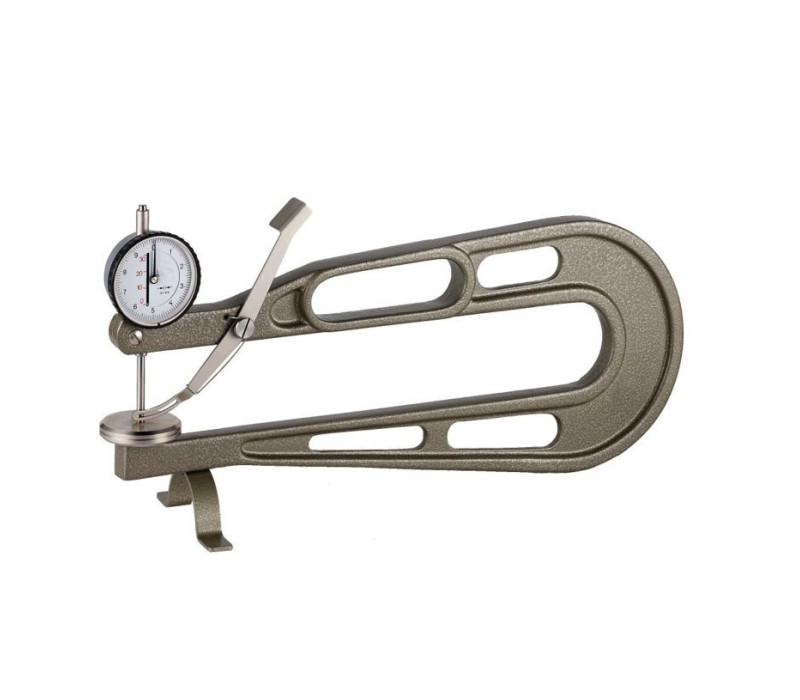

    Product: K-300 Product: K-300

    K-300 Thickness Gauge

    • Depth of jaw: 300 mm
    • Resolution: 0.1 mm
    • Measuring range: 0 ... 30 mm
    • Weight, net: 1000 g
    • Feeler shape: a/b/c/d/e

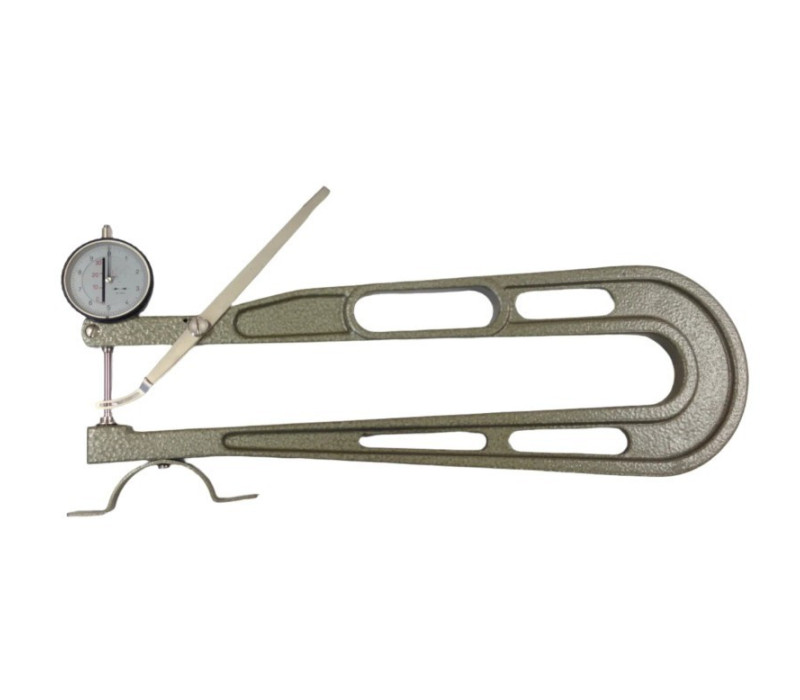

    Product: K-400 Product: K-400

    K-400 Thickness Gauge

    • Depth of jaw: 400 mm
    • Resolution: 0.1 mm
    • Measuring range: 0 ... 30 mm
    • Weight, net: 1400 g
    • Feeler shape: a/b/c/d/e

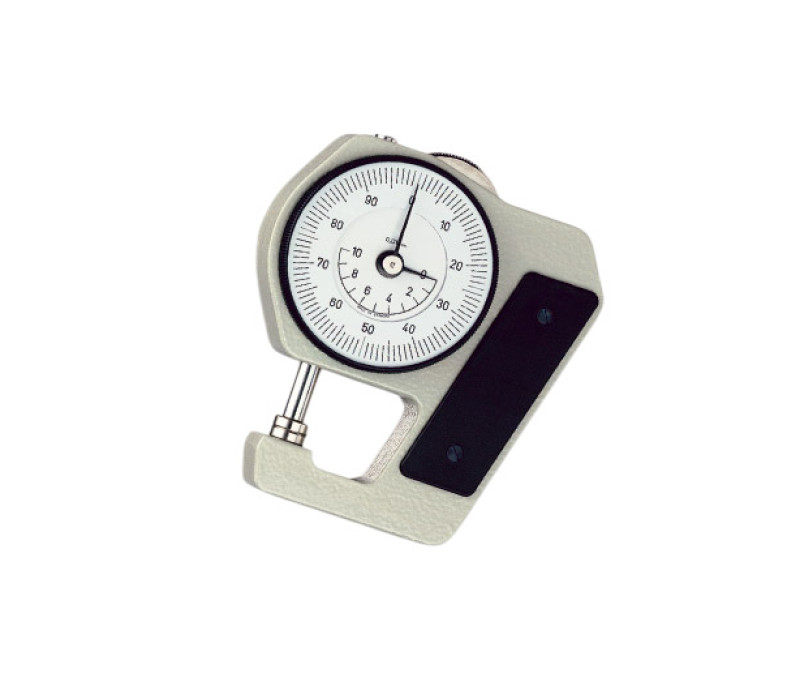

    Product: J-15 Product: J-15

    J-15 – High-Precision Pocket Thickness Gauge

    • Depth of jaw: 18 mm
    • Resolution: 0.01 mm
    • Measuring range: 0 - 10 mm
    • Measuring pressure: 0.8 N
    • Feeler shape: f
    • Weight, net: 90 g

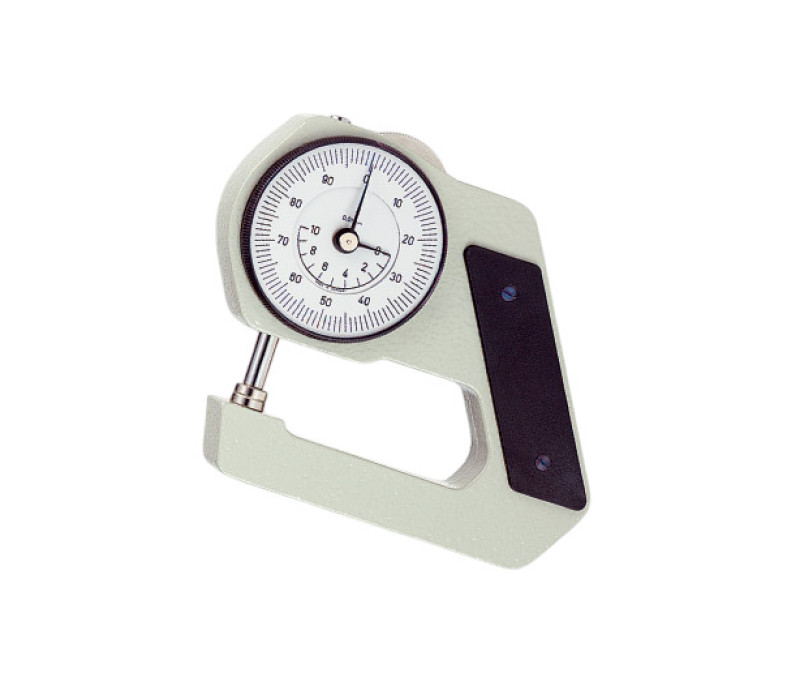

    Product: J-45 Product: J-45

    J-45 – Precision Thickness Gauge

    • Depth of jaw: 45 mm
    • Resolution: 0.01 mm
    • Measuring range: 0 - 10 mm
    • Measuring pressure: 0.8 N
    • Feeler shape: f
    • Weight, net: 110g

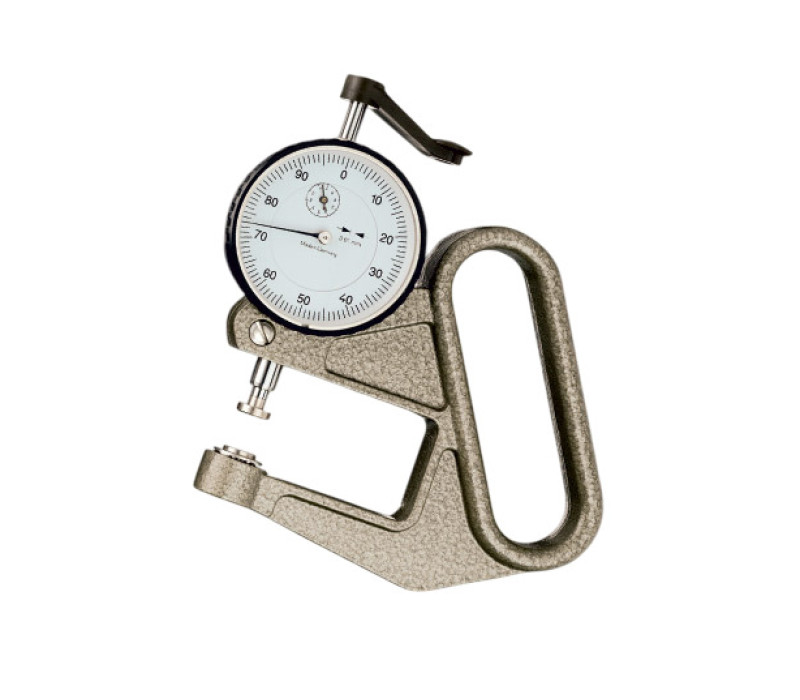

    Product: J-50 Product: J-50

    J-50 – Precision Thickness Gauge

    • Depth of jaw: 50 mm
    • Resolution: 0.01 mm
    • Measuring range: 0 - 10 mm
    • Feeler shape: a/b/c/d/e
    • Weight, net: 300 g

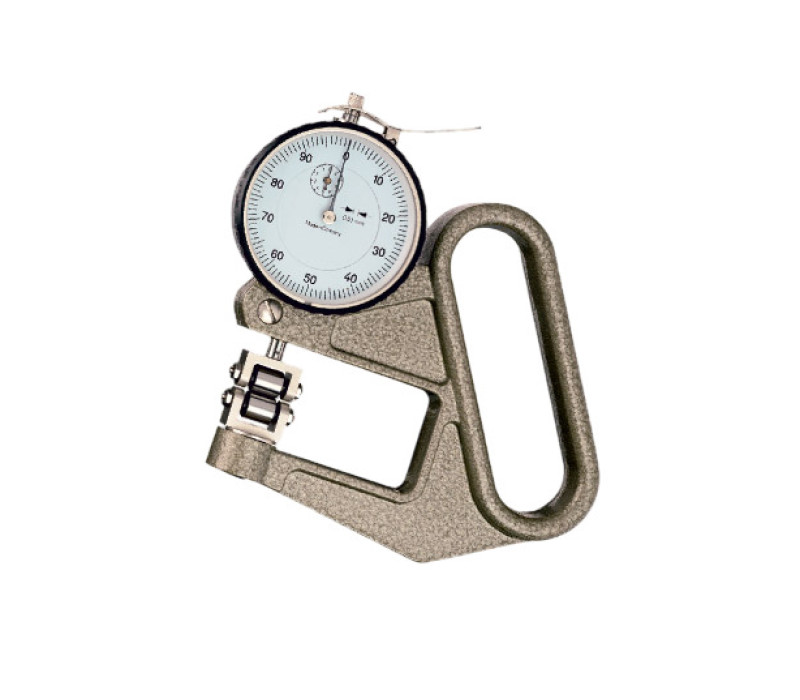

    Product: J-50-R Product: J-50-R

    J-50-R Thickness Gauge

    • Resolution: 0.01 mm
    • Measuring range: 0 - 5 mm
    • Depth of jaw: 50 mm
    • Scale diameter: 54 mm
    • Measuring pressure: 1.0 N
    • Weight, net: 300 g

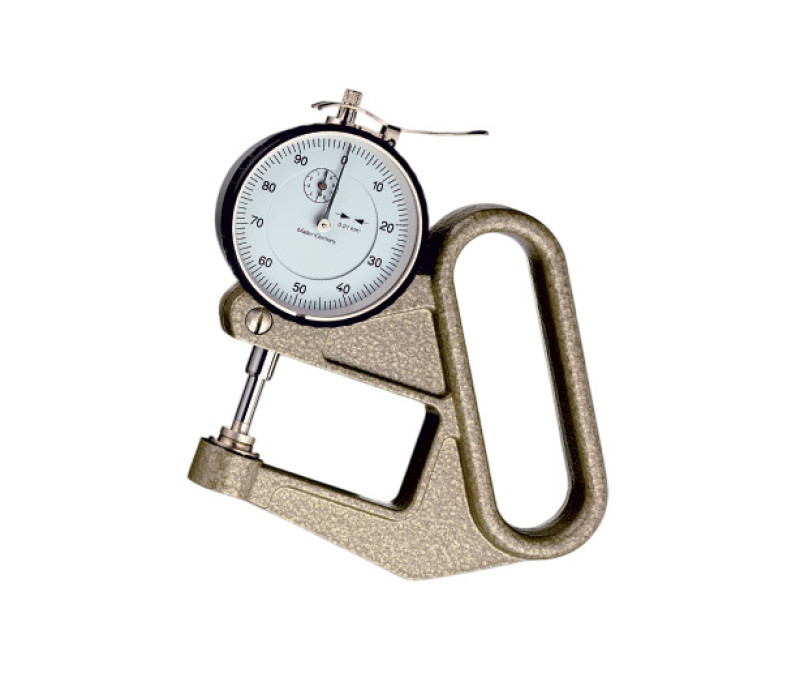

    Product: JA-50 Product: JA-50

    JA-50 Thickness Gauge

    • Depth of jaw: 50 mm
    • Resolution: 0.01 mm
    • Measuring range: 0 - 10 mm
    • Feeler shape: a/b/c/d/e
    • Measuring pressure: 1.0 N
    • Weight, net: 300 g

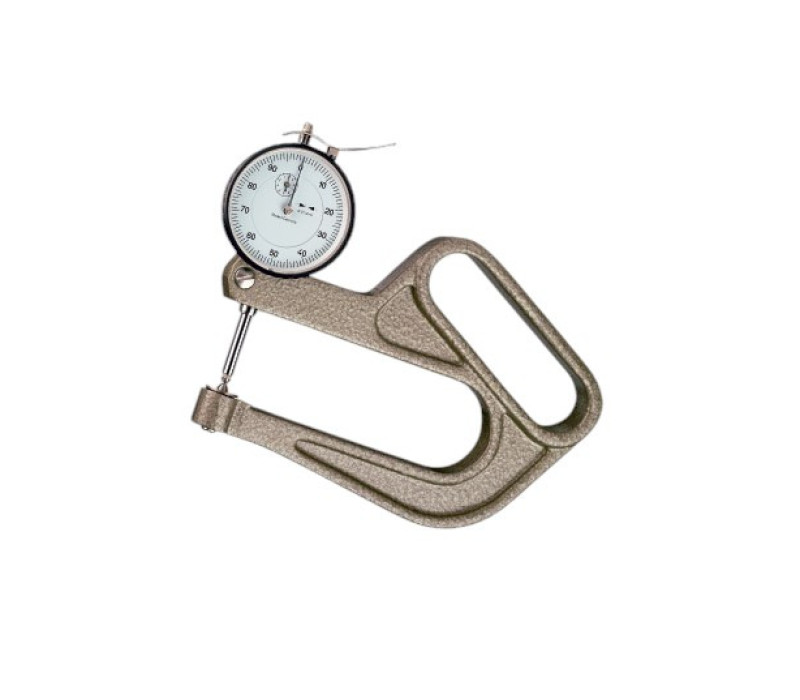

    Product: J-100 Product: J-100

    J-100 Thickness Gauge

    • Depth of jaw: 100 mm
    • Resolution: 0.01 mm
    • Measuring range: 0 ...10 mm
    • Measuring pressure: 1.0 N
    • Feeler shape: a/b/c/d/e
    • Weight, net: 450 g

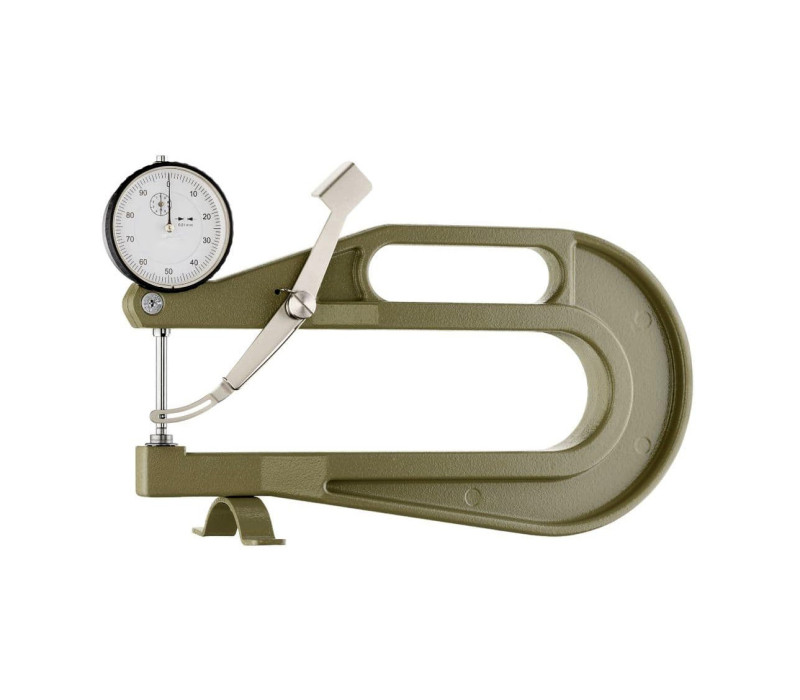

    Product: J-200 Product: J-200

    J-200 Precision Thickness Gauge

    • Depth of jaw: 200 mm
    • Resolution: 0.01 mm
    • Measuring range: 0 - 10 mm
    • Measuring pressure: 2.0 N (On request 1 N / 4N)
    • Feeler shape: a/b/c/d/e
    • Weight, net: 1100 g

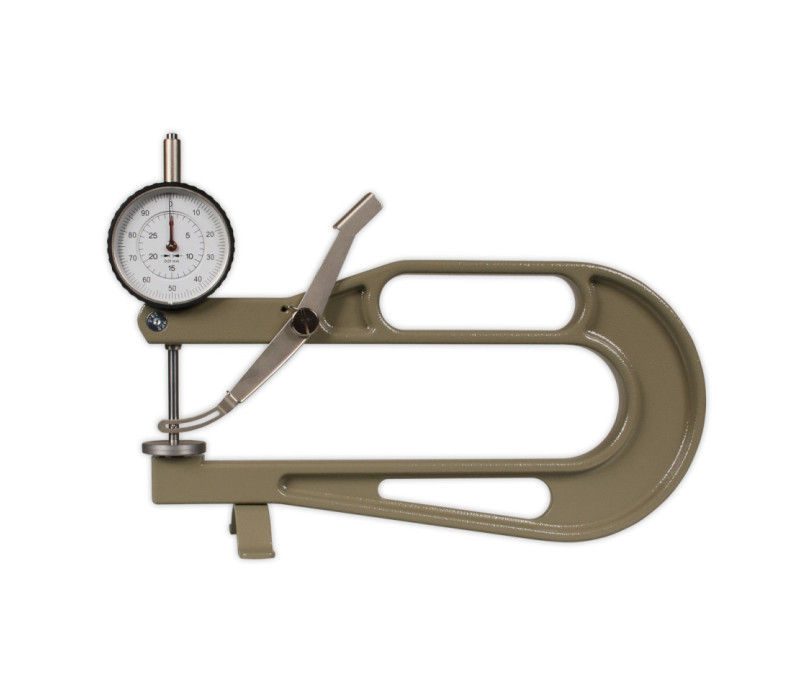

    Product: J-200-30 Product: J-200-30

    J-200-30 Precision Thickness Gauge

    • Depth of jaw: 200 mm
    • Resolution: 0.01 mm
    • Measuring range: 0 - 30 mm
    • Measuring pressure: 2.0 N (On request 1 N / 4N)
    • Feeler shape: a/b/c/d/e
    • Weight, net: 1100 g

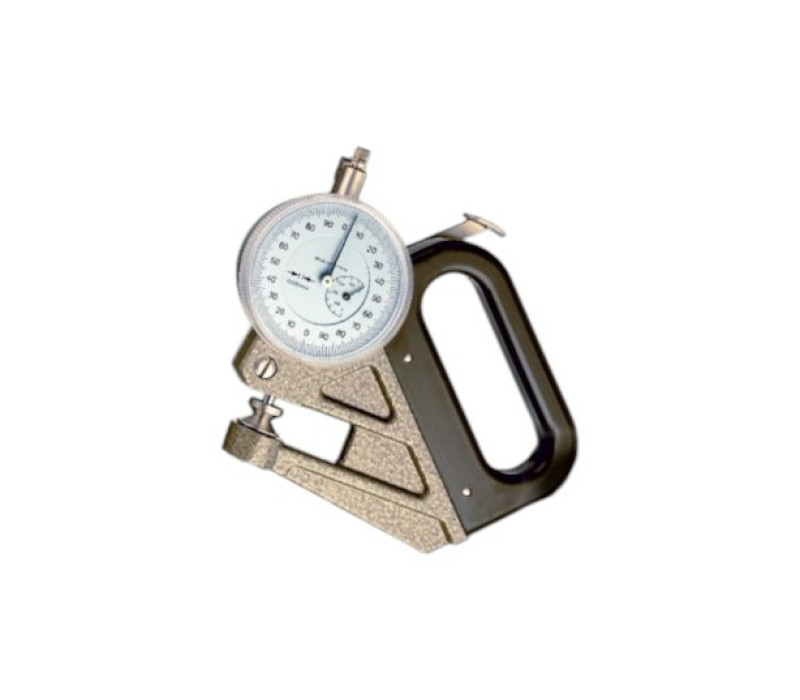

    Product: F-1000-30 Product: F-1000-30

    F-1000-30 Precision Thickness Gauge

    • For foils and thin materials
    • Resolution: 0.001 mm (1 µm)
    • Measuring range: 1 mm
    • Accuracy: ± 5 µm
    • Depth of jaw: 30mm
    • Feeler shape: F

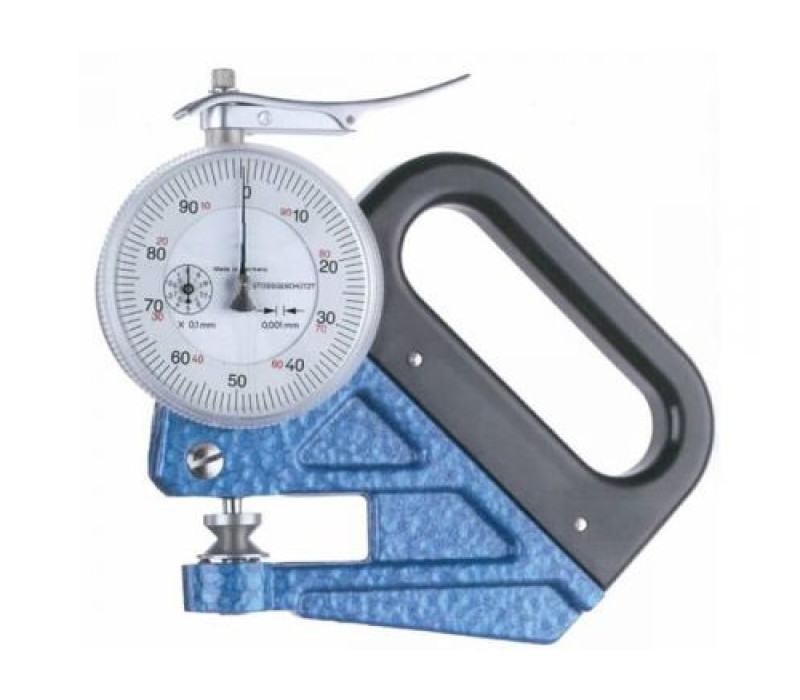

    Product: F-1101-30 Product: F-1101-30

    F-1101-30 Precision Thickness Gauge for Foils

    • For foils and thin materials
    • Resolution: 0.001 mm (1 µm)
    • Measuring range: 1 mm
    • Accuracy: ± 3 µm
    • Depth of jaw: 30mm
    • Feeler shape: F

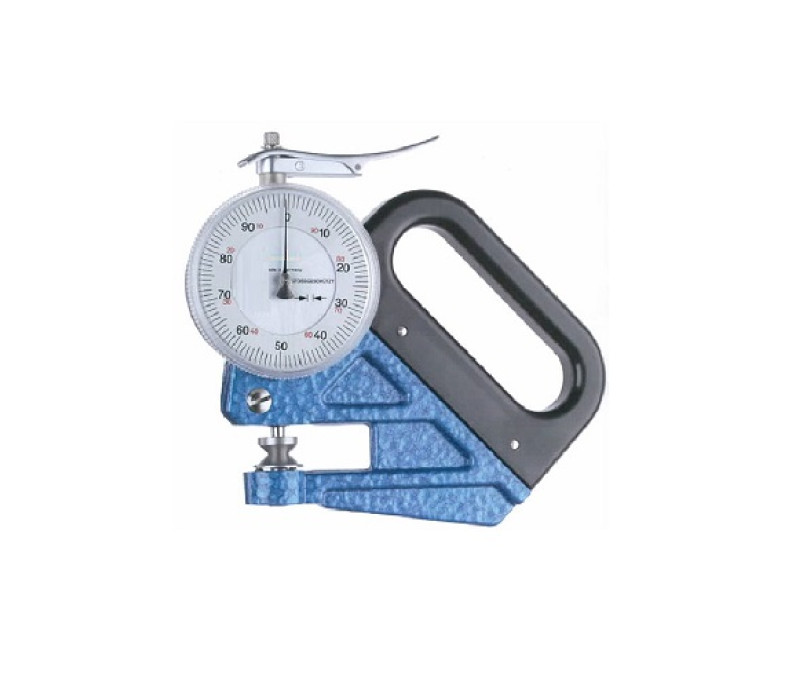

    Product: F-1101-30-01 Product: F-1101-30-01

    F-1101-30-01 Precision Thickness Gauge for Thin Foils

    • For foils and thin materials
    • Resolution: 0.001 mm (1 µm)
    • Measuring range: 0.1 mm
    • Accuracy: ± 1.5 µm
    • Depth of jaw: 30mm
    • Feeler shape: F

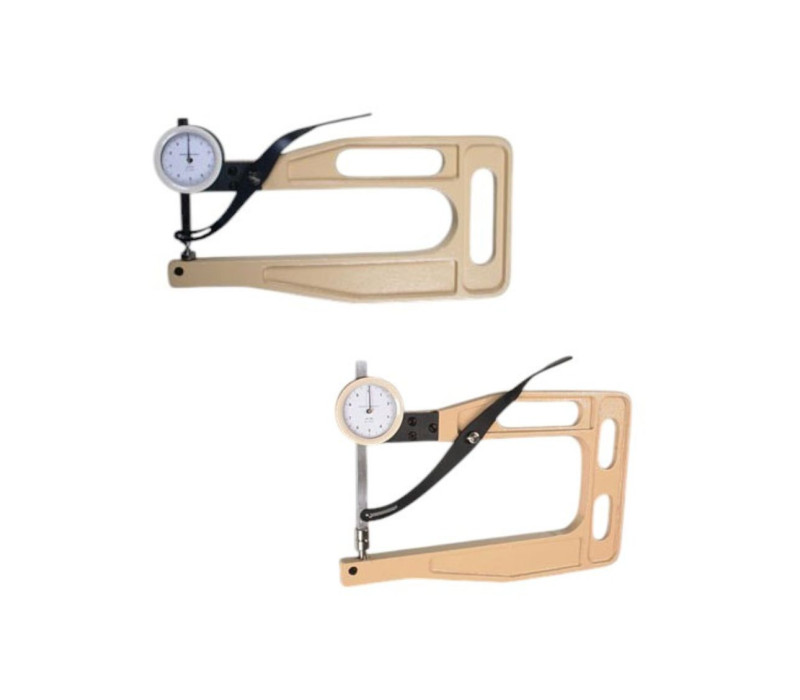

    Product: ATG-200 Product: ATG-200

    ATG-200 Analogue Thickness Gauges

    • Measuring range:
      ATG-200-25: 0 - 25 mm
      ATG-200-50: 0 - 50 mm
    • Resolution: 0.1 mm
    • Jaw depth: 200 mm

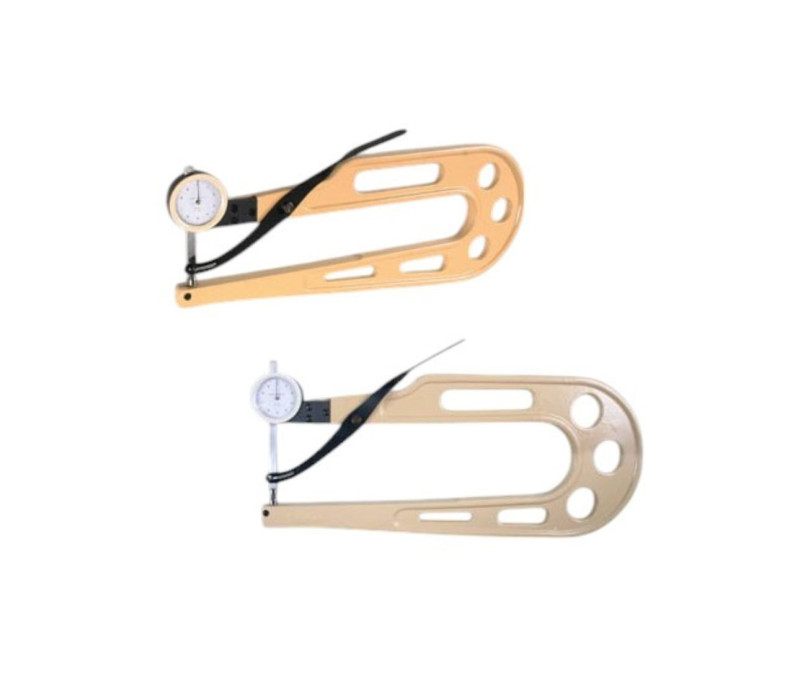

    Product: ATG-300 Product: ATG-300

    ATG-300 Analogue Thickness Gauges

    • Measuring range:
      ATG-300-25: 0 - 25 mm
      ATG-300-50: 0 - 50 mm
    • Resolution: 0.1 mm
    • Jaw depth: 300 mm

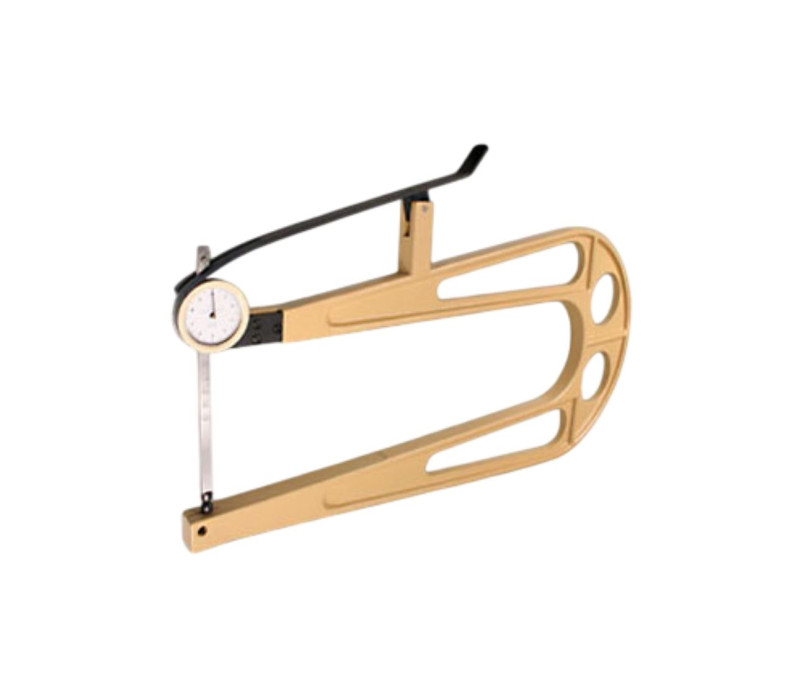

    Product: ATG-400 Product: ATG-400

    ATG-400 Analogue Thickness Gauge

    • Measuring range: 0 - 100 mm
    • Resolution: 0.1 mm
    • Jaw depth: 400 mm

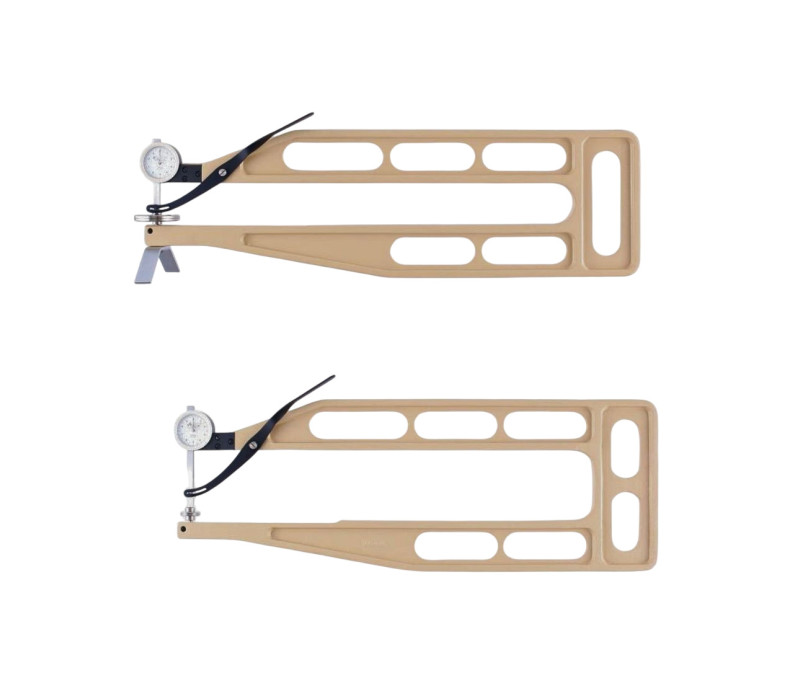

    Product: ATG-500 Product: ATG-500

    ATG-500 Analogue Thickness Gauges

    • Measuring range:
      ATG-500-25: 0 - 25 mm
      ATG-500-50: 0 - 50 mm
    • Resolution: 0.1 mm
    • Jaw depth: 500 mm

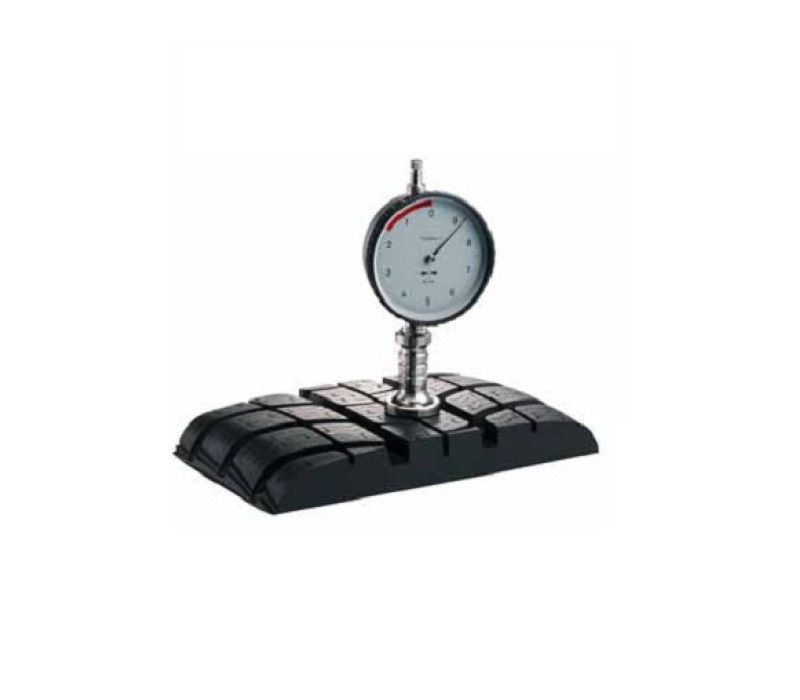

    Product: TTD Product: TTD

    TTD Tyre Tread Depth Gauge

    • Tyre Tread Dial Depth Gauge
    • Special red segment for to small tyre depths
    • Easy-to-read analog scale
    Showing 22 item(s)
