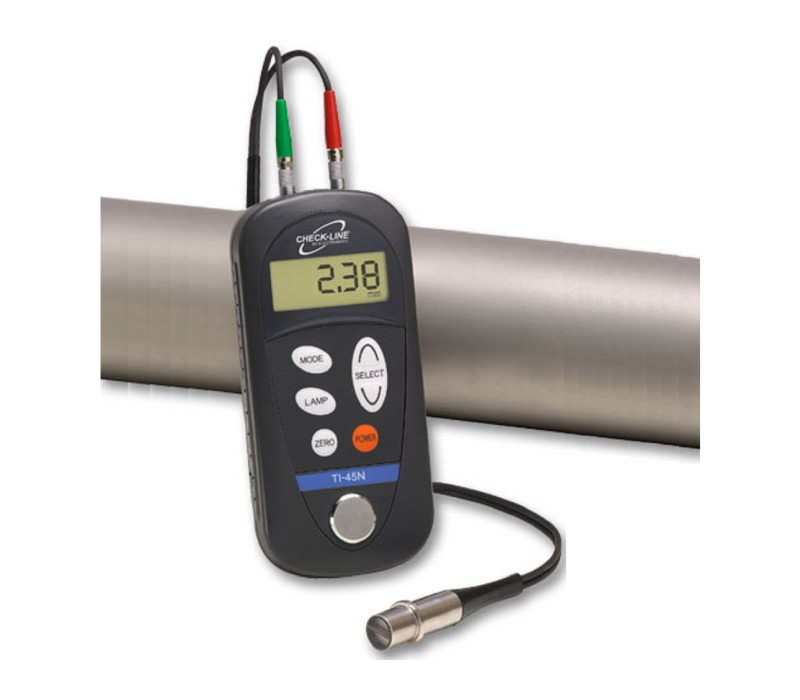

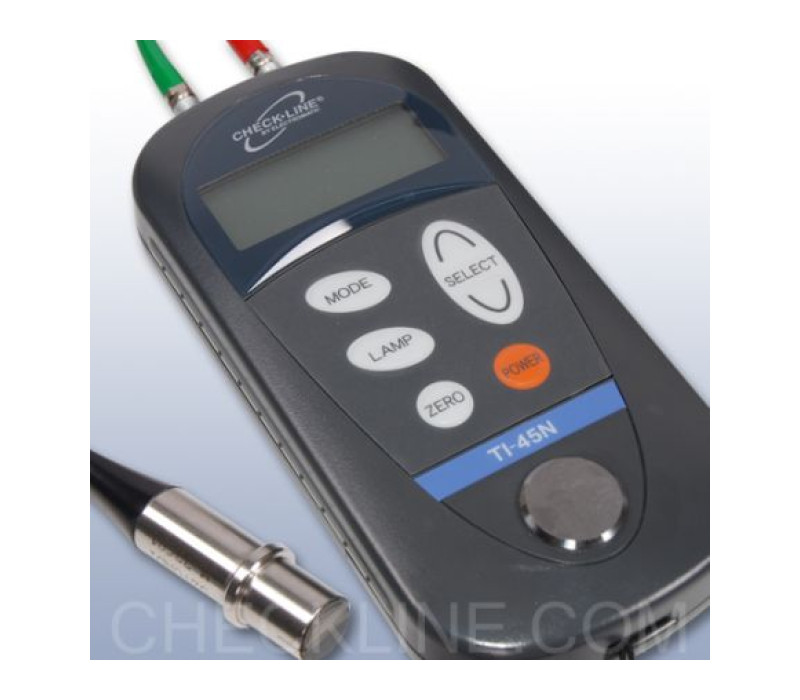

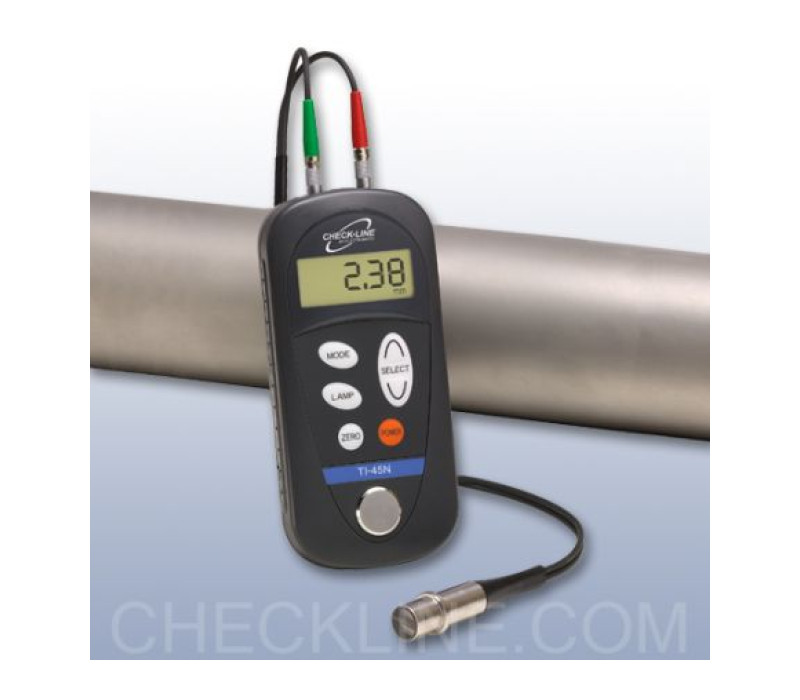

TI-45N Ultrasonic Wall Thickness Gauge

Ultrasonic Thickness Gauge

Compact, Accurate, and Reliable

Discover the TI-45N from Checkline, an ultrasonic wall thickness gauge renowned for its precision in measuring a wide range of materials such as iron, stainless steel, ceramics, glass, and the most rigid plastics. Designed to be easy to use and highly efficient, this device is ideal for both field and laboratory applications.

Key Features:

Material Versatility: Effectively measures across a variety of non-ferrous surfaces, ensuring accurate measurements regardless of the material.
Wide Measuring Range: Capable of measuring from 1.00 mm to 200.0 mm, making it suitable for numerous industrial and research applications.

Special Features:

Backlit LCD Display: Allows for clear reading even in low-light conditions, ideal for work in challenging locations.
Compact and Ergonomic Design: Its lightweight and rugged casing fits perfectly in the palm of the hand, facilitating use during long work sessions.

User Benefits:

Ease of Use: An oversized control button and an intuitive menu structure make it easy to set up and navigate.
Efficient Data Storage: Capacity to store up to 5000 readings, allowing users to manage and review their data easily.

The TI-45N is not only an essential tool for technicians and engineers who need reliability and precision in their measurements but also offers a durable and easy-to-handle solution for a wide range of industrial and scientific applications.

€ 1.427,00

Order now

Extremely compact & lightweight
Resolution of 0.01mm (0.001")
Switch-selectable units - inches or mm
Quick display update with last reading retained on the display
Built-in calibration test plate
Display symbols alert user to poor coupling and low battery conditions
TI-45N-HD includes slip-on, ergonomic rubber sleeve for improved grip and additional physical protection
TI-45NA includes new Pipe Mode for stable measurement on small diameter pipe (1" and larger)

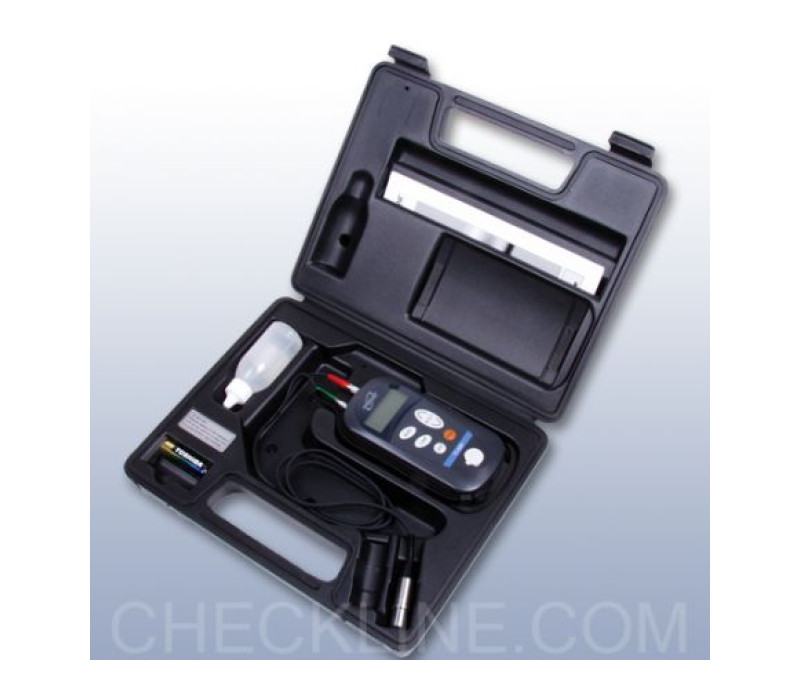

The TI-45NA is supplied as a complete kit with the gauge and wrist strap, probe and cable assembly, 2 oz. bottle of coupling fluid, batteries and instruction manual -- all supplied in a fitted, hard plastic carrying.

	Minimum Radius for Convex Surfaces	25.4 mm (1")
	Minimum Radius for Concave Surfaces	76.2 mm (3")
	Minimum Headroom	76.2 mm (3")
	Minimum Sample Diameter	12.7 mm (0.5")
	Minimum Substrate Thickness - F	NA
	Minimum Substrate Thickness - NFe	NA

Range:	1.0 - 200.0 mm (0.040 - 8.000")
Resolution:	0.01 mm (.001")
Display:	4½ - digit LCD display, 10mm high with push button illumination
Velocity Range:	1.000 – 12.000 m/sec (3.250 – 39.000 ft/sec) continuously adjustable

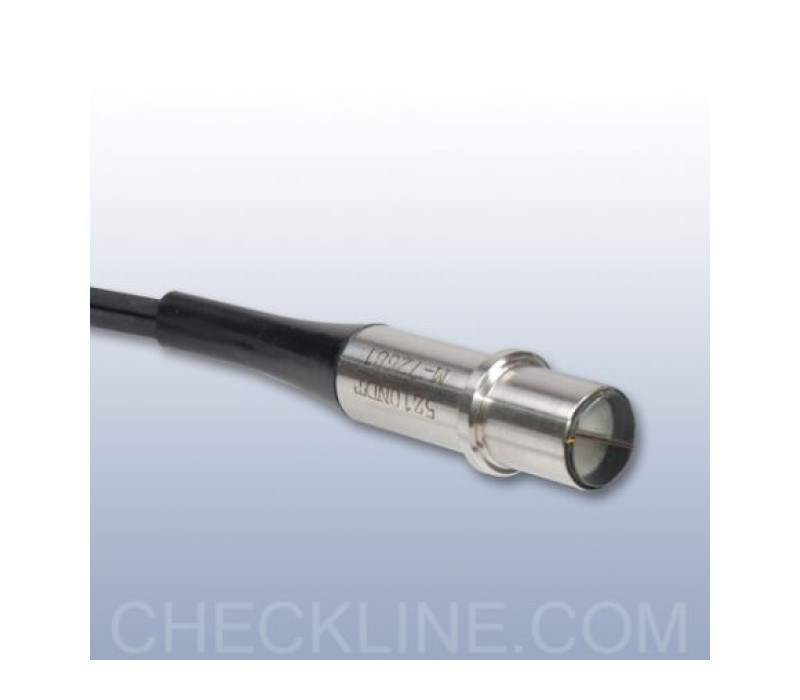

Probe:	5 MHz, 10 mm (.39") diameter without Centering Shell
Cable:	1m (39") 2-wire, long cable with quick-disconnect connectors
Minimum Pipe Size:	30mm nominal (1") steel pipe
Temp. Limits:	Ambient: -5 to 50° C (25 to 125° F) Material: -10 to 60° C (-15 to 140° F)
Calibration Plate:	6.35mm (0.250") steel plate, built into the front of the housing
Battery Type:	Two AA batteries
Battery Life:	200 hours
Weight:	Gauge: 200 g (7 ounces)
Size:	131 x 68 x 29 mm (5.2" x 2.7" x 1.1")
Warranty:	Gauge: 1 year Probe: 90 days
Accessories Included:	Fitted, hard-plastic carrying case, probe shell attachment, 2 oz. bottle of coupling fluid, 1 spare battery and operating instruction guide

Products

Item	Product	Price	Quantity	Action
135605	TI-45NA Wall Thickness Gauge	€ 1.427,00

Accessories

Item	Product	Price
135572	CF-AN-250ml Coupling Fluid 250ml Bottle	€ 15,00
126475	CIC-MOISTURE - BLL, BLW, SLW, FL, PM3,PM4,GF1,GF2,BLH,LM6, FLH,RM1,MS4 andWS,AM,LM,P,FS2000, AP500	€ 221,00
130190	TI-SB4 Uncertified Steel Test Block	€ 138,00
125846	TI-SB-4H Steel Test block	€ 380,00
125847	TI-SB-4L Steel Test block Certified NIST	€ 380,00
125848	TI-SB-5L Certified Steel Test Step Block	€ 380,00

All mentioned prices are excluding VAT & excluding shipment costs.
