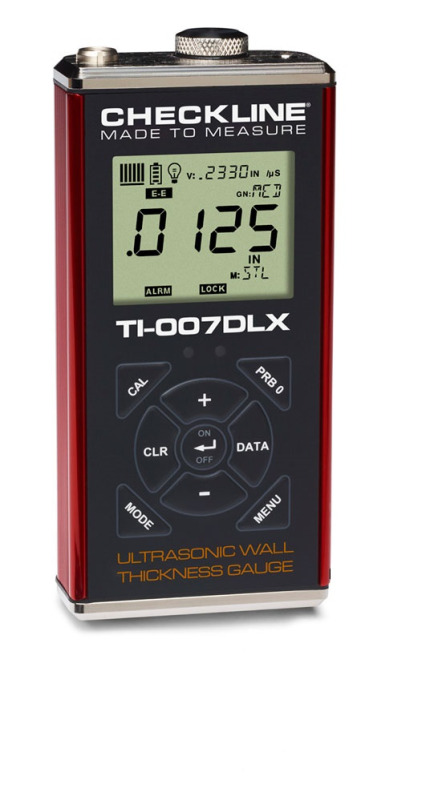

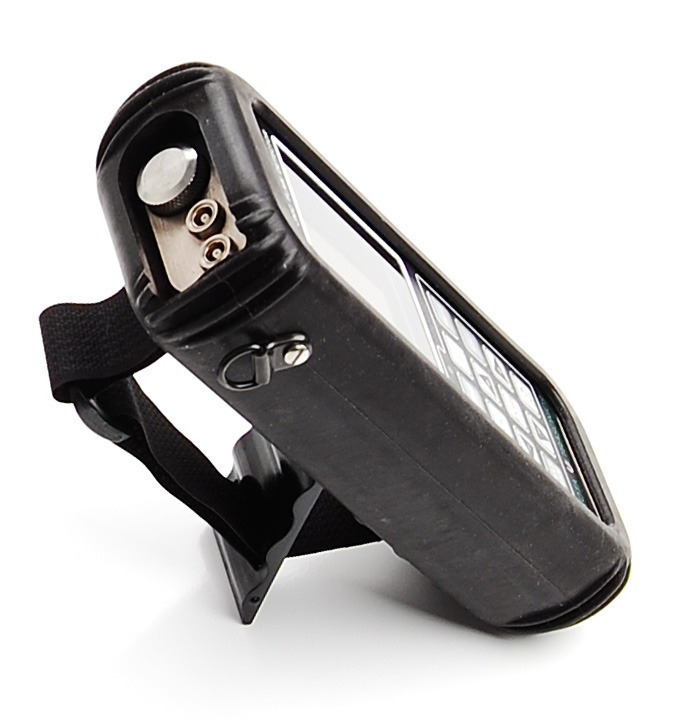

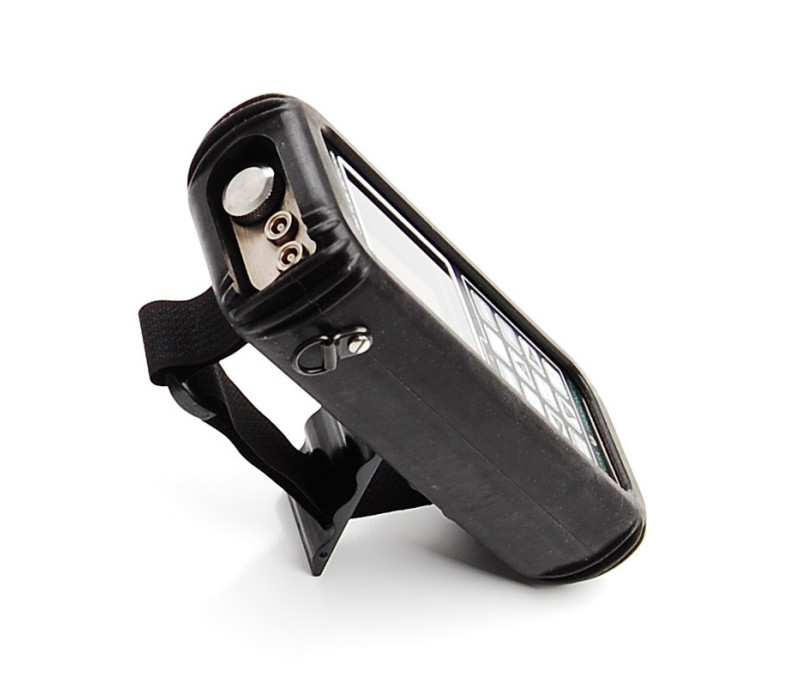

TI-007X Series Precision Ultrasonic Wall Thickness Gauges

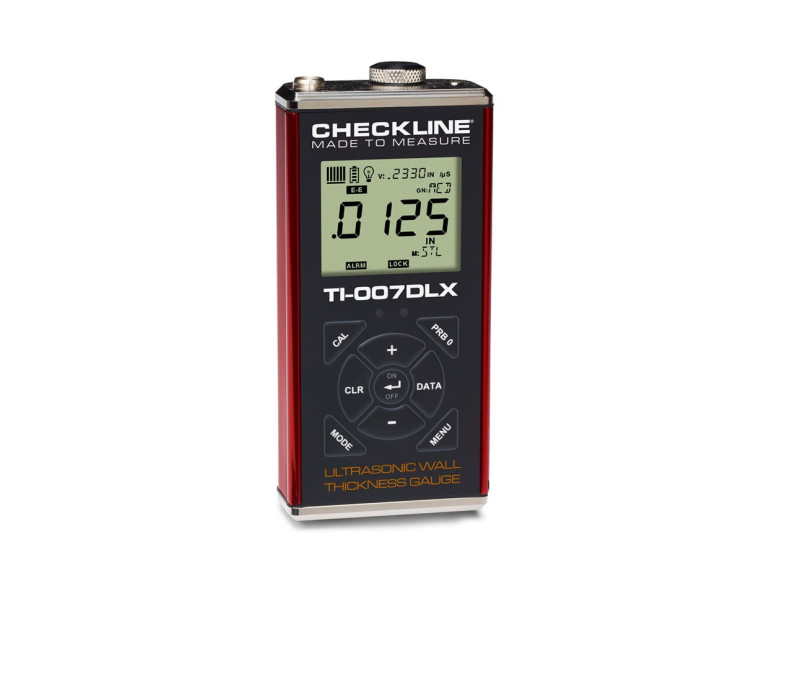

The TI-007X Series from Checkline is a high-precision range of ultrasonic wall thickness gauges designed for thin materials, challenging surfaces and critical applications. With measurement capabilities starting from 0.15 mm and resolution down to 0.001 mm, these gauges are ideal for precision engineering, quality control and research environments.
Available in two versions—TI-007X and TI-007DLX—this series combines durability, intuitive operation and advanced functionality. The DLX model includes onboard memory and USB connectivity for seamless data management.
Key Features (varies by model):
- Wide Measurement Range: From 0.15 mm to 915 mm depending on the probe, suitable for a broad range of applications.
- High Resolution: Offers precision down to 0.001 mm for thin-wall measurements and near-surface flaw detection.
- Multiple Measurement Modes: Includes Interface-Echo (I-E), Echo-Echo (E-E) and Plastics (PLAS) mode for optimal results on different materials.
- Scan Mode: Captures up to 100 readings per second; displays the lowest value for maximum control during drag scanning.
- Data Logging (DLX only): Stores up to 10,000 readings in 40 batches of 250 entries each.
- USB Output (DLX only): Easy file transfer, recognised directly as a storage device—no special software required.
Key Benefits:
- Quick & Accurate Setup: Auto calibration using a known thickness sample with automatic speed of sound calculation.
- Visual Clarity: Large, backlit LCD with live display and stored last reading for efficient workflows.
- Reliable in Tough Environments: IP65-rated extruded aluminium housing ensures resistance to dust and water.
- Certified Accuracy: Supplied with NIST traceable calibration certificate.
- Extended Warranty: Up to 5 years of coverage for long-term peace of mind.
This compact yet powerful device is the ideal solution for professionals needing reliable, high-resolution measurements on a wide variety of materials—metals, plastics, and beyond. The TI-007X Series delivers the accuracy and resilience required in modern industrial and research applications.
Contact us to find out which version of the TI-007X best fits your measurement needs.
Features
- Measurement Modes: Interface Echo (I-E), Echo-Echo (E-E), and Plastics (PLAS)
- Scan Mode: Captures 100 readings per second; displays the minimum value detected during scanning
- Adjustable Gain: Five-step gain adjustment for optimised measurement on challenging materials
- Custom Calibration: Automatic velocity adjustment based on sample thickness; custom speeds can be stored
- Display: Large backlit LCD with last reading memory
- Resolution: 0.001 mm for high-precision thickness evaluation
- Environmental Protection: IP65-rated aluminium housing for water and dust resistance
- PC Connectivity: USB output for direct file transfer without software (TI-007DLX only)
- Data Logging: Stores up to 10,000 readings in 40 batches (TI-007DLX only)
The TI-007X Series is supplied as a complete kit with:
- TI-007X or TI-007DLX wall thickness gauge,
- transducer: T-402-5507 1/4" 15 MHz with delay line tip,
- 120 ml bottle of coupling gel,
- 2 AA batteries,
- NIST traceable calibration certificate,
- operating manual,
- USB-C data transfer cable (TI-007DLX only),
- all in a foam-fitted plastic carrying case.
Data transfer software is not required — the device is recognized as an external drive for direct file access.
Optional USB-C Cable:
For the TI-007X model, the USB-C cable is available as an optional accessory.

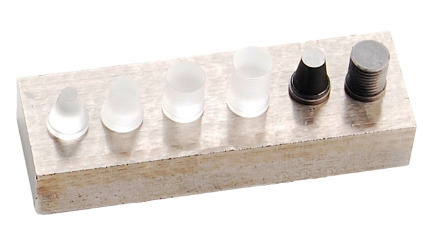

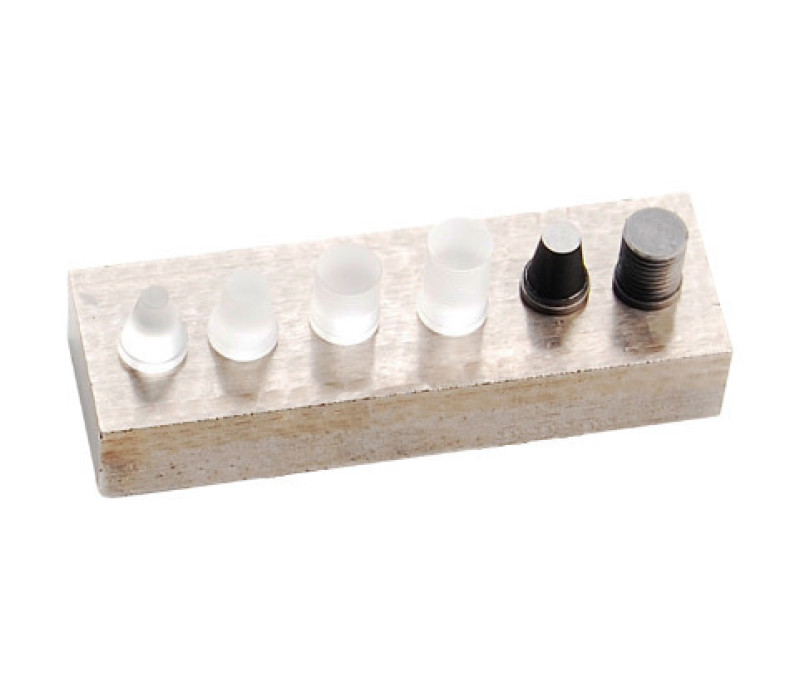

| P/N | Description | Standard / Optional | Image |
|---|---|---|---|
| F-000-7102 (formerly X-231-0000) | 1/4" x 3/8" acrylic tip for metals – short delay line | Standard |  |
| F-000-7103 (formerly X-241-0000) | 1/4" x 1/2" acrylic tip for metals – long delay line | Standard |  |
| X-633-0000 | 1/4" x 3/8" graphite tip for thin plastics – short delay line | Optional |  |
| X-532-0000 | 3/16" cone-shaped acrylic tip – suitable for curved or restricted surfaces | Optional |  |
| X-132-0000 | 1/8" cone-shaped acrylic tip – ideal for small surface areas | Optional |  |
| X-533-0000 | 3/16" cone-shaped graphite tip for plastics (plastic mode required) | Optional |  |
Note: Graphite delay line tips are recommended for use in plastic mode to ensure accurate measurement on low-velocity materials such as plastics. |
|||
 | Minimum Radius for Convex Surfaces | 8.89 mm |
| Minimum Radius for Concave Surfaces | 76.2 mm | |
 | Minimum Headroom | 25.0 mm |
 | Minimum Sample Diameter | 3.8 mm |
 | Minimum Substrate Thickness - F | N/A |
| Minimum Substrate Thickness - NFe | N/A |
Related Products
TI-PVX Ultrasonic Thickness Gauge
- Multiple calibration options: One Point, Two Point, or selection from a Material List.
- 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
- Hardware AGC gain control for multiple echo and thru-paint measurement.
More details
TI-25 Series Wall Thickness Gauges
- Memory & Data Logging: DLX and DLXT models feature onboard memory capable of storing up to 10,000 readings.
- Accessory Compatibility: Compatible with a wide range of calibration blocks, couplants, and alternative transducers.
- Warranty: 5-year warranty on the gauge, and 90 days on the transducer.
More details
TI-CMXDLP Ultrasonic Thickness Gauge
- Wide variety of dual-element probes can be used for nearly any application.
- Bar graph with user-set start end values providing highest resolution around the target thickness value.
- Auto probe recognition with Auto Zero or Manual Zero.
More details
Accessories
Category Wall Thickness Probes
Discover Checkline's probes for precise measurements on metals, plastics, and more, ideal for non-invasive structural inspections.
More details
TI-SB Ultrasonic Thickness Gauge Accessories
- Precision Machined and Finished
- Includes NIST Report and Test Data
- Includes Wooden Storage Box
More details
TI-SB4 Steel Test Block
- Uncertified Steel Test Block
- For convenient confirmation of thickness gauge calibration
More details
CF-AN Coupling Fluid
- Used to create an ultrasonic coupling between the probe and material to be measured
- Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr
More details
LI-ION Rechargeable AA Batteries
- Li-Ion rechargeable battery
- Stable voltage of 1,5 V over 95% of the runtime
- Charged via the USB to USB-C cable
More details
Specifications
| Measuring range: | 0.15 – 25.4 mm with standard delay-line probe |
| Resolution: | Selectable 0.001 mm or 0.01 mm |
| Velocity range: | 305 - 18,542 m/s |
| Standard probe: | 1/4" 15 MHz single-element probe with delay tip and integrated cable (Model T-402-5507) |
| Optional probes: | Compatible with various single-element delay line and contact probes (5 – 20 MHz) |
| Probe cable: | 1.2 m length with Microdot / Lemo 00 connector |
| Display: | Multifunction LCD with 7-segment digits and adjustable backlight |
| Backlight settings: | ON / OFF / AUTO modes with three intensity levels (Low, Medium, High) |
| Display update rate: | 10 Hz (10 updates per second) |
| Gain control: | Automatic Time Dependent Gain (TDG) with manual override |
| Pulse repetition frequency: | 200 Hz (200 pulses / second) |
| Data storage: | 10,000 readings in 40 batches of 250 (TI-007DLX only) |
| Data output: | USB interface (cable included with TI-007DLX) |
| Units: | Selectable in millimetres (mm) or inches (inch) |
| Operating temperature: | -30°C to +75°C |
| Power supply: | 2x AA 1.5 V alkaline, 1.2 V NiCd or 1.5 V lithium (rechargeable batteries supported) |
| Battery life: | Approx. 35 hours (alkaline), 18 hours (NiCd) |
| Housing: | Durable extruded aluminium with nickel-plated aluminium end caps and gasket sealing |
| Dimensions: | 64 x 131 x 32 mm |
| Keypad: | Sealed membrane keypad |
| IP rating: | IP65 – protection against dust and water |
| Weight: | 308 grams (instrument only) |
| Shipping weight: | 1.5 kg |
| Certification: | Supplied with NIST-traceable certificate, compliant with MIL-STD-45662A |
| Warranty: | 5 years for the gauge / 90 days for the transducer |
