TI-M Series Advanced Ultrasonic Thickness Gauges
Advanced Technology for Professional Measurement
Important Note: The TI-MMX-SDL and TI-MVX models are now part of the TI-M Series. All specifications, comparisons, and pricing of the TI-M Series are provided below.

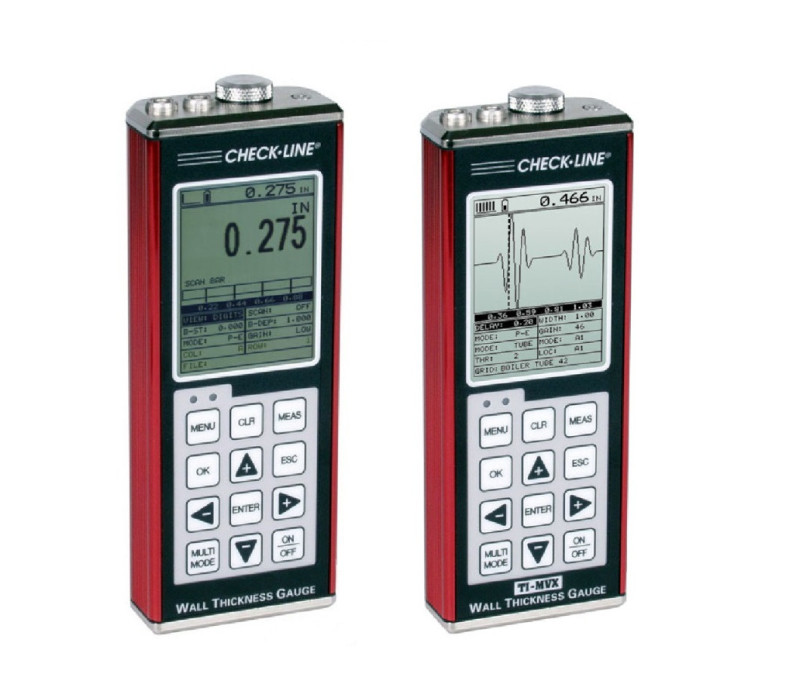

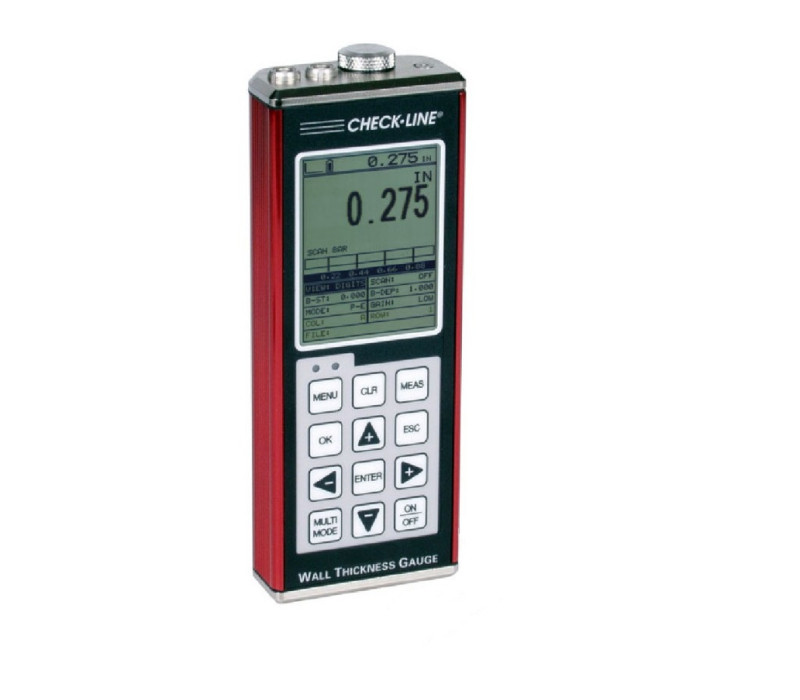

The TI-MMX-SDL and TI-MVX are advanced ultrasonic thickness gauges from Checkline, designed for professionals requiring precision and efficiency. With features such as B-Scan and A-Scan (TI-MVX only), these instruments are ideal for evaluating material integrity across diverse industries. Their alphanumeric data logging system and high-resolution LCD displays ensure accurate results and efficient operation.
Key Features (varies by model):
- High-Resolution Display: The TI-M Series graphic LCD displays are amongst the most advanced on the market, providing clear visualisation of complex data and easy navigation.
- Extensive Storage: Store up to 64 user-defined setups and thousands of measurement values for efficient data review and analysis.
- Multiple Display Modes: Includes RF, time-based B-Scan, and large digits to meet different inspection requirements.

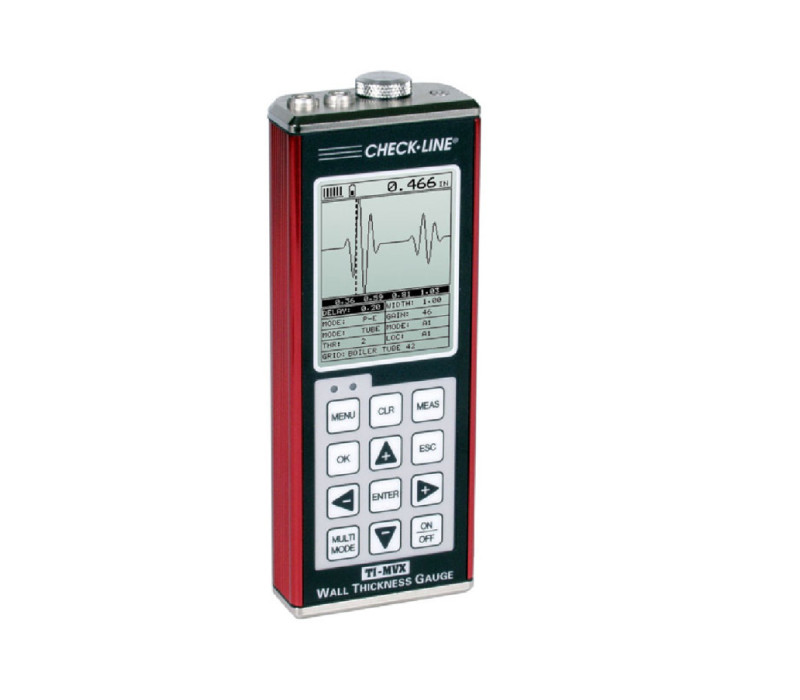

- A-Scan Display: RF A-Scan shows the full waveform, allowing operators to interpret and control measurements precisely (TI-MVX only).
- AGC Gain Control: Optimised for through-paint measurements in multi-mode operation, ensuring reliability under varying conditions.
- Differential Mode: Displays the +/- thickness difference compared to a pre-set reference value.
- High-Speed Scan: Increases refresh rate to show the minimum thickness detected; can be used with high/low limit alarms.
Key Benefits:
- Complete Kit: Supplied with all accessories, software, and a NIST-traceable calibration certificate in a protective carrying case.
- Flexible Arrangement: Available as a WOP kit without transducer when specific probes are required.
- User-Friendly Operation: Intuitive interface with visual alarms for tolerance control and a find function that automatically adjusts the display.
- Proven Reliability: Robust and durable design ensures consistent performance in demanding industrial environments.
With advanced measurement modes, powerful data storage, and robust construction, the TI-MMX-SDL and TI-MVX are designed to meet the challenges of both routine and complex inspections.
Contact us to discuss your application and identify whether the TI-MMX-SDL or TI-MVX is the best solution for your measurement needs.
Features
- Multiple Viewing Options: Provides a complete set of inspection tools including RF waveform, rectified waveform (+/-), and large digits (waveform display TI-MVX only).
- Time-Based B-Scan: Displays a cross-section of the test material, commonly used to show the profile of the back wall surface.
- AGC Gain Control: Built-in hardware AGC optimised for through-paint measurements in multi-mode operation.
- Custom User Setups: Store up to 64 user-defined configurations; all factory setups can be selected, edited, and saved.
- Visual Alarm: Set high/low limits for applications with strict tolerances. If the actual thickness is outside limits, a red light is triggered.
- High-Speed Scan: Performs 32 measurements per second, displaying the minimum value detected during scanning.
- Find Feature: Automatically adjusts the display to bring the signal into view when locating the detection point.
- Flaw Inspection – Prove Up Mode: Available with a special probe (TI-MVX only).
- NIST Calibration Certificate: Supplied as standard.
- Warranty: Two-year warranty on gauges.
- Certification: CE certified.
The TI-MMX-SDL and TI-MVX are supplied as a complete kit including:
- Gauge unit
- Transducer T-102-2700
- 120 ml bottle of coupling fluid
- 3 AA batteries
- NIST Calibration Certificate
- Data transfer software, serial output cable and Operating Instruction Manual
This kit is supplied in a foam-fitted carrying case for maximum protection.
As WOP kit:
- Similar to the complete kit but supplied without the standard transducer
Display views
 |  |  |

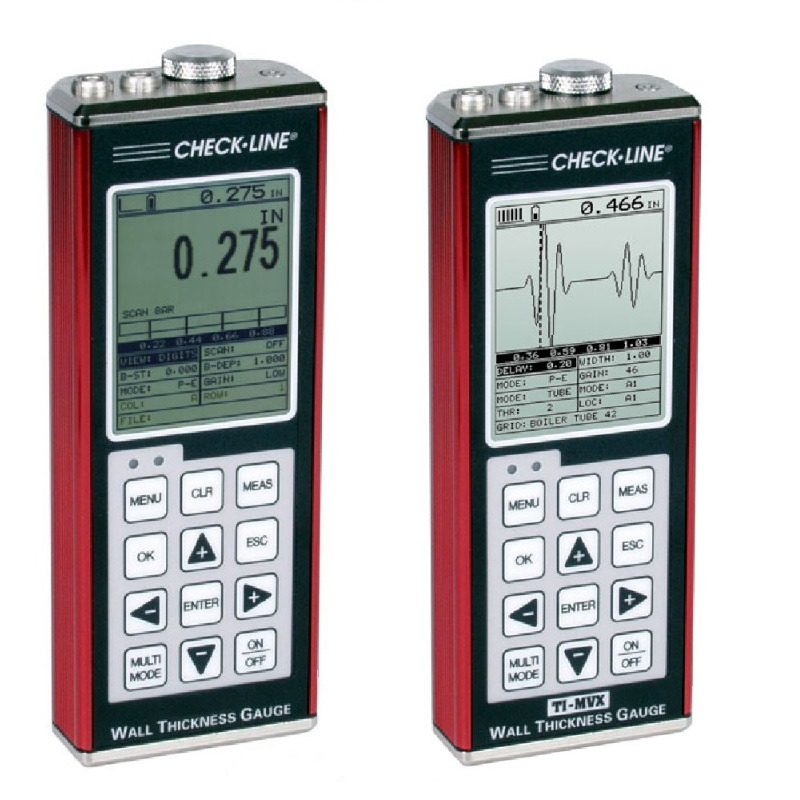

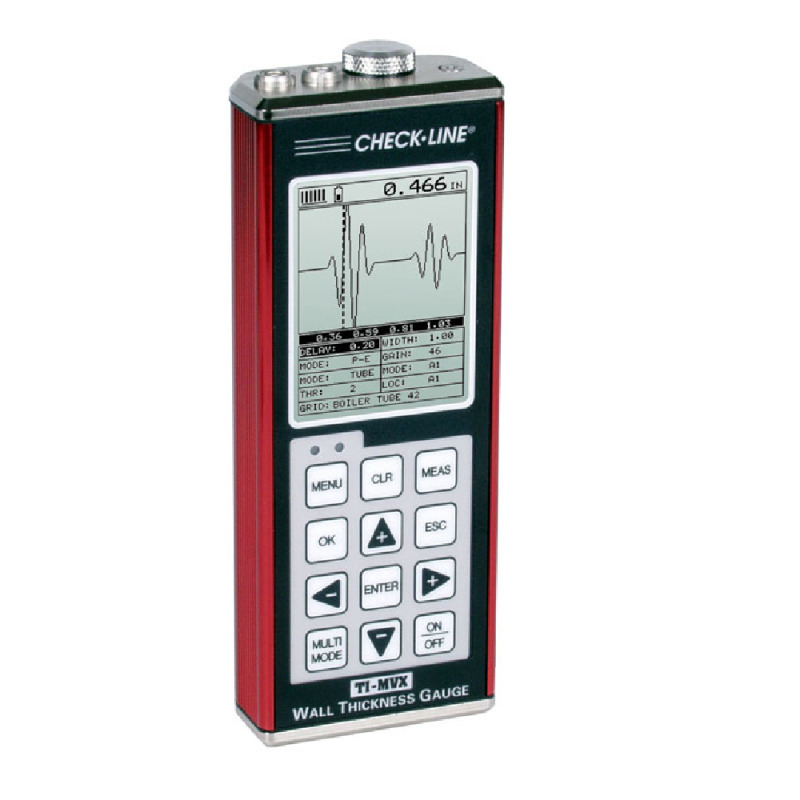

| A-Scan rectified mode: Preferred for flaw and pit detection, and for measurements through paint and coatings in Echo-Echo mode. | B-Scan view: Displays a time-based cross-section of the test material, commonly used to show the profile of the back wall or underside of a pipe or tank. | Large Digits view: Provides a clear digital thickness display. The large format makes it easy for the operator to monitor readings. |
| Available on the TI-MVX gauge | Available on both gauge types | Available on both gauge types |
Related Products
TI-25 Series Wall Thickness Gauges
- Memory & Data Logging: DLX and DLXT models feature onboard memory capable of storing up to 10,000 readings.
- Accessory Compatibility: Compatible with a wide range of calibration blocks, couplants, and alternative transducers.
- Warranty: 5-year warranty on the gauge, and 90 days on the transducer.
More details
TI-CMX Series Ultrasonic Coating and Wall Thickness Gauges
- Available Models: Choose from four versions: TI-CMX (standard), TI-CMXDL (data logging), TI-CMXDLP (A-Scan) and TI-CMXDLP-C (colour display with A-Scan).
- Measurement Versatility: Measures both wall and coating thickness together or separately, supporting multiple inspection modes.
- Rugged Construction: Robust aluminium housing designed for harsh industrial environments.
More details
TI-007X Series Precision Ultrasonic Wall Thickness Gauges
- Measurement Modes: Interface Echo (I-E), Echo-Echo (E-E), and Plastics (PLAS)
- Scan Mode: Captures 100 readings per second; displays the minimum value detected during scanning
- Adjustable Gain: Five-step gain adjustment for optimised measurement on challenging materials
More details

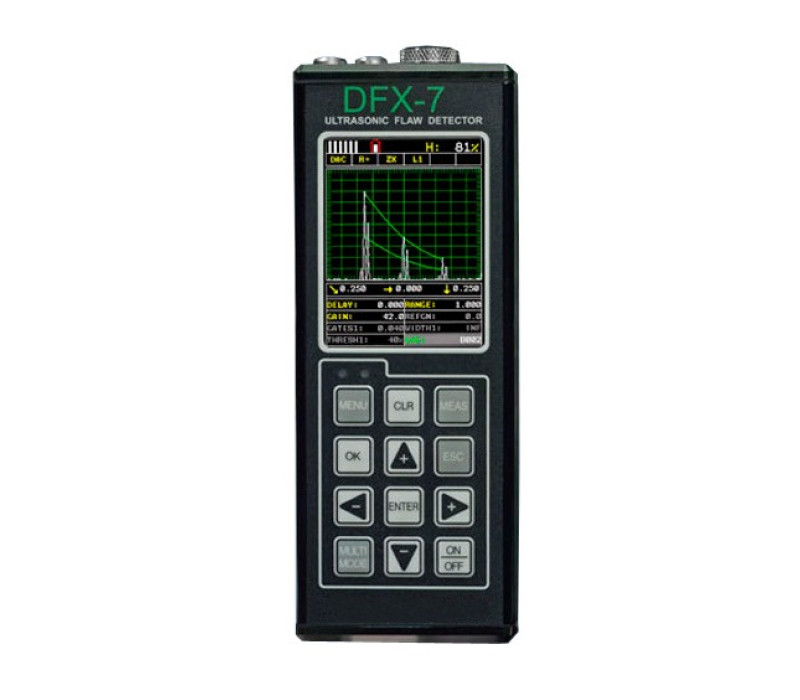

DFX7 Ultrasonic Flaw Detector & Thickness Gauge
- TRIG:
Trigonometric display of beam path, depth, surface distance, and curved surface correction. Used with angle beam transducers - AWS:
Automatic defect sizing in accordance with AWS D1.1 structural welding code - TCG:
Time corrected gain. 50 dB dynamic range, 20 dB per microsecond, up to 8 points for curve definition
More details
Accessories

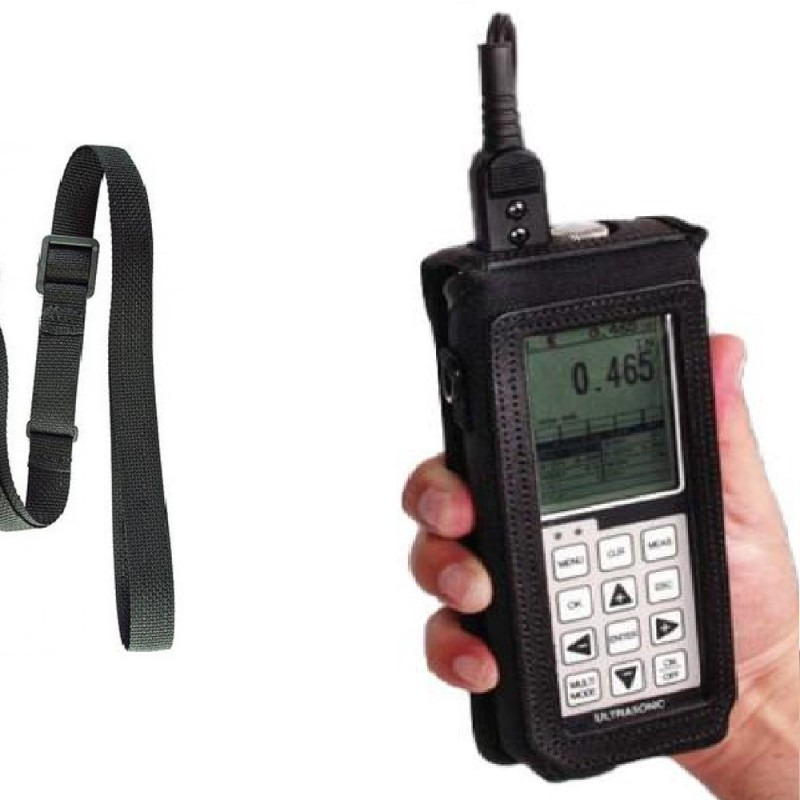

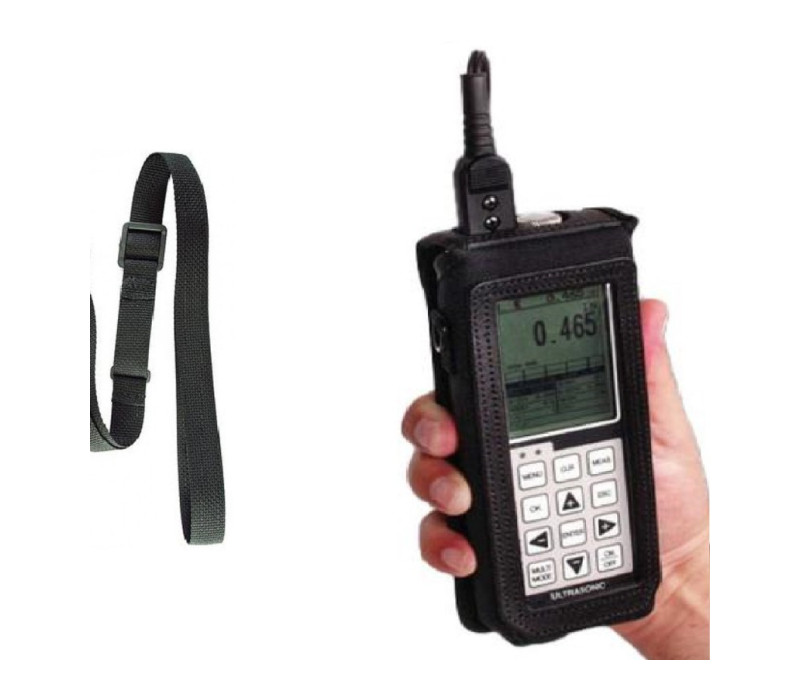

TICC-MVX Instrument Holder for Ultrasonic Gauges
- Constructed from heavy duty Cordura Nylon
- Built-in belt loop
- Includes wrist & shoulder straps
More details
Category Dual Element Transducers
Advanced technology for precision measurements on diverse materials, ideal for challenging industrial environments.
More details
TI-V-BLOCK Transducer Holder
- The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.
For 3/16" & 1/4" Transducers only.
More details
TI-SB Ultrasonic Thickness Gauge Accessories
- Precision Machined and Finished
- Includes NIST Report and Test Data
- Includes Wooden Storage Box
More details
TI-SB4 Steel Test Block
- Uncertified Steel Test Block
- For convenient confirmation of thickness gauge calibration
More details
CF-AN Coupling Fluid
- Used to create an ultrasonic coupling between the probe and material to be measured
- Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr
More details
LI-ION Rechargeable AA Batteries
- Li-Ion rechargeable battery
- Stable voltage of 1,5 V over 95% of the runtime
- Charged via the USB to USB-C cable
More details
CIC-WALL Wall Thickness Gauge Calibration Service
- Easy planning of calibration
- Short turnaround
- Exclusively in accordance with DIN 55 350 Part 18, § 4.2.2, DIN ISO 8402 Part 1
- Possibility to adjust and repair
More details
Specifications
| Range in Steel with standard transducer: | Pulse-Echo Mode: Pit and Flaw detection measures 0.63 to 254 mm Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm Range will vary +/- depending on the thickness of the coating |
| Resolution: | 0.01mm |
| Velocity Range: | 309,88 - 18.542m/s |
| Units (selectable): | mm or inches |
| Measurement Modes: | - Pulse-Echo - Echo-Echo (thru-paint) |
| Transducer Types: | Dual Element (1 to 10 MHz). |
| Memory: | 4GB internal memory |
| Data Logging: | • Sequential and grid logging • Alpha numeric batch identification • OBSTRUCT indicates inaccessible locations • Bitmap graphic capture and capture viewer |
| Power Source: | Three 1.5V alkaline or rechargeable AA cells |
| Battery Life: | 35 hours on alkaline and NI-MH, 10 hours on NiCad |
| Auto Power off: | if idle 5 min |
| Display: | 1/8 in. VGA grayscale display 62 x 45.7mm |
| Keyboard: | Membrane switch with twelve tactile keys |
| Case: | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed). |
| Operating Temperature: | -10° to +60°C |
| Dimensions: | 63.5 W x 165 H x 31.5 D mm |
| Weigth, net: | 383 grams |
| Shipping weight: | 1,75 kg |
| Certification: | CE Approved, Factory calibration traceable to NIST standards |
| Warranty: | Gauge 2 year limited probe 90 days |
