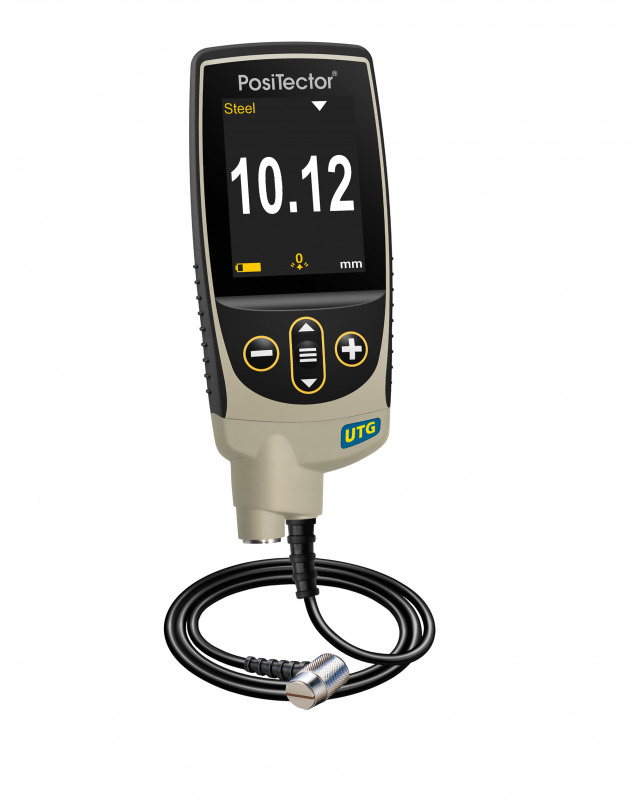

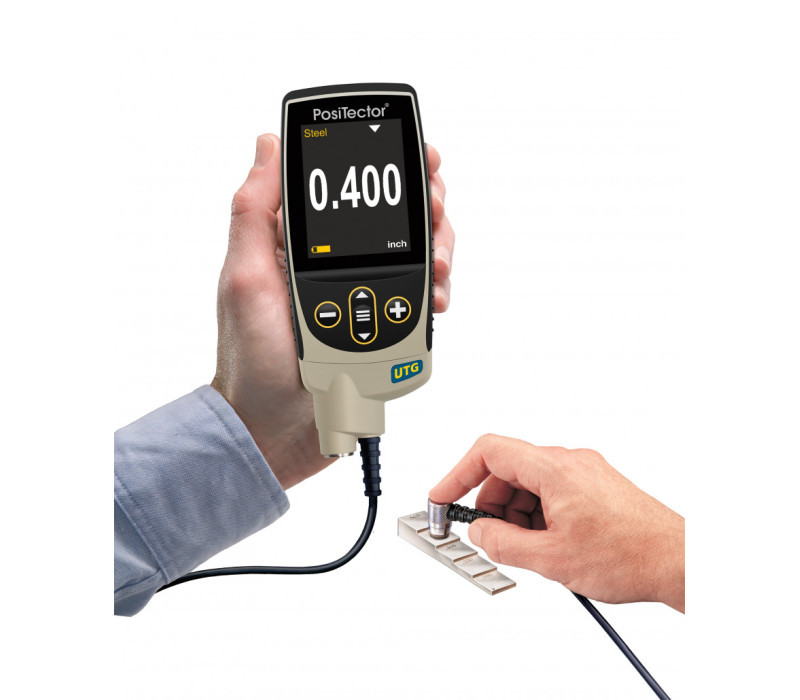

PT-UTG PosiTector UTG Ultrasonic Wall Thickness Gauge

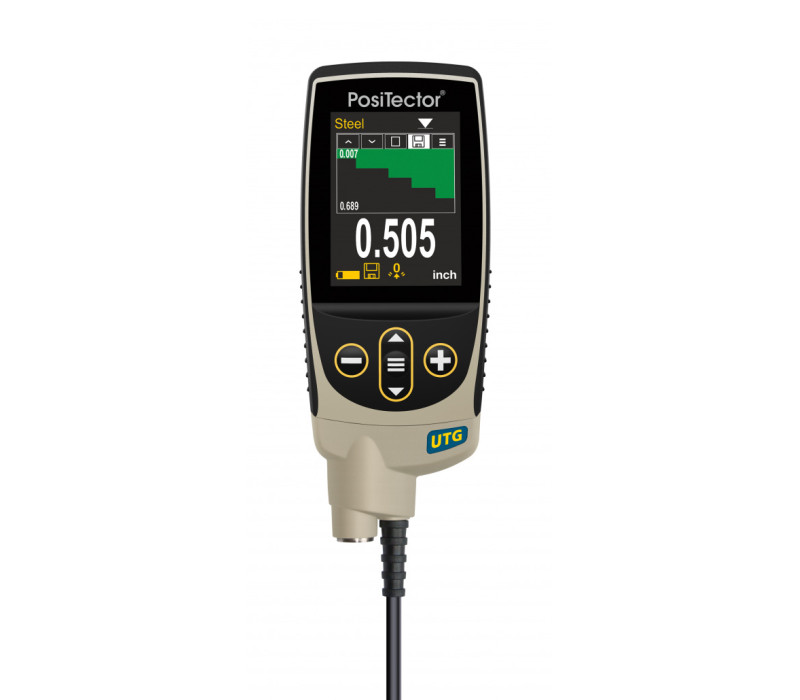

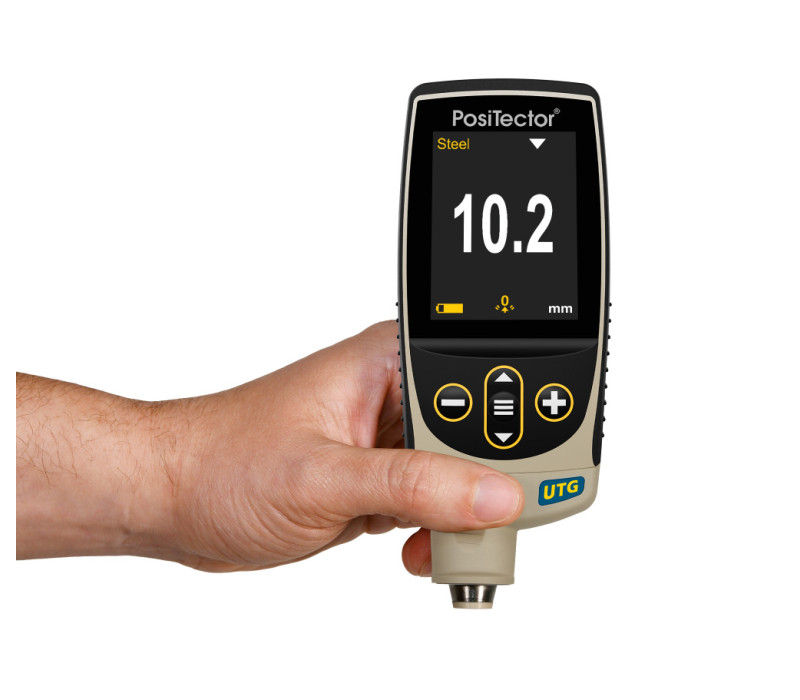

Integral probe

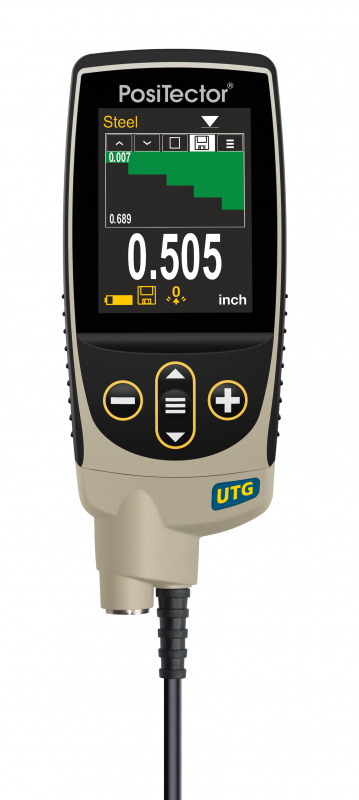

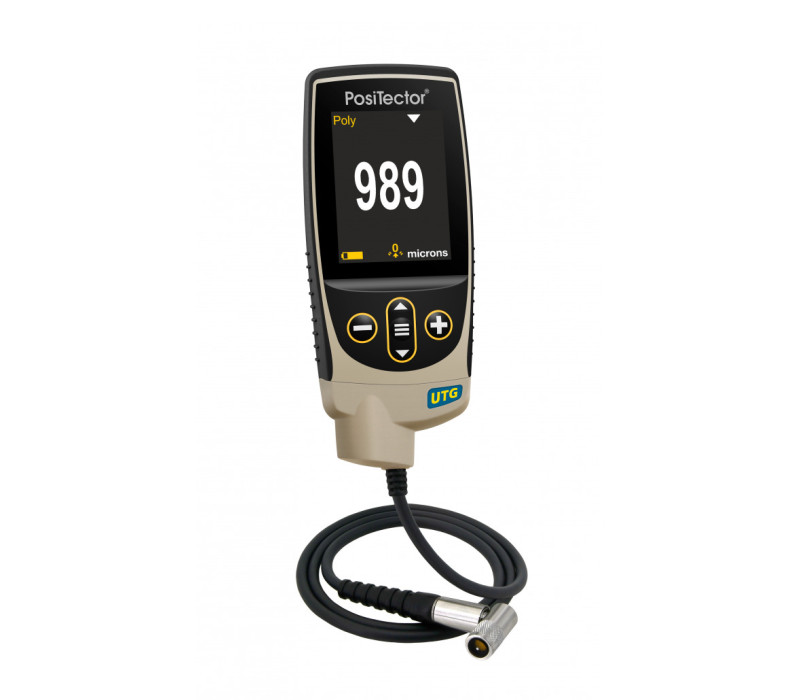

B-Scan - displays a cross sectional profile of the test material

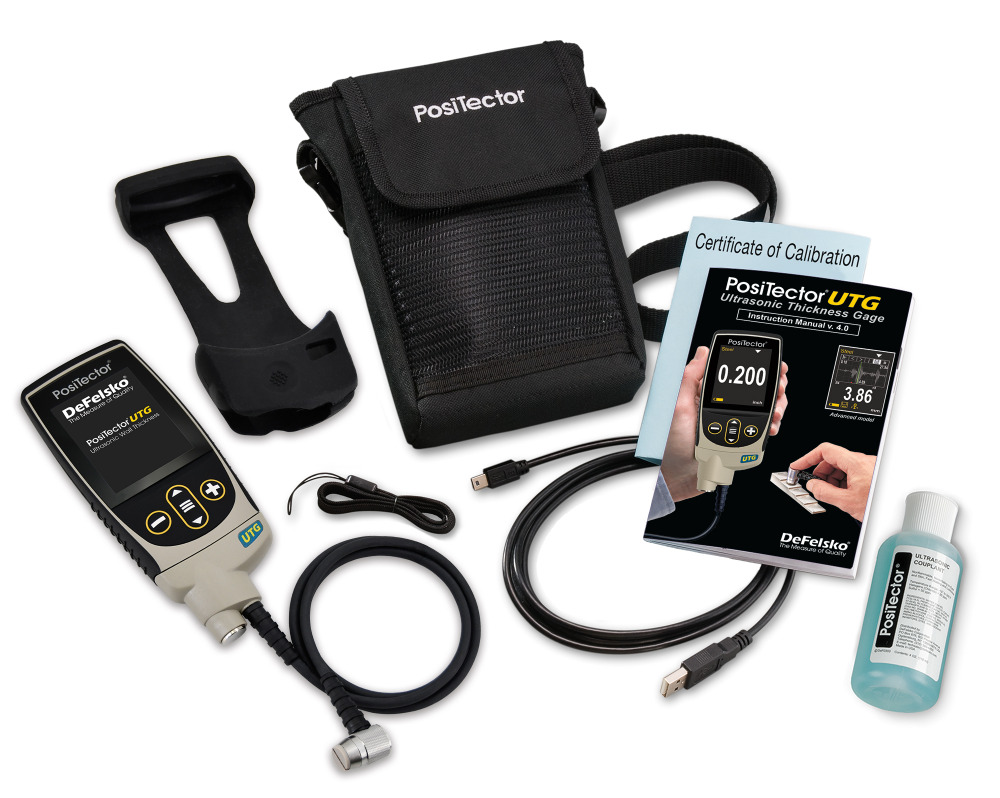

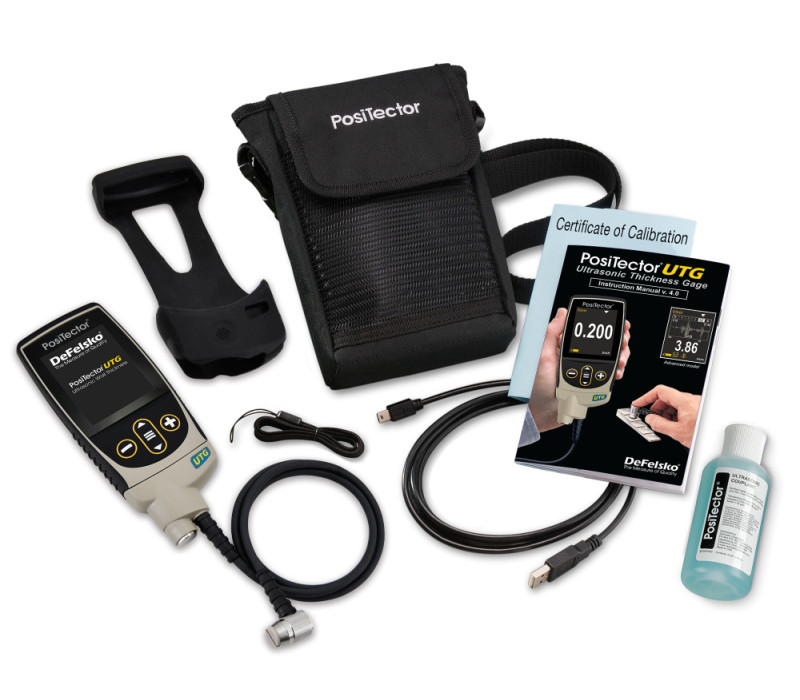

The PosiTector UTG comes complete with body and probe, couplant, rubber holster with belt clip, wrist strap, 3 AAA batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Certificate of Calibration, USB Cable and software

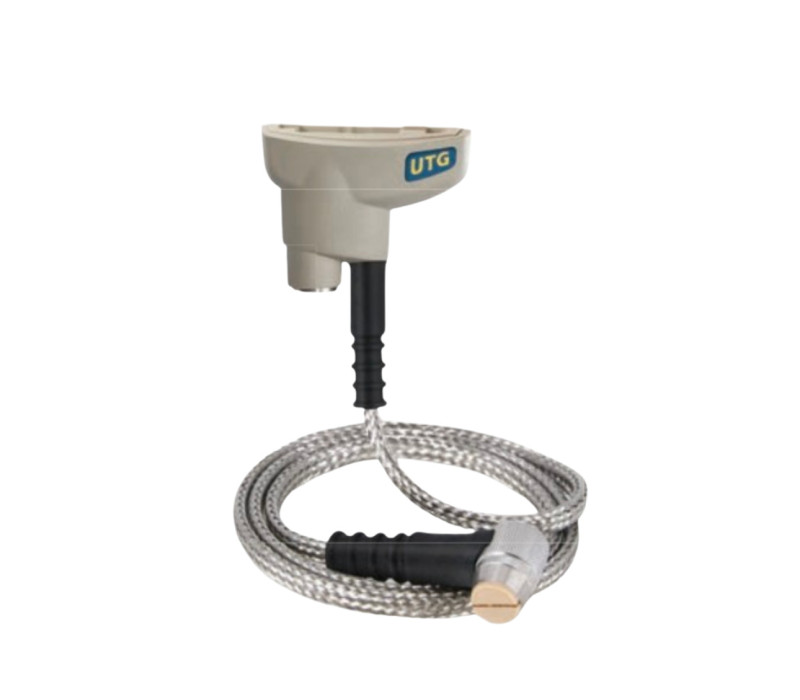

Probe UTG-CX

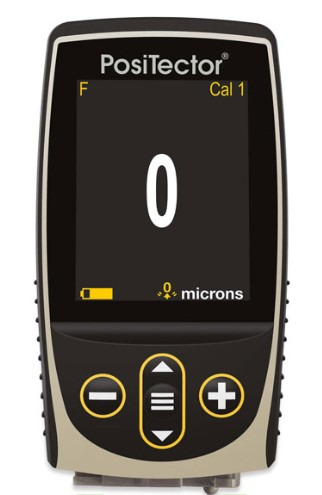

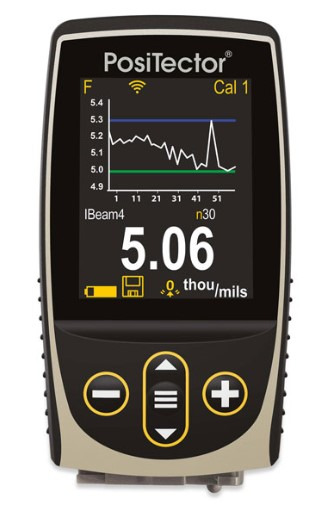

Step 1: Select a body
(Standard or Advanced features)
| Standard (1) | Advanced (3) |
|---|---|
 |
 |
| Feature | Standard (1) | Advanced (3) |
|---|---|---|
| Hi Contrast LCD Display | Monochrome | Color |
| Reading Storage Capacity | 250 in one group | 100,000 in up to 1000 groups |
| Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring | ||
| Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits | ||
| Min Scan - measurement rate of up to 20 readings per second with on-screen min and max for quick inspection over a large area | ||
| A Scan - with adjustable Gain with screen capture for further analysis and documentation | - | |
| B Scan - display in which a cross sectional profile of the test material is represented | - | |
| Batch Annotation - Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. | - | |
| Bluetooth Wireless Technology for data transfer to a PC or optional portable printer | - | |
| Onscreen help, real time graphing, picture prompting and batch notes | - |
Step 2: Select Probe Style

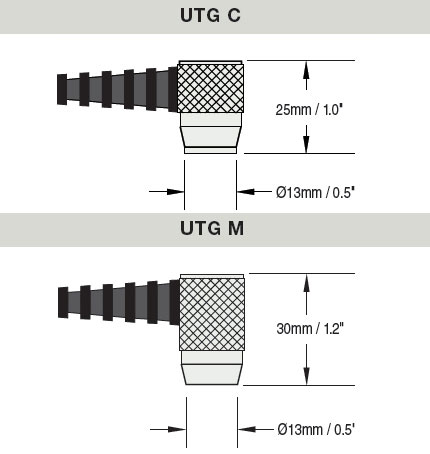

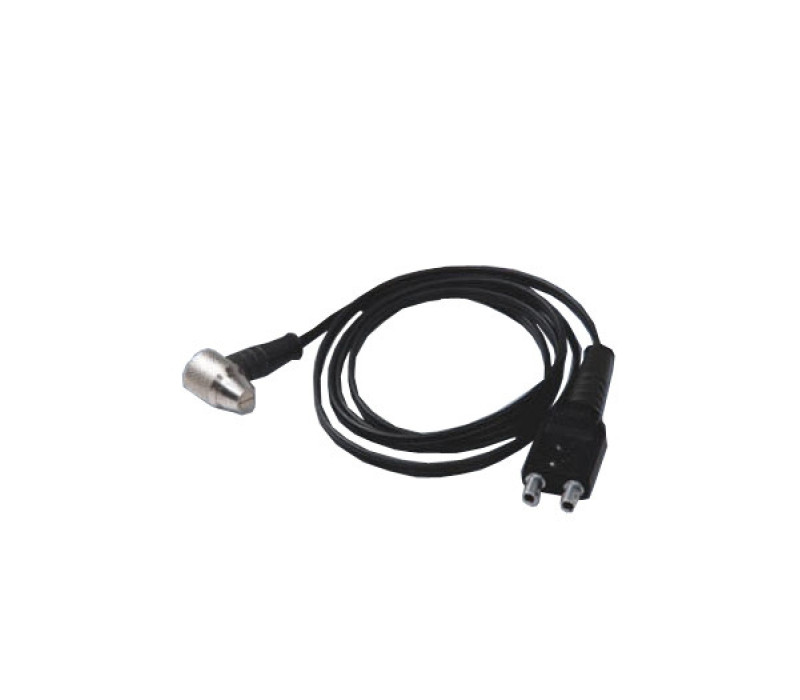

Corrosion Probe

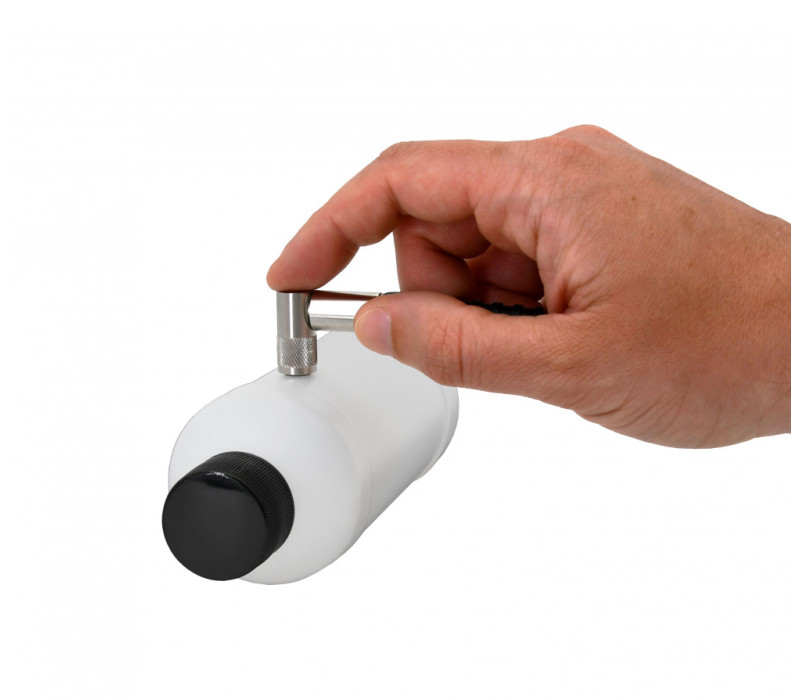

Measures the wall thickness of materials such as steel, plastic and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side
- 5 MHz dual element transducer with wear resistant PEEK probe tip
- Automatic V-Path compensation for thin materials
Multiple-Echo Probe

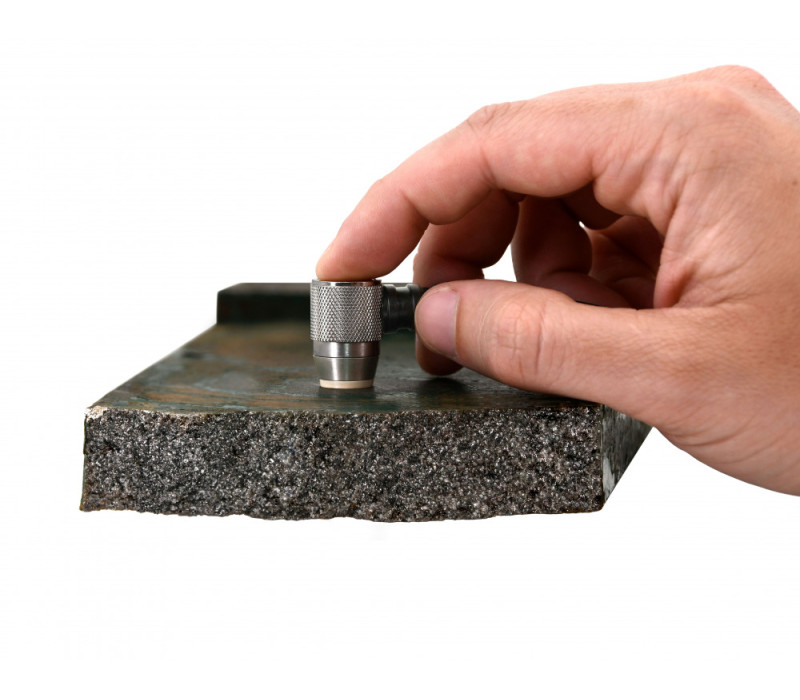

Features Thru-Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating. The most accurate method to measure the remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense. Also ideal for measuring on sandblasted materials or other applications requiring a durable wear face.
- 5MHz contact probe with wear resistant Alumina probe tip
- Multiple Echo technique averages 3 or more echoes for accurate and reliable readings
- Most accurate method to measure remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense.
- Toggle easily between:
- Multiple Echo mode to eliminate coating thickness
- Single Echo mode to detect pits and flaws, and to increase the measurement range
Xtreme Corrosion Probe
The Xtreme Corrosion Probe (CX) is the ruggedized version of the standard Corrosion Probe (C), designed for inspectors working in harsh, abrasive, or high-use environments where probe cable durability is critical. It offers the same ultrasonic measurement performance, but adds a braided stainless steel cable and heavy-duty strain reliefs for improved resistance to wear, pulling, bending, and demanding field conditions.
Unlike the Multiple-Echo probe (M), the UTG CX does not measure through paint; its advantage over the standard Corrosion Probe is not a different measurement mode, but a more durable, field-ready probe construction.

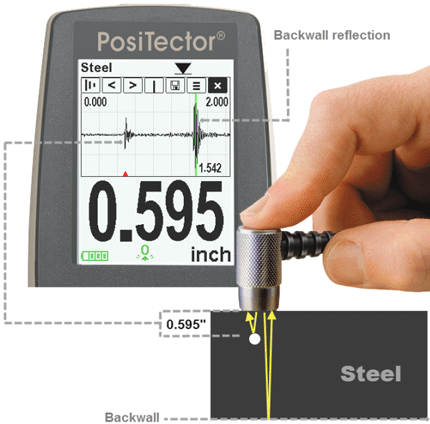

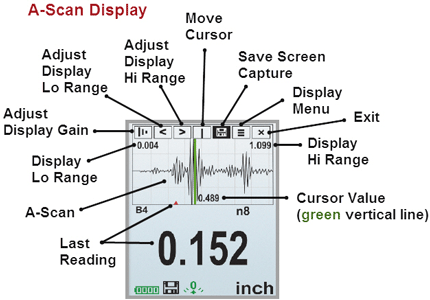

Color Model (3) Only. A display in which the received pulse amplitude is represented along y axis and the travel distance of the ultrasonic pulse is represented along the x axis.

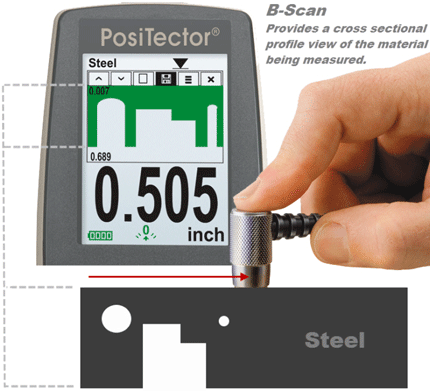

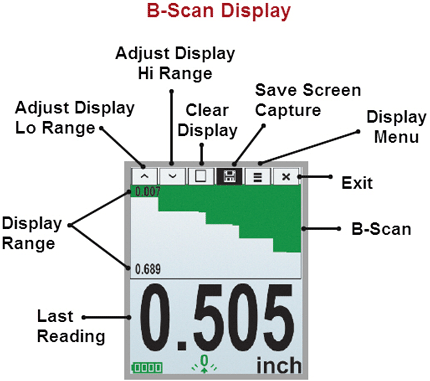

Color Model (3) Only. A display in which a cross sectional profile of the test material is represented.
