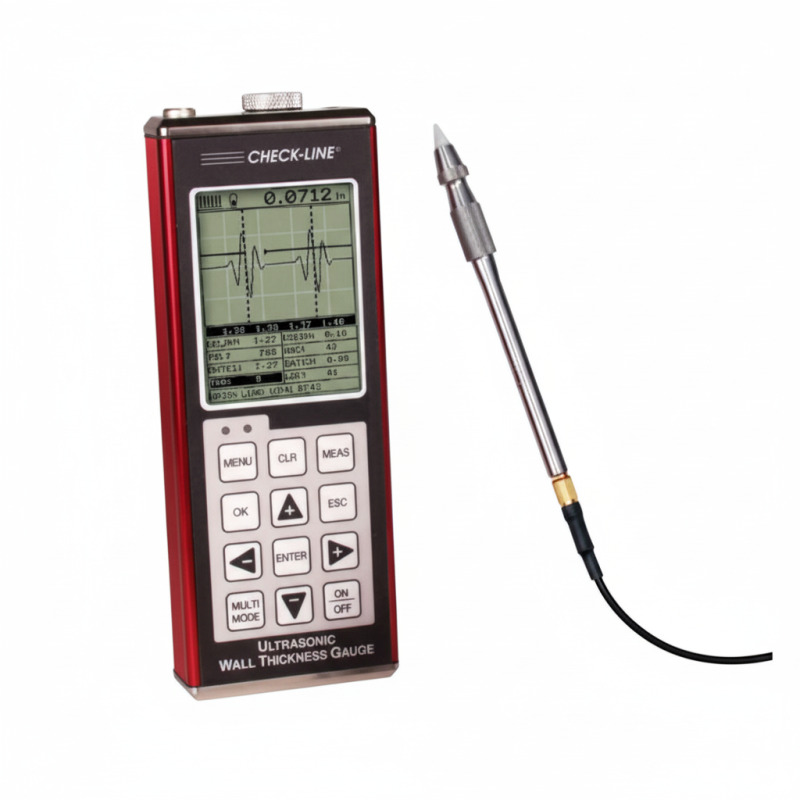

TI-PVX Ultrasonic Thickness Gauge

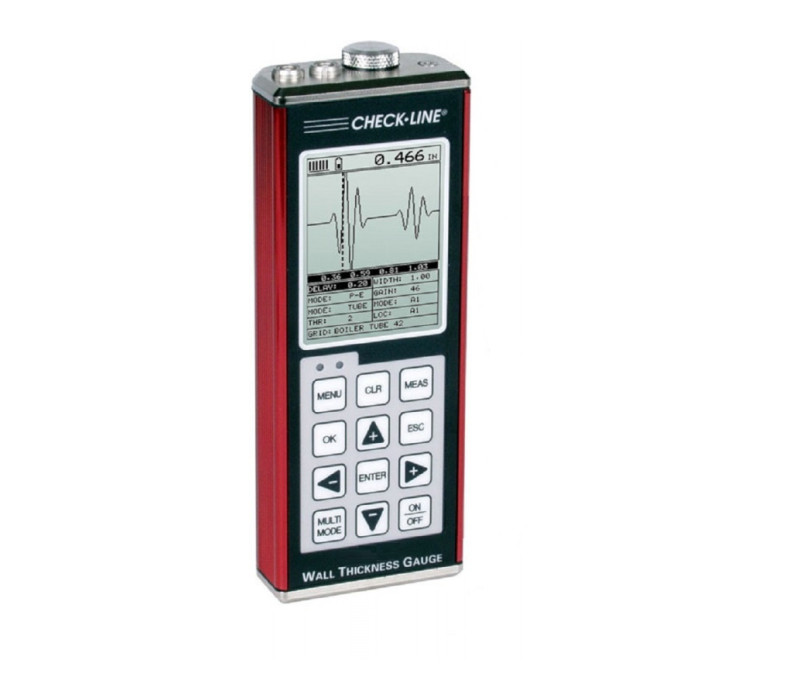

The TI-PVX  ultrasonic thickness gauges from Checkline combine flexibility and precision for both high-resolution and high-penetration applications. Designed to adapt to a wide range of industrial environments, they provide accurate results on both delicate and demanding measurement tasks. Available with either a greyscale VGA display, the TI-PVX delivers superior performance and ease of use.

Key Features:

  • Diversity of Transducers: Compatible with multiple single-element transducers, including standard and pencil delay-line types, ideal for thin materials and hard-to-access areas.
  • Advanced Display Options: Provides multiple waveform views including RF, +/– rectified, and large digit display for easier data interpretation.
  • High-Speed Scanning: Performs up to 32 measurements per second for efficient inspection of larger areas.
  • Time-Based B-Scan: Displays a cross-section profile of the opposite surface for detailed analysis.
  • Calibration Flexibility: One-Point, Two-Point, or material list selection for accurate setup.
  • Data Logging: Built-in alphanumeric data logger with 16 factory setups and 48 user-defined setups for custom applications.
  • Auto-Find Function: Automatically locates detection points and adjusts display settings to bring the waveform into view.
  • Alarm Functions: Visual and audible alarms with high/low limits to ensure tolerance control in specific applications.

Key Benefits:

  • Easy to Use: Ergonomic design and intuitive menu system simplify operation, even for less experienced users.
  • Robust and Reliable: Built with durable construction, CE certified, and supported by a 2-year limited warranty.
  • Flexible Application Coverage: Adaptable to a wide variety of materials, thicknesses, and inspection scenarios.
  • Enhanced Reporting: Integrated data logger and PC software streamline data transfer and documentation.



The TI-PVX is the ideal choice for professionals who require a versatile ultrasonic thickness gauge capable of handling diverse measurement challenges with precision and efficiency.

Contact us to configure the TI-PVX with the most suitable probe and accessories for your inspection needs.

Features

  • Transducer Compatibility: Standard and pencil delay-line single-element probes
  • Measuring Modes: RF waveform, +/– rectified waveform, large digit display, B-Scan
  • Measurement Speed: Up to 32 readings per second
  • Calibration: One-Point, Two-Point, or Material List selection
  • Setups: 16 factory setups and 48 user-defined setups (editable)
  • Gain Control: Hardware AGC for multiple-echo and through-paint measurement
  • Data Logger: Built-in alphanumeric logger for customised reporting
  • Auto-Find Feature: Automatically detects measurement points and adjusts waveform display
  • Alarm Functions: Visual and audible alarms with high/low limit thresholds
  • Resolution: Adjustable resolution settings
  • Software: Supplied with Windows® PC software for data transfer
  • Warranty: 2-year limited warranty
  • Certification: CE Certified; includes NIST traceable calibration certificate

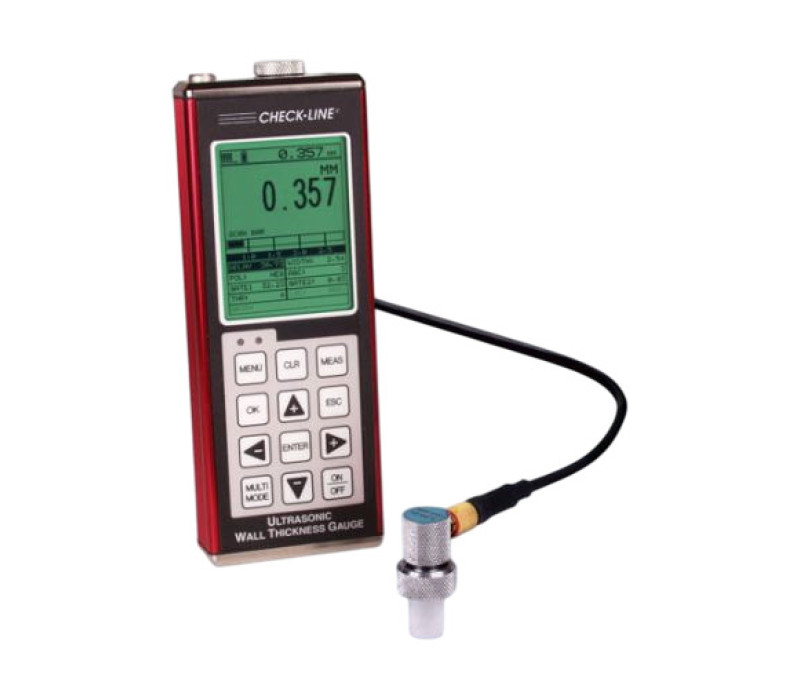

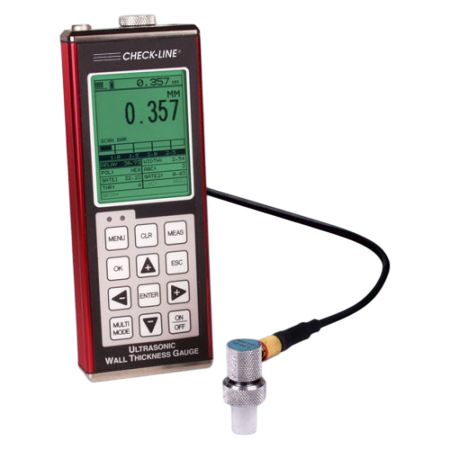

  • Optional Probe: 1/4" 15 MHz Delay Line Probe (p/n T-402-5507); specify TI-PVX-5507 for kit
Complete Kit

The TI-PVX is supplied as a complete kit including:

  • TI-PVX gauge

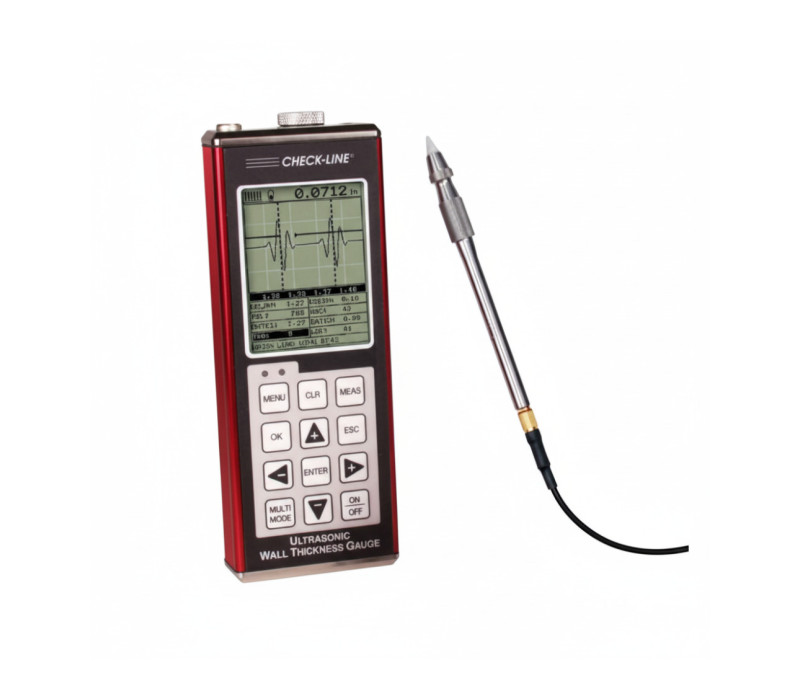

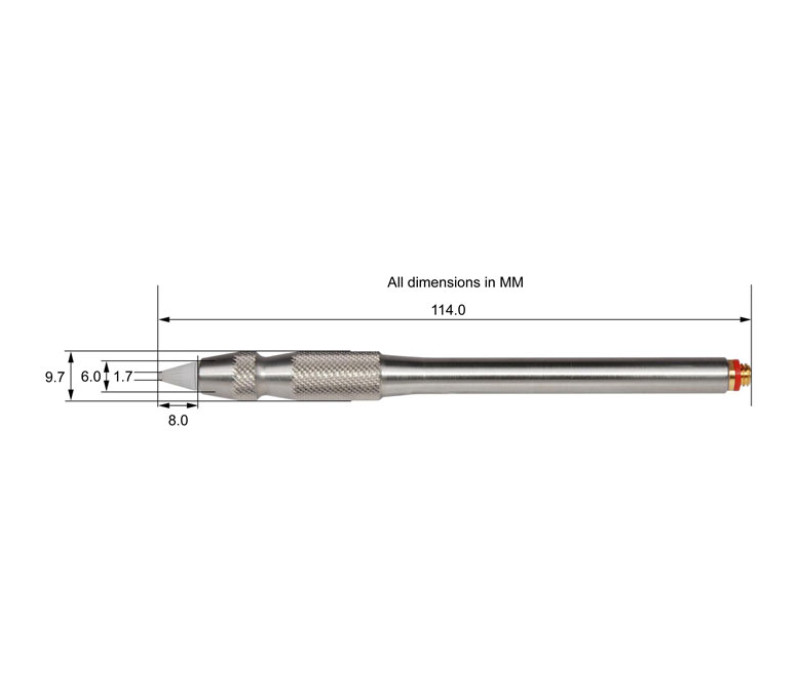

  • Pencil probe
  • 120 ml (4 oz) bottle of couplant
  • Three AA batteries
  • NIST traceable calibration certificate
  • PC data transfer software (download)
  • Serial output cable
  • User operating manual
  • Rugged foam-fitted carrying case

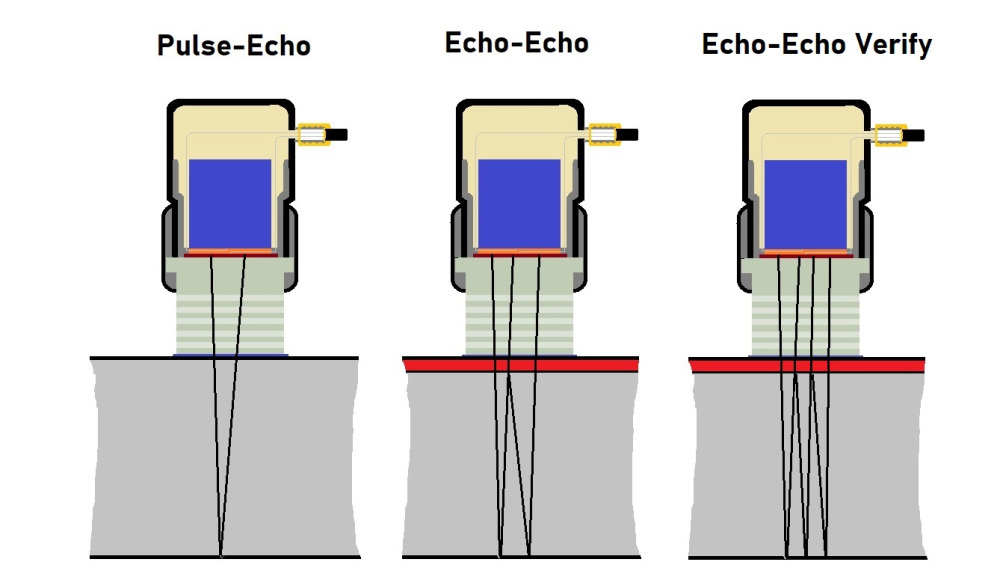

Technical terms

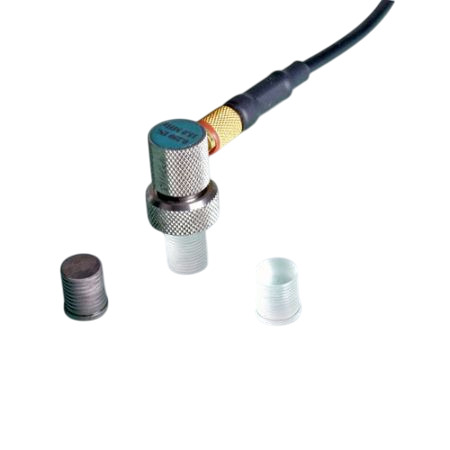

Delay Line Tips for TI-PVX
P/NDescriptionStandard / OptionalImage
X-152-00001/16” Dia. x .450" LStandard
X-752-00001/8" Dia. x .450" LOptional

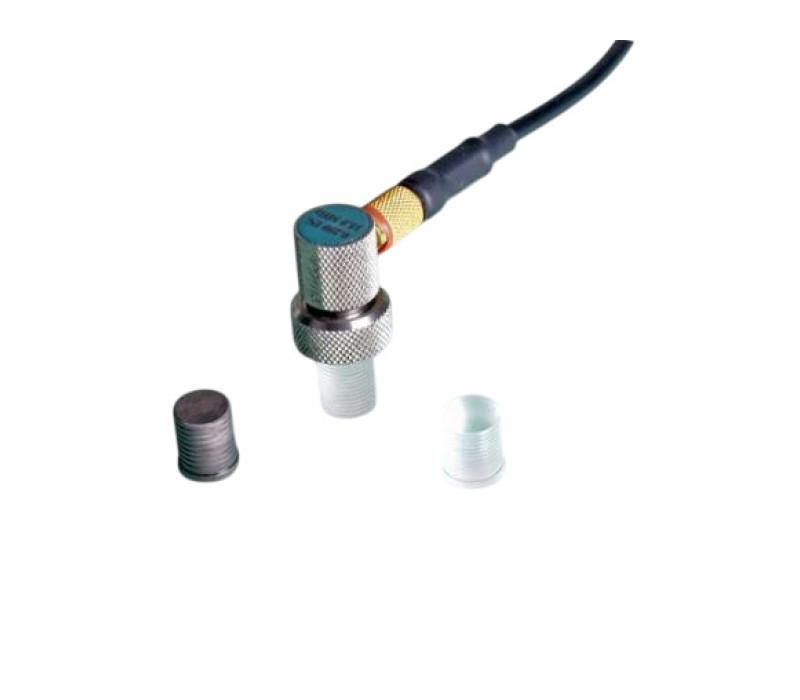

Delay Line Tips for TI-PVX-5507
P/NDescriptionStandard / OptionalImage
F-000-7102 (formerly X-231-0000)1/4" x 3/8" acrylic tip for metals – short delay lineStandard
F-000-7103 (formerly X-241-0000)1/4" x 1/2" acrylic tip for metals – long delay lineStandard
X-633-00001/4" x 3/8" graphite tip for thin plastics – short delay lineOptional
X-532-00003/16" cone-shaped acrylic tip – suitable for curved or restricted surfacesOptional
X-132-00001/8" cone-shaped acrylic tip – ideal for small surface areasOptional
X-533-00003/16" cone-shaped graphite tip for plastics (plastic mode required)Optional

Note: Graphite delay line tips are recommended for use in plastic mode to ensure accurate measurement on low-velocity materials such as plastics.
TI-PVX Measurement Displays
Digits screenB scan modeRF ScreenRectified View Menu ON

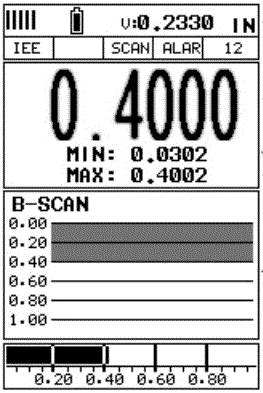

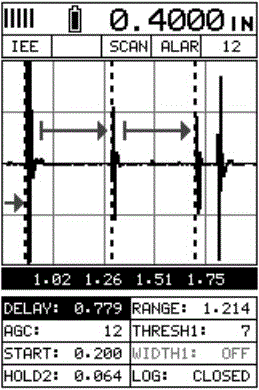

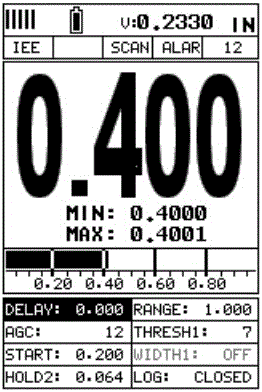

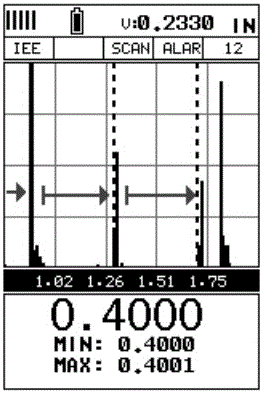

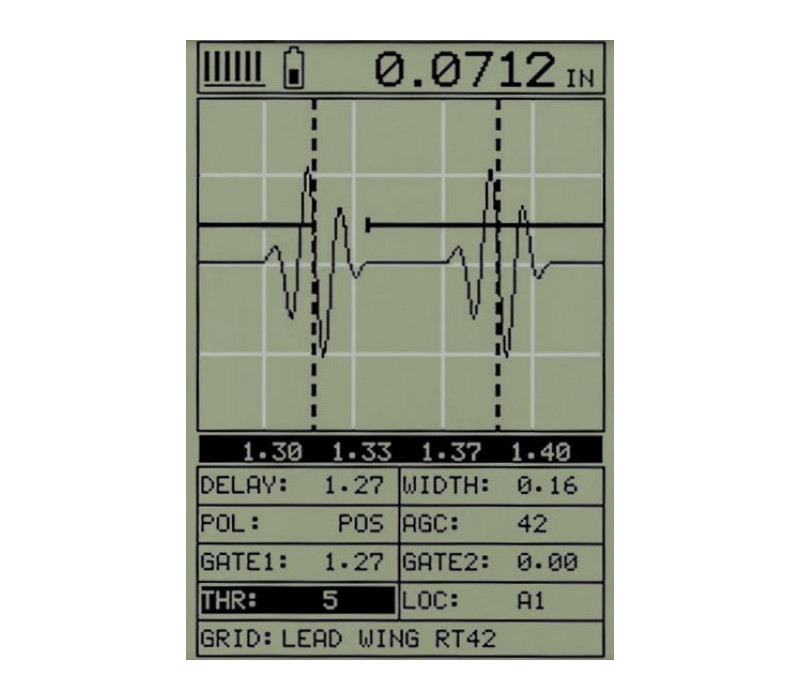

Scan Mode: Captures 32 readings per second, displaying the maximum and minimum values measured during the scan interval. Sample rate: 200 readings per second.B-Scan Display: Provides a time-based cross-sectional view of the test material, showing the contour of the blind side or underside—ideal for pipe and tank applications.RF A-Scan Display: Shows the actual ultrasonic waveform reflected from the opposite surface of the test material. In this mode, the entire sine wave is displayed for detailed signal analysis.RECT A-Scan Display: Displays only half of the sine wave (positive or negative), simplifying interpretation of echo signals.
Related Products

TI-007X Series Precision Ultrasonic Wall Thickness Gauges


  • Measurement Modes: Interface Echo (I-E), Echo-Echo (E-E), and Plastics (PLAS)
  • Scan Mode: Captures 100 readings per second; displays the minimum value detected during scanning
  • Adjustable Gain: Five-step gain adjustment for optimised measurement on challenging materials

More details

TI-007X Series Precision Ultrasonic Wall Thickness Gauges

TI-25 Series Wall Thickness Gauges


  • Memory & Data Logging: DLX and DLXT models feature onboard memory capable of storing up to 10,000 readings.
  • Accessory Compatibility: Compatible with a wide range of calibration blocks, couplants, and alternative transducers.
  • Warranty: 5-year warranty on the gauge, and 90 days on the transducer.

More details

TI-25 Series Wall Thickness Gauges

TI-CMX Series Ultrasonic Coating and Wall Thickness Gauges


  • Available Models: Choose from four versions: TI-CMX (standard), TI-CMXDL (data logging), TI-CMXDLP (A-Scan) and TI-CMXDLP-C (colour display with A-Scan).
  • Measurement Versatility: Measures both wall and coating thickness together or separately, supporting multiple inspection modes.
  • Rugged Construction: Robust aluminium housing designed for harsh industrial environments.

More details

TI-CMX Series Ultrasonic Coating and Wall Thickness Gauges

Accessories

PVX-V-BLOCK Transducer Holder for TI-PVX Thickness Gauge


  • For better control and repeatability on flat and curved surfaces
  • For TI-PVX pencil probes

More details

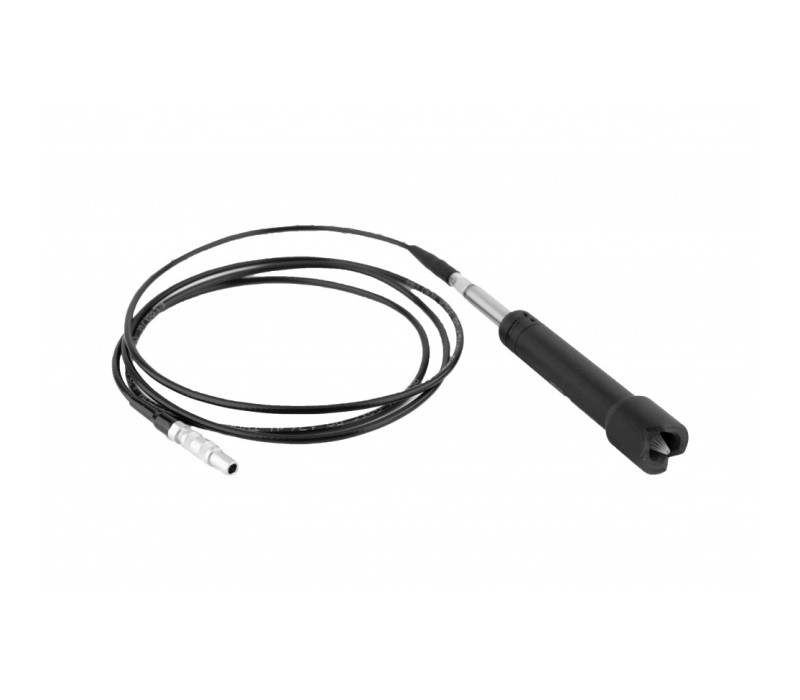

PVX-V-BLOCK Transducer Holder for TI-PVX Thickness Gauge 127399

TI-SB Ultrasonic Thickness Gauge Accessories


  • Precision Machined and Finished
  • Includes NIST Report and Test Data
  • Includes Wooden Storage Box

More details

TI-SB Ultrasonic Thickness Gauge Accessories 125793

TI-SB4 Steel Test Block


  • Uncertified Steel Test Block
  • For convenient confirmation of thickness gauge calibration

More details

TI-SB4 Steel Test Block 126277

TICC-MVX Instrument Holder for Ultrasonic Gauges


  • Constructed from heavy duty Cordura Nylon
  • Built-in belt loop
  • Includes wrist & shoulder straps

More details

TICC-MVX Instrument Holder for Ultrasonic Gauges 126247

CF-AN Coupling Fluid


  • Used to create an ultrasonic coupling between the probe and material to be measured
  • Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr

More details

CF-AN Coupling Fluid 126455

LI-ION Rechargeable AA Batteries


  • Li-Ion rechargeable battery
  • Stable voltage of 1,5 V over 95% of the runtime
  • Charged via the USB to USB-C cable

More details

LI-ION Rechargeable AA Batteries 127554

CIC-WALL Wall Thickness Gauge Calibration Service


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with DIN 55 350 Part 18, § 4.2.2, DIN ISO 8402 Part 1
  • Possibility to adjust and repair

More details

CIC-WALL Wall Thickness Gauge Calibration Service 127035
Downloads

Specifications

Range:Interface-Echo Mode: Steel 1.27 – 25.4 mm (0.05 – 1.0 in); plastics from 0.127 mm (0.005 in)

Echo-Echo Mode: Steel 0.15 – 12.7 mm (0.006 – 0.500 in)

Pulse-Echo Contact Mode: Steel 1 – 254 mm (0.040 – 10.0 in); plastics from 0.254 mm (0.010 in)

Echo-Echo Contact Mode (thru-paint): Steel 2.54 – 76.2 mm (0.100 – 3.0 in)
Resolution:Selectable ±0.01 mm (0.001 in) or ±0.001 mm (0.0001 in)
Velocity Range:1250 – 9999 m/s (0.0492 – 0.3936 in/µs)
Units:Metric (mm) or Imperial (in)
Memory:4 GB internal memory
Data Logger:Stores up to 12,000 readings and waveforms (alphanumeric storage)
Output:USB-C
Display:1/8 in VGA greyscale display or Amoled colour
Setups:64 custom user-defined setups
Power Source:Three 1.5 V alkaline or 1.2 V NiCad AA cells
Battery Life:Up to 150 hours on alkaline, 100 hours on NiCad (typical, dependent on settings)
Power off:Unit powers down if idle for 5 minutes
Operating Temperature:-10 °C to +60 °C (14 °F to 140 °F)
Size:63.5 W × 165 H × 31.5 D mm (2.5 × 6.5 × 1.24 in)
Weight:0.4 kg (0.9 lbs )
Shipping weight:1,5 kg
Warranty:Gauge: 2 Years
Probe: 90 Days
