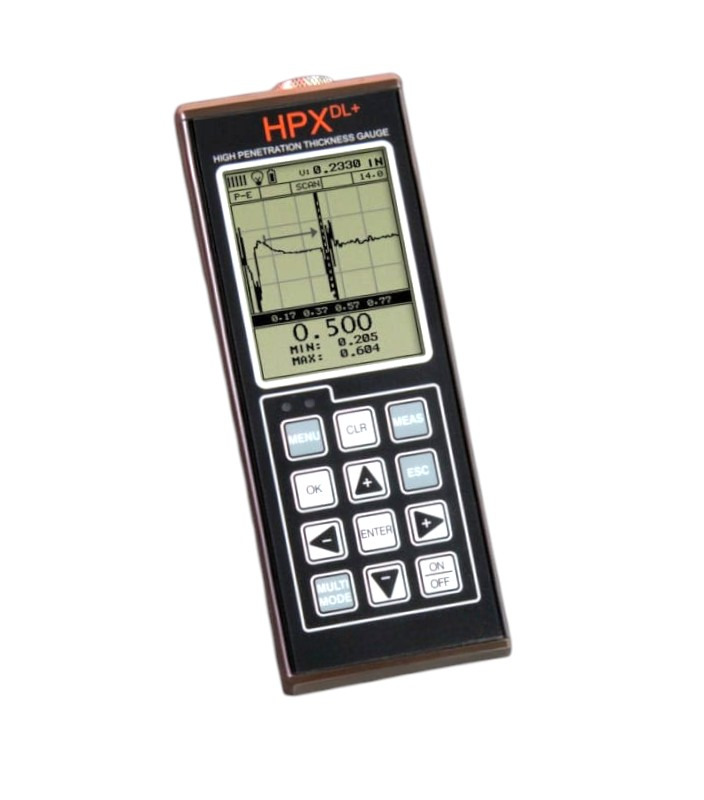

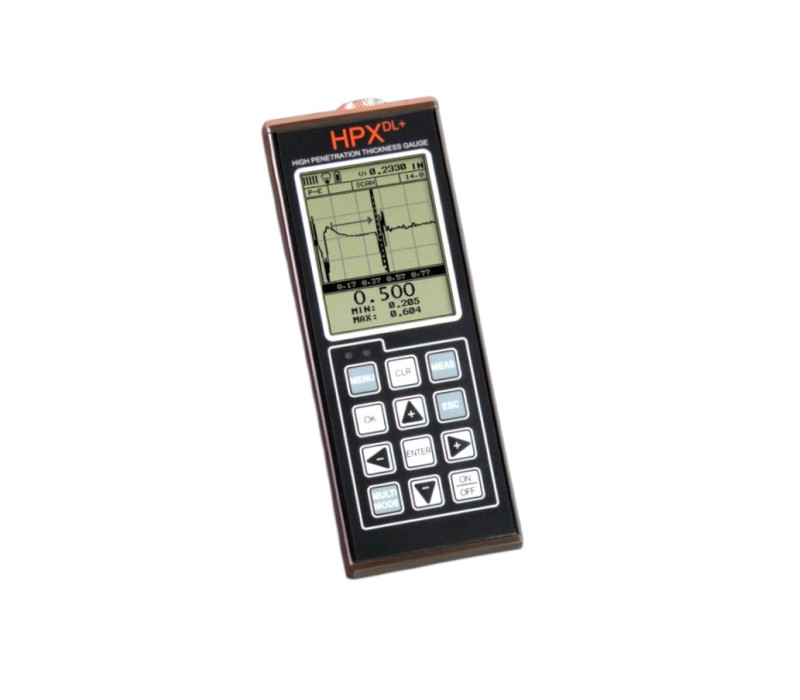

HPX DLP Ultrasonic Thickness Gauge
The HPX DLP ultrasonic thickness gauge is developed to measure materials with low consistency, coarse grain structure, or increased thickness. These materials are more difficult to penetrate with the ultrasonic signal, using multiple high-voltage pulser options and filters tuned for lower-frequency transducers (500 kHz – 10 MHz) expand the range of measurable applications while maintaining fast, accurate readings.
Typical applications include fibreglass sheets, storage tanks, aerospace composites, boat hulls, conveyor belts and other composite, rubber or plastic structures.
Key Features:
- Designed for difficult materials: Optimised for substrates with low consistency, coarse grain structure or large thickness.
- Wide material compatibility: Measures fibreglass, carbon fibre, cast metals, rubber, high density polyethylene (HDPE), fibre reinforced plastic (FRP), lead, and steels and aluminiums.

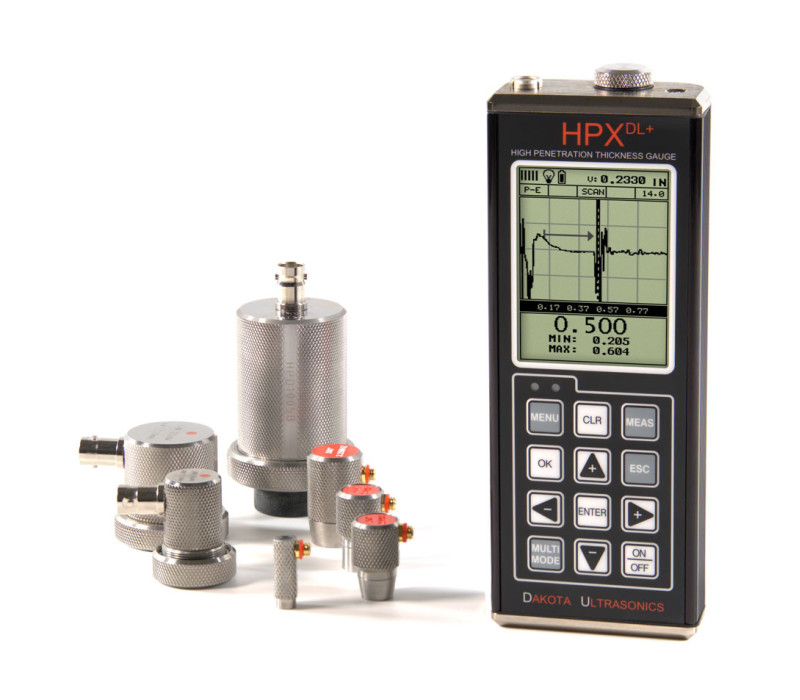

- Transducer range: Supports transducers from 0.5 to 10 MHz and 1/8 to 1 inch.
- Measurement views: A-Scan, B-Scan and Scan Bar for waveform confirmation and profiling.
- Built-in data logger: Grid or sequential file formats with data and screen captures stored on internal 4 GB SD memory.
- USB-C connectivity: Direct data transfer to PC or Apple systems; compatible with Windows and macOS reporting software.
- Responsive display: 25 Hz screen refresh rate ensures smooth, stable live readings.
- FPGA electronics: High-speed processing for accuracy and reliability.
- Through-paint capability: Echo-Echo (E-E) and Echo-Echo-Verify (E-E-V) modes when the application supports multiple echoes.
Key Benefits:
- Reliable performance on challenging materials: Low-frequency support and high-energy pulsing improve penetration where only single-side access is available or required.
- Streamlined workflow: On-board data logging (grid/sequential) plus fast USB-C transfer simplify reporting.
- Visual verification: Waveform views allow operators to confirm coupling quality and thickness profiles with confidence.
- Versatile applications: From composites and rubbers to cast metals and reinforced plastics.
The HPX DLP extends ultrasonic thickness testing into areas where conventional gauges struggle. Its responsive display, FPGA-driven electronics and integrated data logging make it a dependable tool for both laboratory and field inspection environments.
Contact us to configure the HPX DLP ultrasonic thickness gauge with the most suitable transducer and setup for your application.
Features
- Electronic Platform: FPGA-driven for high-speed processing and measurement accuracy
- Screen Refresh Rate: 25 Hz for smooth and stable live readings
- Data Logger: Grid or sequential file formats with integrated 4 GB SD memory for readings and screen captures
- Connectivity: USB-C port for data transfer; compatible with Windows and macOS reporting software
- Measurement Views: Digital readout, A-Scan, B-Scan and Scan Bar modes
- Supported Materials: Fibreglass, carbon fibre, cast metals, rubber, HDPE, FRP, lead, steels and aluminium
- Transducer Range: 0.5–10 MHz; 1/8–1 inch diameter

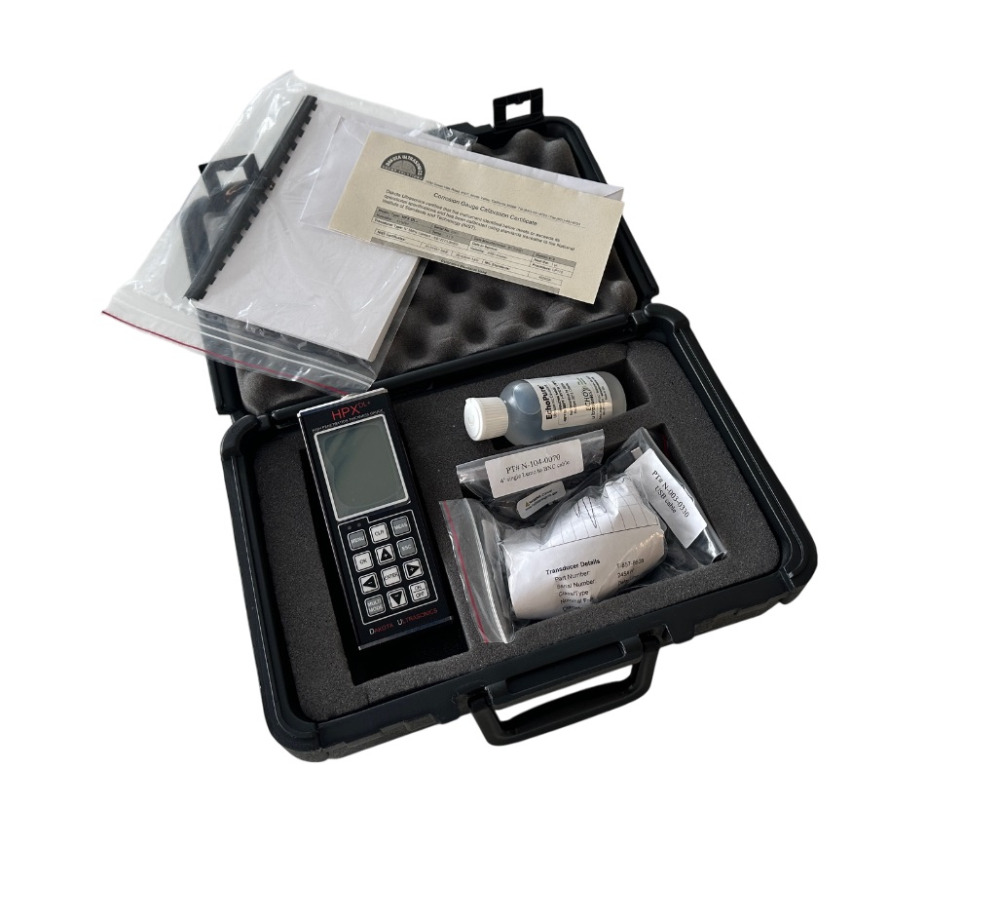

The HPX DLP is supplied as a complete kit including:
- HPX DLP gauge

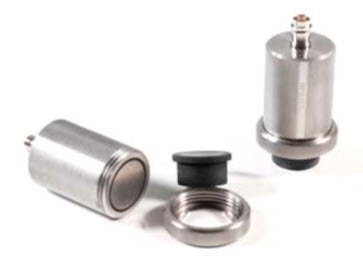

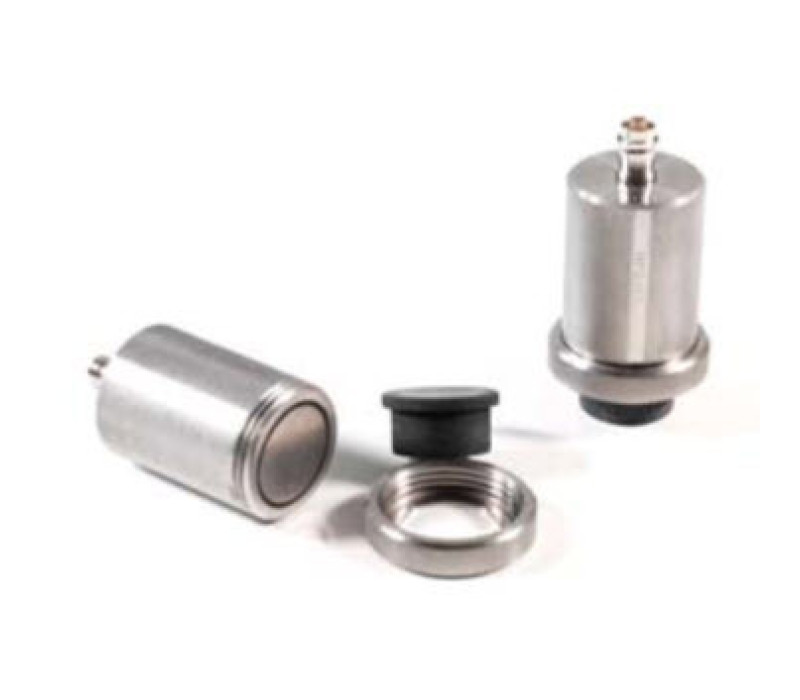

- Custom 1" delay line transducer (rubber delay line)
- Lemo-BNC cable
- 120 ml couplant
- User manual
- Certificate of calibration
- AA batteries
- USB-C transfer cable
- PC reporting software (download)
The kit is delivered in a rugged, foam-fitted carrying case for secure transport and storage.
TI-CMX Series Ultrasonic Coating and Wall Thickness Gauges
- Available Models: Choose from four versions: TI-CMX (standard), TI-CMXDL (data logging), TI-CMXDLP (A-Scan) and TI-CMXDLP-C (colour display with A-Scan).
- Measurement Versatility: Measures both wall and coating thickness together or separately, supporting multiple inspection modes.
- Rugged Construction: Robust aluminium housing designed for harsh industrial environments.
More details
TI-007X Series Precision Ultrasonic Wall Thickness Gauges
- Measurement Modes: Interface Echo (I-E), Echo-Echo (E-E), and Plastics (PLAS)
- Scan Mode: Captures 100 readings per second; displays the minimum value detected during scanning
- Adjustable Gain: Five-step gain adjustment for optimised measurement on challenging materials
More details
TI-25 Series Wall Thickness Gauges
- Memory & Data Logging: DLX and DLXT models feature onboard memory capable of storing up to 10,000 readings.
- Accessory Compatibility: Compatible with a wide range of calibration blocks, couplants, and alternative transducers.
- Warranty: 5-year warranty on the gauge, and 90 days on the transducer.
More details
Accessories

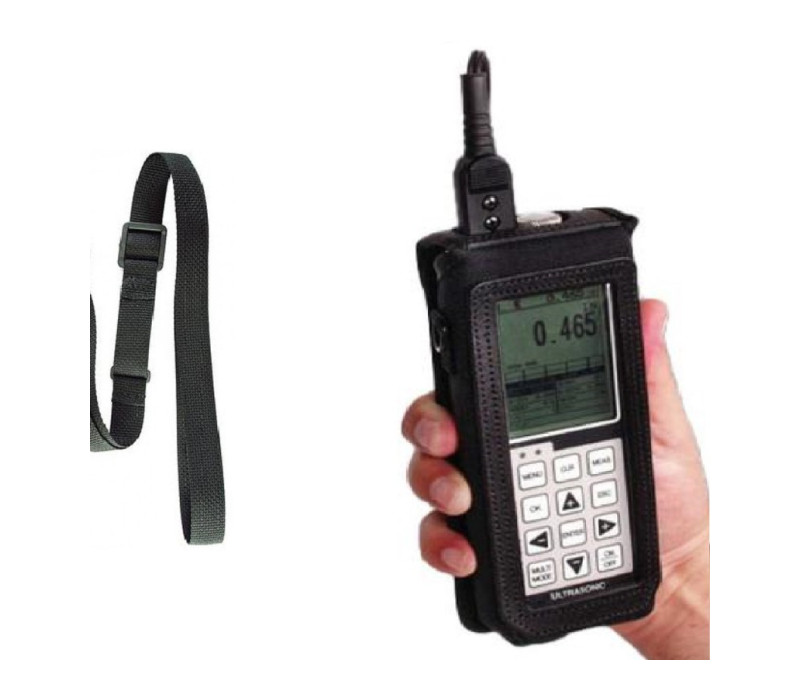

TICC-MVX Instrument Holder for Ultrasonic Gauges
- Constructed from heavy duty Cordura Nylon
- Built-in belt loop
- Includes wrist & shoulder straps
More details
TI-SB4 Steel Test Block
- Uncertified Steel Test Block
- For convenient confirmation of thickness gauge calibration
More details
TI-SB Steel Test Blocks
- Precision Machined and Finished: Each test block is precision-machined and surface-finished to tight tolerances, ensuring excellent acoustic coupling and long-term dimensional stability.
- Includes NIST Certificate and Test Data: Supplied with a full calibration certificate traceable to NIST standards, including measured values and test data for complete verification accuracy.
- Includes Wooden Storage Box: Delivered in a durable hardwood storage case that protects the block from environmental effects and mechanical damage during storage or transport.
More details
CF-AN Coupling Fluid
- Used to create an ultrasonic coupling between the probe and material to be measured
- Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr
More details
LI-ION Rechargeable AA Batteries
- Li-Ion rechargeable battery
- Stable voltage of 1,5 V over 95% of the runtime
- Charged via the USB to USB-C cable
More details
CIC-WALL Wall Thickness Gauge Calibration Service
- Easy planning of calibration
- Short turnaround
- Exclusively in accordance with DIN 55 350 Part 18, § 4.2.2, DIN ISO 8402 Part 1
- Possibility to adjust and repair
More details
Specifications
| Resolution: | Selectable 0.1 mm or 0.01 mm |
| Measuring modes: | Pulse-Echo (P-E), Echo-Echo (E-E), Echo-Echo Verify (E-EV) |
| Pulse-Echo Range: | Steel: 1.27 mm – 30.5 m Composites: 2.54 mm – 127 mm Depending on transducer |
| Echo-Echo Range: | Steel: 2.54 mm–91.44 cm |
| Echo-Echo Verify Range: | Steel: 2.54–152.4 mm |
| Velocity Range: | 309.88 – 18,542 m/s |
| Units: | Millimetres (mm) or inches (in) |
| Operating Temperature: | -10C to +60°C |
| Pulser: | Spike: 200 V adjustable. Square wave: 400 V adjustable. Tone Burst: 400 V adjustable with selectable frequency. |
| Data Output: | USB-C port; Windows® PC interface software |
| Frequency Range: | 500 kHz to 10MHz |
| Transducer Type: | Single-Element Transducers |
| Transducer Compatibility: | Single Contact (1 to 10 MHz) and custom 500 kHz delay line (HPD1005B) |
| Power: | Three AA cells: Alkaline – 35 hrs NiCad – 10 hrs; Ni-MH – 35 hrs (depending on pulser and backlight settings) |
| Display: | 1/8 in VGA greyscale display (240 × 160 pixels); viewable area 2.4 × 1.8 in (62 × 45.7 mm); EL backlight (on/off/auto invert) |
| Dimensions: | Width 63.5 mm × Height 165 mm × Depth 31.5 mm |
| Weight: | 455 g |
| Shipping Weight: | 2.75 kg |
