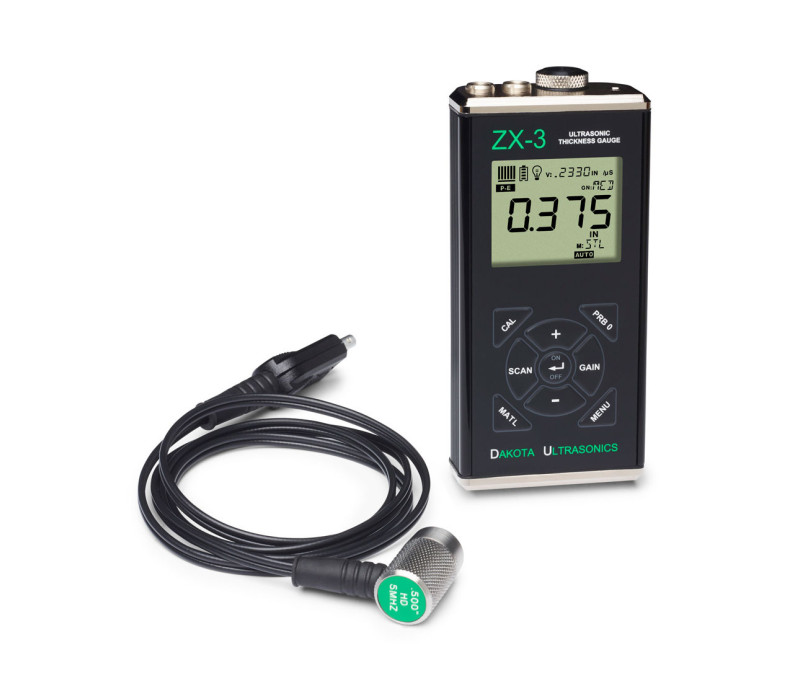

Dakota ZX-3 Ultrasonic Wall Thickness Gauge


Discover the Dakota ZX-3, an advanced ultrasonic thickness gauge available at Checkline. Designed to deliver precise and reliable measurements, the ZX-3 is ideal for determining wall thickness and assessing corrosion on a wide variety of materials, including metals, ceramics, glass, and rigid plastics.

Key Features:
  • Material Selection: Choose from 8 preset materials, facilitating calibration and ensuring accurate measurements for different types of applications.
  • Customisable Calibration: Ability to register two custom material velocities, allowing the device to be tailored to specific needs.
Technical Specifications:
  • Extensive Measuring Range: From 0.63 mm to 914.4 mm, enabling the gauge to be used in a variety of industrial contexts.
  • Robust Design: Impact-resistant aluminium housing and environmentally sealed to withstand adverse conditions (IP65), ideal for use in challenging industrial environments.
Advanced Measurement Modes:
  • Single Reading Mode and Scan Mode: Offers flexibility during inspections, allowing for everything from spot measurements to continuous scans over large surfaces.
  • 2-Point Calibration: Ensures optimal linearity between low and high calibration points for unparalleled accuracy.
Durability and Reliability:
  • Waterproof Probe: Capable of being submerged in water, expanding the range of possible applications from underwater inspections to damp environments.
  • 5-Year Warranty: Reflects confidence in the gauge's durability and performance.

The ZX-3 is perfect for professionals who need a reliable and precise tool for thickness measurement on pipes, tanks, and other structures. Contact us for more information or for a demonstration of how the Dakota ZX-3 can meet your measurement needs.

Features

  • Measuring range:
    1.00 - 199.9 mm (with standard probe) - 0.63 - 914,4 mm (depending on probe and material)
  • Resolution of 0.01 mm
  • Measuring unit switchable between mm and inch
  • High visibility LCD Display is readable in all lighting conditions and temps as low -30 °C
  • Selectable Backlight ON/OFF/AUTO
  • Impact-resistant and environmentally sealed (IP 65) extruded aluminum housing
  • The probe is waterproof and can be submerged in water
  • Includes NIST Traceable Calibration Certificate
  • 5 Year Warranty

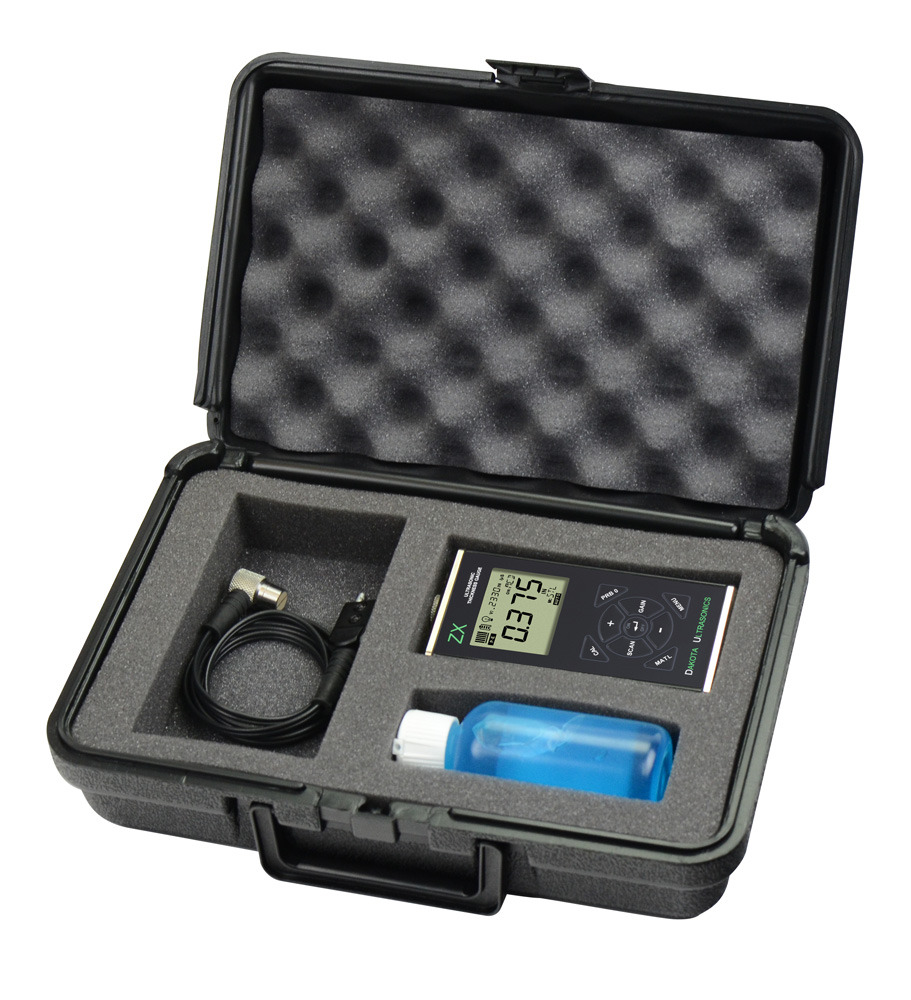

Complete Kit
The ZX-3 is delivered in a complete set in in a foam-fitted carrying case, consisting of:
  • ZX-3 ultrasonic wall thickness gauge
  • Ultrasonic probe
  • 120 ml coupling fluid
  • NIST traceable calibration certificate
  • 2 AA batteries
  • Operation manual
Measuring Limits
Minimum Radius for Convex SurfacesMinimum Radius for Convex Surfaces8.89 mm
Minimum Radius for Concave Surfaces76.2 mm
Minimum HeadroomMinimum Headroom25.0 mm
Minimum Sample DiameterMinimum Sample Diameter3.8 mm
Minimum Substrate Thickness - FMinimum Substrate Thickness - Fna
Minimum Substrate Thickness - NFena
Additional functions

Zeroing:
Automatic or manual zeroing of the test head

Probe diameter:
Specify the probe diameter for increased linearity.

High-speed surface scan:
Shows the lowest value detected during a 100 Hz scan.

Differential mode:
Displays ± deviation from an entered nominal value.

Alarm Mode:
Adjustable maximum and minimum limits. Limit indicated by a visual and an audible alarm.

Accessories

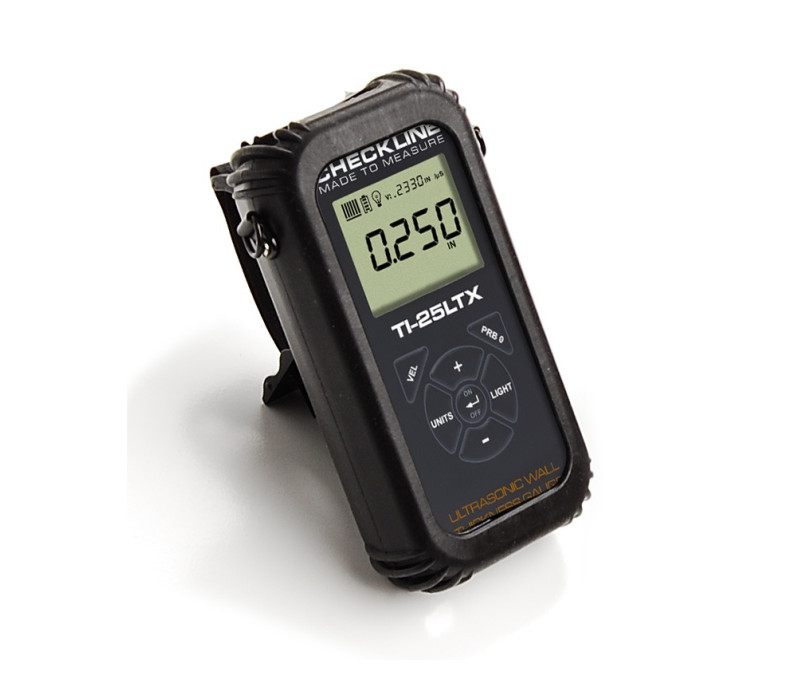

A-302-6002: Rubber Protection for TI Series Gauges


  • Integrated stand for convenient working on a table or workbench
  • Hand and shoulder strap
  • Reliably protects against accidental damage

More details

A-302-6002: Rubber Protection for TI Series Gauges 127313

Category Wall Thickness Probes


Discover Checkline's probes for precise measurements on metals, plastics, and more, ideal for non-invasive structural inspections.

More details

Category  Wall Thickness Probes 0

Specifications

Total Measuring Range:0.63 - 914.4 mm (depending on material and probe type)
Measuring Range (Steel):1.00-199.9 mm (with standard probe T-102-2000)
Resolution:0.01 mm
Measuring Mode:Pulse-Echo (P-E)
Velocity range:305 to 18,542 meters/sec
Probe (standard):1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-2000
Probes (optional):1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
Cable:1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
Display:Large LCD display with 4.5 digits each 1.3 cm high -Adjustable backlight
-Division into individual segments to ensure clear reproduction of advanced information
Display refresh rate:10 Hz (10 updates/sec)
Battery Type:2x AA batteries (rechargeable batteries can be used)
Temp. Limits:Material: -20 to 100° C High temperature probes available
Battery Life:45 hours of continuous use
Housing:Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Housing Rating:IP65
Weight:308 grams
Pulse Repetition Frequency (PRF):200 Hz (200 pulses/sec)
Dimensions:63.5 x 131.3 x 31.5 mm
Certifications:NIST Traceable
Guarantee:Device: 5 Years Probes: 90 Days

Buy Now

Product

Product
Price
Quantity
137079
ZX-3 Ultrasonic Wall Thickness Gauge Complete Kit with T-102-2000 Probe
€ 1.549,00

Accessories

Product
Price
Quantity
136674
A-302-6002 - Protective Rubber Boot For TI-Series Small
€ 107,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
