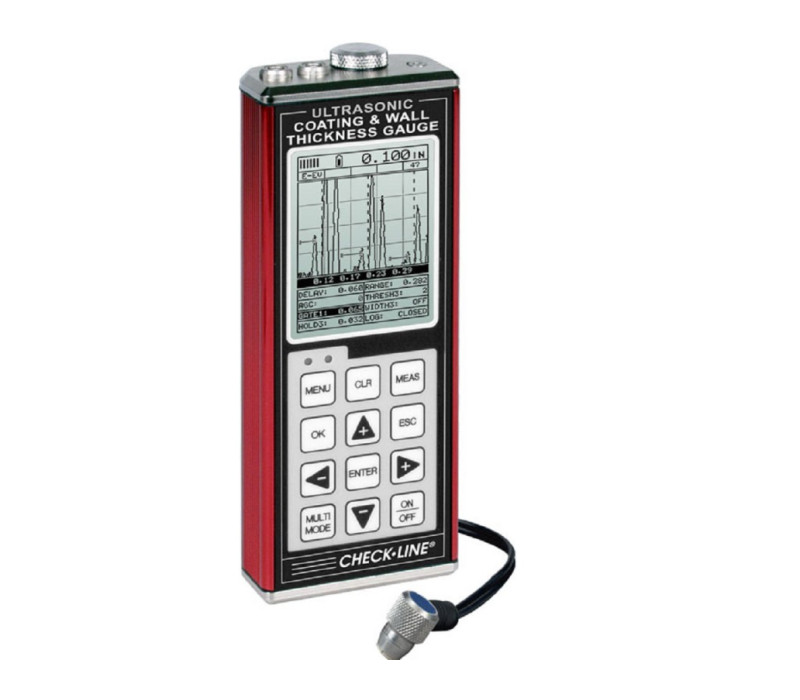

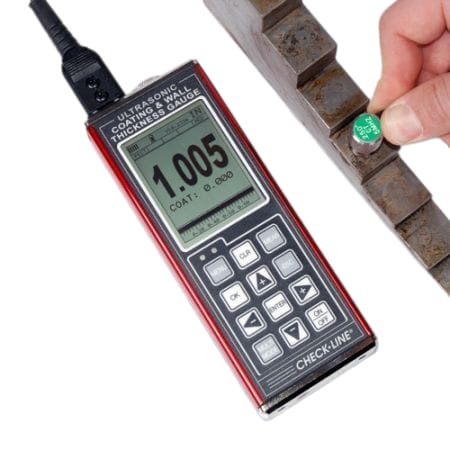

TI-CMX Series Ultrasonic Coating and Wall Thickness Gauges
The TI-CMX Series ultrasonic coating and wall thickness gauges from Checkline are designed to deliver fast, accurate measurements from a single side—ideal for applications involving painted or coated surfaces and more difficult-to-measure materials. With four available models, the TI-CMX Series offers flexibility across different levels of inspection complexity and user needs.
Whether you're conducting basic coating checks or advanced inspections with waveform visualisation, the TI-CMX Series includes a version to suit your requirements: TI-CMX, TI-CMXDL, TI-CMXDLP and TI-CMXDLP-C.
Key Features (varies by model):
- Four Model Options: Choose from digits display , data logging, A-scan interface or full-colour A-Scan interface.
- Comprehensive Measurement Modes: Includes Pulse-Echo (P-E), Echo-Echo (E-E), Pulse-Echo + Coating (P-E+CT), Coating Only (CT) and temperature-compensated Pulse-Echo (PETP).
- Echo-Echo-Verify (E-EV): Enhances accuracy with additional echo validation—available on DLP and DLP-C models.

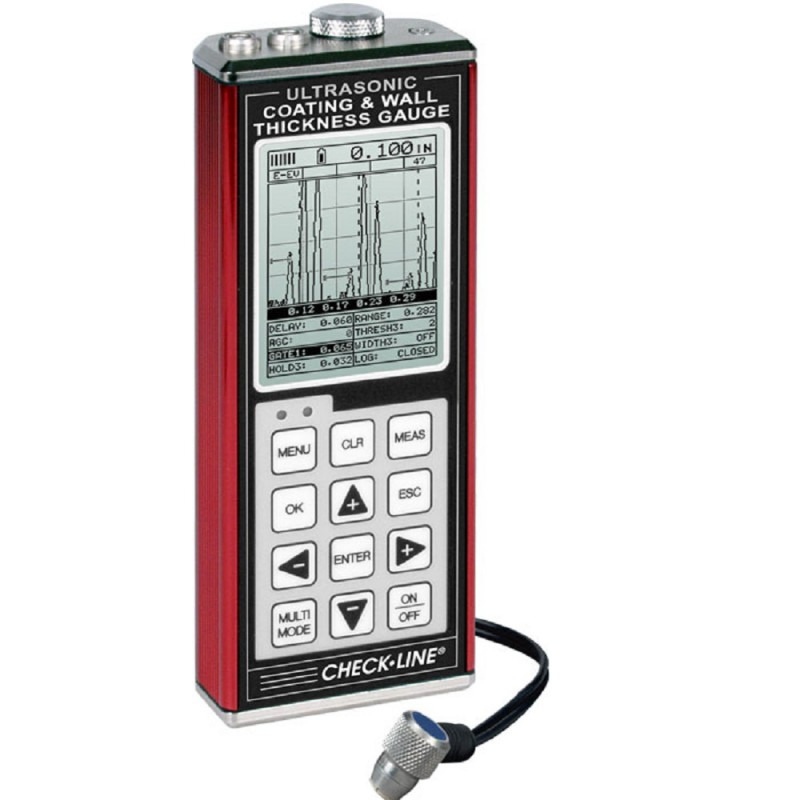

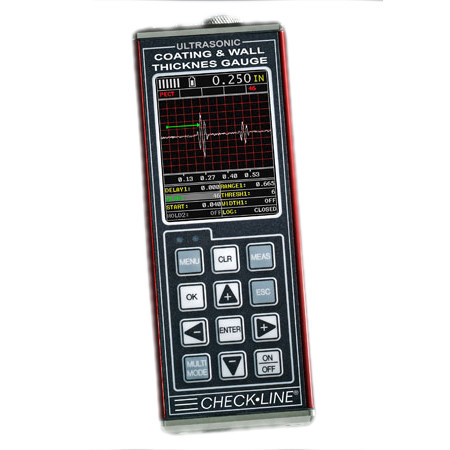

- Waveform Visualisation: The TI-CMXDLP and TI-CMXDLP-C feature an A-Scan display for real-time echo signal analysis in demanding applications.
- Data Output and Storage: USB connectivity and memory included on all models except the base TI-CMX version.
Key Benefits:

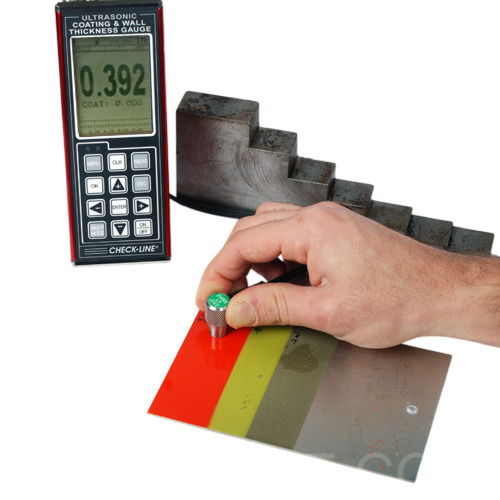

- Adaptable to Any Inspection Task: Accurately measures coating and wall thickness together or separately, even under varying conditions.
- Intuitive User Interface: All models feature clear menus and fast setup, making them easy to operate in the field or lab.
- Robust and Reliable: Built with a durable aluminium housing to withstand harsh industrial environments.
- Future-Proof Technology: The TI-CMX Series offers a scalable platform, from entry-level inspection to advanced waveform-based verification.
The TI-CMX Series combines advanced ultrasonic technology with ergonomic design and display flexibility, making it an excellent solution for coating thickness and corrosion monitoring professionals seeking accuracy, adaptability and ease of use in a single instrument.
Contact us to find the best TI-CMX model for your inspection environment and technical needs.
Features

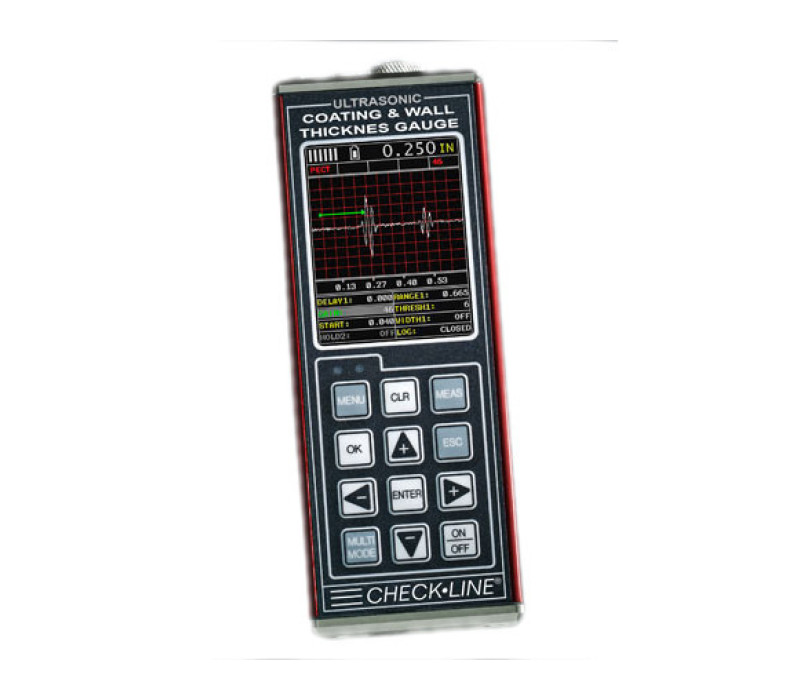

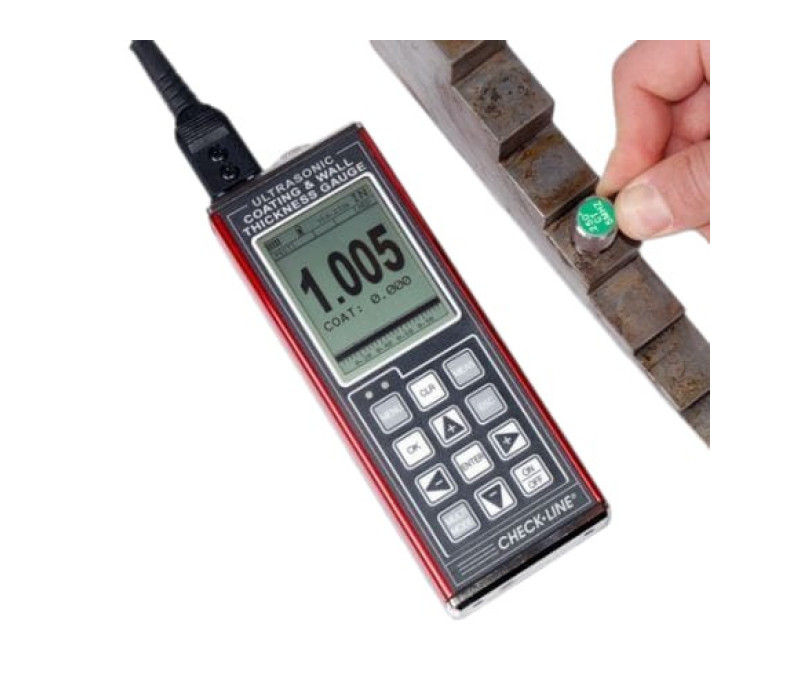

- Available Models: Choose from four versions: TI-CMX (standard), TI-CMXDL (data logging), TI-CMXDLP (A-Scan) and TI-CMXDLP-C (colour display with A-Scan).

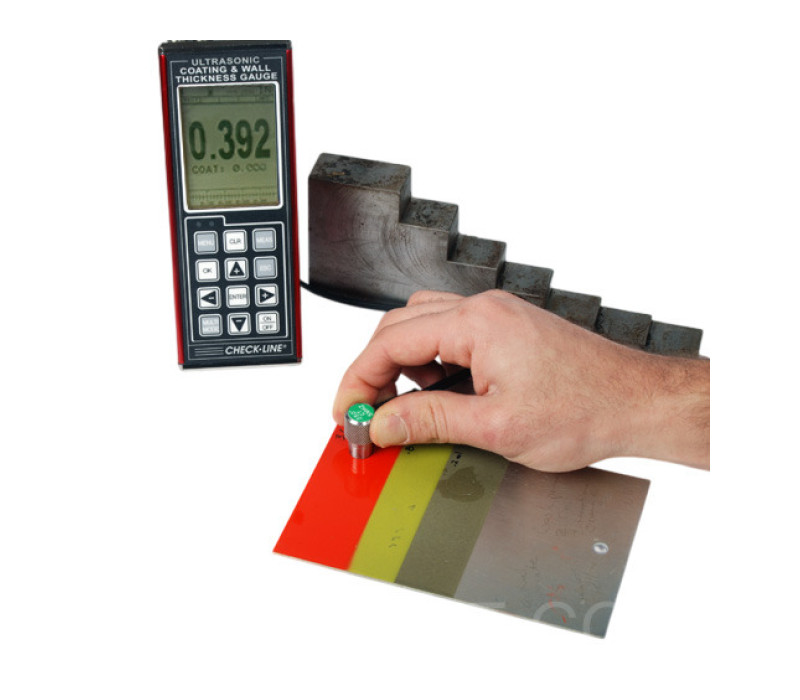

- Measurement Versatility: Measures both wall and coating thickness together or separately, supporting multiple inspection modes.
- Stability/Repeatibillity Indicator: A visual indicator with six-dashes (a full display = stable signal)
- Echo-Echo-Verify (E-EV): Advanced verification mode using additional echoes to improve accuracy on critical measurements.
- Temperature Compensation: PETP mode adjusts readings in high or changing temperature conditions.
- Waveform Visualisation: TI-CMXDLP and DLP-C features A-Scan display for waveform echo analysis.

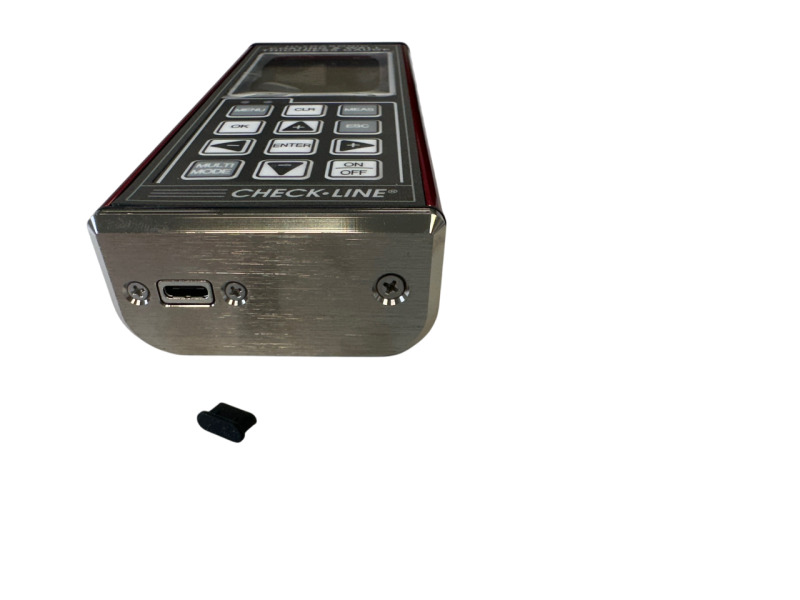

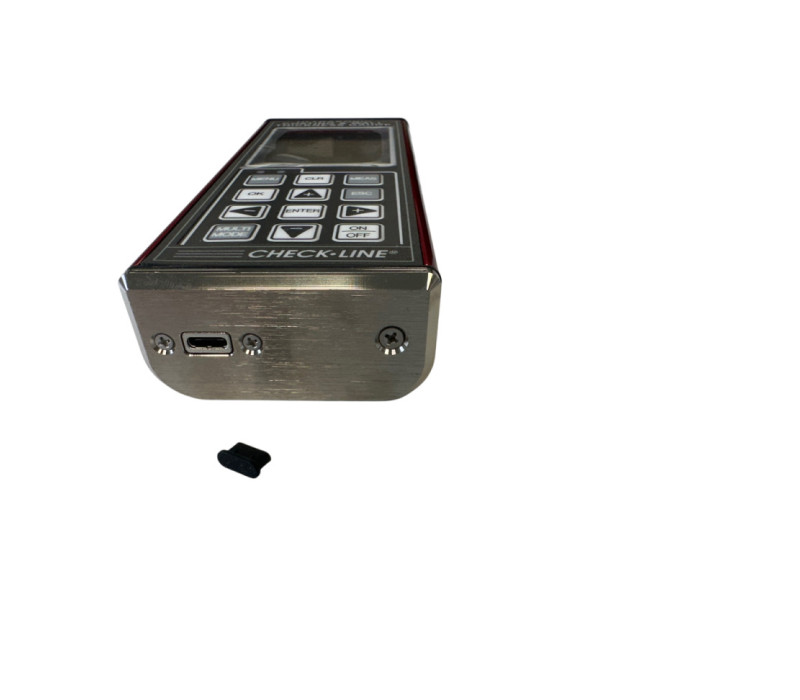

- USB Connectivity: All models include USB output for upgrades and easy data transfer to PC or external systems. (TI-CMX has no data logging functionality)

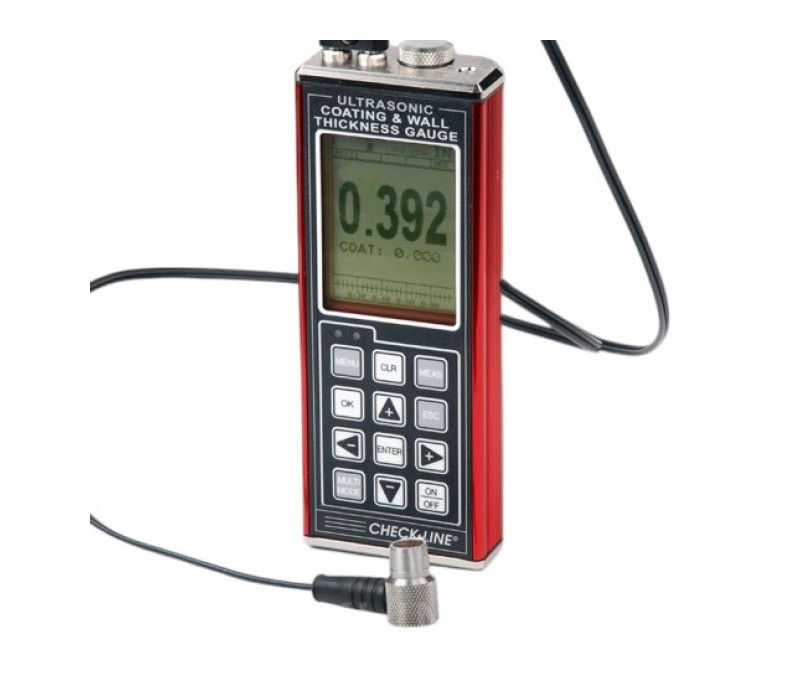

- Large LCD Display: Equipped with a backlit LCD that displays detailed measurement process information, facilitating reading and adjustment in any environment.
- Rugged Construction: Robust aluminium housing designed for harsh industrial environments.
- User-Friendly Interface: Intuitive menu navigation and visual indicators ensure fast setup and confident operation.
- CE Certified & Warranty: All models are CE certified and include a 2-year warranty on the gauge.
The TI-CMX Series is supplied as a complete kit with:
- the gauge,
- probe, T-102-2900
- 120 ml bottle of coupling fluid,
- 3 AA batteries,
- NIST Calibration Certificate,
- operating manual,
- USB-C cable
- all in a foam-fitted carrying case.
data-transfer software can be downloaded
High Temperature version:
Includes all items from the standard version except with the T-102-2900-H high temperature (150 °C) transducer.
WOP version:
Includes all items from the standard version except the transducer.
This option is intended for users who wish to use a different transducer than the standard one supplied with the kit.
| Model | CMX (Standard) | CMX-DL (Data Logger) | CMX DLP (Advanced) | CMX-DLP-C (Colour) |
|---|---|---|---|---|
| A-Scan Display | • + Rectified • - Rectified • Full Waveform (RF) Portrait & landscape views | • + Rectified • - Rectified • Full Waveform (RF) Portrait & landscape views | ||
| Measurement Resolution | 0.01mm | 0.01mm | 0.01mm or 0.001mm selectable | 0.01mm or 0.001mm selectable |
| Additional Features | ||||
| Gates | 3 fully adjustable gates: start, stop, width & threshold | 3 fully adjustable gates: start, stop, width & threshold | ||
| Damping | Adjustable damping (50 - 1500ohms) | Adjustable damping (50 - 1500ohms) | ||
| Memory and Data Logging | • 4GB internal memory • Sequential and grid logging • Alpha numeric batch identification • OBSTRUCT indicates inaccessible locations • Bitmap graphic capture and capture viewer | • 4GB internal memory • Sequential and grid logging • Alpha numeric batch identification • OBSTRUCT indicates inaccessible locations • Bitmap graphic capture and capture viewer | • 4GB internal memory • Sequential and grid logging • Alpha numeric batch identification • OBSTRUCT indicates inaccessible locations • Bitmap graphic capture and capture viewer | |
| Transducer Frequency Range | 1 - 10MHz | 1 - 10MHz | 1 - 10MHz | 1 - 20MHz |
| Display | • 1/8 VGA (greyscale) 62 x 45.7mm (2.4 x 1.8”) viewable area | • 1/8 VGA (greyscale) 62 x 45.7mm (2.4 x 1.8”) viewable area | • 1/8 VGA (greyscale) 62 x 45.7mm (2.4 x 1.8”) viewable area | • 1/4 VGA AMOLED colour display 57.6 x 43.2mm (2.27 x 1.78”) viewable area • Landscape Mode |
| Display Refresh Rate | 25Hz | 25Hz | 25Hz | 120Hz |
| Gain | • Manual or automatic gain control (AGC) with 110dB range (limited) | • Manual or automatic gain control (AGC) with 110dB range (limited) | • Manual or automatic gain control (AGC) with 110dB range (limited) • Linear time dependent gain (TDG) with adjustable slope | • Manual or automatic gain control (AGC) with 110dB range (limited) • Linear time dependent gain (TDG) with adjustable slope |
 |  |  |  |  |
| Scan Mode measures 64 times per second, displaying the max and min reading measured during the scan interval. Sample rate is 200/sec when coating measurement is off. | The B-Scan displays a time based cross section view of test material of the contour of the blind, or underside of a pipe or tank application. In this display the coating can be measured as a separate identified layer with its own velocity. | RF A-Scan Display – The actual sound wave reflection that is returned from the detection of the opposite surface of the material being measured. In this view, the entire sine wave is displayed, | RECT A-Scan Display – In this view, only half of the sine wave is being displayed (positive or negative). | RECT A-Scan Display – In this view, with the menu off. The scan view is now showing the coating and wall thickness as separate layers using their own velocities. |
| Available on all TI- CMX gauges | Available on all TI- CMX gauges | Only available on the TI-CMXDLP and TI-CMXDLP-C gauges | Only available on the TI-CMXDLP and TI-CMXDLP-C gauges | Only available on the TI-CMXDLP and TI-CMXDLP-C gauges |
Related Products
TI-25 Series Wall Thickness Gauges
- Memory & Data Logging: DLX and DLXT models feature onboard memory capable of storing up to 10,000 readings.
- Accessory Compatibility: Compatible with a wide range of calibration blocks, couplants, and alternative transducers.
- Warranty: 5-year warranty on the gauge, and 90 days on the transducer.
More details

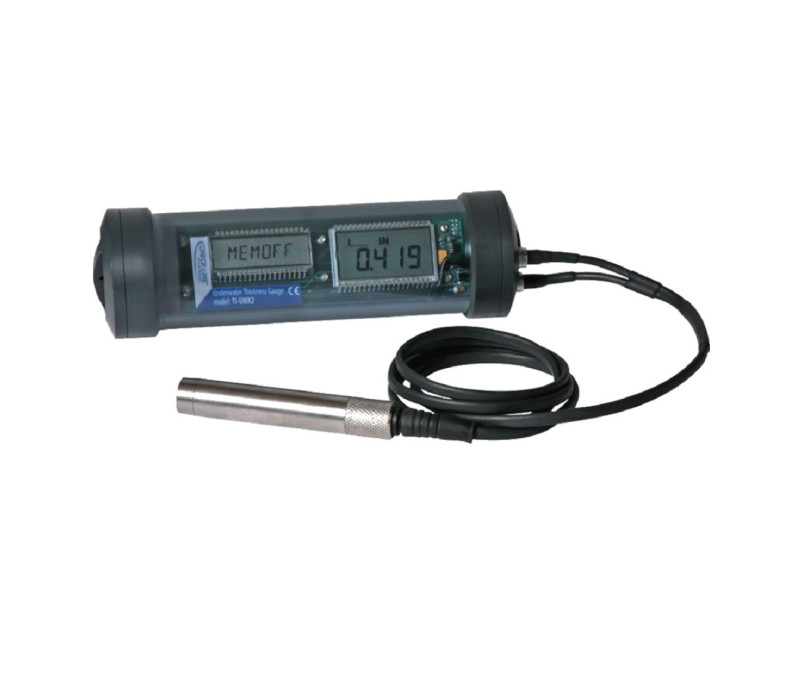

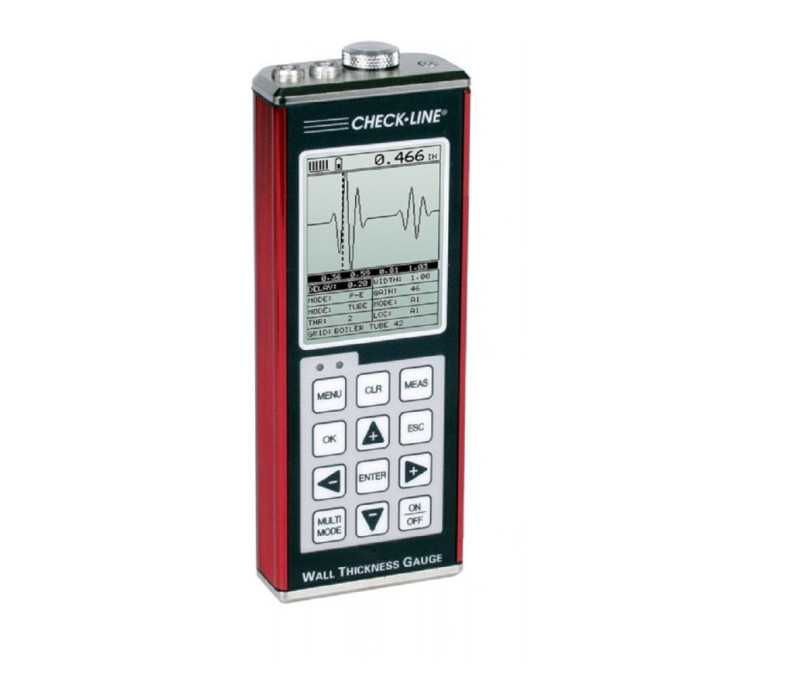

TI-UMX2 Ultrasonic Thickness Gauge
- Housing is rated for dive depths up to 300 meters (1000 ft) with backlit display
- Resolution of 0.01 mm (0.001") user-selected units of inch or mm
- Includes built-in datalogger for 5000 readings, settings and waveforms in sequential or "grid" (row/column) format
More details
TI-PVX Ultrasonic Thickness Gauge
- Multiple calibration options: One Point, Two Point, or selection from a Material List.
- 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
- Hardware AGC gain control for multiple echo and thru-paint measurement.
More details
TI-007X Ultrasonic Thickness Gauge
- Scan mode, 100 measurements / second. Drag the probe over a large surface, the smallest measured value during the scan will be displayed.
- Delivery including NIST traceable calibration certificate
- 5 year warranty on the gauge
More details
Accessories

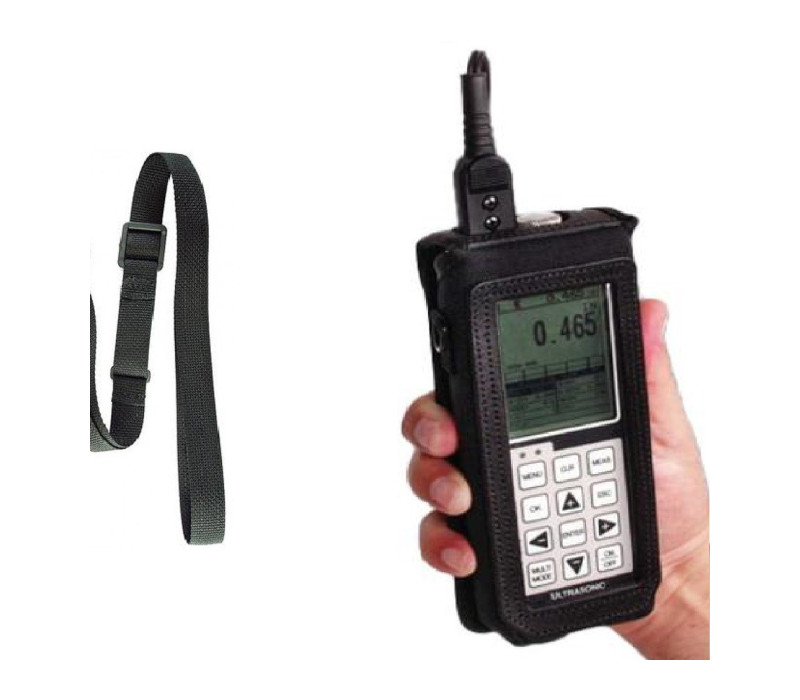

TICC-MVX Instrument Holder for Ultrasonic Gauges
- Constructed from heavy duty Cordura Nylon
- Built-in belt loop
- Includes wrist & shoulder straps
More details

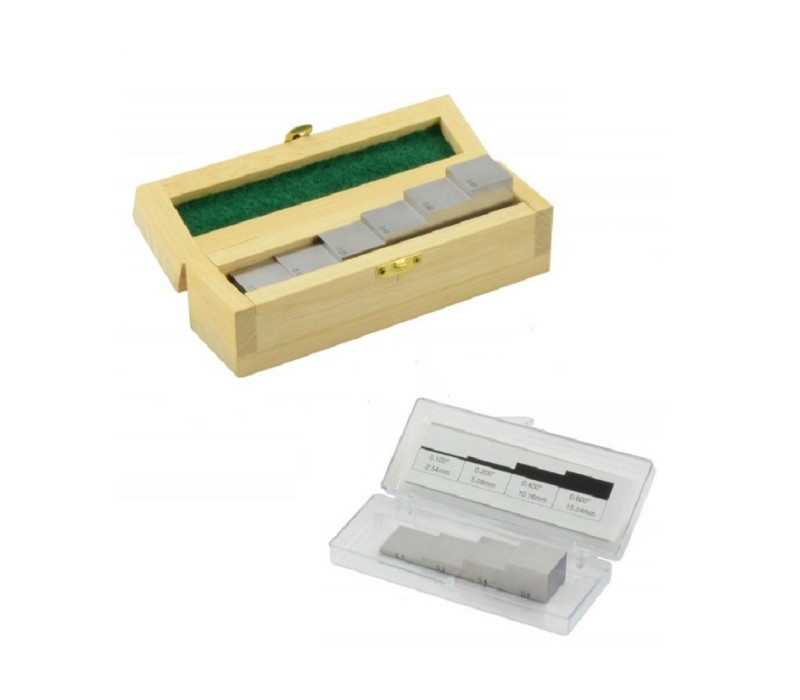

TI-SB Ultrasonic Thickness Gauge Accessories
- Precision Machined and Finished
- Includes NIST Report and Test Data
- Includes Wooden Storage Box
More details

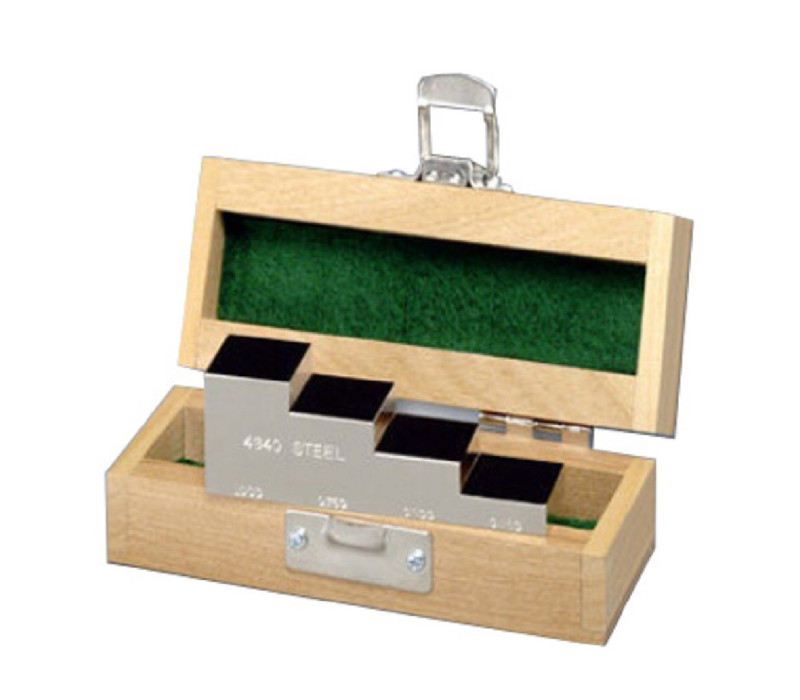

TI-SB4 Steel Test Block
- Uncertified Steel Test Block
- For convenient confirmation of thickness gauge calibration
More details

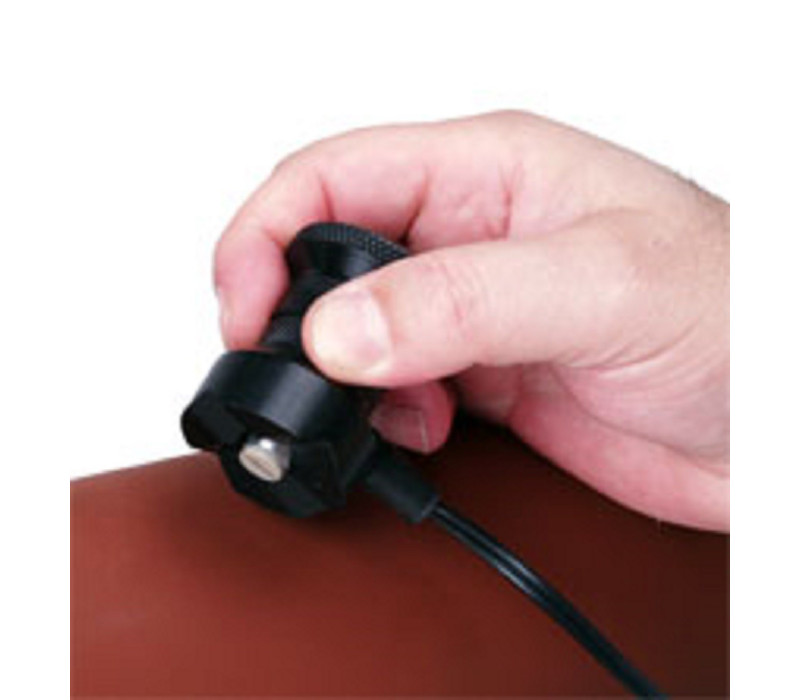

TI-V-BLOCK Transducer Holder
- The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.
For 3/16" & 1/4" Transducers only.
More details

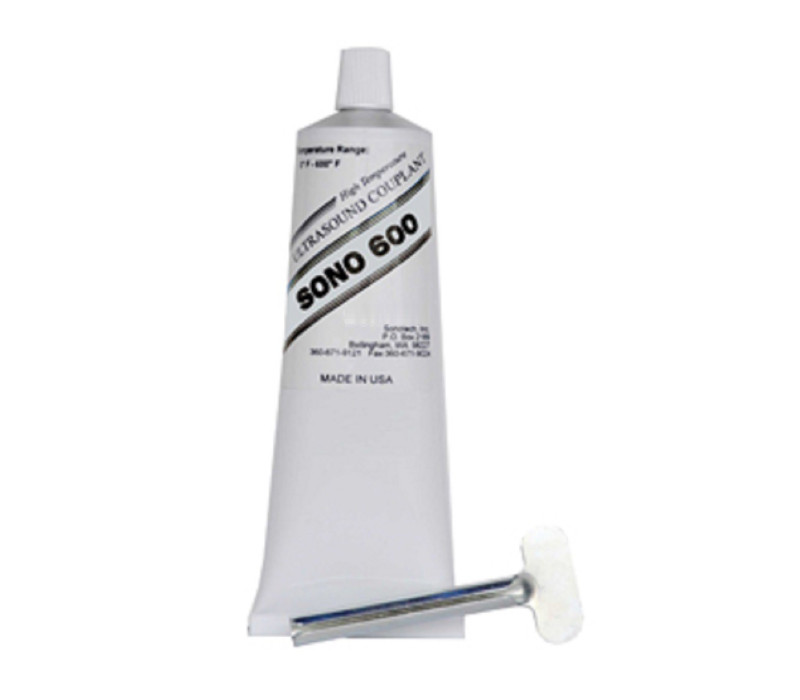

CF-AN Coupling Fluid
- Used to create an ultrasonic coupling between the probe and material to be measured
- Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr
More details

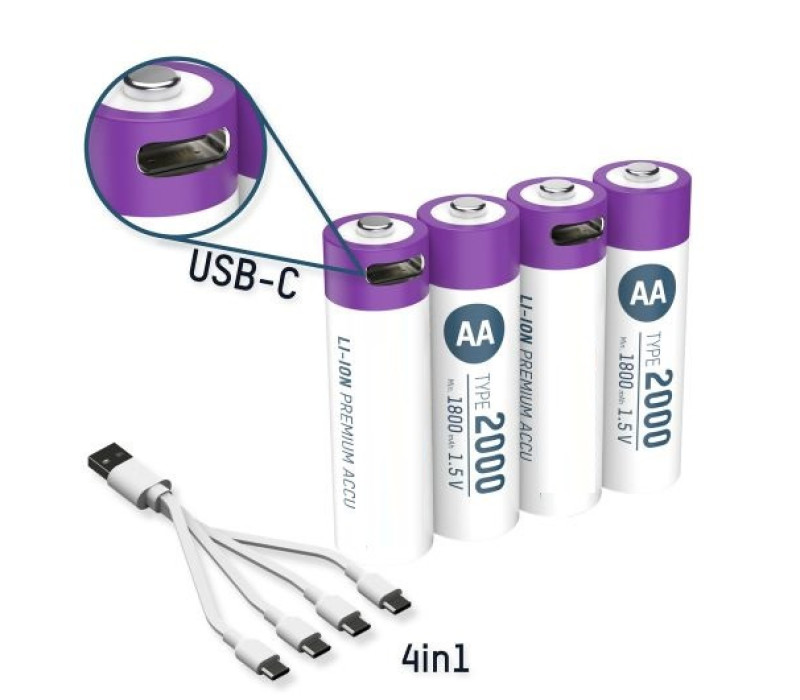

LI-ION Rechargeable AA Batteries
- Li-Ion rechargeable battery
- Stable voltage of 1,5 V over 95% of the runtime
- Charged via the USB to USB-C cable
More details

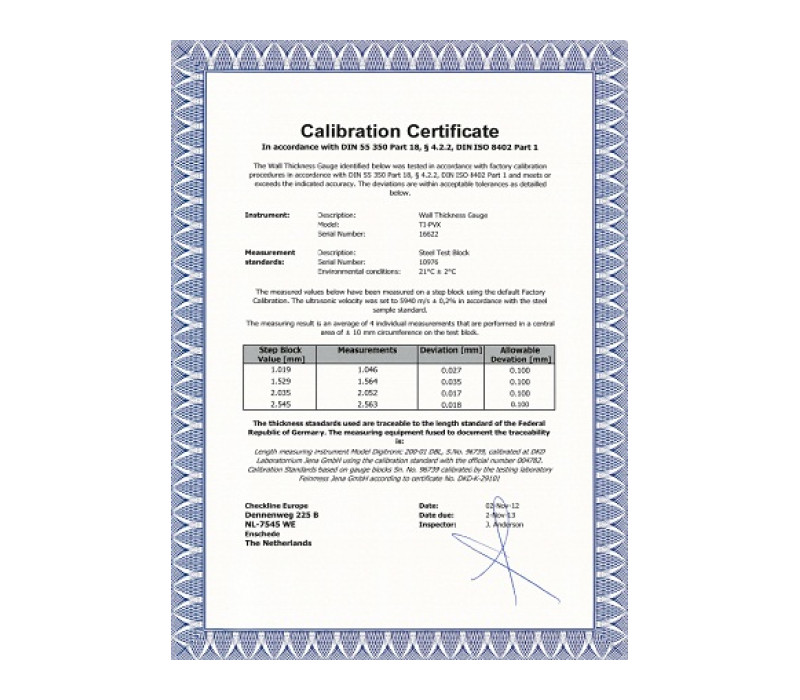

CIC-WALL Wall Thickness Gauge Calibration Service
- Easy planning of calibration
- Short turnaround
- Exclusively in accordance with DIN 55 350 Part 18, § 4.2.2, DIN ISO 8402 Part 1
- Possibility to adjust and repair
More details
Specifications
| Range in Steel with standard transducer: | Pulse-Echo Mode: Pit and Flaw detection measures 0.63 to 254 mm Echo-Echo Mode: Thru Paint & coatings measures from 2.54 to 102 mm Pulse- Echo-Coating Mode: 0.63 to 254 mm & Coating 0.01 to 2.54mm Range will vary +/- depending on the thickness of the coating |
| Coating Thickness range: | 0.013 - 2.540 mm with a resolution of 0.01 mm (0,001 for DLP and DLP-C versions) |
| Resolution: | TI-CMX and TI-CMXDL: 0.01mm TI-CMXDLP(C): can be switched between 0,01 and 0,001 (depending on material, surface conditions and the selected transducer) |
| Transducer Probe Type: | Dual Element |
| Transducer recognition: | The transducer can be automatically recogniced or manual selected from a list |
| Velocity Range: | 309.88 - 18,542m/s |
| Measurement units: | Inch or mm |
| Memory (not for TI-CMX): | 4GB Internal Memory |
| Operating Temperature: | -10ºC to +60ºC |
| Standard Transducer: | T-102-2900 |
| Power Supply: | 3 x AA batteries and via USB |
| Battery Life: | - Alkaline: greyscale 35 hrs, colour 12 hrs - Nicad: greyscale 10 hrs, colour 5 hrs - NI-MH: greyscale 35 hrs, colour 12 hrs |
| Dimensions: | 63.5 x 165 x 31.5mm |
| Gauge Weight: | 383g - including batteries |
| Shipping weight: | 1,75 kg |
| Output: | USB |
| Warranty: | 2 years, 90 days on the probe |
| Certification: | CE Approved, Factory calibration traceable to NIST standards |
