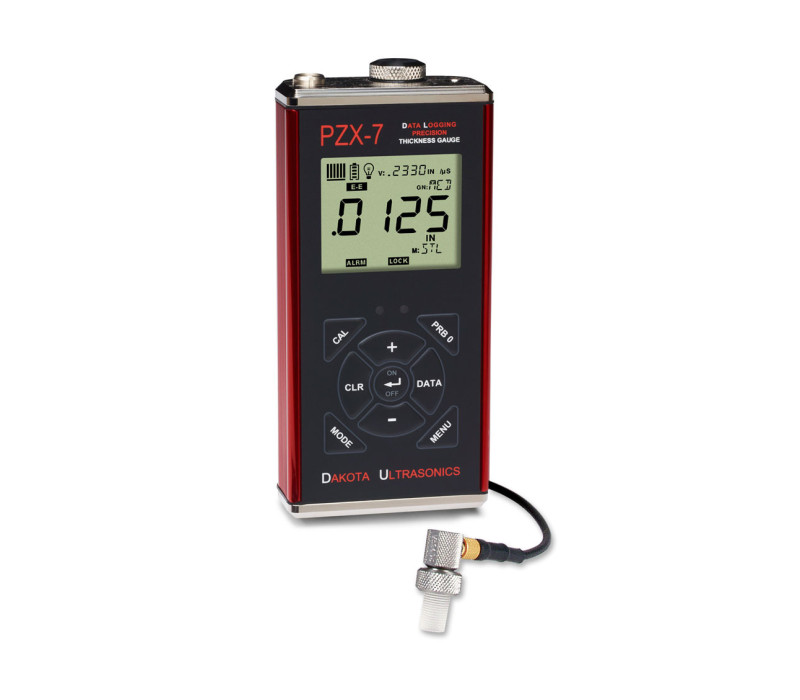

PZX-7DL Dakota PZX-7DL Ultrasonic Wall Thickness Gauge

Dakota Ultrasonic Wall Thickness Gauge

Precision Ultrasonic Wall Thickness Gauge

Discover the Dakota PZX-7DL, a high-precision ultrasonic wall thickness gauge designed for detailed measurement on thin-wall metals and plastics. Ideal for demanding industrial environments, this device is encapsulated in a sturdy, extruded aluminium housing that is sealed for exceptional durability and protection against adverse environmental conditions.

Outstanding Features:

Advanced Memory Capacity: Equipped with a data logger that can store up to 10,000 values across 40 distinct batches, facilitating the management and analysis of large volumes of data.
Simplified Data Transfer: Data is easily transferred via a USB port, with the device appearing as an external drive on any PC, allowing efficient data handling in CSV format, compatible with all standard programs and software.

Technical Specifications:

Measurement Versatility: Measures from 0.15 mm to 25.40 mm in steel, with the option to measure up to 915 mm using contact transmitters, making it an extremely adaptable tool for various industrial applications.
Diverse Measurement Modes: Includes modes such as Echo-Echo (E-E) for measurements with coatings and Interface-Echo (I-E) for thicker materials. The Plastic Mode (PLAS) uses a graphite delay tip for specialised measurements on plastics.

Special Features:

Differential Mode and Alarm: Allows setting a nominal value and displays the ± difference relative to the actual thickness, with LED alarms indicating if measurements exceed established tolerance limits.
Transducer Flexibility: Compatible with single-element transducers for measuring thicknesses up to 923 mm, adapting to a wide variety of measurement situations.

Durability and Resistance: The probe of the PZX-7DL and its housing are designed to withstand the rigours of fieldwork, ensuring reliable performance even under tough conditions.

The Dakota PZX-7DL is the perfect choice for professionals seeking precision and efficiency in their thickness measurements.

Contact us for more information on how the Dakota PZX-7DL can facilitate your measurement and quality control processes with its advanced technology and robust features.

€ 2.105,00

Shop now

Total Measuring Range(Steel): 0.150 - 25.40 mm (depending on transducer/probe type and material)
Sequential data storage, 40 files of 250 readings per file, for 10,000 readings
Resolution of 0.001 mm
Measuring unit switchable between mm and inch
High visibility LCD Display is readable in all lighting conditions and temps as low -30 °C
Impact-resistant and environmentally sealed (IP 65) extruded aluminum housing
Selectable Backlight ON/OFF/AUTO
5 Year Warranty

Delay Line Tips for PZX-7DL

P/N	Description	Standard / Optional
X-231-0000	1/4" x 3/8" For all metals (Short)	Standard
X-241-0000	1/4" x 1/2" For all metals (Long)	Standard
X-633-0000	1/4" x 3/8" Graphite tip for fine plastics (Short Graphite)	Optional

The PZX-7DL is supplied as a complete kit with:

PZX-7DL gauge
T-402-5507 probe
120 ml bottle of coupling fluid
USB-C Data transfer cable
2 AA batteries
NIST Traceable Calibration Certificate
Instruction Manual
All in a foam-fitted carrying case

Total Measuring Range with standard probe on steel:	0.15 - 924 mm
Probe (Standard):	1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
Probes (optional):	Various Single Element Delay Line and Contact Transducers (5 to 20MHz)
Display Backlight:	Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Operating Temperature:	-30 to 75°C
Measuring Modes:	Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS), Differential, Alarm, Scan and Velocity (VX)
Pulse Repetition Frequency (PRF):	200 Hz (200 pulses/sec)
Output:	USB
Output Optional:	RS-232 and Bluetooth
Display Update Rate:	10 Hz (10 updates / second)
Housing:	Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Housing Protection:	IP65
Battery Type:	2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
Keypad:	Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys
Cable:	1.2 m
Dimensions:	64 x 131 x 32 mm
Certifications:	NIST Traceable and MIL-STD-45662A
Warranty:	Gauge: 5 Years Probes: 90 Days

Products

Item	Product	Price	Quantity	Action
137453	PZX-7DL (PZX1-DL) Wall Thickness Gauge With Data Logging	€ 2.105,00

Accessories

Item	Product	Price	Quantity	Action
136674	A-302-6002 - Protective Rubber Boot For TI-Series Small	€ 110,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
