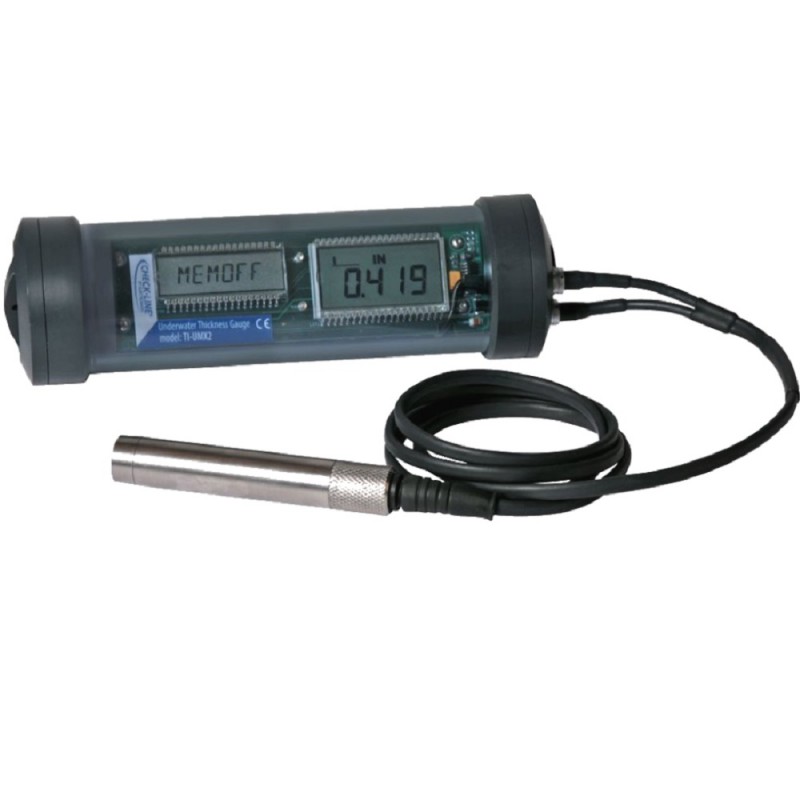

TI-UMX2 Underwater Ultrasonic Thickness Gauge


Made in the USA

Measuring Range in Steel 0.63 - 508.0 mm
0.025 - 19.99 inches

The TI-UMX2 Underwater Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals at depths of up to 300 Meters (1000 feet). The TI-UMX2 also measures coating thickness.

A back-lit LCD display and illuminated housing allow divers to easily read measurements in dark water.



An over-sized control button and clever menu structure allows easy gauge setup and navigation through menus above or below water even when wearing thick gloves.

The TI-UMX-2 can store up to 5000 readings including A-Scan Waveforms and settings for each individual measurement. There are 2 file structure options; sequential with auto identifier and alpha numeric grid (row/column) format. The UMX-2 can transfer data and configuration settings to a PC using our DataComm software. (Software and transfer cable included)

Velocity Settings
The TI-UMX2 has 8 preset velocities and 1 custom velocity allowing the user to customize it for specific applications, or to tune the calibration to be optimized for a specific type of material. The list of preset velocities are as follows:

  • 1. Aluminum 2024
  • 2. Stainless Steel 302
  • 3. Steel4340
  • 4. Iron
  • 5. Cast Iron
  • 6. PVC
  • 7. Polystyrene
  • 8. Polyurethane
  • 9. Custom 1

Features
  • Housing is rated for dive depths up to 300 meters (1000 ft) with backlit display
  • Resolution of 0.01 mm (0.001") user-selected units of inch or mm
  • Includes built-in datalogger for 5000 readings, settings and waveforms in sequential or "grid" (row/column) format
  • Automatic probe recognition and auto zero
  • Supplied with NIST-Traceable Calibration Certificate
  • Supplied with data transfer cable and data analysis software
  • Measure modes include: Pulse-Echo, Pulse-Echo w/ Coating, Echo-Echo and Triple Echo
  • CE-certified with 3-Year Warranty (90 days on probe)
  • Measures BOTH Wall and Coating Thickness
  • Both Dual Element and Single Membrane Probes are offered
  • Standard Probe supplied is 1/2"-5MHz HD-Coating, Underwater p/n T-074-2906
  • All settings for gauge and data logging can be done via software if desired

TI-UMX2 Menu Structure


Use of single button and clever menu structure permits easy navigation through all settings when underwater
*Highlighted fields indicate default settings.

TI-UMX2 Menu Structure


Complete Kit

The TI-UMX2 is supplied as a complete kit including:
- under water wall thickness gauge,
- T-074-2906 Dual element probe
- 4 oz. bottle of coupling fluid,
- AA batteries,
- NIST-Traceable Calibration Certificate,
- data transfer software,
- serial output cable with USB converter
- spare gasket & lube kit
- instruction manual
- foam-fitted carrying case.



Related Products

DataComm Software


  • Compatible for Windows Vista and Windows 7.

More details

DataComm Software

Specifications
Range in SteelPulse-Echo Mode:(P-E) Pit and Flaw detection measures from 0.63 to 254 millimeters (0.025 - 9.999 inches)

Pulse-Echo Coating Mode (PECT): (Material, Coating, Pit & Flaw Detection): Material: 0.63 to 500 millimeters (0.025 to 19.999 inches). Coating: 0.01 to 2.54 millimeters (0.001 to 0.100 inches).

Echo-Echo Mode (E-E): Thru Paint & coatings measures from 2.54 to 102 mm (0.100 - 4.000 inches). Range will vary depending on the thickness of the coating.

Triple-Echo Mode (TCG): Thru Paint&Coatings) measures from 1 to 150 millimeters (0.040 to 6.0 inches) in steel. Range will vary based on coating thickness, material type, and probe.
Resolution0.01 mm (.001")
Velocity Range8 fixed and 1 programmable Material Velocities
1250 to 13995 m/sec (.0492 to .5510 in./µs)
PreSet Velocities1. Aluminum 2024 - 0.2510 in/µs
2. Steel 4340 - 0.2330 in/µs
3. Stainless Steel 302 - 0.2230 in/µs
4. Iron - 0.2320 in/µs
5. Cast Iron - 0.1800 in/µs
6. PVC - 0.0940 in/µs
7. Polystyrene - 0.0920 in/µs
8. Polyurethane- 0.0700 in/µs
9. Custom User Set
ProbeSTANDARD: Underwater Type, 1/2"-5MHz Dual-Element HD-Coating Probe
OPTIONAL: Underwater Type, 1/2"-3.5MHz Dual-Element HD-Coating Probe
MEMBRANE: Inquire
OTHER: Dual Element Type, 1 to 10 MHz frequency range. Custom auto recognition probes. Single Element Type: 1 to 10MHz frequency range. Inquire.
Display4½ - Digit, 0.5" Backlit LCD
(2nd Display for menus, 3/8" 6 character LCD)
BacklightingBoth Displays can be user set for ON/OFF/AUTO
Cable1.2 m (4 ft) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 15 m (50 ft).
ConnectorsLemo, Underwater Type
Battery TypeThree (3) 1.5V AA alkaline batteries (or 1.2V NiCad)
Battery LifeBACKLITE OFF, typical
50 hours on alkaline (15 hours on NiCad)
BACKLITE ON, typical
15 hours on alkaline (8 hours on Nicad)
Accessories IncludedVelcro wrist strap, 4 oz. bottle of coupling fluid, AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable with USB converter and spare gasket & lube kit including Operating Instruction Manual - all in a foam-fitted carrying case
DataloggerGRID or SEQUENTIAL data storage
Capacity: 5000 wall & coating readings, settings and waveform graphics
Data OutputBi-directional RS232 serial port, with USB converter. Windows® PC interface software
Operating ModesPE: Pulse-Echo
PECT: Pulse-Echo Coating
EE: Echo-Echo
EEE: Triple Echo TCG
PulserDual square wave pulsers
ReceiverDual receivers - manual or AGC gain control with 110dB range (limited)
Manual GainLimited to 5 gain settings (vlow, low, med, high, vhigh (42 to 50 dB)
Temp. LimitsAmbient: -30 to 60° C (-20 to 140° F)
HousingHigh strength transparent plastic
IP 68 Waterproof Rating
Depth Rating: 300 meters (1000 feet)
KeypadSingle button, magnetically coupled switch
SizeLength (229 mm / 9.0 in)
Diameter (60.33 mm / 2.375 in)
Weight680g (1.5 lbs) - with 3 AA batteries
CertificationCE Approved, Factory calibration traceable to national standards
WarrantyGauge: 3 Years
Probe: 90 Days
