Digital Tension Meters / Tension Gauges


Digital tension meters are used for production and research, particularly in the textile, wire and fiber industries, but also in many other applications. Checking the correct tension in the production line is necessary in order to set the system correctly and thus to obtain an optimal production result.

Many of the tension gauges we offer are also available as a stationary system. If you cannot find a suitable sensor here, please contact us about an individual solution for your measurement task.

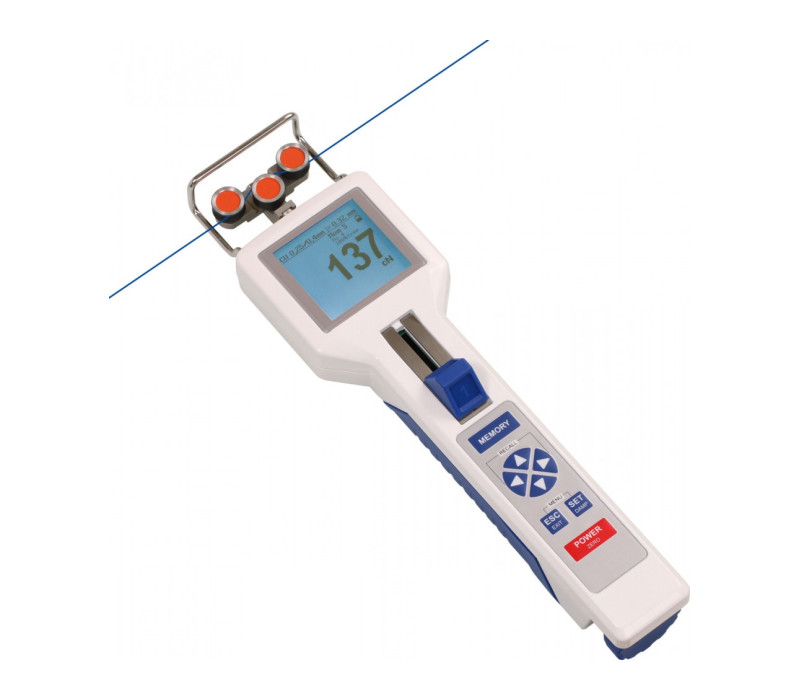

DTS Digital Tension Meter

DTS Series
  • Basic unit for many applications
  • Ranges
    from 0.2 - 200 cN
    to 0.6 - 60 daN

DTX Advanced Digital Tension Meter

DTX
  • Advanced unit offering many features
  • Data storage for 60.000 readings
  • USB interface
  • Ranges
    from 0.2 - 200 cN
    to 0.6 - 60 daN

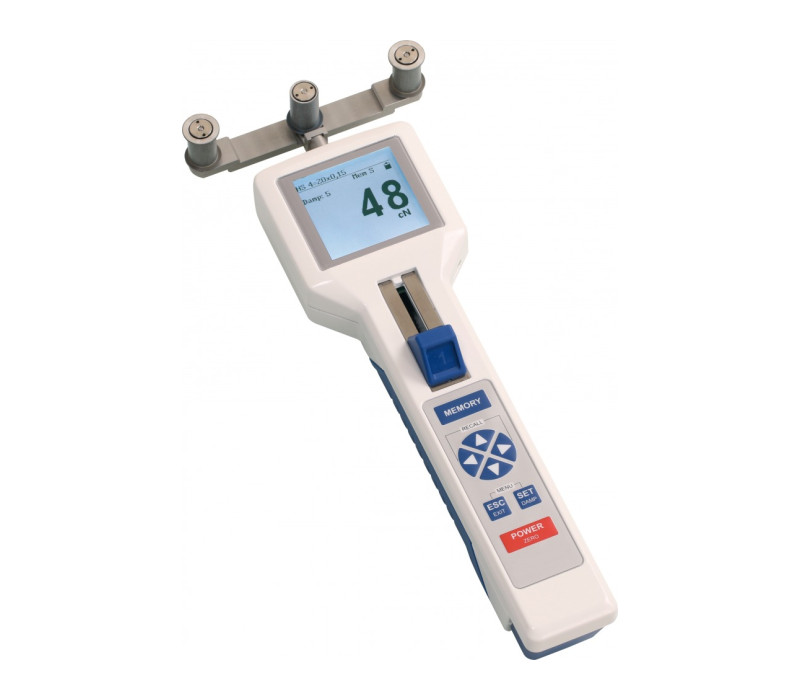

DTSB-DTXB Digital tension meter with wide rollers for tapes and bands

DTSB - DTXB
  • Tension Meter for tapes and bands
  • Roller width up to 41mm
  • Measuring range up to 50 daN

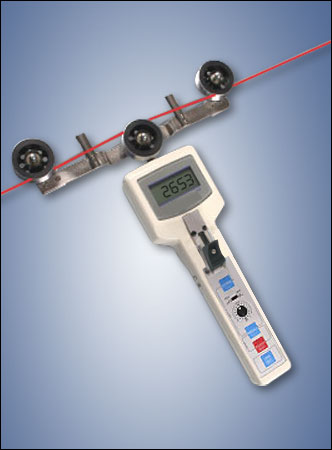

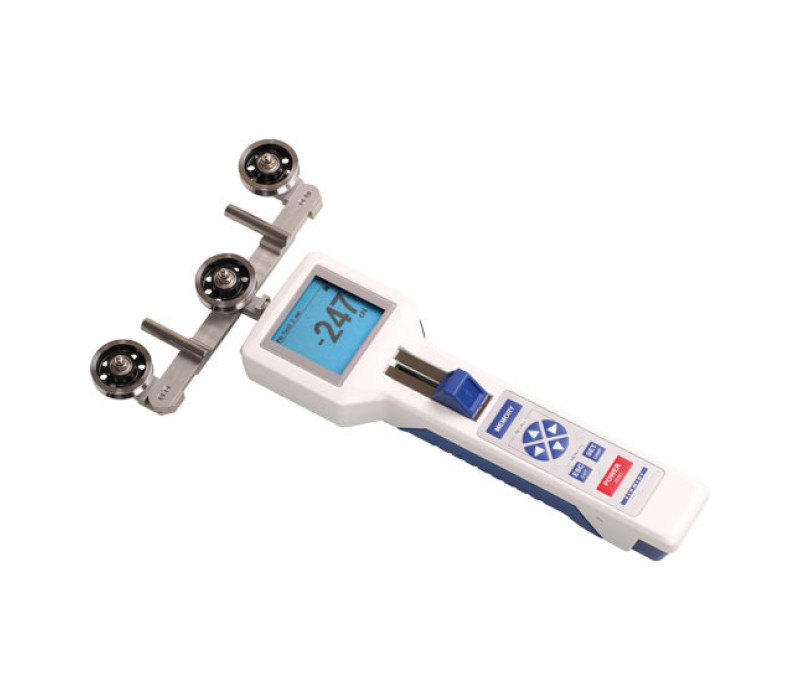

DTSL-DTXL Digital Tension for cables, ropes, wires, buffer tubes, fiber strands

DTSL-DTXL
  • 6 Tension ranges available:
    from 150 - 2500 cN up to 6 - 60 daN
  • Applications:
    Cables, ropes, wires, buffer tubes, fiber strands, tapes etc
  • Field of use:
    - Flexible materials up to max. Ø 15 mm
    - Flat material up to max, . 10 mm width
  • Feature:
    - Basic unit for easy operation and general use

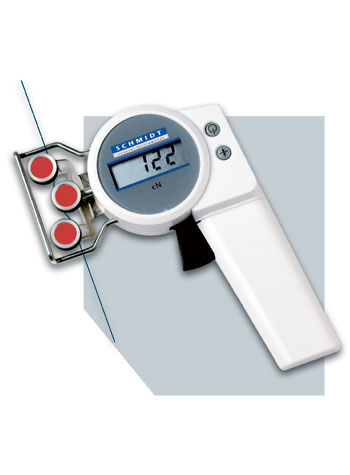

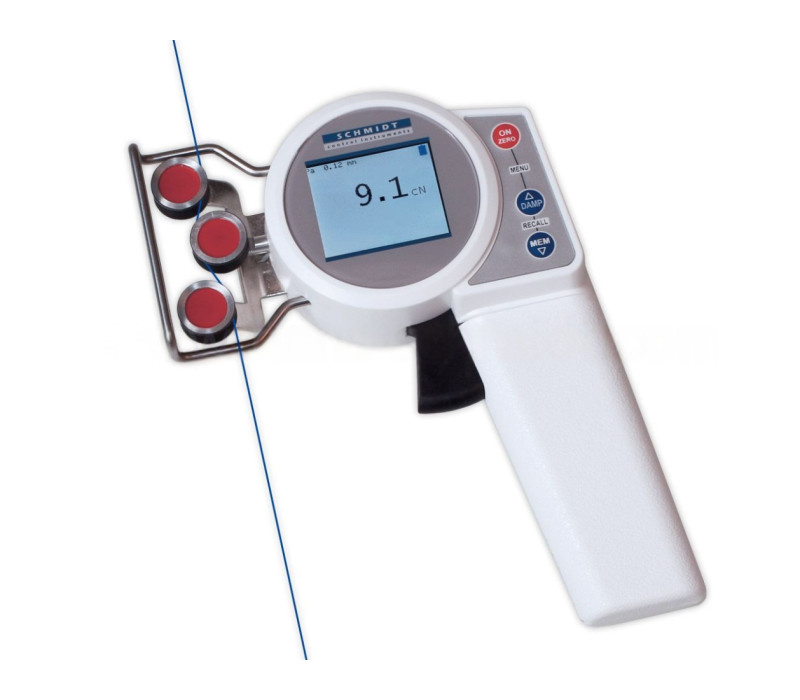

ZED Digital Economical tension meter for limited access

ZED
  • Economical low tension measuring instrument for checking fibers, yarns and fine wires
  • Range
    1 - 500 cN

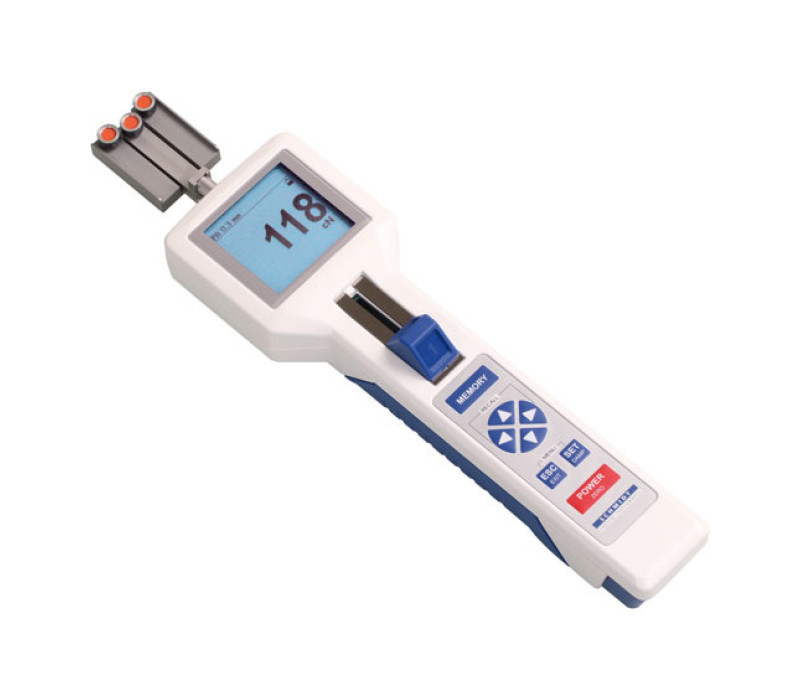

DTSE / DTXE Limited-Access Hand-Held Digital Tension Meter

DTSE / DTXE
  • For limited access space
  • Handheld tension meter with small measuring head, where access space is limited or where filaments run close together
  • 4 Tension Ranges 1-200cN up to 20-2000cN

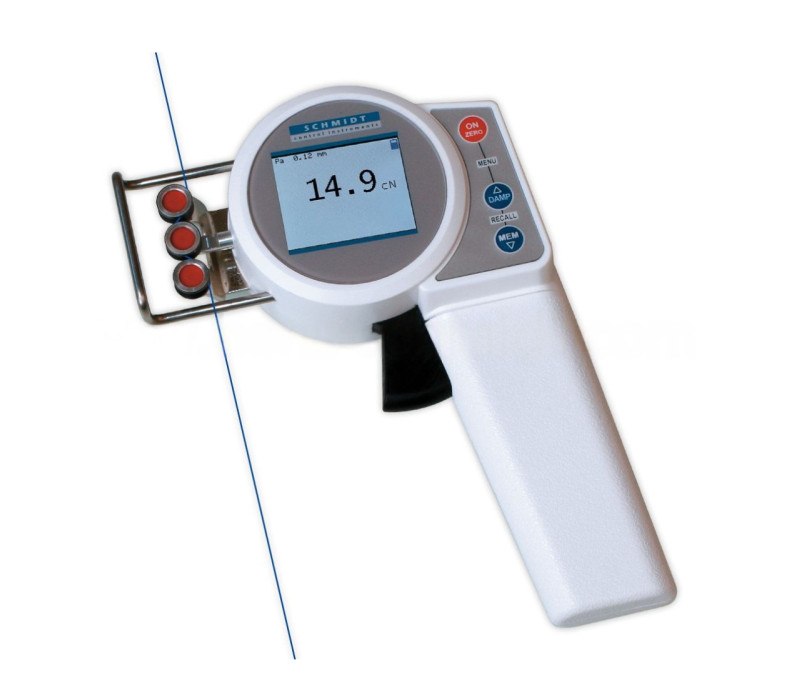

ZEF Digital Economical low tension measuring instrument

ZEF
  • Economical low tension measuring instrument for checking fibers, yarns and fine wires
  • ranges
    from 0.5 - 100 cN
    to 1 - 200 cN

ETB-ETX Limited Access Digital Tension Meter

ETB-ETX
  • With guide rollers
  • Tension meter for hard to reach and limited access space applications
  • Tension ranges
    from 0.5 - 100 cN
    to 1 - 500 cN

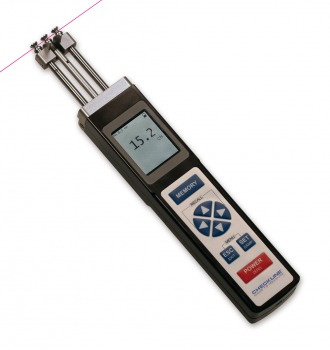

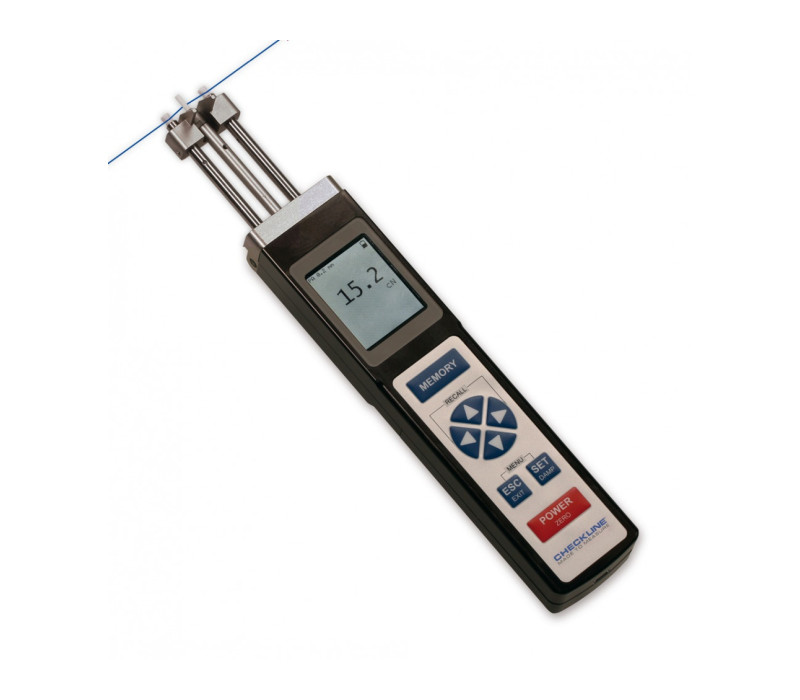

ETPB-ETPX Limited Access Digital Tension Meter

ETPB-ETPX
  • Limited Access Digital Tension Meter with Data-Logging

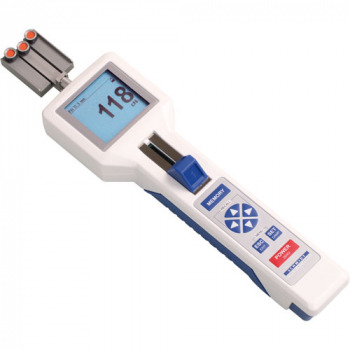

DTEB - DTEX Tension meter with small measuring head

DTEB - DTEX
  • For limited access space
  • Tension meter with small measuring head, where access space is limited or where filaments run close together
  • Tension ranges
    from 2 - 200 cN
    to 200 - 2000 cN

DTVB - DTVX Digital tension meter with measuring head rotated by 90°

DTVB - DTVX
  • With measuring head rotated by 90º
  • Tension meter with small measuring head, where access space is limited or where filaments run close together
  • Tension ranges
    from 2 - 200 cN
    to 200 - 2000 cN

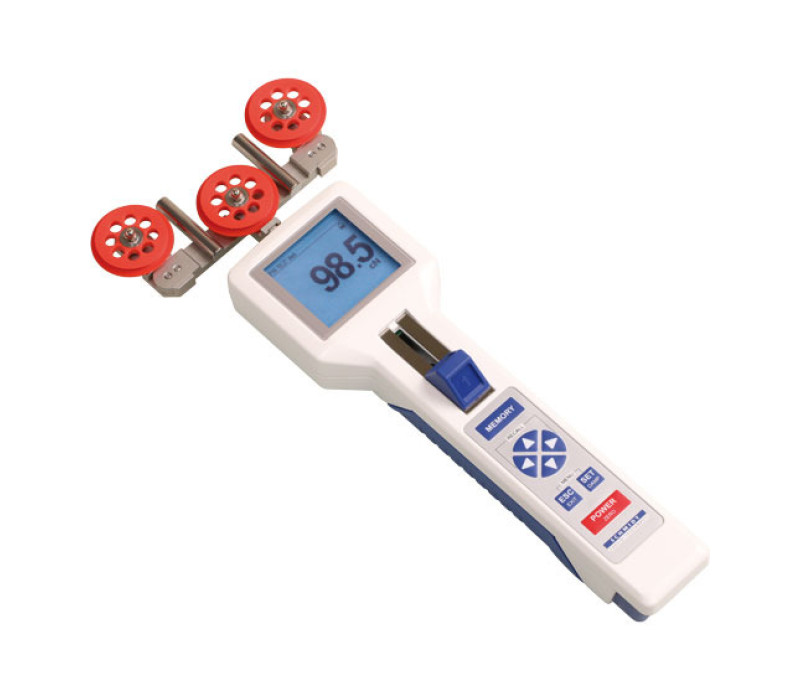

DTFB - DTFX Digital Tension meter with large rollers

DTFB - DTFX
  • With large rollers 32 mm Ø
  • Tension meter with large rollers to minimize bending of materials like fiber optics, carbon and technical fibers
  • Tension ranges
    from 2 - 200 cN
    to 50 - 1000 cN

DTBB - DTBX Digital tension meter for measuring all kinds tapes and bands

DTBB - DTBX
  • Cylindrical rollers pointing toward the operator
  • Tension meter for measuring all kinds of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc.
  • Tension ranges
    from 2 - 200 cN
    to 5 - 50 daN

DTLB-DTLX Digital Tension Meter

DTLB-DTLX
  • Digital Tension Meter for Sensitive Materials
  • 3 Ranges up to 10 Kg
  • For fiber optics, carbon fiber and other technical fibers

DTWB-DTWX Digital Tension Meter

DTWB-DTWX
  • Heavy Duty Digital Tension Meter
  • 2 Ranges up to 50 Kg
  • For material diameters up to 6mm (.250")

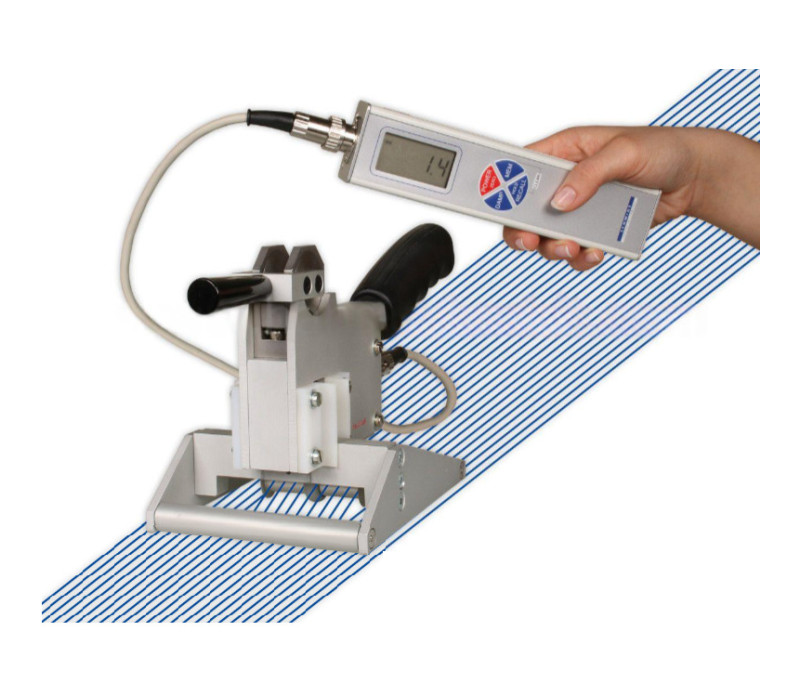

KXE Warp Tension Meter

KXE
  • Warp Tension Meter
  • Portable measuring head to measure yarn groups of weaving and warping machines

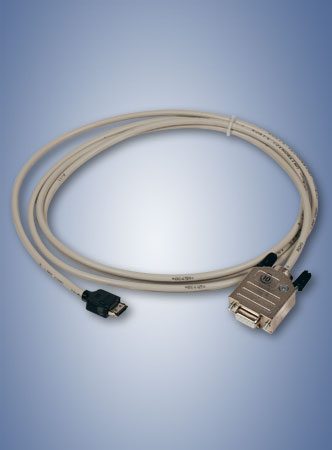

CS-DTMX Serial Cable for DTMX

CS-DTMX
  • The CS-DTMX connects your DTMX tension meter to a PC or printer.

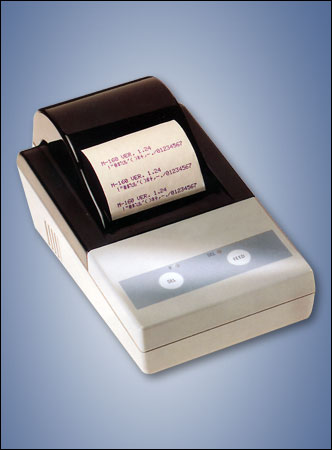

P-DTMX Portable Printer for DTMX

P-DTMX
  • Small, portable and easy to use
  • Prints statistical data from the DMX Digital Tension Meter

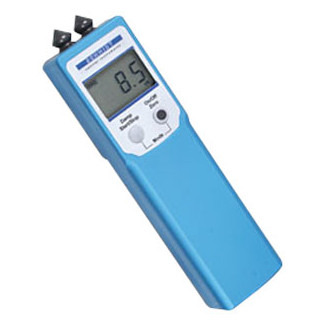

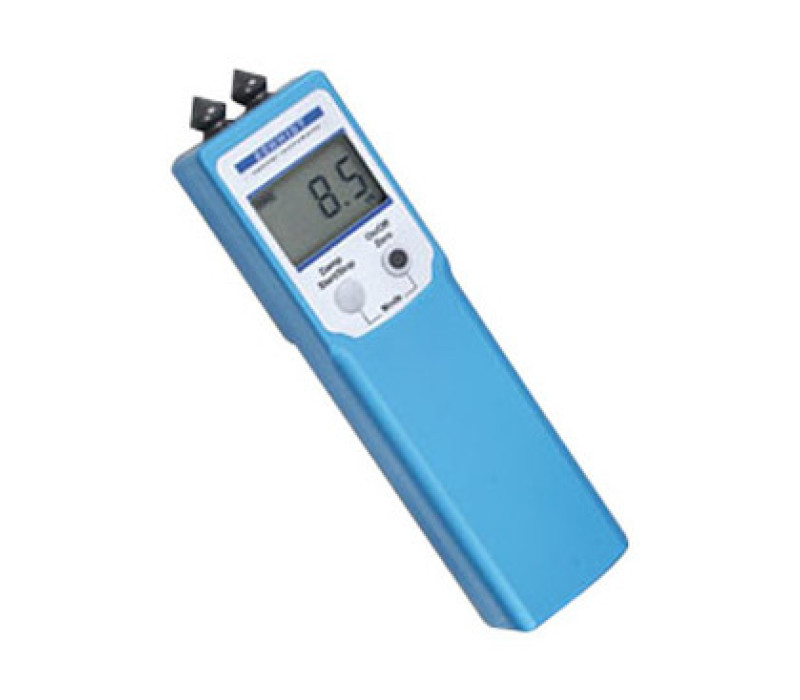

PT-100 Pocket Tension Meter for Circular Knitting

PT-100
  • Hand-held device with small measuring head for applications with limited access space

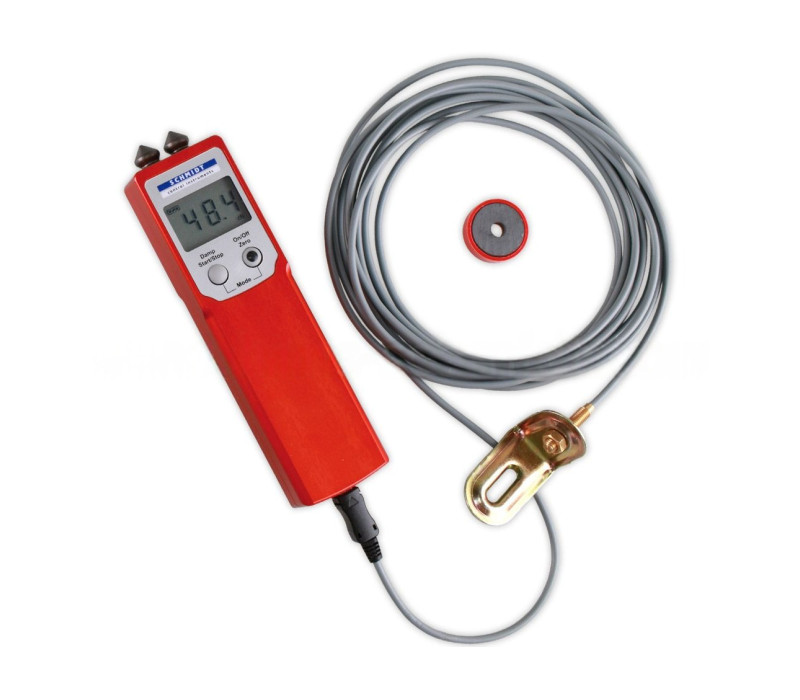

PT-100-L Pocket Tension Meter for Circular Knitting

PT-100-L
  • Pocket tension meter for low tension measurements of fibers, yarns etc. on circular knitting machines, as well as speed and length measurements.
  • Measuring ranges 0.5 - 100.0 g

ZEF-ZED Economical, Limited Access Digital Tension Meter

ZEF-ZED
  • Economical Digital Tension Meter
  • 3 Ranges up to 500g
  • For a wide variety of yarns, fibers and fine wires

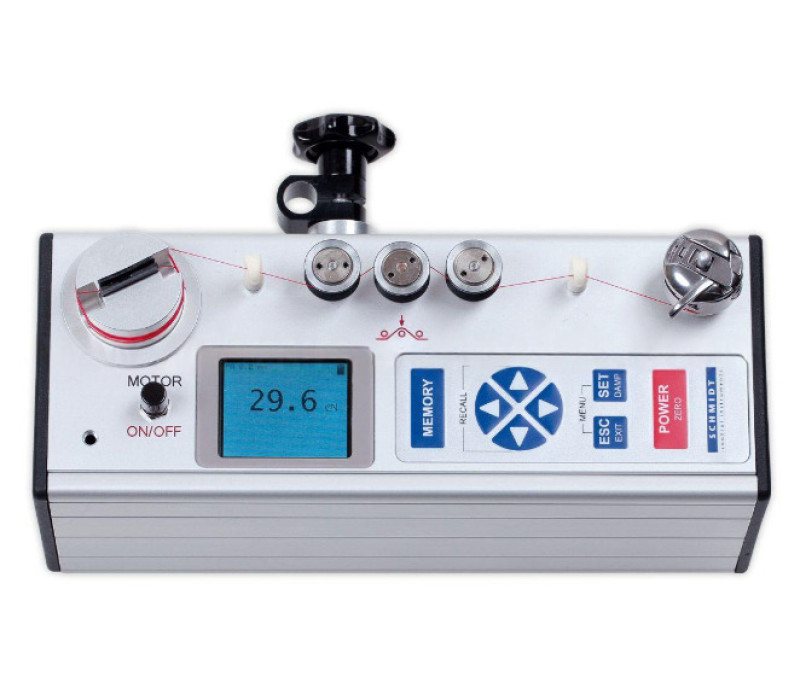

MST Series Tension Meter

MST Series
  • Yarn Tension Meter
  • For measuring and adjusting the tension of sewing machines to get best and highest quality stitched seams

DTMB Basic unit for many applications

DTMB
  • Basic unit for many applications
  • Ranges
    from 0.1 - 200 cN
    to 5 - 50 daN

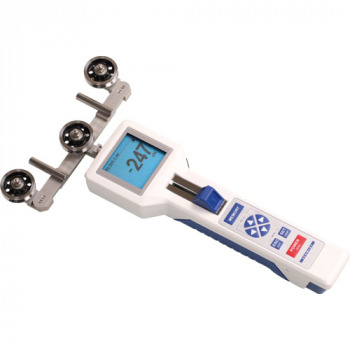

DTMX For applications requiring additional process data

DTMX
  • For applications requiring additional process data
  • Ranges
    from 0.1 - 200 cN
    to 5 - 50 daN
