Digital Tension Meter ZEF with Slim Filament Guide and Colour Display

ZEF Digital Tension Meter for Limited Access

Digital low-tension measurement in restricted-access areas

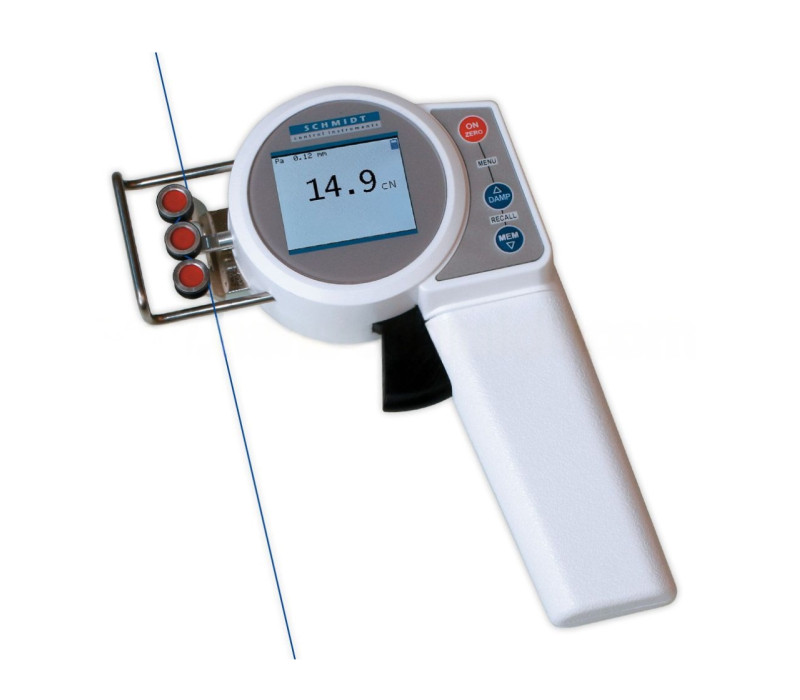

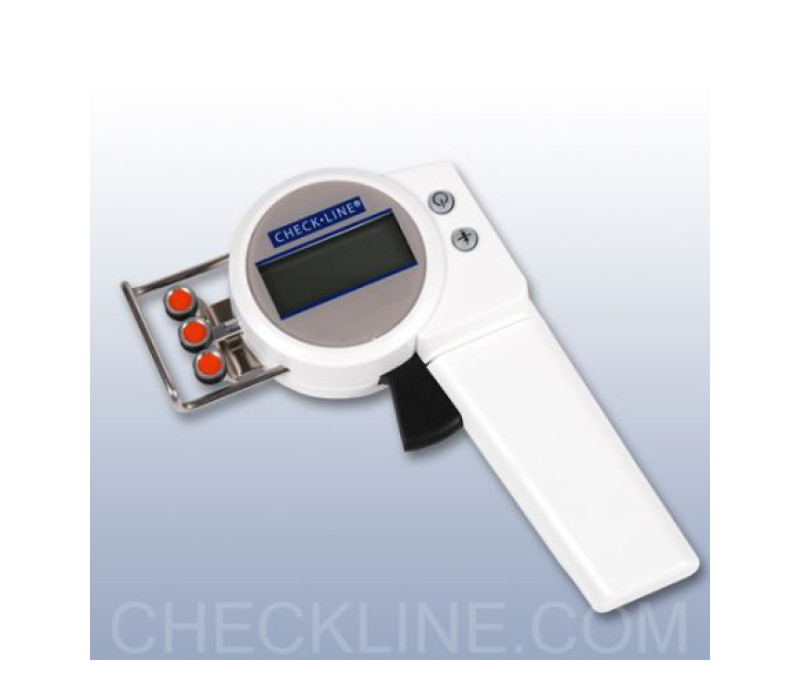

The ZEF Digital Tension Meter measures low tensions in running yarns, fibres and fine wires. Its slim 43 mm filament guide and small guide rollers make it particularly suitable for measuring points where access is restricted. Three models cover measuring ranges from 0.5 to 200 cN.

A trigger-operated roller shifting mechanism simplifies positioning the running material between the guide rollers. The backlit colour TFT display offers three measurement views and rotates automatically in 90° steps for convenient reading in different measuring positions.

Automatic zero adjustment, adjustable electronic damping and selectable measurement units support consistent operation. The instrument stores one factory calibration curve and up to three customer-specific calibration curves for different materials.

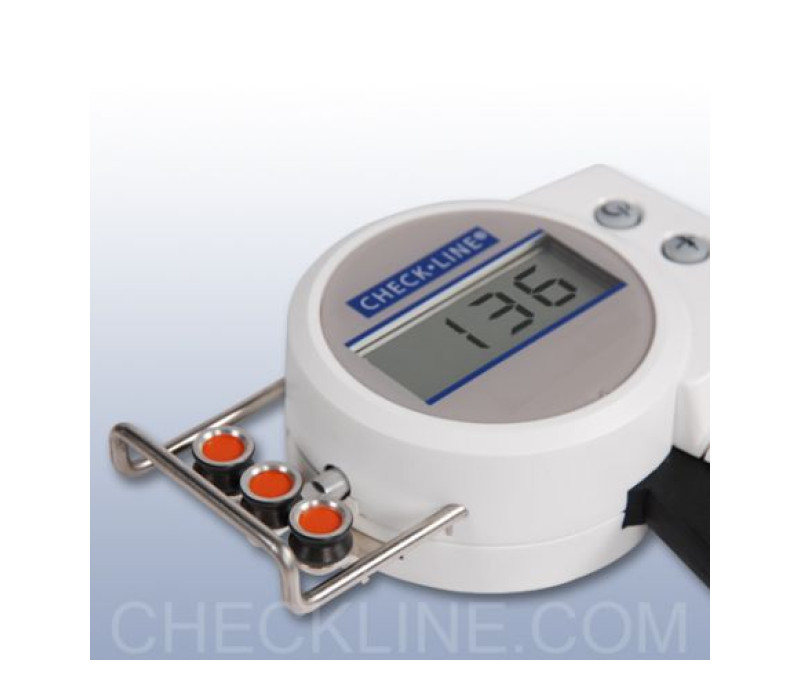

Slim 43 mm filament guide with small V-grooved rollers for restricted-access measuring points
Three models covering tension ranges from 0.5–50.0 cN to 1.0–200.0 cN
Trigger-operated roller shifting mechanism for inserting and removing running material
Backlit colour TFT display with numeric, live bargraph and time-tension graph views
Automatic display rotation in 90° steps and zero adjustment in each measuring position
Selectable measurement units: cN, g, N and lb
Storage of last reading, average, MIN, MAX and standard deviation per measuring interval
Adjustable electronic damping and visual MIN/MAX limit alarms
One factory calibration curve and memory for three customer-specific calibration curves
Built-in rechargeable LiPo battery providing approximately 25 hours of continuous operation
Ball-bearing mounted guide rollers with optional roller materials and speed ratings

Tension Ranges

Model	Measuring Range	Resolution	Filament Guide Width
ZEF-50	0.5–50.0 cN	0.1 cN	43 mm
ZEF-100	0.5–100.0 cN	0.1 cN	43 mm
ZEF-200	1.0–200.0 cN	0.1 cN	43 mm
All three models are factory-calibrated using PA (polyamide) monofilament, Ø 0.12 mm. This calibration material is suitable for approximately 95% of applications. When the measured material differs significantly in diameter, rigidity or shape, customer-specific calibration is recommended. A sample of approximately 5 m of the customer's material is required.

Refer to the drawing for the ZEF dimensions. All dimensions are shown in millimetres.

Guide Rollers

Roller Code	Maximum Line Speed	Roller Material
Standard	900 m/min	Hard-coated aluminium
Code K	2000 m/min	Hard-coated aluminium
Code T	450 m/min	Black POM (for spandex/Lycra)
Code W	450 m/min	Nickel-plated steel

When ordering a non-standard roller configuration, specify the model and roller code, for example ZEF-200-K. Standard rollers require no additional code.

ZEF Digital Tension Meter with built-in rechargeable LiPo battery

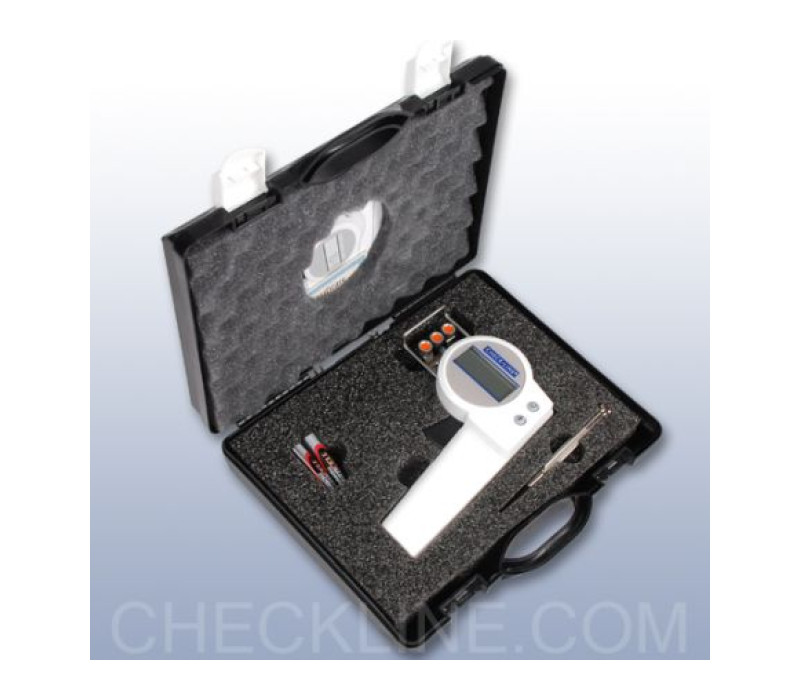

Carrying case
USB AC adapter (100–240 V) with four interchangeable plug adapters (EU, USA, UK and AUS/NZ)
Charging cable
Certificate of Compliance 2.1 according to EN 10204
Instruction manual in English or German (as requested)

An Inspection Certificate 3.1 according to EN 10204, including a calibration report, is available as an option.

ZEF Data Sheet

Measuring Range	ZEF-50: 0.5–50.0 cN ZEF-100: 0.5–100.0 cN ZEF-200: 1.0–200.0 cN
Resolution	0.1 cN (all models)
Accuracy	±1% full scale ±1 digit (typically ±0.5% full scale)
Measuring Units	cN, g, N, lb (selectable)
Calibration	Factory calibration: PA monofilament, Ø 0.12 mm Memory: 1 factory calibration curve + 3 customer-specific curves
Measuring Head	43 mm filament guide width Guide roller groove diameter: 7.4 mm
Overrange / Overload Protection	Overrange: 10% full scale without accuracy guarantee Overload protection: 200% full scale
Power Supply	Built-in rechargeable LiPo battery Approx. 25 h continuous operation Approx. 3.5 h charging time
Operating Conditions	10–45°C; max. 85% RH
Housing	POM plastic; 157 × 124 × 32 mm (L × W × H) Approx. 200 g net weight
