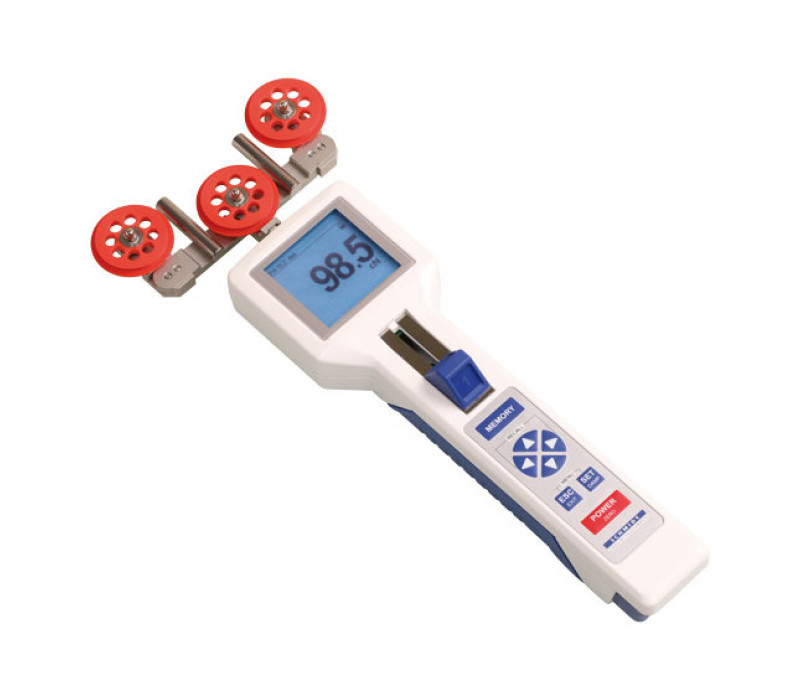

Digital Tension Meter DTSF-DTXF with Red Code T Guide Rollers

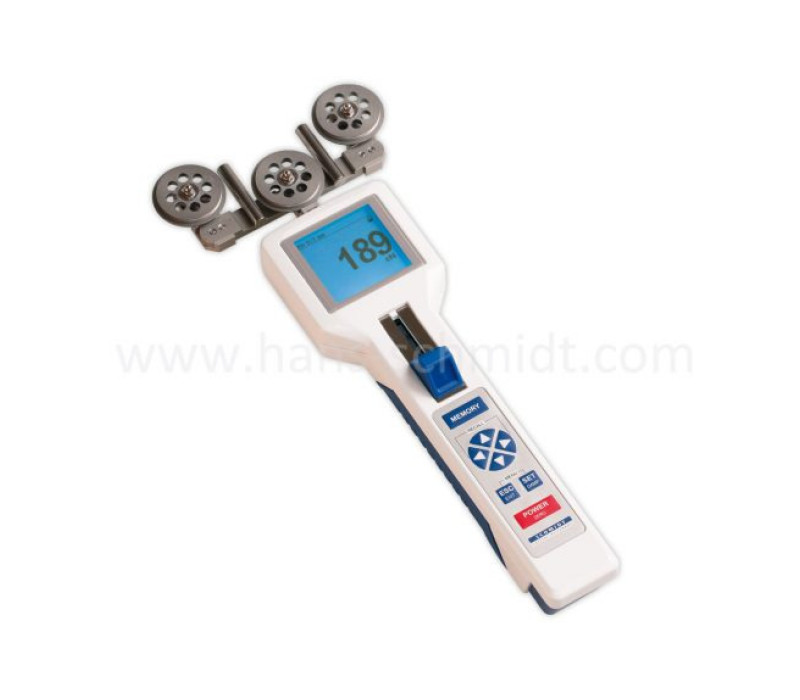

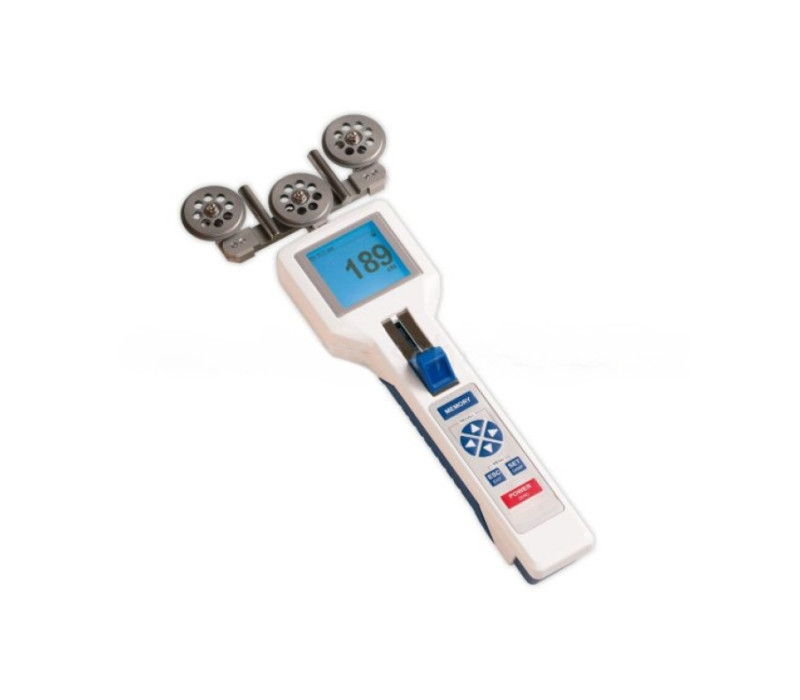

Digital Tension Meter DTSF-DTXF with Standard Guide Rollers

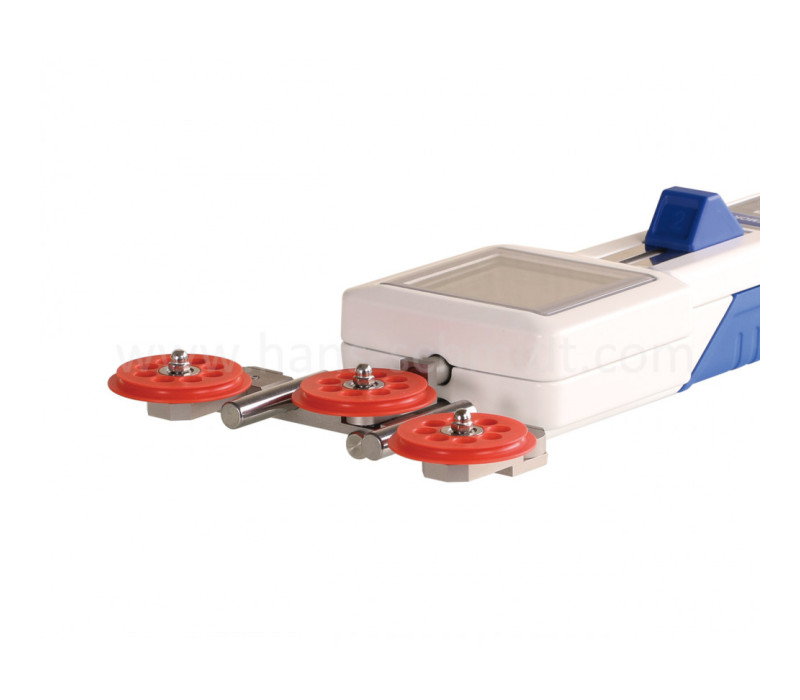

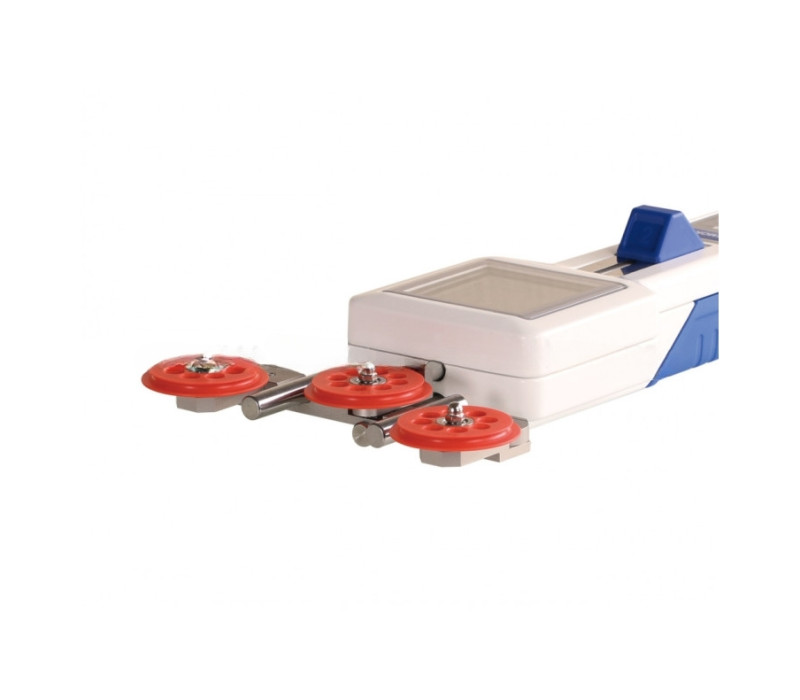

Measuring Head with Red Code T Guide Rollers DTSF-DTXF

Digital Tension Meters DTSF-DTXF for Optical Fibre

Digital tension meters with large guide rollers for optical fibres and fragile filaments

The DTSF and DTXF are hand-held digital tension meters for running optical fibres, carbon filaments and other fragile technical fibres up to 1.5 mm diameter. Large V-grooved guide rollers (groove diameter 32 mm) and a 140 mm measuring head guide the material gently, with four measuring ranges from 1–200 cN to 20–2000 cN.

Both models use a colour TFT display with numeric, numeric plus bar graph and time-tension graph views. The display orientation can be fixed at 0°, 90°, 180° or 270° or set to rotate automatically. Programmable MIN/MAX alarms and an adjustable 2–60 second MIN/MAX window help operators monitor changing tension directly at the instrument.

The DTSF is the basic version. It provides one factory calibration plus four customer calibrations and stores the statistical results of one measurement series. Its USB connection is used for charging.

The DTXF adds USB data communication, memory for up to 60,000 measured values across 255 measurement series, five recording modes and one factory calibration plus ten customer calibrations. Recording can be triggered at a set tension in modes S, C and F, and Tension Inspect 3 software is supplied on a USB flash drive for PC data transfer and analysis.

Request price >>

Large V-grooved guide rollers (groove diameter 32 mm) for optical fibres and fragile filaments
Four measuring ranges from 1–200 cN to 20–2000 cN
For optical fibres, carbon filaments and other technical fibres up to 1.5 mm diameter
Colour TFT display with numeric, bar graph and time-tension graph views

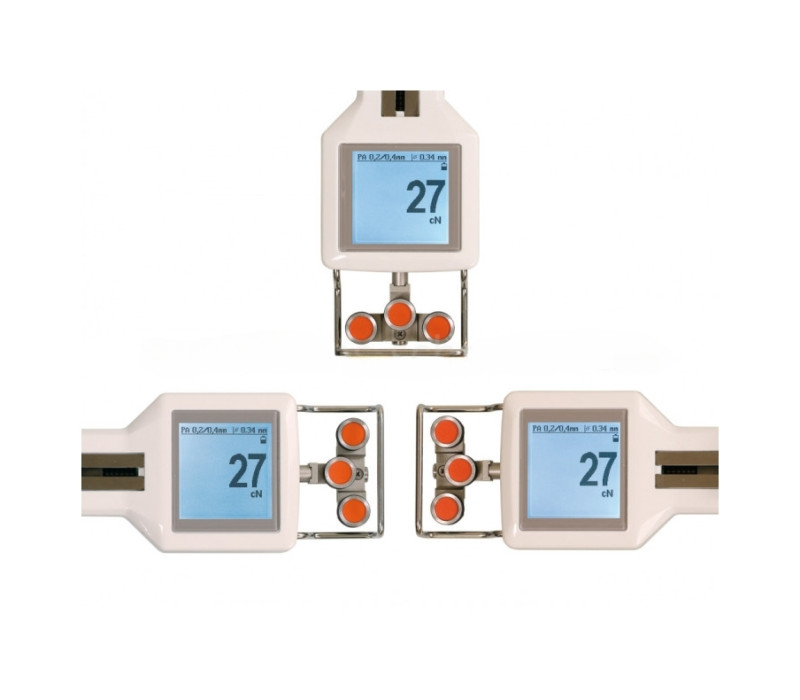

Display orientation fixed at 0°, 90°, 180° or 270°, or automatic rotation

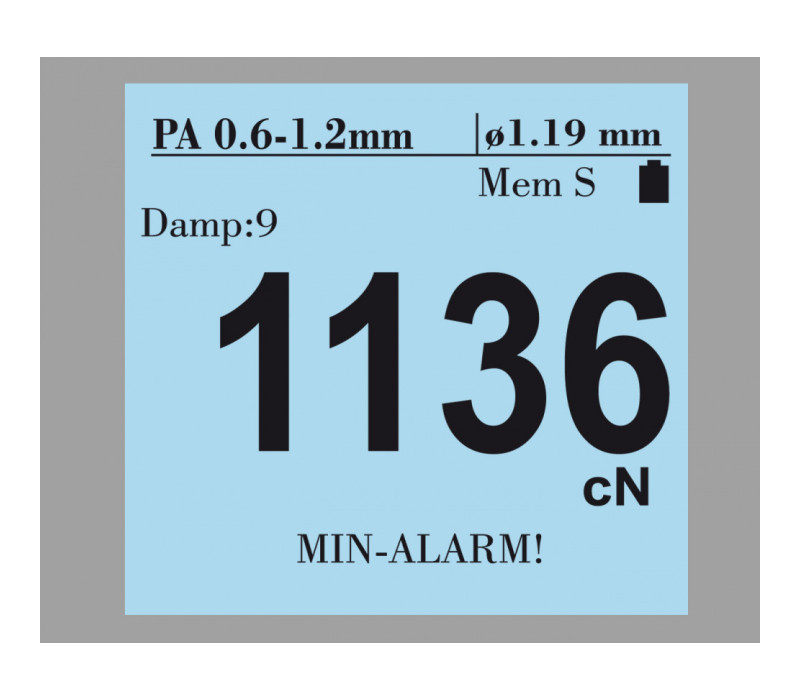

Adjustable 2–60 second MIN/MAX window with programmable limit alarms
Automatic zero adjustment when the measuring position changes
DTSF stores the statistics of one measurement series; DTXF stores up to 60,000 values in 255 series
DTXF provides five recording modes with trigger-controlled recording in modes S, C and F
Standard hard-coated aluminium or optional Code T red PVC guide rollers for line speeds up to 4000 m/min
Settings can be password protected
12-month warranty

DTSF or DTXF tension meter with built-in LiPo accumulator
USB AC adapter, 100–240 V AC, with EU/US/UK/AUS-NZ adapters
USB cable
Tension Inspect 3 software on USB flash drive (DTXF only)
Certificate of Compliance with the order 2.1 according to EN 10204
Instruction manual
Carrying case

Calibration	Factory calibration on polyamide monofilament (PA)
Accuracy	For PA from 5% to 100% full scale: ±0.5% full scale ±1 digit Remaining tension range and other calibration materials: ±3% full scale ±1 digit
Measuring Ranges	DTSF-200 / DTXF-200: 1–200 cN DTSF-500 / DTXF-500: 1–500 cN DTSF-1000 / DTXF-1000: 10–1000 cN DTSF-2000 / DTXF-2000: 20–2000 cN
Measuring Head Width	140 mm (outer distance between the outside guide rollers)
Material Diameter	Up to 1.5 mm
Material Calibration Memory	DTSF: 1 factory calibration + 4 customer calibrations DTXF: 1 factory calibration + 10 customer calibrations
Measuring Units	cN, daN, g, kg, N, lb
Overrange	Approx. 10% of full scale, without accuracy guarantee
Overload Protection	100% of full scale
Measuring Principle	Strain gauge bridge
Signal Processing	Digital, 16-bit A/D conversion
Measuring Frequency	Max. 1 kHz (1000 measurements/s); internal sampling 8 kHz
Measuring Roller Deflection	Max. 0.2 mm

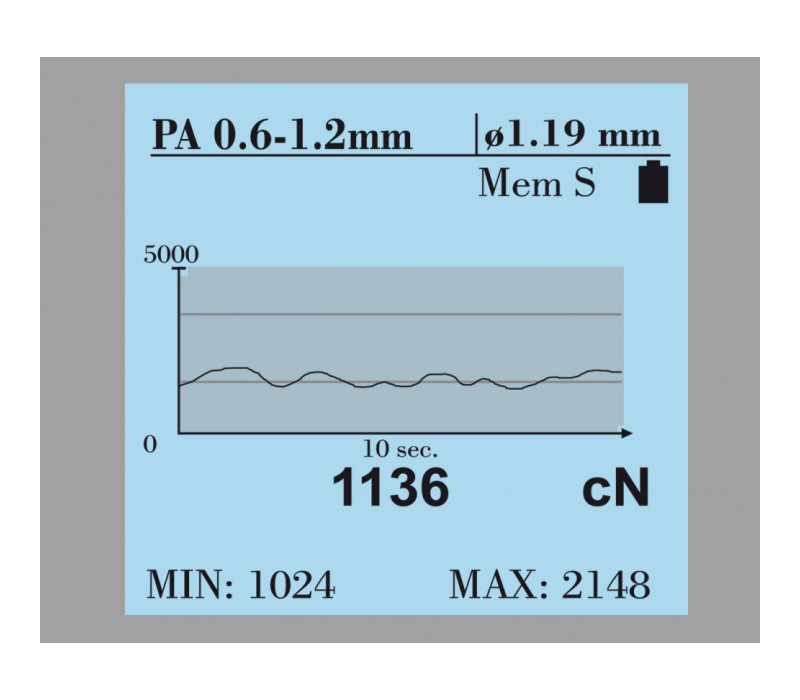

Display	Colour TFT display: numeric, numeric with bar graph, X-Y diagram (time-tension)

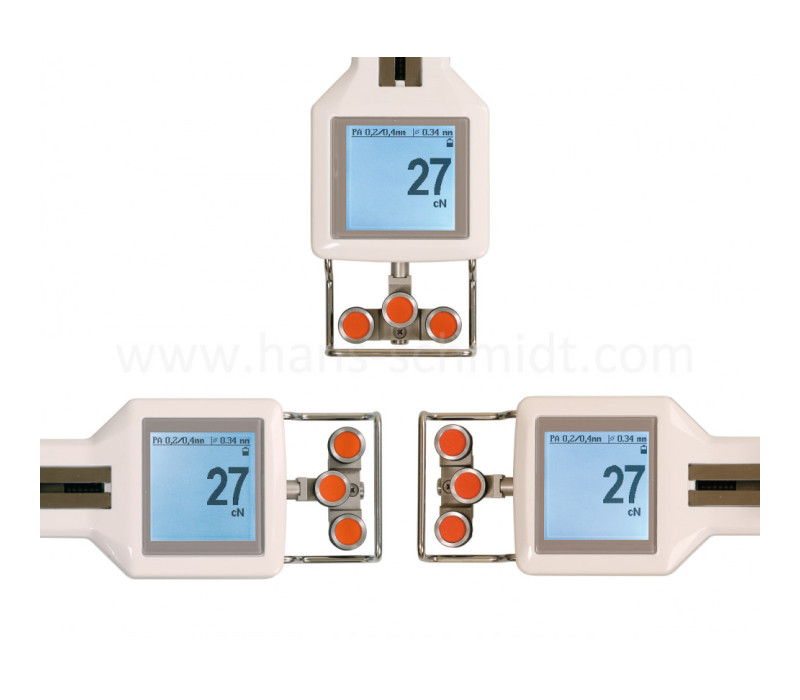

Display Rotation	0°, 90°, 180° or 270° fixed, or automatic
Display Update Rate	Approx. 2 times/s
MIN/MAX Time Window	Adjustable from 2 to 60 s
Time Axis	Graph display adjustable from 0.5 to 60 s
DTSF Measurement Memory	One measurement series: last reading, average, minimum, maximum, standard deviation and number of values; saving a new series overwrites the stored one
DTXF Data Memory	Up to 60,000 measured values in up to 255 measurement series
DTXF Memory Modes	S (Standard), H (Hold), C (Continuous, 2 values/s), F (Fast, 1000 values/s), D (On demand)
DTXF Logging Trigger	Trigger point can be set in memory modes S, C and F
USB	DTSF: charging DTXF: charging and PC data transfer
Damping	Adjustable electronic damping (averaging), 9 steps
Calibration Adjustment	±10 steps in 1% increments
Material Thickness Compensation	Not fitted to DTSF or DTXF
Zero Adjustment	Automatic each time the measuring position is changed; manual zero adjustment also available
Password Protection	Settings can be protected with a 4-digit password
Auto Power Off	Approx. 3 minutes of non-use (can be switched off)
Temperature Coefficient	Gain: less than ±0.01% full scale/°C at 25°C Zero point: better than ±0.03% full scale/°C at 25°C
Operating Temperature	10–45°C
Maximum Relative Humidity	85% RH
Power Supply	Built-in rechargeable LiPo accumulator; approx. 30 h continuous use
Charging Time	Approx. 3.5 h with the supplied AC adapter
AC Adapter	USB AC adapter, 100–240 V AC, with EU/US/UK/AUS-NZ adapters
Housing Material	Die-cast aluminium
Housing Dimensions	265 × 78.5 × 46 mm (L × W × H)
Guide Rollers	Standard: hard-coated aluminium, max. 4000 m/min Code T: red PVC, max. 4000 m/min
Included Certificate	Certificate of Compliance with the order 2.1 according to EN 10204
Optional Certificate	Inspection certificate 3.1 according to EN 10204 with calibration report
Warranty	12 months

Models

DTSF model	DTXF model	Measuring range	Measuring head width*	Factory calibration material
DTSF-200	DTXF-200	1–200 cN	140 mm	PA, 0.12 mm Ø
DTSF-500	DTXF-500	1–500 cN	140 mm	PA, 0.20 mm Ø
DTSF-1000	DTXF-1000	10–1000 cN	140 mm	PA, 0.30 mm Ø
DTSF-2000	DTXF-2000	20–2000 cN	140 mm	PA, 0.50 mm Ø

* Outer distance between the outside guide rollers. PA = polyamide monofilament. DTSF and DTXF have no material-thickness compensator.

Options

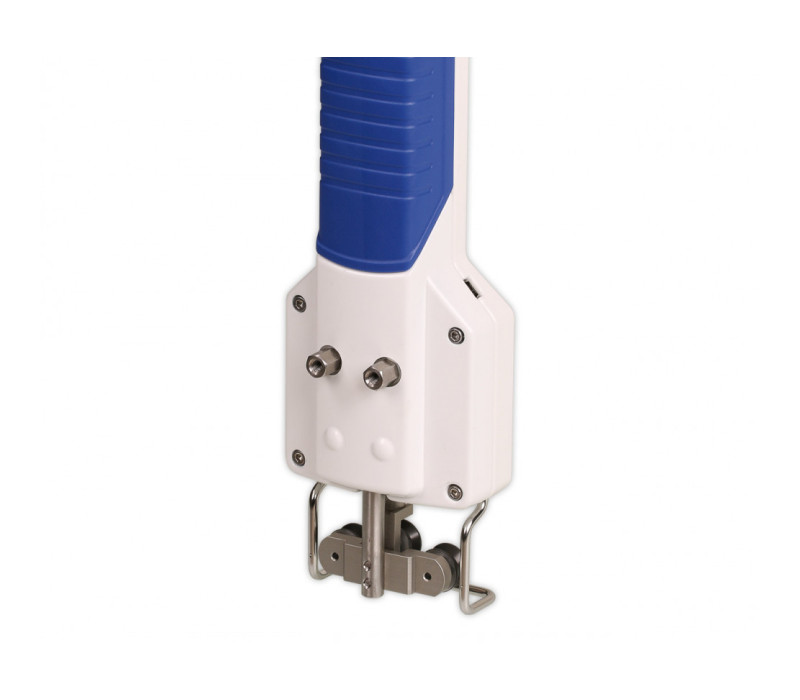

Code MH — Stationary mounting	Factory-installed mounting threads with distance bolts for stationary use. Cannot be retrofitted.

Code MH - Online Mounting

DTSF vs DTXF

DTSF and DTXF Comparison

Function	DTSF	DTXF
Material calibration memory	1 factory + 4 customer calibrations	1 factory + 10 customer calibrations
Measurement memory	Statistics for one measurement series	60,000 values in up to 255 measurement series
Memory modes	—	S, H, C, F, D
Logging trigger	—	Modes S, C and F
USB	Charging	Charging and PC data transfer
PC software	—	Tension Inspect 3 (supplied on USB flash drive)

DTXF Memory Modes

Mode	Function
S — Standard	Records during a user-defined period and stores the statistical values.
H — Hold	Stores the last 128 values so the tension curve can be reviewed after the measurement.
C — Continuous	Records 2 measured values per second for a user-defined period from 1 second to 1 hour.
F — Fast	Records 1000 measured values per second for a user-defined period from 1 to 60 seconds.
D — On demand	Stores individual readings taken by the operator, with statistical values for one measurement series.

A trigger point can be set in memory modes S, C and F so that recording starts automatically when the tension reaches that value.

Standard Accessories

SW-TI3 - Software Tension Inspect 3
	For displaying and saving readings on a PC (Win 7 and higher; 32 bit and 64 bit). Only for sensors with digital output signal. Features: Real-time reading The readings are also shown in a X-Y- diagram (time/date-tension) For data analysing the buffered diagram can be zoomed and scaled Recording of the buffered readings as CSV-file (on user request) Download of values to Excel Item number: SW-TI3 See product : SW-TI3
K50202 - USB AC Adapter
	USB AC adapter with 4 adapters (EU/USA/UK/AUS-NZ) for 100 – 240 V AC and USB cable for loading the accumulator Item number: K50202

Guide Rollers

Guide rollers	Maximum line speed	Roller material
Standard	4000 m/min	Hard-coated aluminium
Code T	4000 m/min	Red PVC

Products

Item	Product
138140	DTSF-200 Tension Meter Digital 1.0-200.0 cN
136676	DTSF-500 Tension Meter Digital 1.0-500.0 cN
137095	DTSF-1000 Tension Meter Digital 10-1000.0 cN
138264	DTSF-2000 Tension Meter Digital 20-2000.0 cN
136678	DTXF-500 Tension Meter Digital 1.0-500.0 cN
137096	DTXF-1000 Tension Meter Digital 1.0-1000.0 cN
137680	DTXF-2000 Tension Meter Digital 20.0-2000.0 cN

Accessories

Item	Product
139752	Code T Plastic Red Guide Rollers - Ø32 mm (instead of standard rollers - new meter)
136673	Code MH - Mounting holes

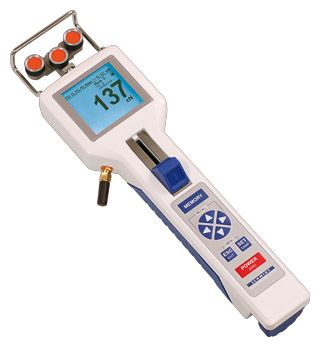

136618	Code WL - Wi-Fi data transfer
