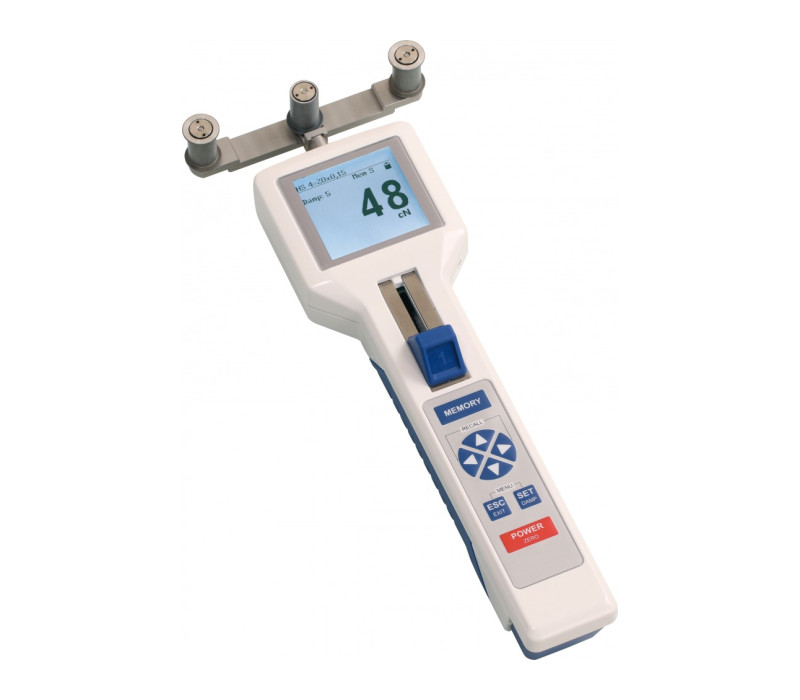

DTSB - DTXB Digital tension meter with wide rollers for tapes, bands and foils

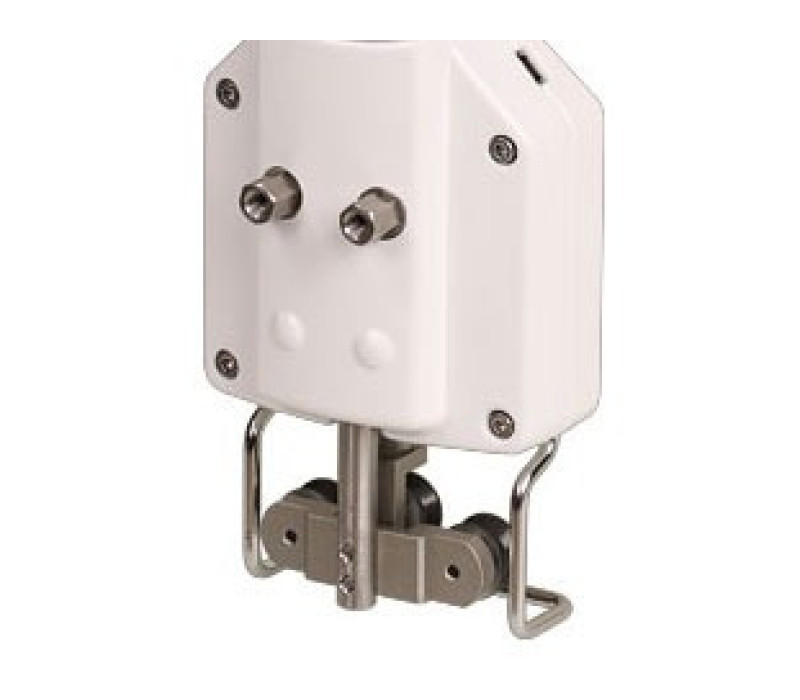

Code MH (This feature cannot be installed afterwords)

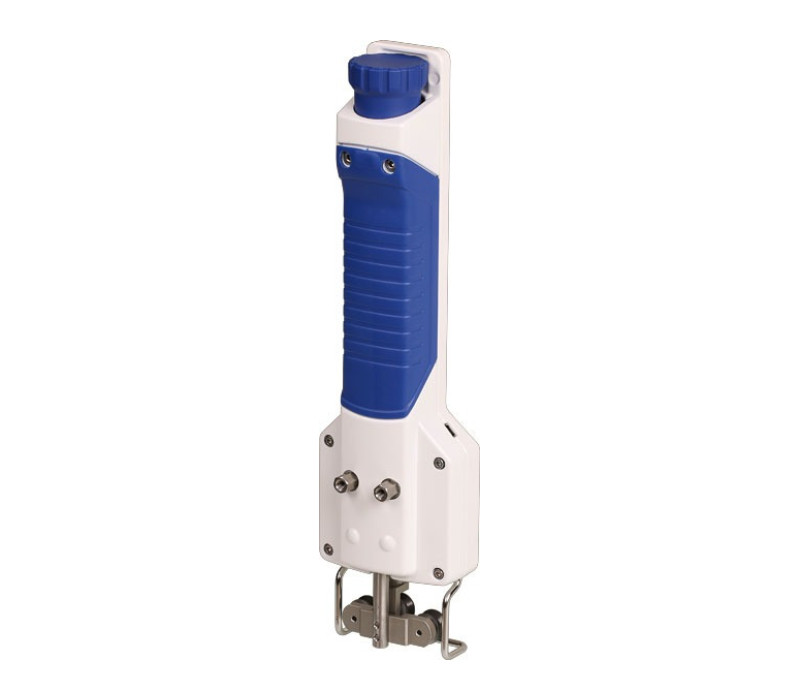

Rear with Code MH - Online Mounting (This feature cannot be installed afterwords)

Digital tension meter with wide rollers for tapes and bands

DTSB - DTXB Digital Tension meters with wide rollers for all types of textile tapes, bands, foils, fiber bundles, etc.

The digital tension meters DTSB and DTXB are equipped with special wide rollers, making them suitable for measuring all types of tapes and textile fibers. The hand sensors can be configured with rollers up to 41 mm width. Ten different models with ten different tension ranges available.

Typical applications:

- Textile ribbons
- Films
- Foils
- Fiber bundles

The DTSB is the base model and the DTXB is the advanced data-logging model that also provides additional functionality.

Additional features of the DTXB tension meter:

Advanced statistical features like:

Mode S: Statistical mode only
Mode H: Save the X-Y graph for later inspections in the data memory
Mode C: Continuous logging mode. User-definable measuring time and measuring series with 2 Hz
Mode F: Fast continuous logging mode. Like C with 1000 Hz

The DTXB tension meter provides 10 digits for user calibration, compared to 4 in the DTSB. It also has a data memory for 60,000 readings and a USB data output. Free software is included at no extra cost.

Request price >>

Optional NIST-Traceable Calibration Certificate
Dual-flanged outer guide rollers with various widths, from 7 mm to 30 mm (single-flanged rollers optional)
For certain tension ranges and materials, it is possible to supply roller widths of 41 mm. Inquire.

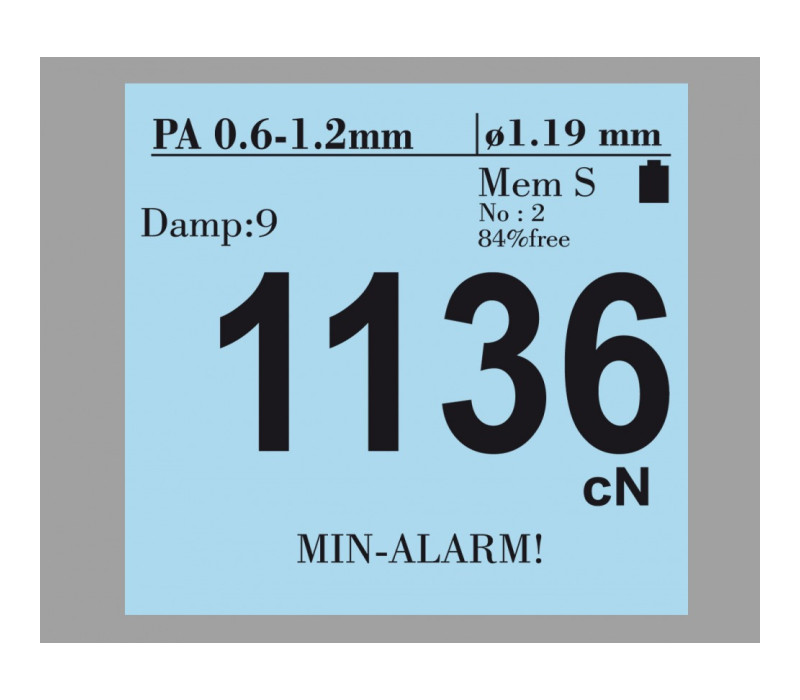

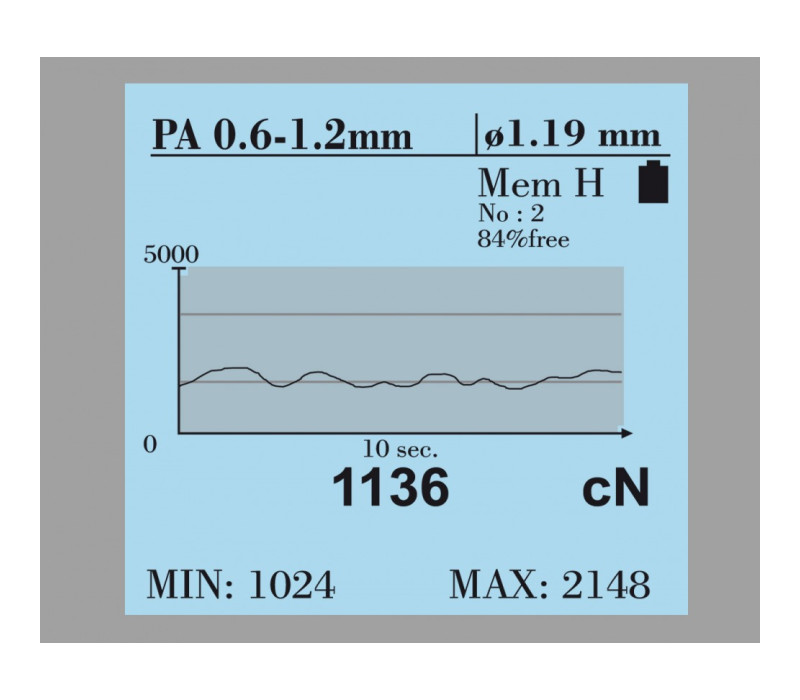

Large, backlight LCD-display with 3 different displays: numeric, numeric with live load bar, numeric with graph (time-tension)
Display automatically rotates in 90° steps (or can be locked in any desired position)
Built-in Diameter Compensator System is used to adjust the calibration curve for highest accuracy. Diameter is set with wheel and shown on display
Automatic "Zero-Setting" in all measuring positions using built-in gravity sensor
4 Separate Calibration Material memory locations for custom calibrations (can be performed by end-user and saved with alpha-numeric name)
Storage of Min, Max and Last reading as well as Hi-Peak, Low-Peak, average and standard deviation
High speed internal data sampling (8 kHz) for capture of accurate Min & Max Peaks
User-set Min and Max alarms with indication on LCD if reading is out of limits
User-adjustable DAMPING is used to minimize tension fluctuations
User-Selectable units of measurement: cN, daN, g, kg, N, lb
Setup parameters can be password protected so they are not accidentally changed by the user
Rechargeable Lithium Polymer battery lasts 40 hours (continuous use, approx)
Rugged aluminum housing with rubberized handle provides a secure and comfortable grip
Manufactured in Germany
1 year warranty

Tension meter DTSB-DTXB are delivered in a foam fitted carrying case, including the accumulator and the AC adapter with country adapters (EU, US, UK), the Certificate of compliance with the order 2.1 according EN 10204 free of charge as well as the manual.

Tension Ranges

Model	Range / Resolution*	Head Width**	Roller Widths (mm)
DTXB / DTSB-500	5.0 - 500 / 0.1 cN	55 mm	7, 10, 15, 20
DTXB / DTSB-1000	50 - 1000 / 1 cN	55 mm	7, 10, 15, 20, 30, 41
DTXB / DTSB-2000	100 - 2000 / 1 cN	55 mm	7, 10, 15, 20, 30, 41
DTXB / DTSB-2500	150 - 2500 / 1 cN	117 mm	7, 10, 15, 20, 30, 41
DTXB / DTSB-4000	200 - 4000 / 1 cN	55 mm	7, 10, 15, 20, 30, 41
DTXB / DTSB-5000	250 - 5000 / 1 cN	117 mm	7, 10, 15, 20, 30, 41
DTXB / DTSB-10K	0.5 - 10 / 0.01 daN	117 mm	7, 10, 15, 20, 30
DTXB / DTSB-20K	1 - 20 / 0.01 daN	167 mm	7, 10, 15, 20, 30
DTXB / DTSB-30K	1.5 - 30 / 0.01 daN	217 mm	7, 10, 15
DTXB / DTSB-50K	2.5 - 50 / 0.01 daN	217mm	7, 10
* Standard calibration based on measuring range and rollers width with a textile ribbon or foil. **Distance between outside guide rollers

Roller Guide

Order-Code	Line Speed v_max_.… m/min	Roller Material

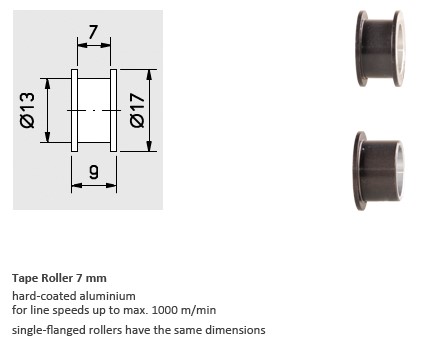

Tape roller 7 mm	1000	Hard-coated aluminium
Tape roller 10 mm	1000	Hard-coated aluminium
Tape roller 15 mm	1000	Hard-coated aluminium

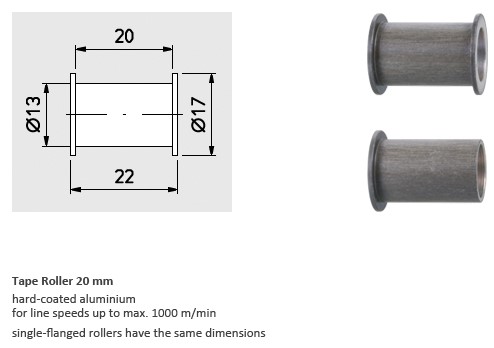

Tape roller 20 mm	1000	Hard-coated aluminium
Tape roller 30 mm	1000	Hard-coated aluminium

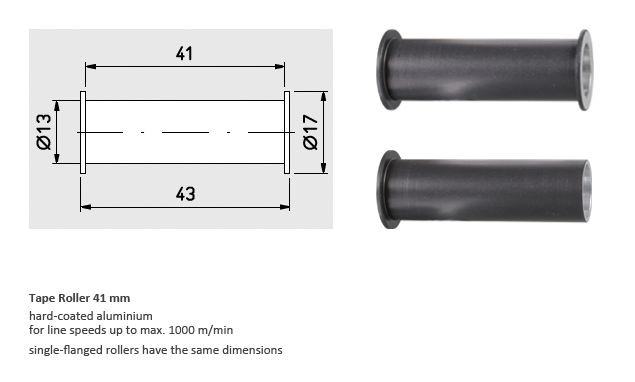

Tape roller 41 mm	1000	Hard-coated aluminium

Attachment

Code MH - Online Mounting
	To mount the gauge for online use, the housing can be equipped with mounting threads. There are to bolts with M5 female thread on the rear side. This feature cannot be installed afterwords.
Code WL - Wi-Fi Signal
	The DTXB can be equipped with a Wi-Fi module for WLAN data transfer. This feature cannot be installed afterwards. The Wi-Fi module is not licensed for all countries. Please contact us for further information!

DTSB-DTXB Data Sheet

DTSB-DTXB Instruction Manual

Accuracy:	For standard material from 5 % up to 100 % of FS: ± 0.5 % FS ± 1 digit remaining tension range and other calibration materials: ±3 % full scale and ±1 digit
Overrange:	Approx. 10 % FS*, full scale, without accuracy guarantee
Overload protection:	100 % full scale
Memory for material curves:	DTSB: 1 standard calibration plus 4 for customized calibrations DTXB: 1 standard calibration plus 10 for customized calibrations
Measuring units:	Force (switchable): cN, daN, g, kg, N, lb Thickness (switchable): mm, inch
Measuring principle:	Strain gauge bridge
Signal processing:	Digital, 16 bit A/D converter
Measuring frequency:	Max. 1 kHz (1000 measurements/sec.), intern 8 kHz
Measuring roller deflection:	Max. 0.2 mm
Display:	Graphic LCD
3 different displays:	Numeric Numeric with graph (time-tension) X-Y-diagram
Display update rate:	Approx. 2 times per second
Memory:	MIN, MAX, PEAK, AVG and LAST
Damping:	Adjustable electronic damping (averaging)
Cal. Adjustment:	± 10 steps in 1 % increment
Thickness compensation:	Max. 2.5 mm (not for all models)
Auto power off:	Approx. 3 minutes of non-use
Temperature coefficient:	Gain: less than ± 0.01 % FS* /°C
Zero point:	less than ± 0.03 % FS* /°C
Temperature range:	10 – 45 °C
Air humidity:	85 % RH, max.
Power supply:	LiPo accumulator (approx. 40 h continuous use), charging time approx. 3 1/2 h AC adapter 100 – 240 V AC,adapter (EU, USA, UK)
Replacement Charger:	USB-MINI-CHARGER
Housing material:	Die-cast aluminum
Housing dimensions:	As per above shown dimensions sheet
Weight, net (gross):	approx. 875 g (1550 g)
Output:	USB Output, data analysis software included
Specifications for DTXB, same as DTSB plus:	Data memory (60,000 values at 255 measuring periods), 4 memory modes with statistical evaluation

Products

Item	Product
138179	DTSB-500-7 Tension Meter Digital 5 - 500 cN with 7mm Rollers
136914	DTSB-1000-10 Tension Meter Digital 10 - 1000 cN with 10mm Rollers
136685	DTSB-2000-20 Tension Meter Digital 20 - 2000 cN with 20mm Rollers
136517	DTSB-2500-15 Tension Meter Digital 150-2500cN 15mm Rollers
138859	DTSB-5000-41 - Tension Meter Digital 500-5000 cN 41mm Rollers
137844	DTSB-10K-10 - Tension Meter Digital 0.5 - 10 daN 10mm Rollers
137168	DTSB-20K-20 - Tension Meter Digital 1 - 20 daN 20mm Rollers
137701	DTSB-30K-7 - Tension Meter Digital 1.5-30.00 daN 7mm Rollers
137700	DTSB-50K-7 - Tension Meter Digital 2.5-50.00 daN 7mm Rollers
136629	DTXB-500-7 Tension Meter Digital 5 - 500 cN with 7mm Rollers
140513	DTXB-500-20 Tension Meter Digital 5 - 500 cN with 20mm Rollers
136313	DTXB-1000-7 Tension Meter Digital 10 - 1000 cN with 7mm Rollers
136684	DTXB-2000-20 Tension Meter Digital 20 - 2000 cN with 20mm Rollers
137480	DTXB-2500-7 Tension Meter Digital 150 - 2500 cN with 7mm Rollers
137306	DTXB-4000-10 Tension Meter Digital 200 - 4000 cN with 10mm Rollers
138814	DTXB-5000-10 - Tension Meter Digital 500-5000 cN 10mm Rollers
136548	DTXB-10K-7 Tension Meter Digital 0.5 - 10 daN with 7mm Rollers
136917	DTXB-20K-15 - Tension Meter Digital 1 - 20 daN 15mm Rollers
136218	DTXB-50K-10 Tension Meter Digital 0.5 - 50 daN 10mm Rollers

Accessories

Item	Product
136673	Code MH - Mounting holes
136618	Code WL - Wi-Fi data transfer
133421	Code CF Special Topocrom® coating for carbon fibre (for roller widths of 10, 15, 20 and 30 mm)

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
