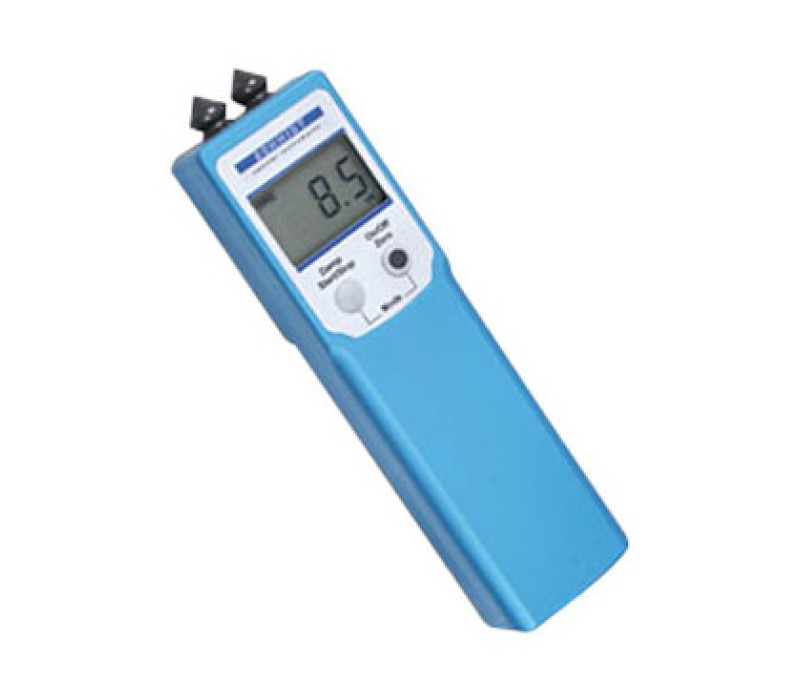

    PT-100 Pocket Tension Meter for Circular Knitting

    Made in Germany Measuring Range: 0.5 - 100.0 grams or cN

    This new portable electronic pocket tension meter is designed for measurement of low tensions of fibers, yarns. etc. typically found on circular knitting machines etc.

    It is battery-powered and pocket-sized for convenient storage and features and extremely small measuring head for applications with limited access space

    It uses a unique 180 degree material wrap to provide for accurate readings while the machine is in operation.

    Easy Slide-In material threading by cone shaped guide roller and turning the instrument 180 degrees
    • Continuous automatic "zero setting" in all measuring positions insures highest accuracy and repeatability
    • Adjustable electronic damping provides a more steady value as compared to constantly fluctuation tension values
    • V-Grooved Ball-bearing guide rollers with measuring head width of 24 mm (outer distance of guide rollers)
    • Compact aluminum housing is rugged and features an easy to read LCD Display
    • NIST-Traceable Calibration Certificate & Test Report is optionally available
    • User-set measuring units of Grams or cN and can be used in right or left hand as desired
    • Rechargeable battery provides approx. 40 hours of continuous use
    • Each instrument is individually calibrated for highest accuracy and is CE Certified
    Complete Kit
    Tension meter with carrying case, AC adapter with 3 country adapters (EU/USA/UK), operating instruction manual
    Accuracy±1.5 % full scale ±1 digit
    Overload protection200 % full scale
    Measuring unitscN, gr user-switchable
    Measuring principleStrain gauge full bridge loadell
    DampingAdjustable electronic damping, averaging
    DisplayLCD 3 ½ digits, 9 mm high
    Display update rate2 times per second
    Auto power offAfter 3 minutes off non use
    Temperature range10 - 45 ºC
    Air humidity85 % RH, max.
    Power supplyLithium Polymer Rechargeable Battery (approx. 40 hours continuous use, charging time approx. 3.5 h) with Charger 100 - 240 V AC with country adapters (EU/USA/UK)
    Housing materialAluminum
    Dimensions141 x 36 x 22 mm (LxWxH)
    Weight, net (gross)Approx. 170 g (approx. 500 g)

    Tension Ranges

    Model Ranges Calibration Material
    PT-100 0.5 - 100.0 g or cN PA: 0.12 mm Ø

    Related Products

    Browse Related Products

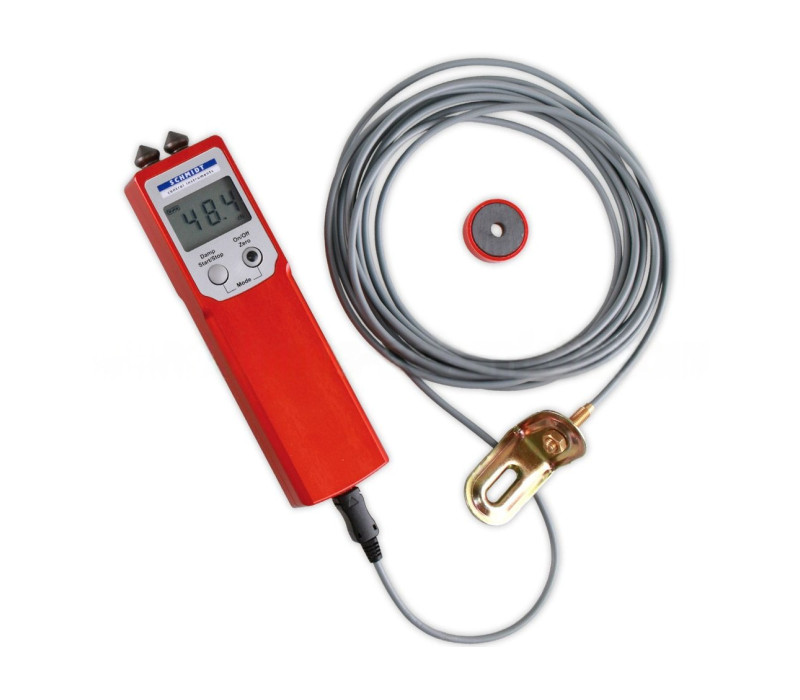

    PT-100-L Pocket Tension Meter for Circular Knitting
