    DTSE / DTXE Limited-Access Digital Tension Meters

    Limited-access digital tension meters with a 36 mm measuring head for yarns, fibres and fine wires

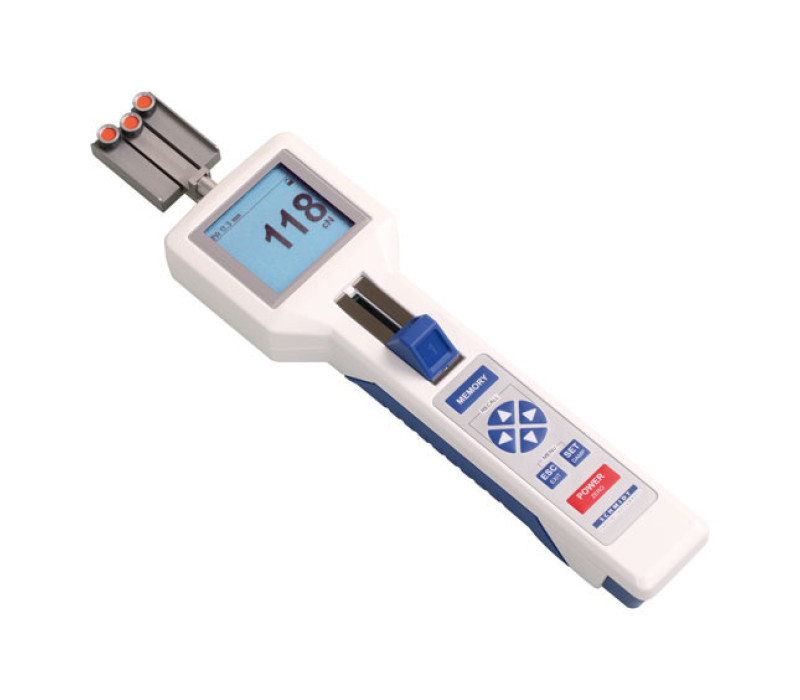

    The DTSE and DTXE are hand-held digital tension meters designed for measurements where access space is restricted or filaments run close together. Their compact measuring head is approximately 64 mm long with a bracket width of only 36 mm. Four measuring ranges are available from 1–200 cN to 20–2000 cN, for textile applications up to 2000 tex and copper wire up to 0.5 mm diameter.

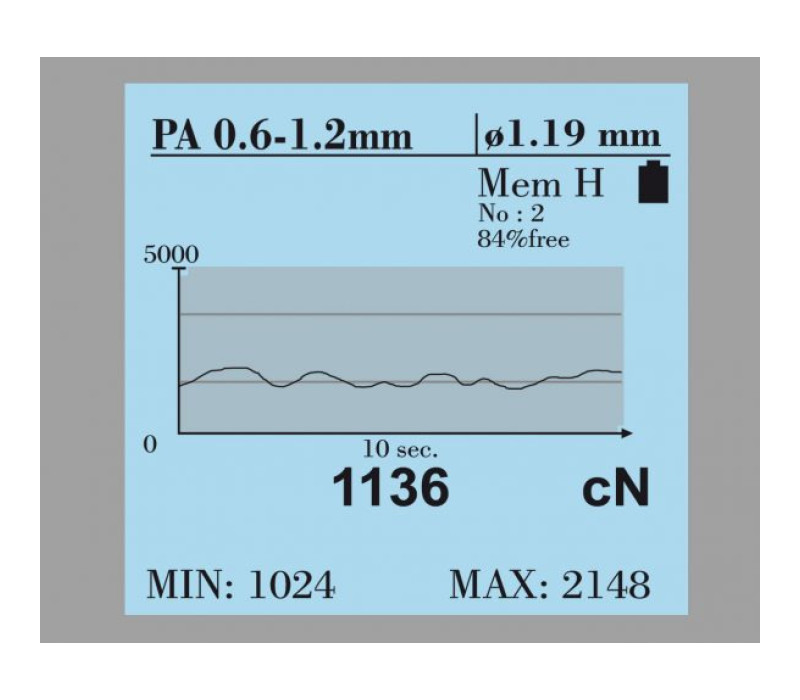

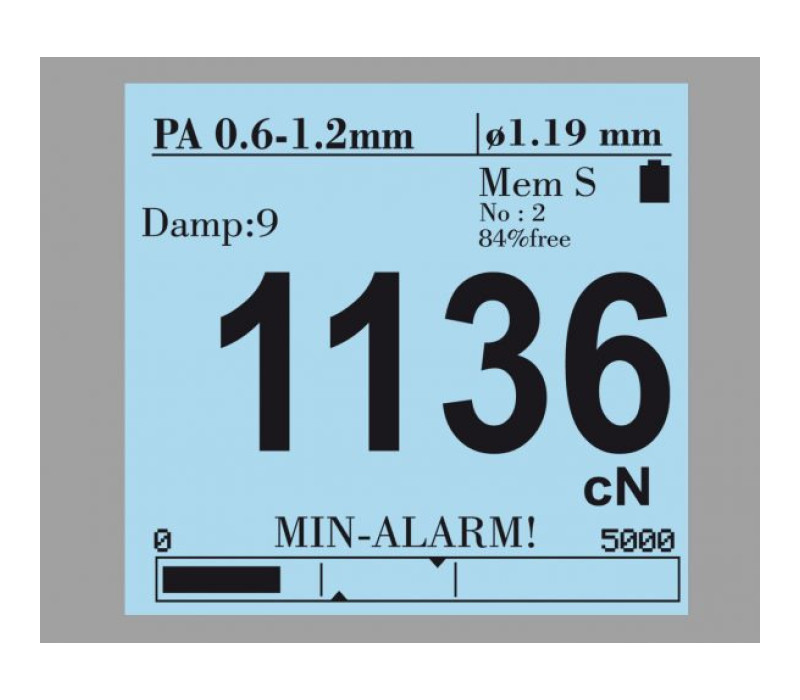

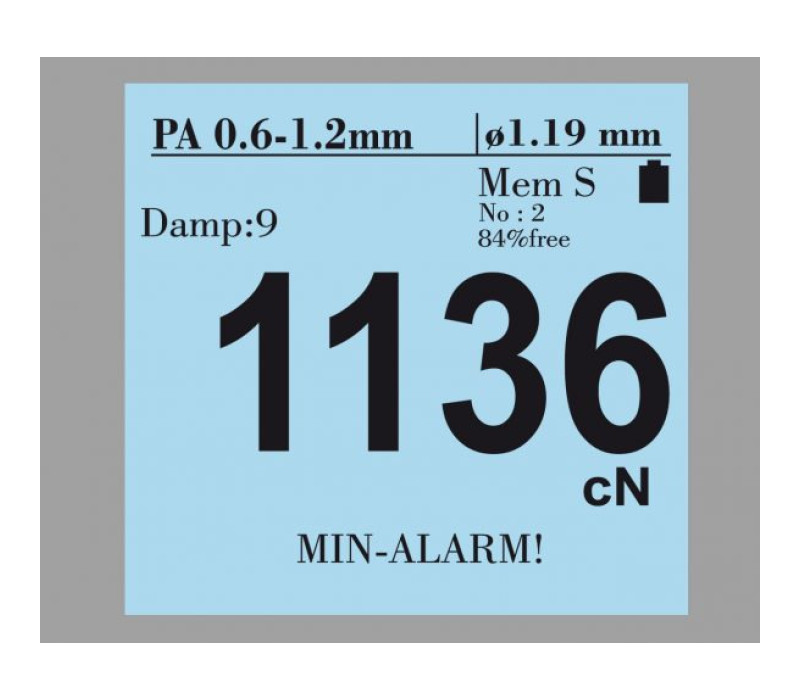

    Both versions use a colour TFT display with numeric, numeric plus bar graph and X-Y time/tension views. The display orientation can be fixed or set to rotate automatically, while programmable MIN/MAX alarms and an adjustable 2–60 second MIN/MAX time window help monitor fluctuating running tension.

    The DTSE is the basic version. It provides one factory calibration plus four locations for customer calibrations and stores the statistical results of one measurement series. Its USB connection is used for charging.

    The DTXE adds advanced data recording and USB communication. It stores up to 60,000 measured values across as many as 255 measurement series and provides five recording modes: S, H, C, F and D. Trigger-controlled recording is available in modes S, C and F. Tension Inspect 3 software is supplied on a USB flash drive for transferring, displaying and analysing measurements on a PC.


    Request price >>

    • Compact measuring head approximately 64 mm long with 36 mm bracket width for restricted-access measurements
    • Four measuring ranges from 1–200 cN to 20–2000 cN
    • Colour TFT display with numeric, bar graph and X-Y time/tension views
    • Display orientation fixed at 0°, 90°, 180° or 270°, or automatic rotation
    • Programmable MIN/MAX alarms with adjustable 2–60 second MIN/MAX time window
    • Automatic zero adjustment when the measuring position changes
    • DTSE stores the statistical results of one measurement series
    • DTXE stores up to 60,000 values across 255 measurement series
    • DTXE provides five recording modes S, H, C, F and D with trigger recording in S, C and F
    • Standard hard-coated aluminium guide rollers for line speeds up to 900 m/min; Code K option up to 2000 m/min
    • Settings can be password protected
    • 12-month warranty

    Tension Ranges

    Options

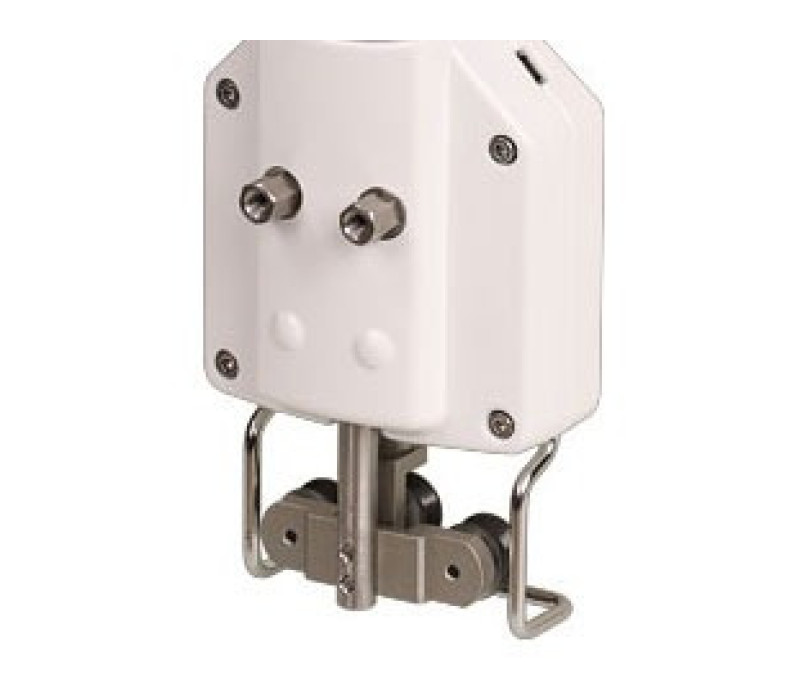

    Code MH — Stationary mounting

    Factory-installed mounting threads with distance bolts for stationary use. Cannot be retrofitted.

    Scope of delivery
    • DTSE or DTXE tension meter with rechargeable LiPo accumulator
    • USB AC adapter, 100–240 V AC, with EU/US/UK/AUS-NZ adapters
    • USB cable
    • Tension Inspect 3 software on USB flash drive (DTXE only)
    • Certificate of Compliance with the order 2.1 according to EN 10204
    • Instruction manual
    • Carrying case
    DTSE vs DTXE

    DTSE and DTXE Comparison

    Function DTSE DTXE

    Material calibration memory

    1 factory + 4 customer calibrations

    1 factory + 10 customer calibrations

    Measurement memory

    Statistics for one measurement series

    60,000 values in up to 255 measurement series

    Memory modes

    —

    S, H, C, F, D

    Logging trigger

    —

    Modes S, C and F

    USB

    Charging

    Charging and PC data transfer

    PC software

    —

    Tension Inspect 3 (supplied on USB flash drive)

    Guide Rollers

    Guide rollers Maximum line speed Roller material

    Standard

    900 m/min

    Hard-coated aluminium

    Code K

    2000 m/min

    Hard-coated aluminium

    CalibrationFactory calibration on polyamide monofilament (PA)
    AccuracyFor PA from 5% to 100% full scale: ±0.5% full scale ±1 digit
    Remaining tension range and other calibration materials: ±3% full scale ±1 digit
    Material Calibration MemoryDTSE: 1 factory calibration + 4 customer calibrations
    DTXE: 1 factory calibration + 10 customer calibrations
    Measuring UnitscN, daN, g, kg, N, lb
    OverrangeApprox. 10% of full scale, without accuracy guarantee
    Overload Protection100% of full scale
    Measuring PrincipleStrain gauge bridge
    Signal ProcessingDigital, 16-bit A/D conversion
    Measuring FrequencyMax. 1 kHz (1000 measurements/s); internal sampling 8 kHz
    Measuring Roller DeflectionMax. 0.2 mm
    DisplayColour TFT display: numeric, numeric with bar graph, X-Y diagram (time/tension)
    Display Update RateApprox. 2 times/s
    Display Rotation0°, 90°, 180° or 270° fixed, or automatic
    MIN/MAX Time WindowAdjustable from 2 to 60 s
    DTSE Measurement MemoryOne measurement series: last reading, average, minimum, maximum, standard deviation and number of values; saving a new series overwrites the stored one
    DTXE Data MemoryUp to 60,000 measured values in up to 255 measurement series
    DTXE Memory ModesS (Standard), H (Hold), C (Continuous, 2 values/s), F (Fast, 1000 values/s), D (On demand)
    DTXE Logging TriggerTrigger point can be set in memory modes S, C and F
    USBDTSE: charging
    DTXE: charging and PC data transfer
    SoftwareDTXE: Tension Inspect 3 supplied on USB flash drive
    DampingAdjustable electronic damping (averaging), 9 steps
    Calibration Adjustment±10 steps in 1% increments
    Zero AdjustmentAutomatic each time the measuring position is changed; manual zero adjustment also available
    Password ProtectionSettings can be protected with a 4-digit password
    Auto Power OffApprox. 3 minutes of non-use (can be switched off)
    Temperature CoefficientGain: less than ±0.01% full scale/°C at 25°C
    Zero point: better than ±0.03% full scale/°C at 25°C
    Operating Temperature10–45°C
    Maximum Relative Humidity85% RH
    Power SupplyRechargeable LiPo accumulator; approx. 30 h continuous use
    Charging TimeApprox. 3.5 h with the supplied AC adapter
    AC AdapterUSB AC adapter, 100–240 V AC, with EU/US/UK/AUS-NZ adapters
    Housing MaterialDie-cast aluminium
    Measuring HeadApprox. 64 mm long; 36 mm bracket width
    Material Thickness CompensationNot fitted to DTSE or DTXE
    Guide RollersStandard: hard-coated aluminium, max. 900 m/min
    Code K: hard-coated aluminium, max. 2000 m/min
    WeightApprox. 780 g net (1460 g gross)
    Included CertificateCertificate of Compliance with the order 2.1 according to EN 10204
    Optional CertificateInspection certificate 3.1 according to EN 10204 with calibration report
    Warranty12 months

    Order Now

    Products
    Item Product
    136491DTSE-200_Limited-Access Digital Tension Meter 1-200 cN
    137182DTSE-500_Limited-Access Digital Tension Meter 1-500 cN
    137892DTSE-1000_Limited-Access Digital Tension Meter 10-1000 cN
    137244DTSE-2000_Limited-Access Digital Tension Meter 20-2000 cN
    137894DTXE-200_Limited-Access Digital Tension Meter 1-200 cN
    137895DTXE-500_Limited-Access Digital Tension Meter 1-500 cN
    137896DTXE-1000_Limited-Access Digital Tension Meter 10-1000 cN
    136617DTXE-2000_Limited-Access Digital Tension Meter 20-2000 cN
    Accessories
    Item Product
    139753Code K_Hard-coated Aluminium Rollers - 2000 m/min
    136673Code MH_Mounting holes for stationary use
    136618Code WL_Wi-Fi data transfer
