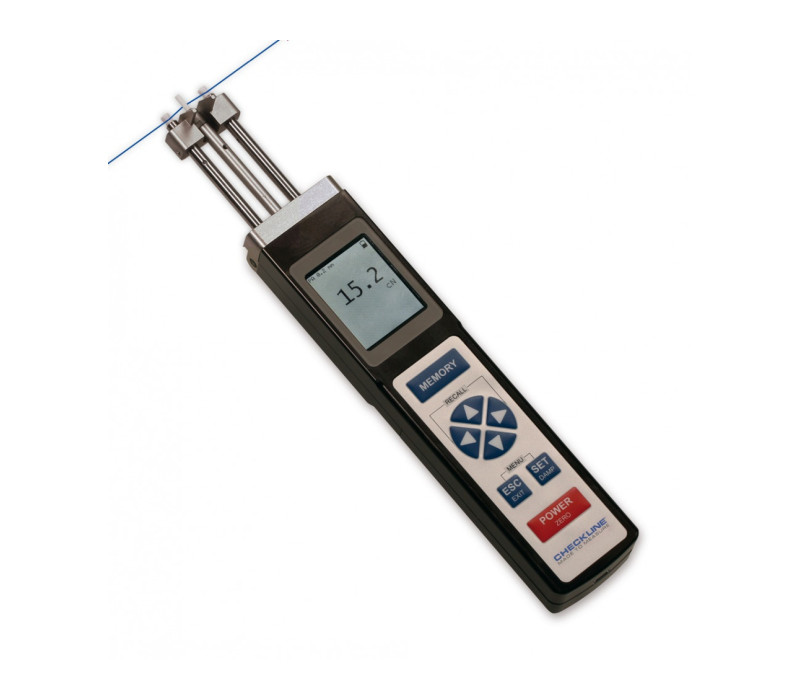

    ETPB-ETPX Limited Access Digital Tension Meter

    Made in Germany Electronic tension meter for hard to reach and limited access space applications with ceramic pins up to max. 6000 m/min

    2 Models
    ETPB (Basic unit) & ETPX (with memory and outputs)

    3 Ranges
    0.5 - 100, 2 - 200, 2 - 500 (g or cN)

    Three long, closely-spaced slender shafts with precision guide rollers or pins at their ends combine with the latest in microprocessor technology to make this instrument top choice for all limited-access, tension measuring applications.

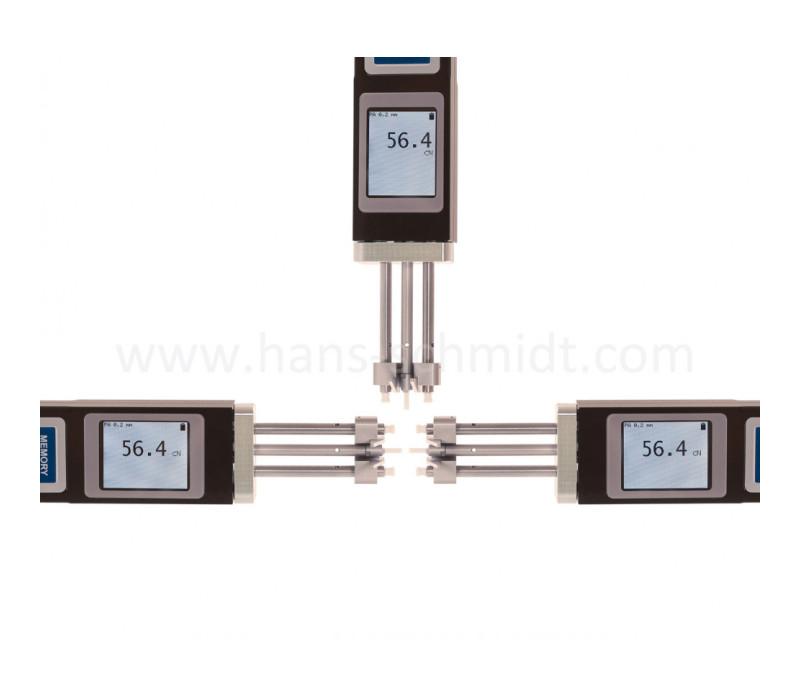

    Tension meter with measuring head as small as possible for textile application only

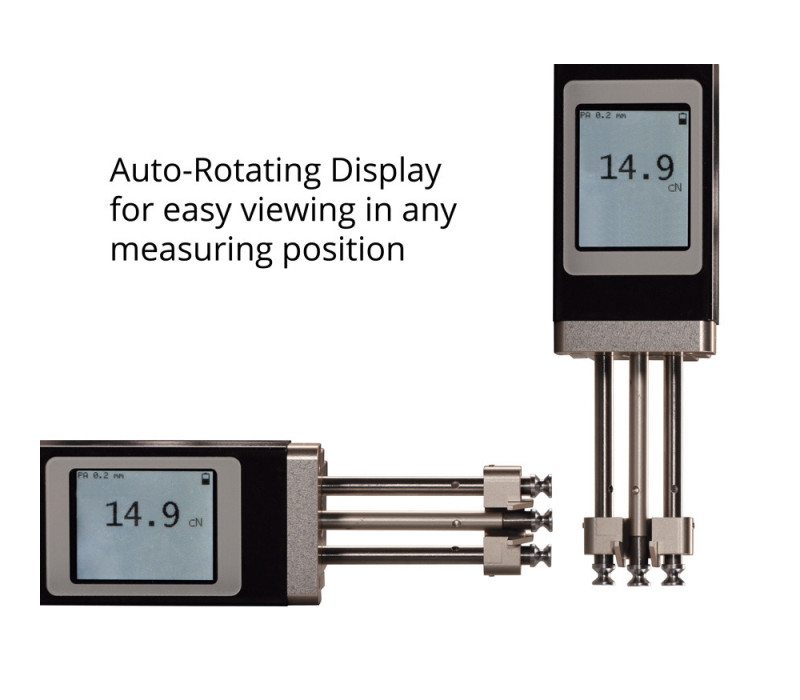

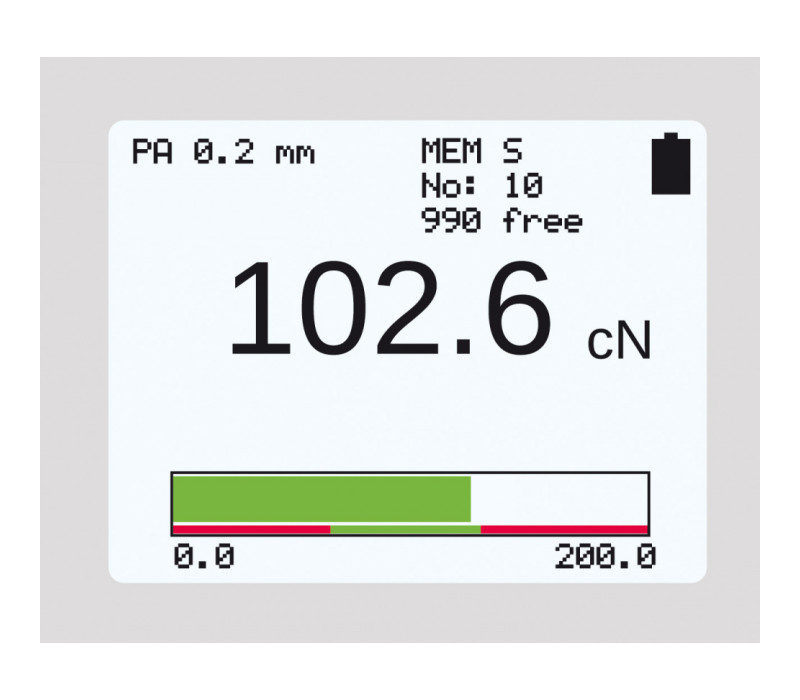

    Reversible display for right or left-hand operation


    Special features for the ETPX models:

    • Memory of max. 4000 displayed tension values splitted up to 255 series of measurements and statistics (Last, AVG, MIN and MAX of displayed values, MIN-PEAK and MAX-PEAK are values measured within a measuring frequency of 1 kHz)
    • USB interface for connection to a PC (With the program SW-TI3 »Tension Inspect 3« readings can be
      displayed, statistically analyzed and saved.)
    • 4 different memory modes can be selected by the operator:
      - Mode S: only statistical values per series are displayed
      - Mode L: statistics plus 10 displayed values of each series of measurements
      - Mode C: statistics plus 4000 displayed values arbitrary splitted up to 255 series
      - Mode F: as C plus higher sampling rate of 100 Hz = 100 values/s
    • User Selectable Units Grams or Centinewtons
    • New filament guide for easy acquisition of material
    • Adjustable damping for easier readings when tension fluctuates
    • Backlit LCD Display
    • 0-2 VDC analog output for connection to a chart recorder or data logger
    • USB output for batch download or real-time data transfer to TensionInspect Software
    • TensionInspect Software plus USB cable provided FREE
    Accuracy±1 % full scale ±1 digit or better
    (typical ±0.5 % full scale)
    Factory Calibration Material0.20 mm Ø Polyamide Monofilament
    Minimum Access Space Required3/4" x 1" (20 x 26mm)
    Guide Roller / Pin MaterialRollers, chrome-plated steel, std : 2000 m/min

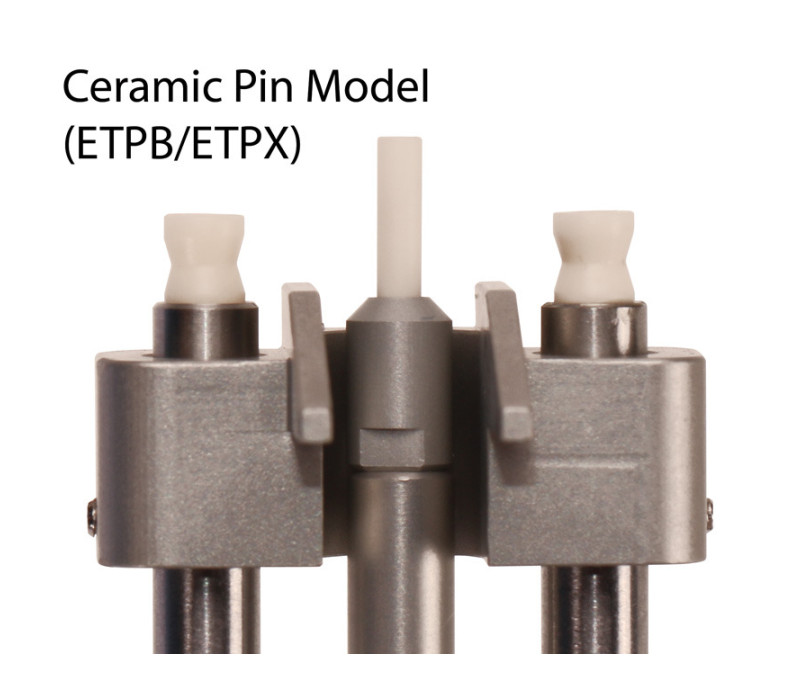

    Ceramic pins, optional : 6000 m/min
    Outputs Signal AnalogANALOG, 0-2.0 V DC, proportional to tension
    Outputs Signal DigitalRS232 (9600, 8,N, 1)
    Measuring PrincipleStrain-gauge bridge
    Maximum Sensing-Roller Displacement0.5mm
    Scanning Frequency100 / sec., except 40/sec. in PEAK mode
    Display Update0.5 sec. (2 times per second)
    Thermal Drift0.25% full scale per degree C
    Natural Frequency250 Hz
    Over Range10% FS, without accuracy guarantee
    Overload Protection200%
    Temperature Limits40-115° F (5-45° C)
    Automatic Zero± 20% of range
    Rel. Humidity Limit95%
    Battery/Life9 volt, long-life lithium (included), non-rechargeable / Approx. 80 hrs. (Note: A standard 9V alkaline battery can be used as a backup, but with greatly reduced life.)
    Low Battery Voltage IndicatorLO BAT, or equivalent display
    Weight14 oz. (400 g)
    Dimensions13" x 1-3/4" x 1" (330 x 45 x 25mm)

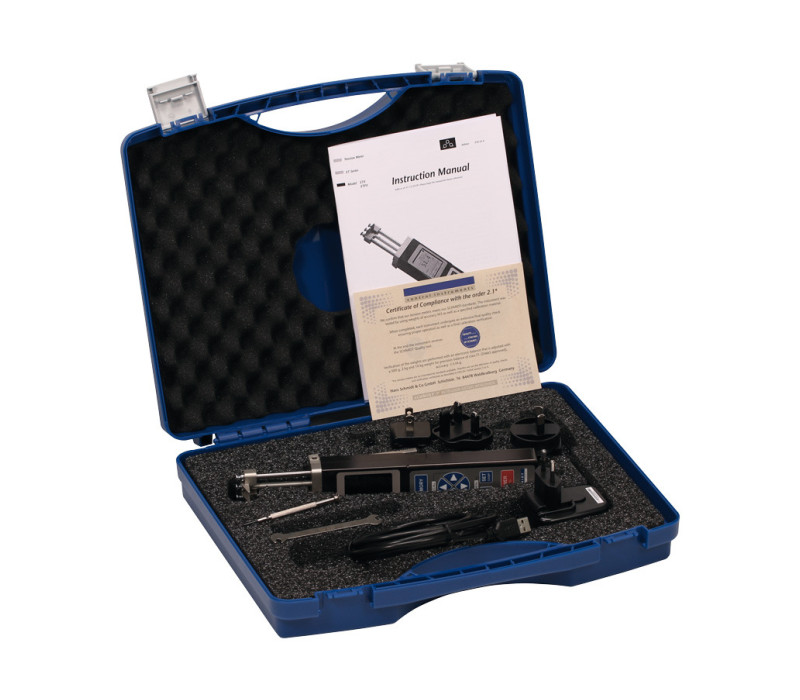

    Complete KitTension Meter, one long-life 9V lithium battery and instructions, all supplied in a foam-fitted carrying case.
    MemoryLast, average, MAX, MIN, MAX-PEAK, MIN-PEAK

    ETPB-ETPX Data Sheet
    Dimensions-ETPB-ETPX

    Tension Ranges

    Model Ranges Resolution Rollers or Pins
    ETB-100 / ETX-100 0.5-100.0 0.1 Rollers
    ETB-200 / ETX-200 1-200 1 Rollers
    ETB-500 / ETX-500 1-500 1 Rollers
    ETPB-100 / ETPX-100 0.5-100.0 0.1 Ceramic Pins
    ETPB-200 / ETPX-200 1-200 1 Ceramic Pins
    ETPB-500 / ETPX-500 1-500 1 Ceramic Pins
    Selectable Units: Grams or Centinewtons

    Outer Roller Spacing 24mm

    Standard Calibration Material 0.20 mm Ø Polyamide Monofilament

    Related Products

    Browse Related Products

    Order Now

    Products
    Item Product Price  Quantity Action
    133500ETPB-100 Tension Meter Digital 0.3-100.0 cN, with LiPo accumulator
    133499ETPB-200 Tension Meter Digital 1-200.0 cN, with LiPo accumulator
    132073ETPB-500 Tension Meter Digital 1-500.0 cN, with LiPo accumulator
    133843ETPX-100 0.5-100.0 cN with LiPo accumulator USB output, memory up to 4000 readings (Ceramic Pins)
    133572ETPX-100 Tension Meter Digital 0.5-100.0 cN, with Memory and Output
    133571ETPX-200 Tension Meter Digital 1-200.0 cN, with Memory and Output
    133573ETPX-500 Tension Meter Digital 1-500.0 cN, with Memory and Output
    Accessories
    Item Product Price  Quantity Action
    136693R540520 - Set of ceramic pins for ETPX
