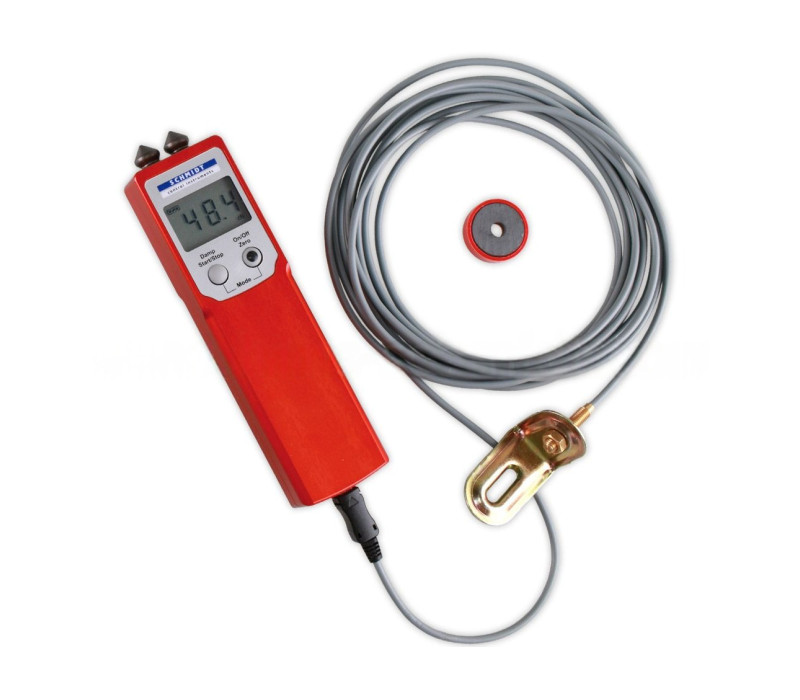

PT-100-L Pocket Tension Meter for Circular Knitting

Name: PT-100-L Pocket Tension Meter for Circular Knitting
SKU: 126974

Pocket yarn tension meter with speed and length measurement for circular knitting machines

The PT-100-L is a handheld instrument for checking low tension in yarns and fibres, particularly on circular knitting machines. It measures tension from 0.5 to 100.0 cN and also measures yarn speed and length when tension is at least 10 cN.

The compact, two-roller measuring head allows the running yarn to be threaded into the instrument by rotating the gauge. Adjustable electronic damping and automatic zero setting support tension measurements in different positions.

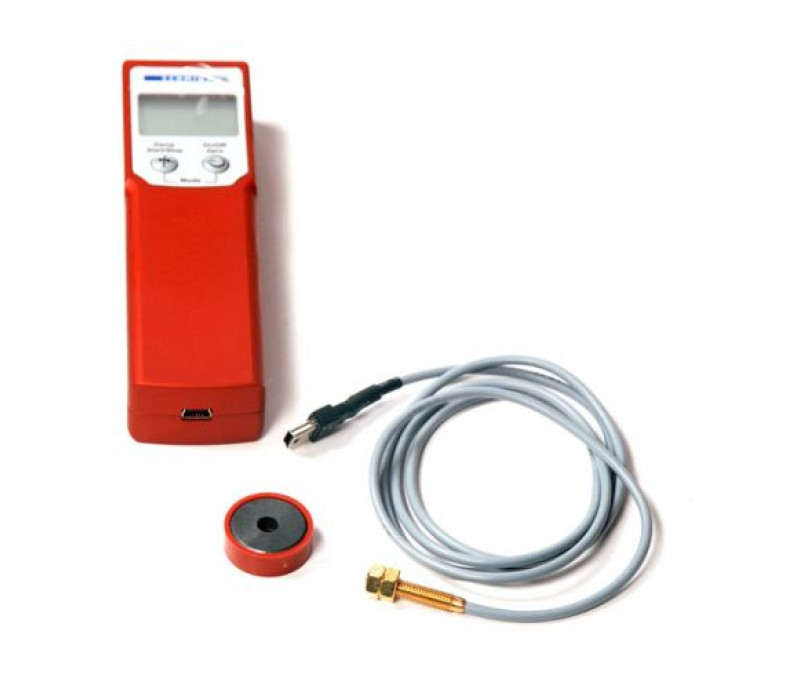

Yarn length can be measured manually while the measurement button is pressed or automatically using the supplied sensor and magnet to start and stop measurement over a selected number of machine revolutions (1–10). The instrument operates on a rechargeable LiPo battery.

Easy Slide-In material threading by cone shaped guide roller and turning the instrument 180 degrees

Continuous automatic "zero setting" in all measuring positions insures highest accuracy and repeatability
Adjustable electronic damping to provide steady tension readings
V-Grooved Ball-bearing guide rollers with measuring head width of 24 mm (outer distance of guide rollers)
Compact aluminum housing is rugged and features an easy to read LCD Display
NIST-Traceable Calibration Certificate & Test Report is optionally available
User-set measuring units of Grams or cN and can be used in right or left hand as desired
Rechargeable battery provides approx. 40 hours of continuous use
Each instrument is individually calibrated for highest accuracy and is CE Certified

Tension meter with carrying case, sensor, magnet, AC adapter with 3 country adapters (EU/USA/UK), operating instruction manual

Accuracy	Tension measurement: ±1.5% of full scale ±1 digit. This accuracy specification does not apply to speed or length measurement.
Overload protection	200% full scale
Measuring units	cN, gr, m/min, in/min, m, in switchable
Measuring principle	Strain gauge full bridge loadell
Damping	Adjustable electronic damping, averaging
Display	LCD 3 ½ digits, 9 mm high
Display update rate	2 times per second
Auto power off	After 3 minutes off non use
Temperature range	10 - 45 ºC
Air humidity	85 % RH, max.
Power supply	Rechargeable LiPo battery (approx. 40 hours of continuous use; approx. 3.5 hours charging time). USB AC charger: 100–240 V AC. Plug-adapter configuration: see Checkline scope of supply.
Housing material	Aluminium
Dimensions	141 x 36 x 22 mm (LxWxH)
Weight, net (gross)	Approx. 170 g (approx. 500 g)

Tension Ranges

Model	Ranges	Measuring Range Speed	Measuring Range Length	Calibration Material
PT-100-L	0.5 - 100.0 gram or cN	0 - 1999 m/min	0 - 1999 m	PA: 0.12 mm Ø

Products

Item	Product	Price	Quantity	Action
133930	PT-100-L Pocket Tension Meter for Circular Knitting

All prices shown exclude VAT and shipping costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

PT-100-L Pocket Tension Meter for Circular Knitting

Features

Specifications

Tension Ranges

PT-100 Pocket Tension Meter for Circular Knitting

Order Now

PT-100-L Pocket Tension Meter for Circular Knitting

Features

Specifications

Tension Ranges

Related Products

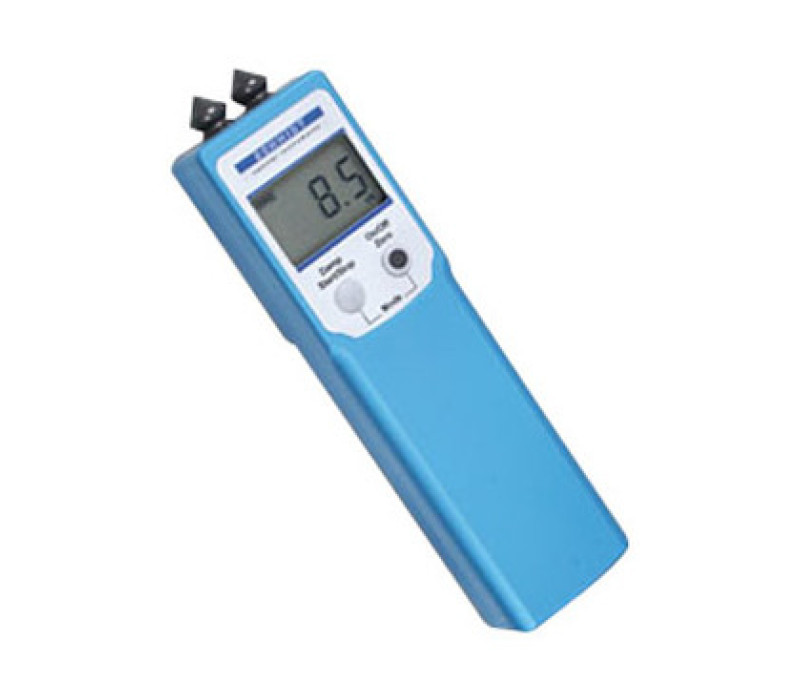

PT-100 Pocket Tension Meter for Circular Knitting
