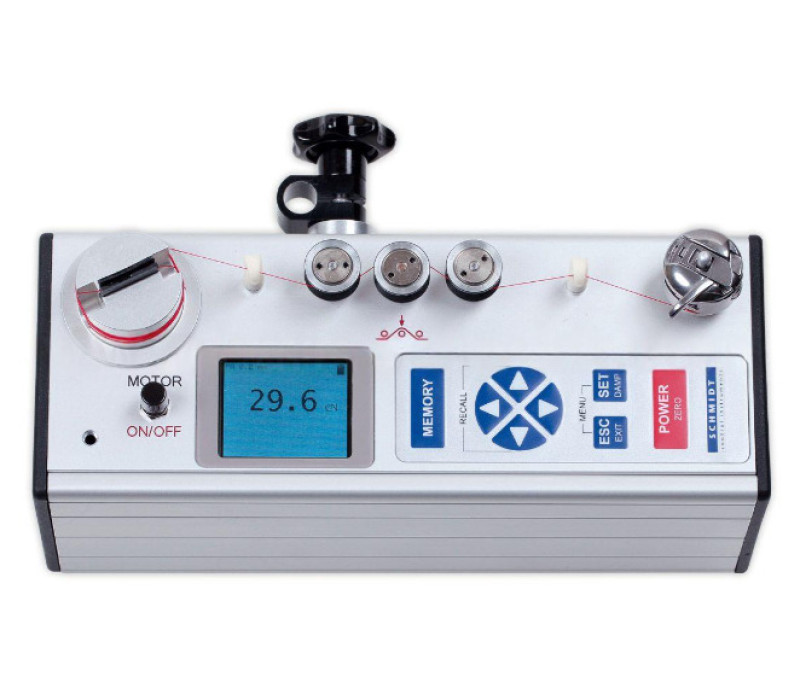

MST Series Tension Meter

4 Ranges

Yarn tension meter with motorized take-up fixture for measuring and adjusting the tension of sewing machines to get best and highest quality stitched seams. Therefore e. g. yarn breaks can be adjusted under constant conditions (speed of the thread).

To control the tension at sewing machines as well as the take-off tension of shuttles.

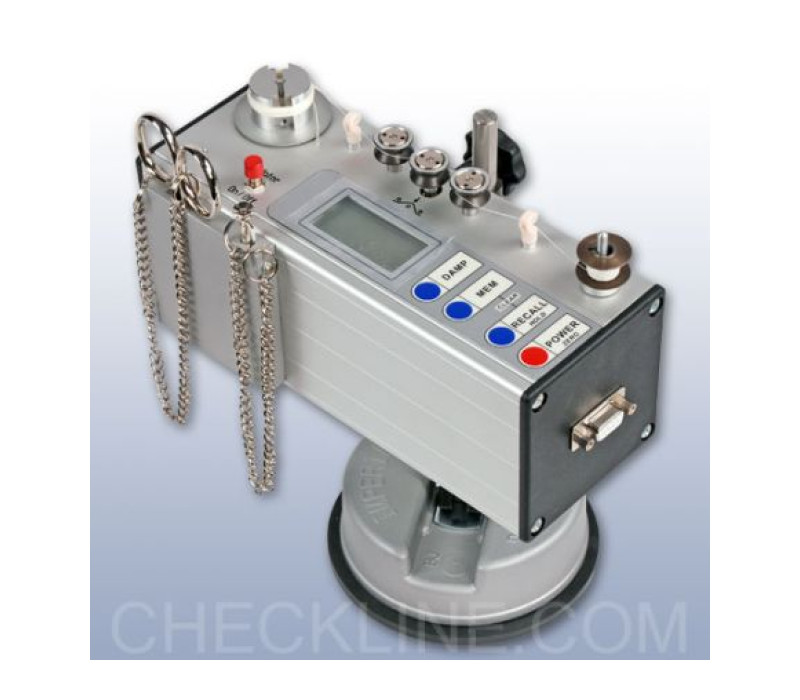

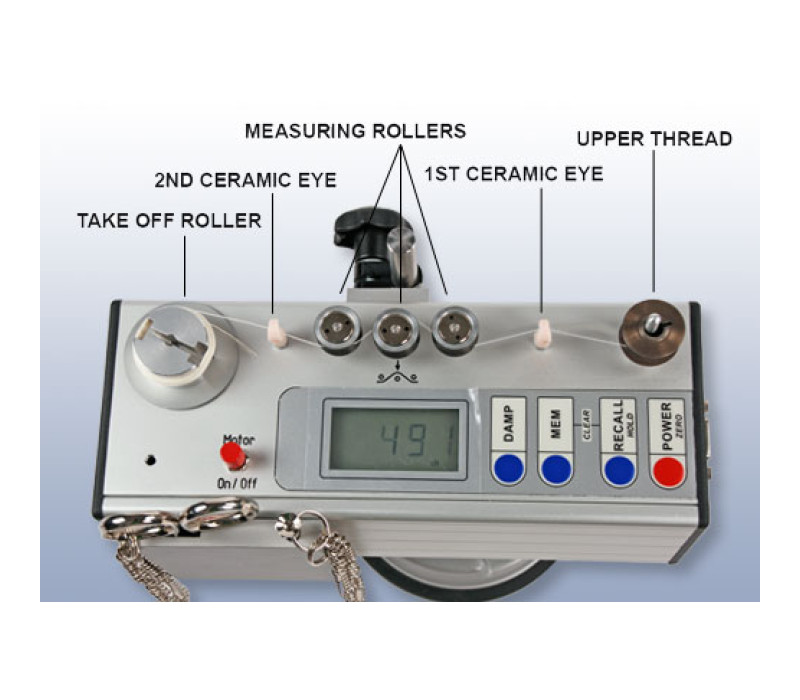

Electronic yarn tension meter MST with motorized take up with tension range up fixture
The electronic tension meter ETX is the basis of this instrument

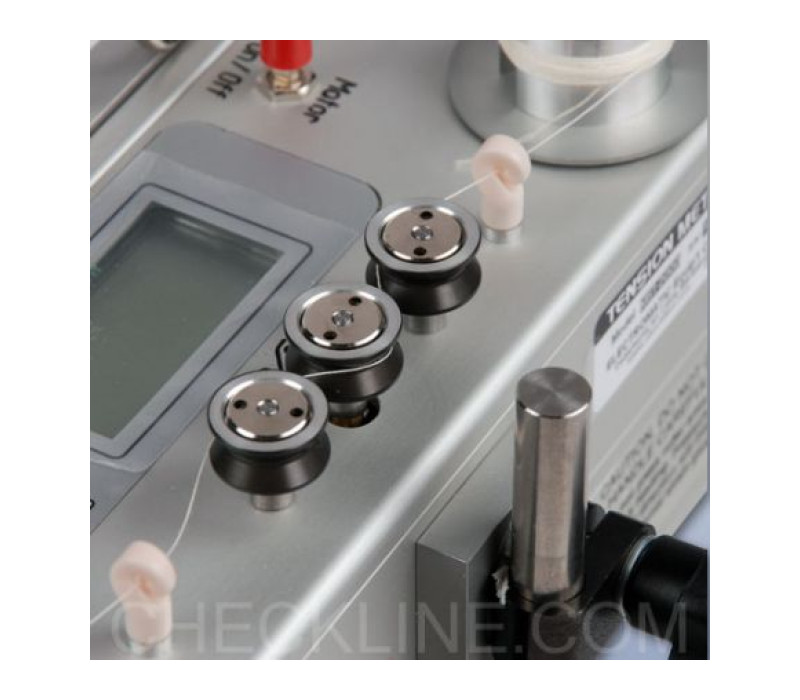

Motorized take-up fixture to have constant speed of the thread 8 m/min
Storage of AVG, MIN, MAX and PEAK tension values of a user set time frame. These values can be recalled in the display
Adjustable electronic damping for better reading when tension is constantly fluctuating

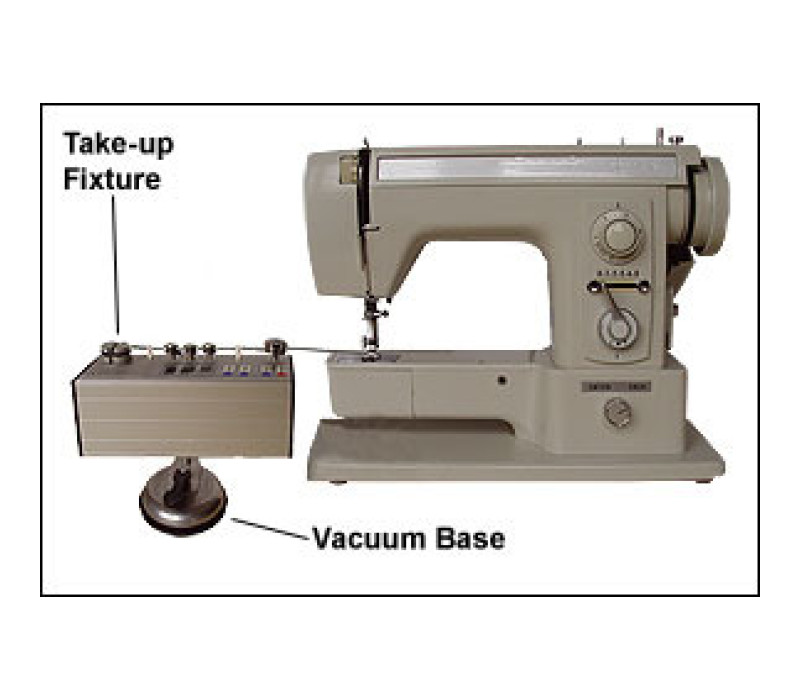

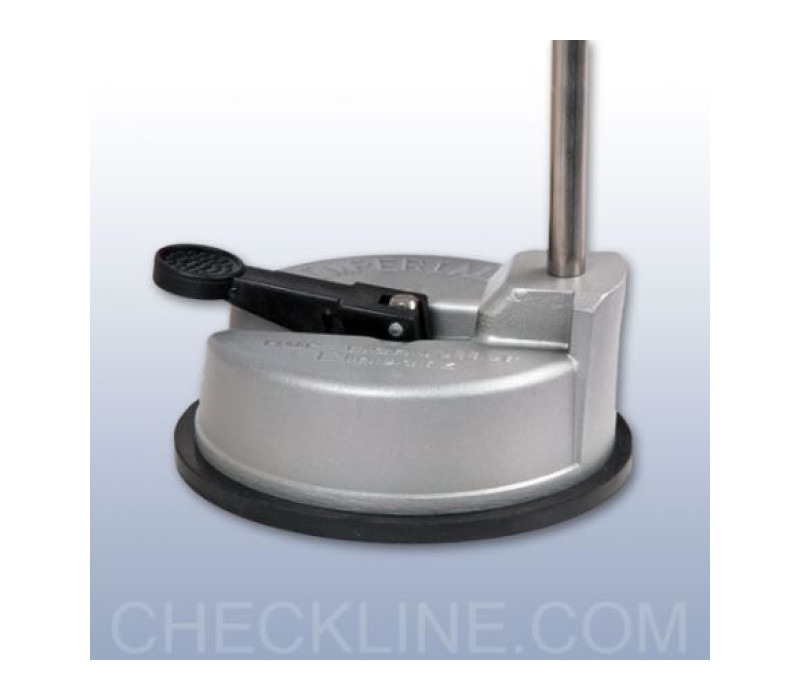

Vacuum base for positioning the unit on the work plate when tension is measured at the sewing machine

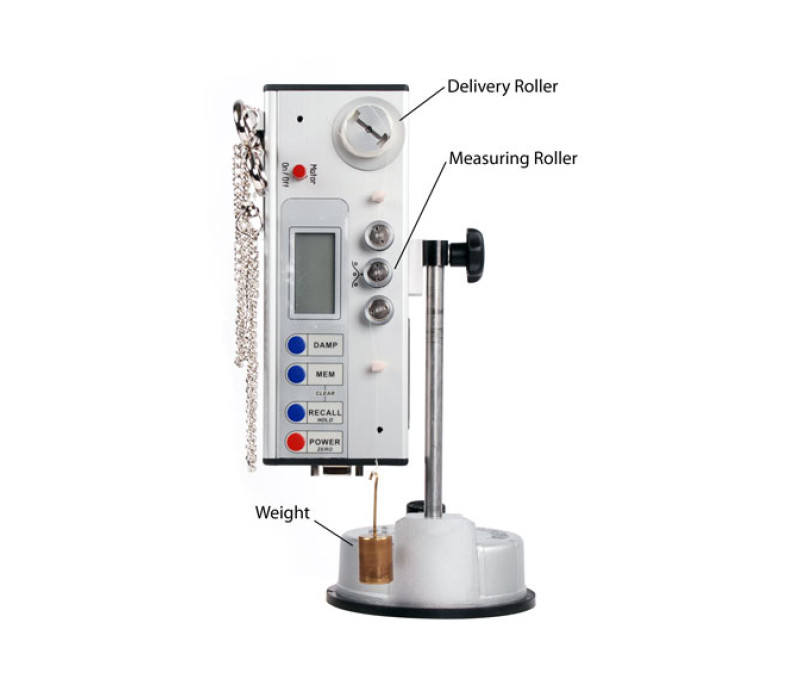

Special fixture to determine shuttle tension
Output signal:
– analog 0 – 2 V DC
– digital RS-232
The tension meter MTS can be connected to a PC using the RS-232 interface to monitored readings constantly on a PC
Memory of max. 4000 displayed tension values split up to 255 series of measurements and statistics (Last, AVG, MIN and MAX of displayed values, MIN-PEAK and MAX-PEAK are values measured within a measuring frequency of 100 Hz)

4 different memory modes can be selected by the operator:
– Mode S: only statistical values per series are displayed
– Mode L: statistics plus 10 displayed values of each series of measurement
– Mode C: statistics plus 4000 displayed values arbitrary split up to 255 series
– Mode F: as C plus higher sampling rate of 100 Hz = values/s

Model MST can be connected to a PC with the RS-232 cable. With optional available software SW-TI3 »Tension Inspect 3« readings can be displayed, statistically analyzed and saved.

Storage of last, average, MAX MIN, PEAK-MAX, PEAK-MIN values as well as statistical analysis (average value) during a user-selected period
Motorized take-up fixture to have constant speed of the thread 12 m/min

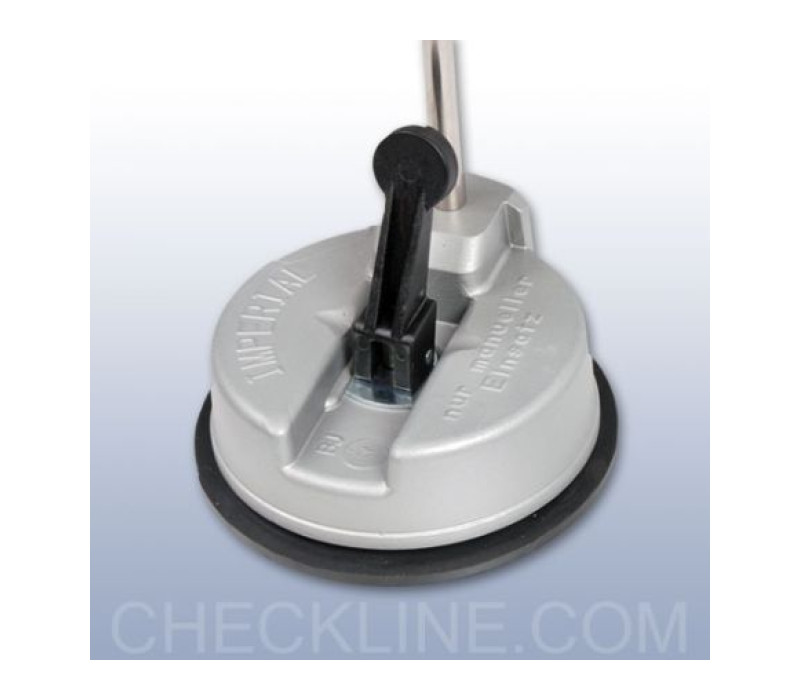

Suction-cup base for positioning the unit on the work plate when tension is measured at the sewing machine
Special fixture to determine shuttle tension
RS-232 output for batch download or real-time data transfer to TensionInspect Software
TensionInspect Software plus RS-232 cable provided FREE

Accuracy	±0.5 % from measuring value ±1 digit or better
Overload	20 % full scale, without accuracy guarantee
Overload protection	100%
Measuring frequency	Max. 5 kHz
Damping	Moving averaging
Display update time	2 times/s
Memory	Last, average, MAX, MIN, PEAK-MAX, PEAK-MIN
Output signal	Analog: 0 - 2 V DC, linearized, conversion rate 30 Hz Digital:RS 232 (9600, 8, N, 1)
Vacuum base	Adjustable height for measuring position above working plate 120 to 220 mm
Temperature range	10 - 45 °C
Air humidity	85 % RH, max.
Power supply	LI-Ion Battery or 12 V AC Adapter for 230 V AC, option 115 V AC
Housing Materials	Aluminum

Tension Ranges

Model	Range
MST-200	1 - 200 cN
MST-500	1 - 500 cN
MST - 1000	1 - 1000 cN
MST - 2000	1 - 2000 cN
