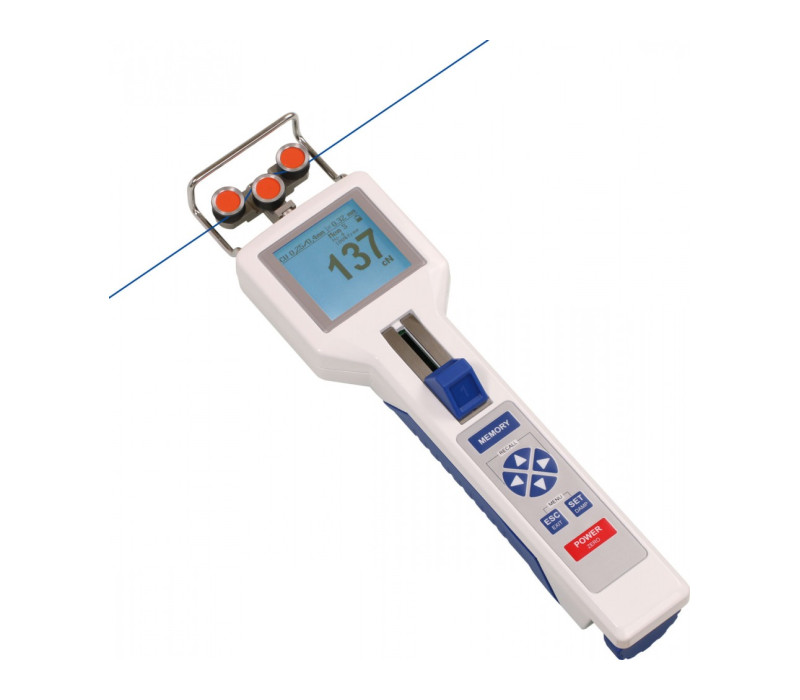

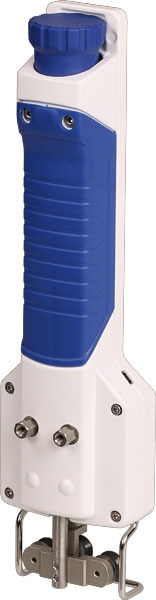

    DTX Digital Tension Meter with Data Logging

    Made in Germany Digital hand-held tension meter with colour TFT display, data logging and USB interface

    The DTX digital tension meter measures the running tension of yarns, fibres, wires and similar materials in textile and wire manufacturing applications. Available in 12 measuring ranges, the DTX combines a three-roller measuring system with advanced recording and analysis functions for monitoring tension during production and quality control.

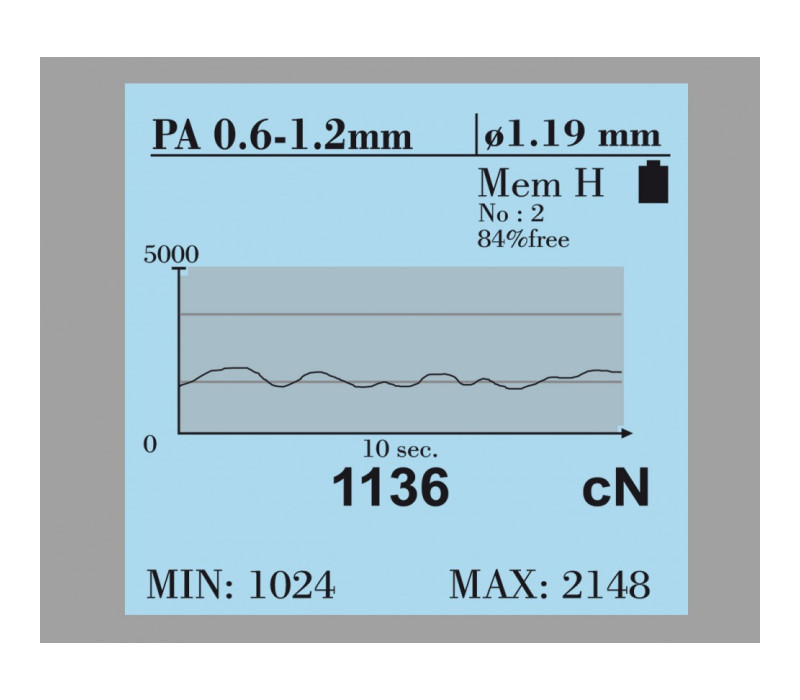

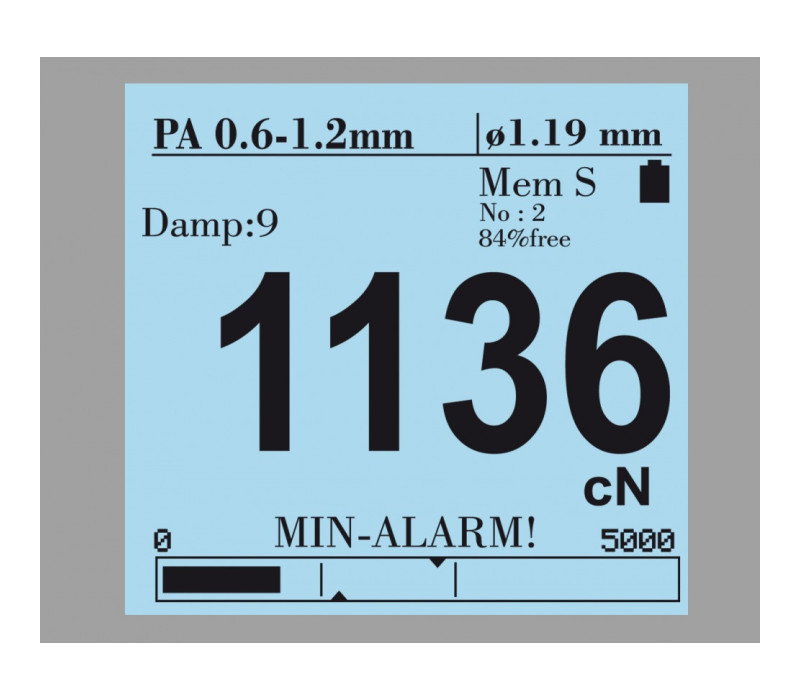

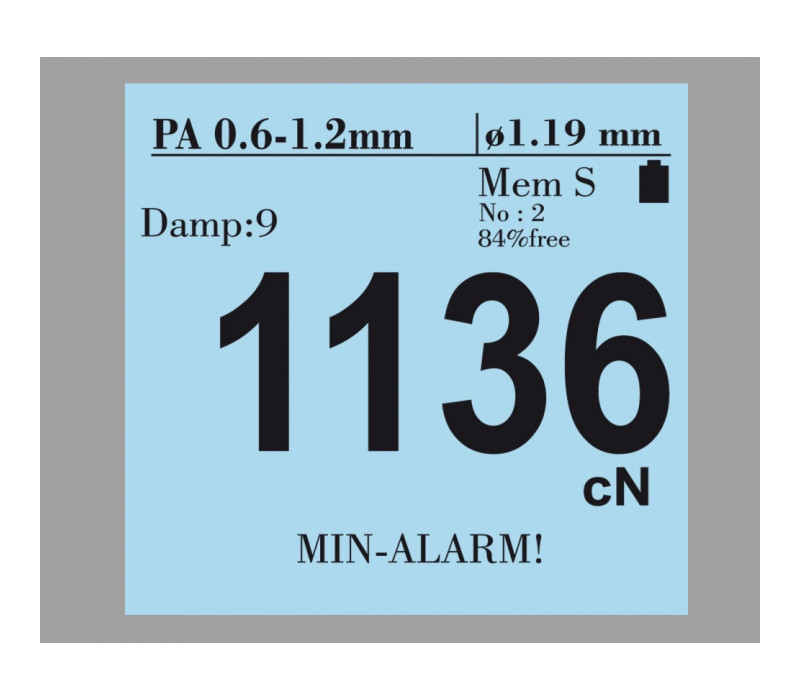

    The colour TFT display offers three viewing modes: numeric measurement, numeric measurement with a bar graph for trend monitoring, and an X-Y diagram showing tension over time. The display can rotate automatically to suit the instrument orientation. Minimum and maximum readings can also be viewed within an adjustable time window of 2 to 60 seconds.

    Five memory modes support statistical recording, frozen tension graphs, continuous logging at 2 readings per second, high-speed logging at 1,000 readings per second and individual readings recorded on demand. In modes S, C and F, recording can start automatically when a user-defined tension value is reached. The internal memory stores up to 60,000 measured values across up to 255 measurement series.

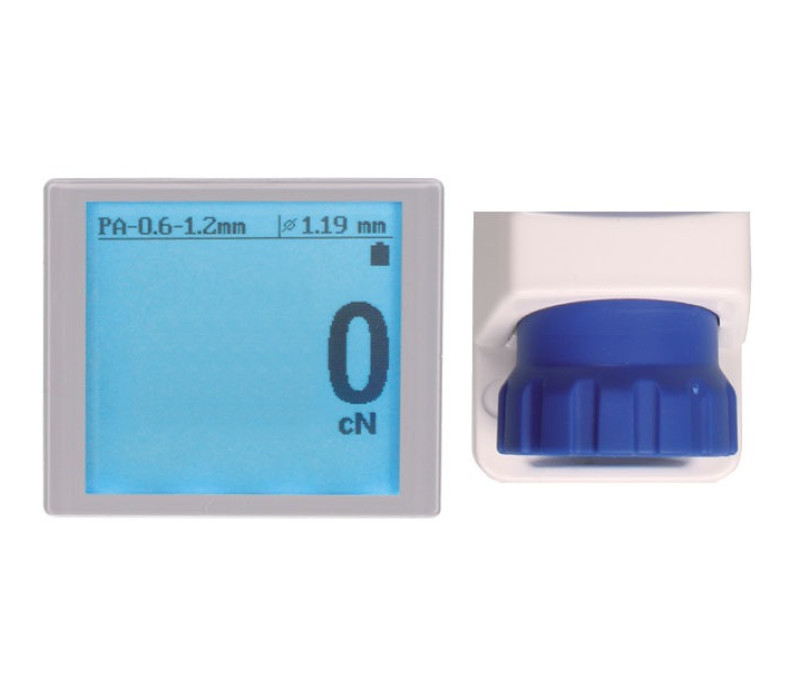

    For materials that differ from the factory calibration standards, the DTX provides nine customer calibration locations and calibration fine adjustment. A material thickness compensator is available on selected models. The USB interface and supplied Tension Inspect 3 software enable measurement data to be transferred to a PC for analysis and export.

    Request price >>

    • Colour TFT display with numeric, bar graph and time–tension graph modes
    • Five data logging modes with statistical evaluation
    • Internal memory for up to 60,000 measured values across 255 measurement series
    • Selectable logging trigger value for memory modes S, C and F
    • Displays minimum and maximum readings within a selectable 2–60 s time window

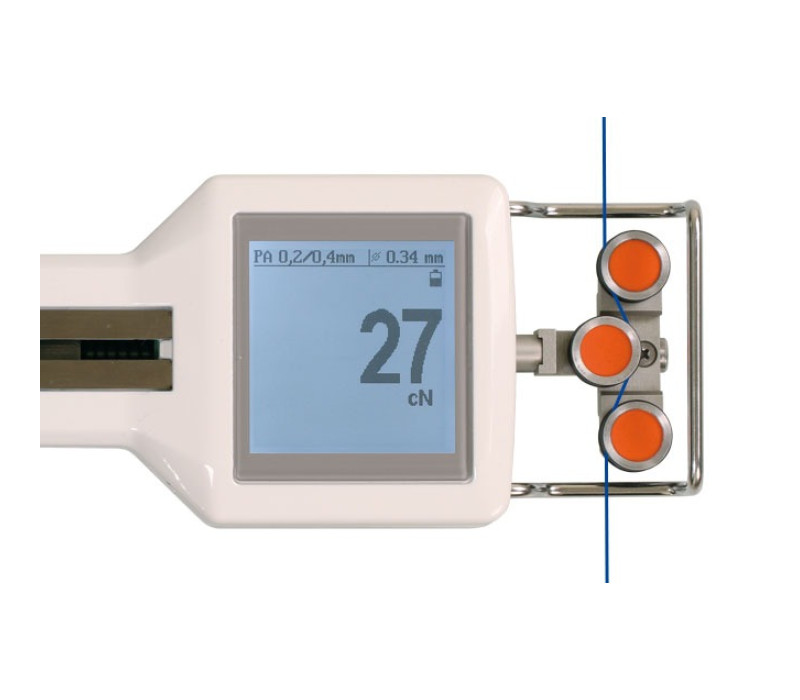

    • Automatic or manually selectable display rotation in 90° steps
    • Two factory calibration adjustments and nine customer calibration locations
    • Adjustable material thickness compensation on selected models
    • User-defined minimum and maximum tension alarms
    • USB interface for PC data transfer and analysis

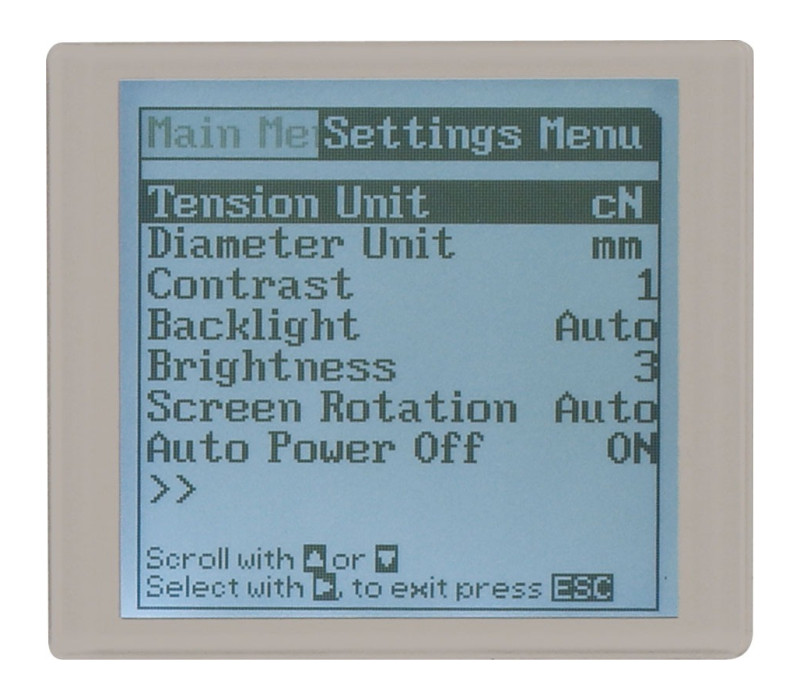

    • Settings can be password protected
    • 12-month warranty
    Complete Kit
    • DTX digital tension meter with built-in rechargeable LiPo battery
    • USB AC adapter with four plug adapters (EU/US/UK/AUS-NZ)
    • USB cable
    • Tension Inspect 3 software on USB flash drive for Windows 7 or higher
    • Certificate of Compliance with the order, Type 2.1 according to EN 10204
    • Instruction manual
    • Carrying case
    Measuring Ranges12 model-dependent ranges, from 1–200.0 cN to 0.6–60.00 daN
    See Tension Ranges for the individual models
    AccuracyPolyamide (PA), 5–100% of full scale: ±0.5% of full scale ±1 digit
    Remaining tension range and other calibration materials: ±3% of full scale ±1 digit
    Factory and Customer Calibrations2 factory adjustments and 9 customer calibration locations
    Measuring UnitsTension: cN, daN, g, kg, N, lb
    Material thickness: mm, inch
    Available tension units depend on the model's measuring range
    Measuring PrincipleStrain gauge bridge with three-roller measuring system
    Measuring FrequencyMax. 1 kHz (1,000 measurements/s); internal sampling at 8 kHz
    Signal ProcessingDigital, 16-bit A/D converter
    DisplayColour TFT display with three modes: numeric, numeric with bar graph, and X-Y diagram (tension versus time)
    Display Update Rate2 updates per second

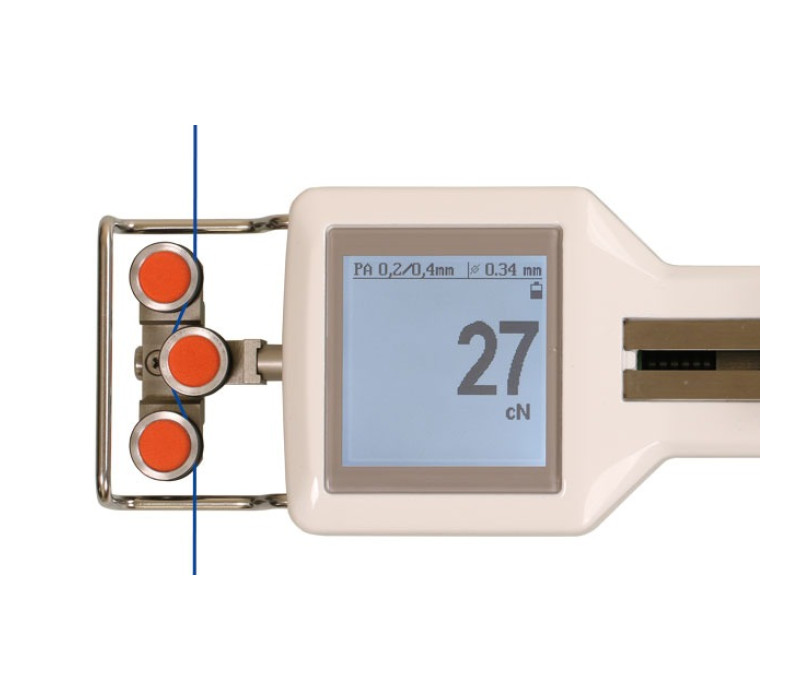

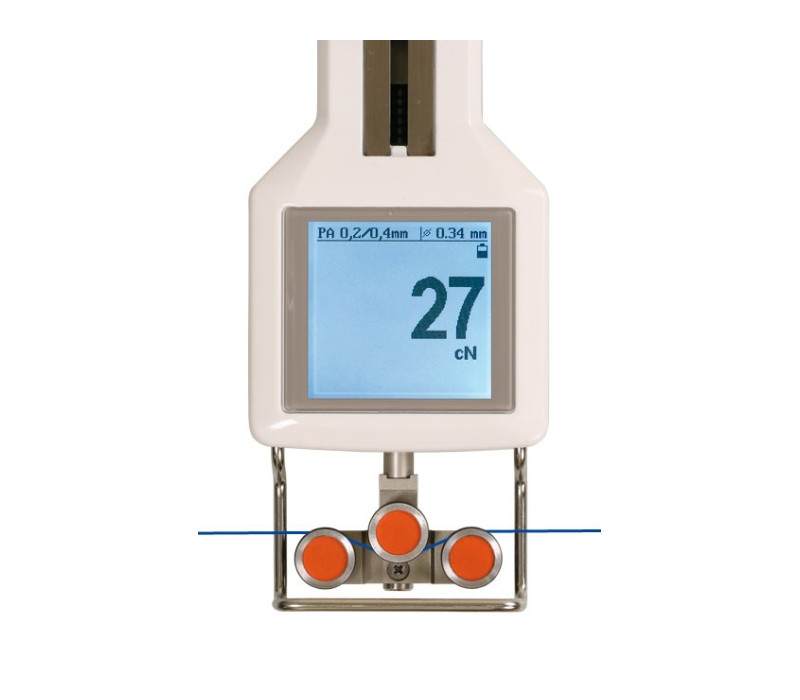

    Display Rotation0°, 90°, 180° or 270°; automatic orientation available
    MIN/MAX Time WindowAdjustable from 2 to 60 seconds
    Data MemoryUp to 60,000 measured values across up to 255 measurement series
    Memory Modes5 modes: S (Standard), H (Hold), C (Continuous), F (Fast) and D (On Demand)
    Selectable recording trigger in modes S, C and F
    StatisticsMinimum, maximum, average and last reading; stored-series statistics also include standard deviation and number of readings
    Data OutputUSB interface for PC data transfer (Tension Inspect 3 software supplied)
    Electronic DampingAdjustable electronic damping (averaging), 9 levels
    Calibration Fine Adjustment±10% in 1% increments
    Material Thickness CompensationMax. 2.5 mm; fitted to DTX-500 to DTX-30K. Not fitted to DTX-200, DTX-50K or DTX-60K-ASYB
    Measuring Roller DeflectionMax. 0.2 mm
    OverrangeApprox. 10% beyond full scale, without accuracy guarantee
    Overload Protection100% of full scale
    Password ProtectionSettings can be protected with a password
    Automatic Power-OffAfter approx. 3 minutes of inactivity, when enabled
    Power SupplyRechargeable LiPo battery; up to 30 hours of continuous operation
    Charging time approx. 3.5 hours
    USB AC adapter: 100–240 V AC
    Operating Temperature10–45 °C
    Relative HumidityMax. 85% RH
    Temperature CoefficientGain: less than ±0.01% of full scale/°C at 25 °C
    Zero point: better than ±0.03% of full scale/°C at 25 °C
    Housing MaterialDie-cast aluminium
    Housing Dimensions265 × 78.5 × 46 mm (L × W × H); measuring-head dimensions vary by model
    WeightDTX-200 to DTX-50K: approx. 875 g net (1,550 g gross)
    DTX-60K-ASYB: approx. 1,040 g net (2,700 g gross)
    Included CertificateCertificate of Compliance with the order, Type 2.1 according to EN 10204
    Warranty12 months

    DTX Data Sheet

    Dimensions-DTX

    Tension Ranges

    Model Measuring Range Head Width* Textile Applications Copper Wire Applications
    DTX-200 1–200.0 cN 66 mm Max. 200 tex Max. 0.15 mm Ø
    DTX-500 1–500.0 cN 66 mm Max. 500 tex 0.05–0.25 mm Ø
    DTX-1000 10–1000 cN 66 mm Max. 1000 tex 0.10–0.40 mm Ø
    DTX-2000 20–2000 cN 66 mm Max. 2000 tex 0.30–0.60 mm Ø
    DTX-2500 25–2500 cN 116 mm Max. 2500 tex 0.30–0.70 mm Ø
    DTX-4000 40–4000 cN 66 mm Max. 4000 tex 0.35–0.90 mm Ø
    DTX-5000 50–5000 cN 116 mm Max. 5000 tex 0.40–1.00 mm Ø

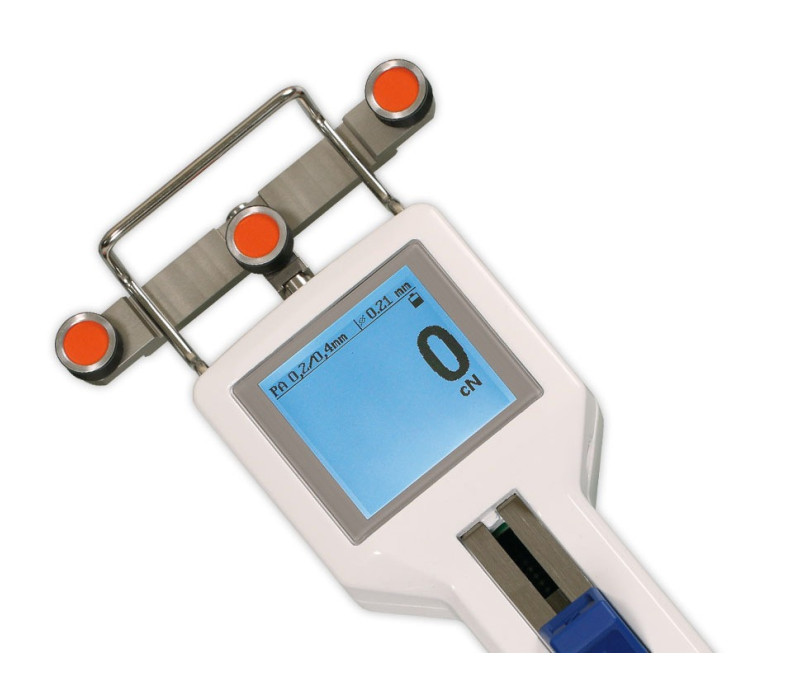

    DTX-10K 0.1–10.00 daN 116 mm Max. 10000 tex 0.70–1.40 mm Ø

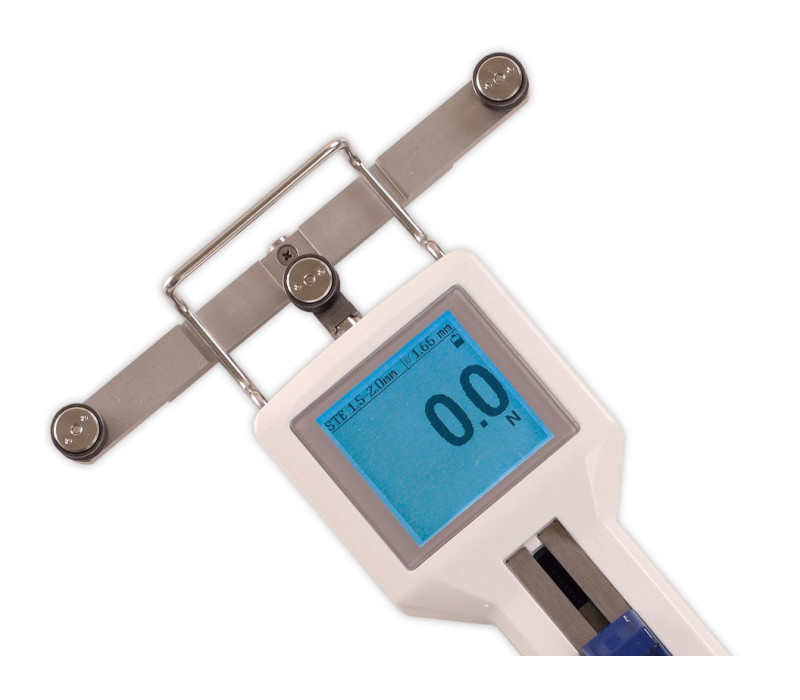

    DTX-20K 0.2–20.00 daN 166 mm Max. 20000 tex 1.00–2.00 mm Ø

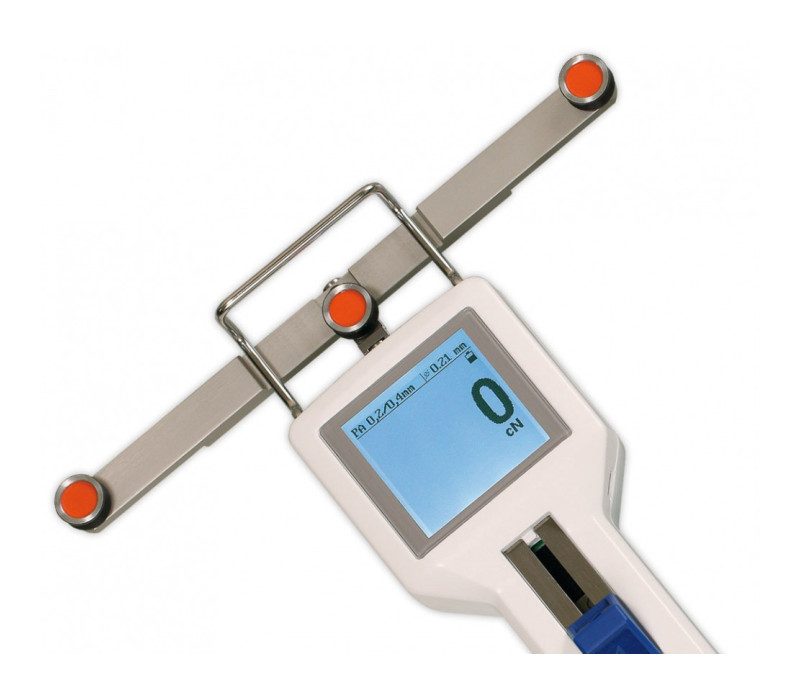

    DTX-30K 0.3–30.00 daN 216 mm Max. 30000 tex 1.20–2.50 mm Ø
    DTX-50K 0.5–50.00 daN 216 mm Max. 50000 tex 1.40–3.00 mm Ø

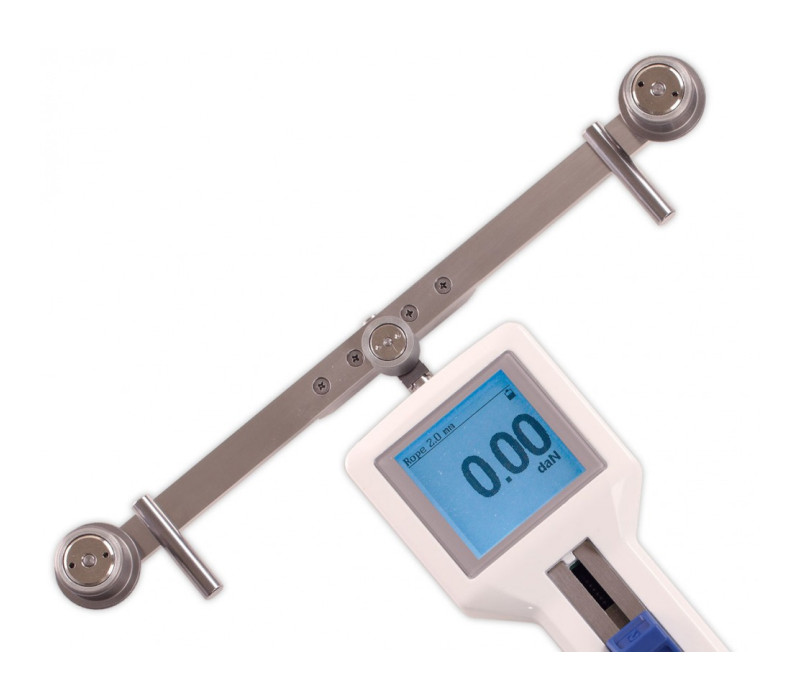

    DTX-60K-ASYB 0.6–60.00 daN 270 mm Max. 60000 tex 1.80–3.50 mm Ø
    * Filament guide width or distance between the outer guide rollers, depending on the model. Application values are manufacturer guidance; suitability also depends on the material measured.
    Material thickness compensation is fitted to DTX-500 to DTX-30K (not DTX-200, DTX-50K or DTX-60K-ASYB).
    Custom measuring ranges, head widths and roller spacing are available on request.
    Recording Modes and Rollers

    Data Recording Modes

    The DTX offers five recording modes for different measurement and analysis requirements.

    Mode Function

    S – Standard

    Records statistical values over a user-defined measuring period without storing the individual readings.

    H – Hold

    Freezes the graphical display and stores up to the last 128 readings with statistical values for later review.

    C – Continuous

    Records 2 readings per second over a selectable period from 1 second to 1 hour, with statistical evaluation.

    F – Fast

    Records 1,000 readings per second over a selectable period from 1 to 60 seconds, with statistical evaluation.

    D – On Demand

    Stores individual readings when initiated by the operator, together with statistical values.

    Modes S, C and F support a user-defined tension trigger for starting recording. Switching to a different recording mode deletes the data stored in the previous mode.

    Guide Roller Options

    Roller selection depends on the material being measured and its running speed. The standard DTX uses V-grooved, hard-coated aluminium rollers. The DTX-60K-ASYB is supplied with asymmetrically grooved, tempered-steel rollers.

    Roller Code Maximum Line Speed Roller Material / Design

    Standard

    2000 m/min

    Hard-coated aluminium, V-groove

    Code K

    3500 m/min

    Hard-coated aluminium, V-groove

    Code H

    5000 m/min

    Plasma-coated aluminium, V-groove

    Code T

    1000 m/min

    Black POM plastic, V-groove

    Code W

    1000 m/min

    Nickel-plated steel, V-groove

    Code ST

    1000 m/min

    Hardened steel, V-groove

    Code B

    1000 m/min

    Tempered steel for tyre cord, V-groove

    Code CE2

    1000 m/min

    Ceramic-coated aluminium, V-groove

    Code ASY

    1000 m/min

    Hard-coated aluminium, asymmetrical groove

    Code ASYB

    1000 m/min

    Tempered steel for tyre cord, asymmetrical groove

    Code U

    2000 m/min

    Hard-coated aluminium, U-groove

    Codes ASY, ASYB and U are not available for DTX-200. Alternative rollers must be specified when ordering the instrument.

    Options

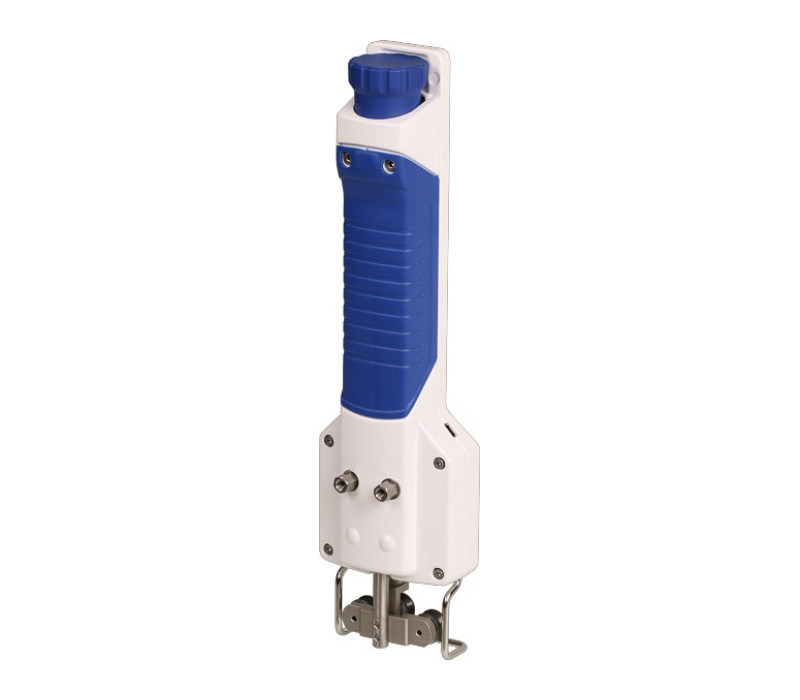

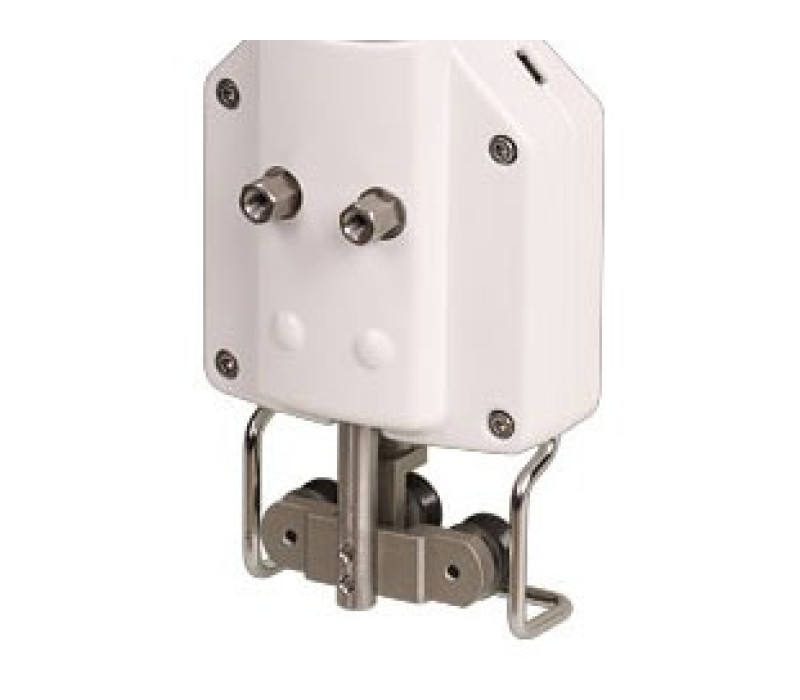

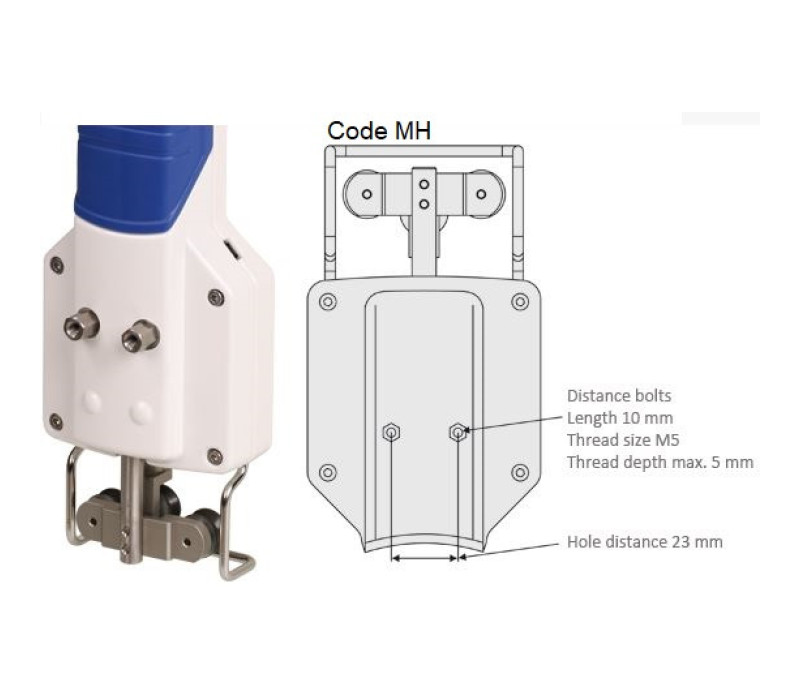

    Code MH — Stationary mounting

    Factory-prepared threaded mounting points with removable distance bolts for stationary measurement installations. Must be specified when ordering; cannot be retrofitted.

    Order Now

    Products
    Item Product
    136628DTX-200 Tension Meter Digital 1 - 200 cN
    136615DTX-500 Tension Meter Digital 5 - 500 cN
    136286DTX-1000 Tension Meter Digital 10 - 1000 cN
    136328DTX-2000 Tension Meter Digital 20 - 2000 cN
    136495DTX-2500 Tension Meter Digital 25 - 2500 cN
    136310DTX-4000 Tension Meter Digital 40 - 4000 cN
    136467DTX-5000 Tension Meter Digital 50 - 5000 cN
    136458DTX-10K Tension Meter Digital 0.1 - 10 daN
    137043DTX-20K Tension Meter Digital 0.2 - 20 daN
    137044DTX-30K Tension Meter Digital 0.3 - 30 daN
    136217DTX-50K Tension Meter Digital 0.5 - 50 daN
    136981DTX-60K-ASYB Tension Meter Digital 0.6-60 daN
    Accessories
    Item Product
    136673Code MH_Mounting holes
    136618Code WL_Wi-Fi data transfer
    133103Code K Hardcoated Aluminium Rollers (instead of standard rollers - new meter)
    139750Code H - Plasma-coated Aluminium Rollers
    130042Code T - POM Guide Rollers (instead of standard rollers - new meter)
    130208Code W Nickel Plated Steel Guide Rollers (instead of standard rollers - new meter)
    133906Code ST - Hardened Steel Rollers (instead of standard rollers - new meter)
    130018Code B - Tempered Steel Rollers to measure Tyre Cord
    130041Code CE2 Ceramic-coated Aluminium Rollers (instead of standard rollers - new meter)
    132148Code ASY - Hard-coated aluminum, asymmetrical groove, 1000 m/min
    138107Code ASYB - Tempered Steel Rollers for Tire Cord, asymmetrical groove, 1000 m/min
    139751Code V1 Hardcoated aluminium V-grooved rollers (instead of standard rollers - new meter)
    130473Code U Hardcoated aluminium U-grooved rollers (instead of standard rollers - new meter)
