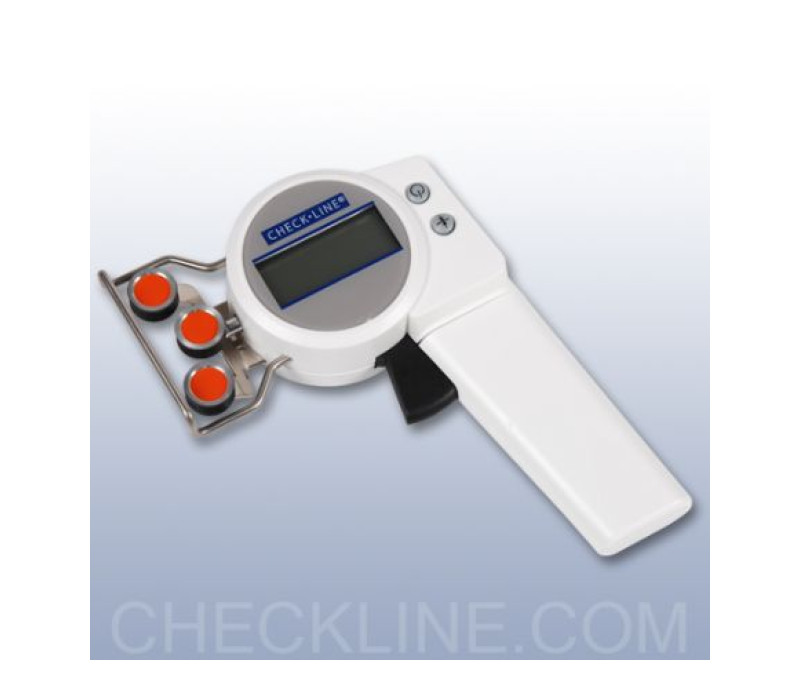

    ZED Digital Tension Meter for Yarn and Fine Wire

    Made in Germany Digital low-tension measurement for yarns, fibres and fine wires

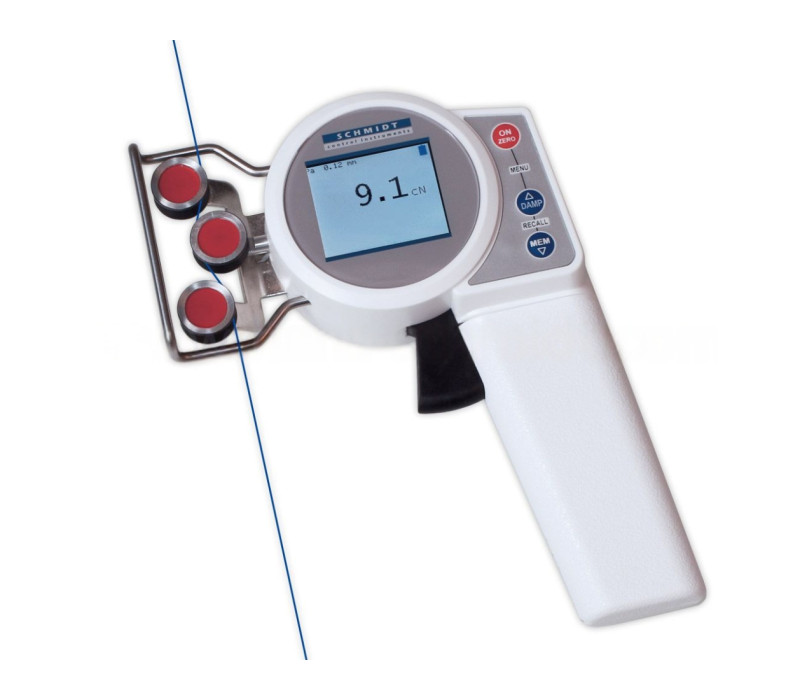

    The ZED Digital Tension Meter measures low tensions in running yarns, fibres and fine wires. Its 63 mm filament guide and larger guide rollers make it suitable for general low-tension measurement where miniature rollers are not required. Two models provide measuring ranges of 1.0–200.0 cN and 1–500 cN.

    A trigger-operated roller shifting mechanism makes it easy to insert and remove the running material. The backlit colour TFT display provides numeric, live bargraph and time-tension graph views and rotates automatically in 90° steps to suit the measuring position.

    Automatic zero adjustment, adjustable electronic damping and selectable measurement units support reliable measurements. One factory calibration curve and up to three customer-specific calibration curves can be stored for different materials. Guide roller options are available for different materials and higher line speeds.


    Request price >>

    • Two models with measuring ranges of 1.0–200.0 cN and 1–500 cN

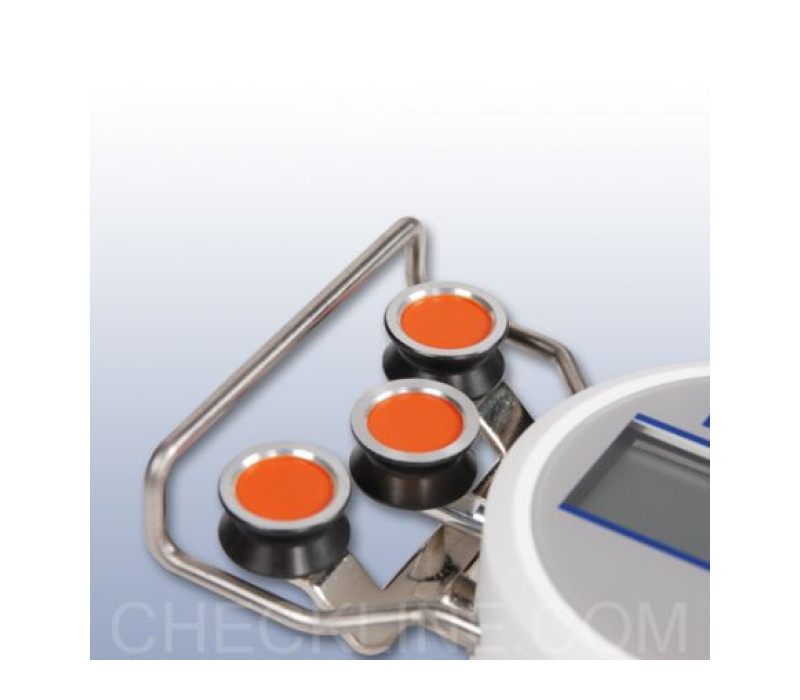

    • 63 mm filament guide with ball-bearing mounted, V-grooved guide rollers
    • Trigger-operated roller shifting mechanism for inserting and removing running material

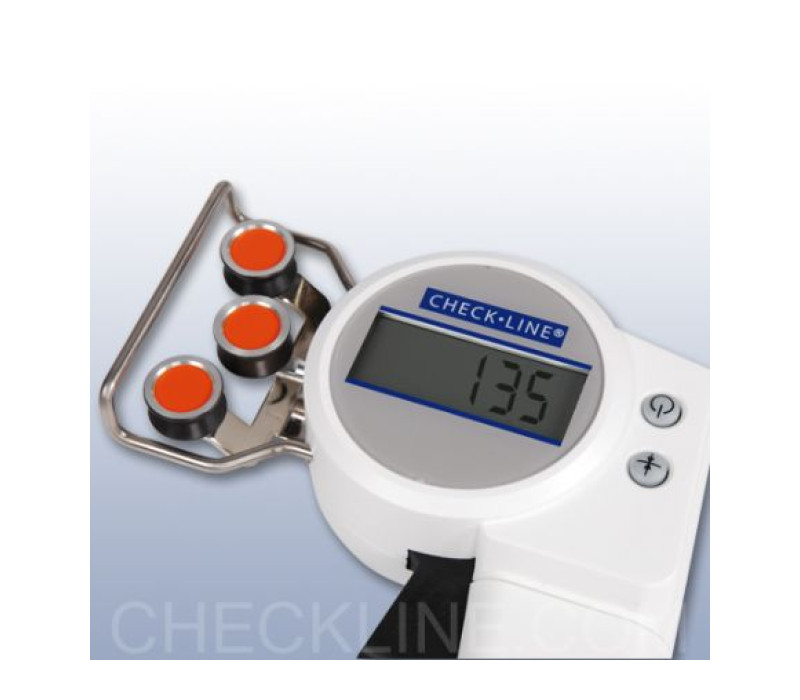

    • Backlit colour TFT display with numeric, live bargraph and time-tension graph views
    • Automatic display rotation in 90° steps and zero adjustment in each measuring position
    • Selectable measurement units: cN, g, N and lb
    • Storage of last reading, average, MIN, MAX and standard deviation per measuring interval
    • Adjustable electronic damping and visual MIN/MAX limit alarms
    • One factory calibration curve and memory for three customer-specific calibration curves
    • Built-in rechargeable LiPo battery providing approximately 25 hours of continuous operation
    • Optional guide roller configurations for line speeds up to 5000 m/min

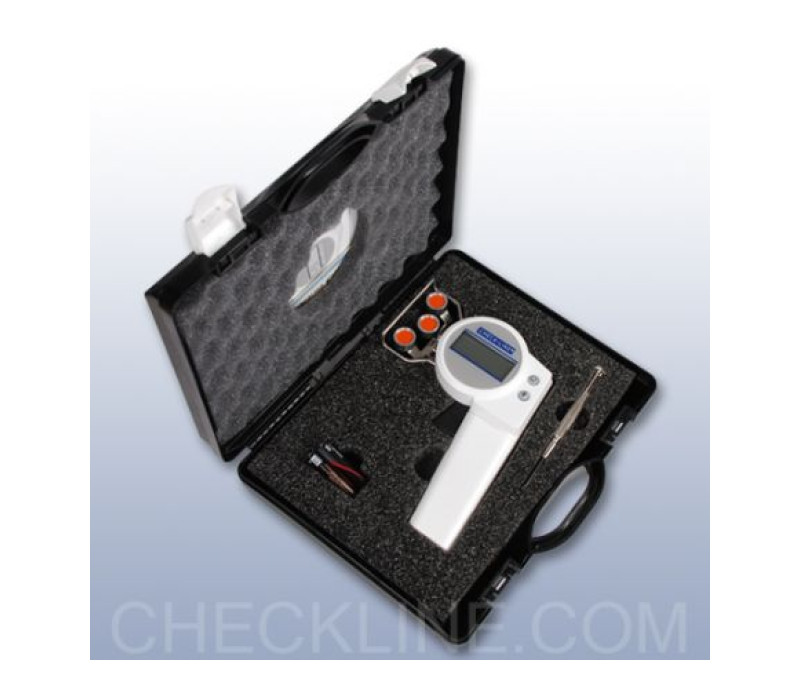

    Scope of delivery
    • ZED Digital Tension Meter with built-in rechargeable LiPo battery
    • Carrying case
    • USB AC adapter (100–240 V) with four interchangeable plug adapters (EU, USA, UK and AUS/NZ)
    • Certificate of Compliance 2.1 according to EN 10204
    • Instruction manual in English or German (as requested)

    An Inspection Certificate 3.1 according to EN 10204, including a calibration report, is available as an option.

    Measuring RangeZED-200: 1.0–200.0 cN
    ZED-500: 1–500 cN
    ResolutionZED-200: 0.1 cN
    ZED-500: 1 cN
    Accuracy±1% full scale ±1 digit (typically ±0.5% full scale)
    Measuring UnitscN, g, N, lb (selectable)
    CalibrationFactory calibration: PA monofilament, Ø 0.20 mm
    Memory: 1 factory calibration curve + 3 customer-specific curves
    Measuring Head63 mm filament guide width
    Guide roller groove diameter: 12 mm
    Overrange / Overload ProtectionOverrange: 10% full scale without accuracy guarantee
    Overload protection: 200% full scale
    Power SupplyBuilt-in rechargeable LiPo battery
    Approx. 25 h continuous operation
    Approx. 3.5 h charging time
    Operating Conditions10–45°C; max. 85% RH
    HousingPOM plastic; 157 × 130 × 33 mm (L × W × H)
    Approx. 200 g net weight

    ZED

    Refer to the drawing for the ZED dimensions. All dimensions are shown in millimetres.

    Tension Ranges

    Guide Rollers
    Roller CodeMaximum Line SpeedRoller Material

    Standard

    2000 m/min

    Hard-coated aluminium

    Code K

    3500 m/min

    Hard-coated aluminium

    Code H

    5000 m/min

    Plasma-coated aluminium

    Code T

    1000 m/min

    Black POM

    Code W

    1000 m/min

    Nickel-plated steel

    Code CE2

    1000 m/min

    Ceramic-coated aluminium

    When ordering a non-standard roller configuration, specify the model and roller code, for example ZED-500-K. Standard rollers require no additional code.

    Order Now

    Products
    Item Product
    133372ZED-200 Tension Meter Digital 1-200 cN
    132904ZED-500 Tension Meter Digital 1-500 cN

    All prices shown exclude VAT and shipping costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
